Lowest Price For IGBT Inverter High Frequency Heavy Duty Argon Tig Welding Machine 400A
- Category: >>>
- Supplier: Nanning Chuanjun Welding Hardware Co. Ltd.
Share on (60668283017):
Product Overview
Description

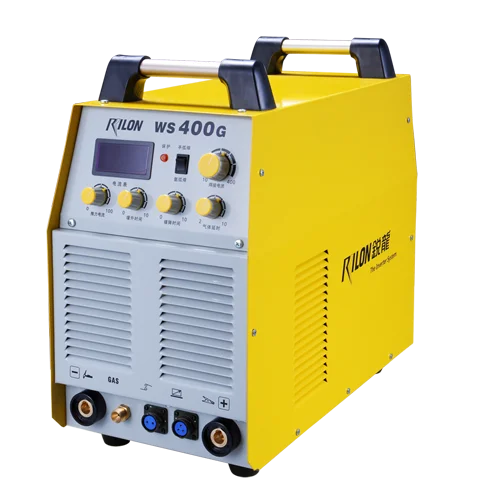

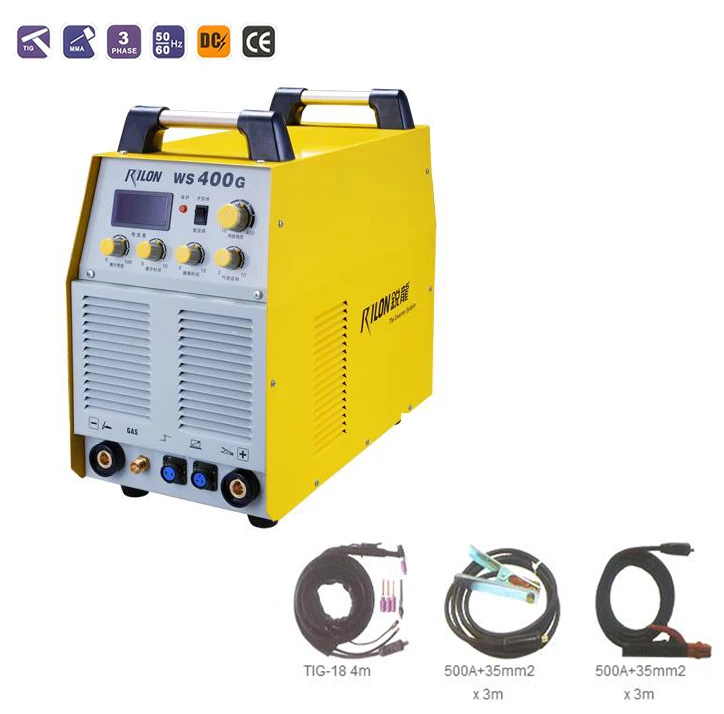

Lowest Price For IGBT Inverter High Frequency Heavy Duty Argon Tig Welding Machine 400A
Product Description
* Using a tungsten needle preheating, booster arc, arc current preset, the former gas regulation,
* Buffer valve and other technologies, in a variety of conditions can ensure reliable arc, tungsten without burning;
* Arc current, current rise time, current drop time, arc current can be arbitrarily set, to avoid the beginning of the welding and the end of the weld defects
* Especially for automatic welding;
* *Pulse peak current, base current, pulse frequency, pulse duty cycle adjustment function weld heat precise control design to help users get the ideal
* Beautiful weld;

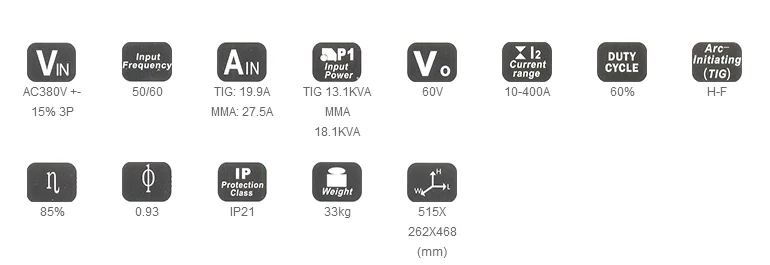

Specifications
| Model No. | WS-400G |
| Voltage(V) | Three phase 380V ±15% |
| Frequency(Hz) | 50-60 |
| Rated Input Power(KVA) | 13.1/18.2 |
| Current And Voltage Adjustment Scope(TIG/MMA, A/V) | 20/10.8~400/26 40/21.6~400/36 |
| 40℃60%Rated output Of Loading(TIG/MMA, A/V) | 400/26, 400/36 |
| 40℃100%Rated output Of Loading(TIG/MMA, A/V) | 310/22.4,310/32.4 |
| No-load Voltage(V) | 60 |
| No-Load Loss(W) | 100 |
| Arc method | High frequency arc |
| Power Factor | 0.93 |
| Efficiency(%) | 85 |
| Insulation Grade | F |
| Housing Protection Grade | IP21 |
| Weight(Kg) | 33 |
| (L*W*H)(mm) | 515*262*468 |
Packaging & Shipping
Company Information
Nanning ChuanJun Welding Hardware Co., Ltd. , founded in 2004, focus on welding equipment and accessory for more than 10 years. Our products are MMA, TIG welder, MAG/MIG welding machine, SAW welding machines, cutting machine, welding accessories, and welding materials.
