water inlet hose connectors for faucet, toilet and water heater
- Category: Plumbing Hoses >>>
- Supplier: Taizhou Sansiro Flex Co. Ltd.
Share on (60668397577):
Product Overview
Description
Hose Application
Faucet,Toilet,Water Heater,Boiler,Water Machine,Water Pump,Dishwasher,Ice-Maker,Washing Machine etc.
Product Description

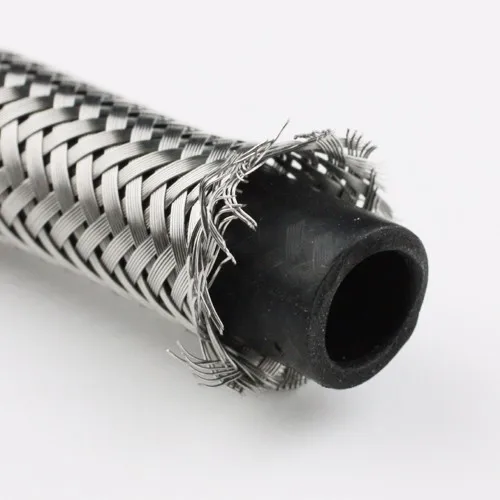

| Inside | Food Grade EPDM tube |
| Outside | 304 Stainless Steel Wires Braided |
| Female Nut 3/8" | Brass,Nickel-plated |
| Insert for 3/8 | Brass,Original Color |
| Female Nut 1/2" | Brass,Nickel-plated |
| Insert for 1/2" | Brass,Original Color |
| Male Connector 3/8" | Brass,Nickel-plated |
| Male Connector 1/2" | Brass,Nickel-plated |
| M10L10 short tips | Brass,Nickel-plated |
| M10L35 long tips | Brass,Nickel-plated |
| Washer/Gasket | EPDM same as inner tube |
| Sleeves | 304 Stainless Steel |
Our Advantages
Max working temperature: 90℃
Max working pressure: 16bar
Burst Pressure up to 13Mpa
Tensile Stress Resistance at 130Kgs
100% Air Testing at 0.6Mpa
DN (mm) | DIA (mm) | Length (CM) | Passage Hole (mm) | Bending Radius (mm) | Working Temperature (oC) | Working Pressure (Bar) | Flow Rate In 3 Bar (Lt/Min) |
6 | 10 | 30-100 | 4 | 25 | -5/+90 | 10 | 18 |
8 | 12 | 30-100 | 6 | 30 | -5/+90 | 10 | 32 |
9 | 13 | 30-100 | 7 | 40 | -5/+90 | 10 | 40 |
10 | 14 | 30-100 | 8 | 40 | -5/+90 | 10 | 48 |
13 | 17 | 30-100 | 10 | 50 | -5/+90 | 10 | 75 |

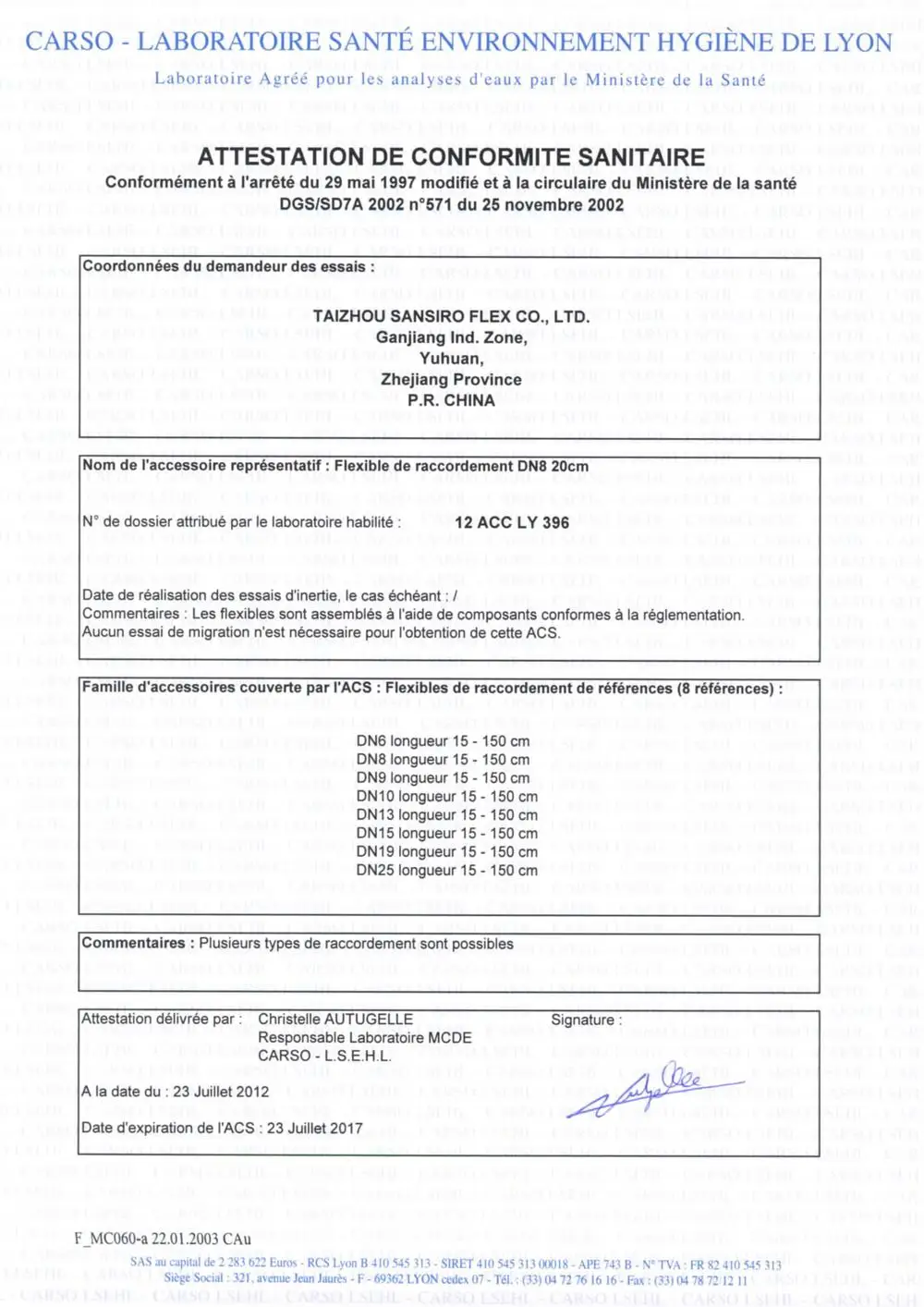

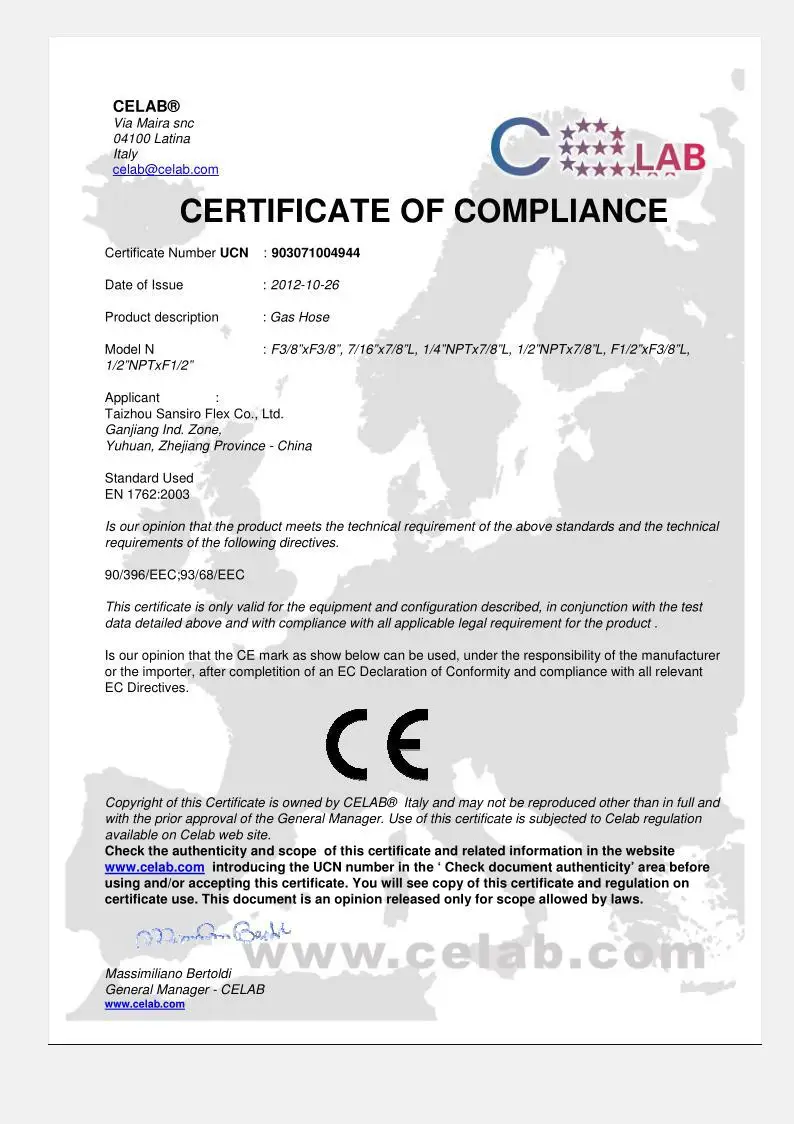

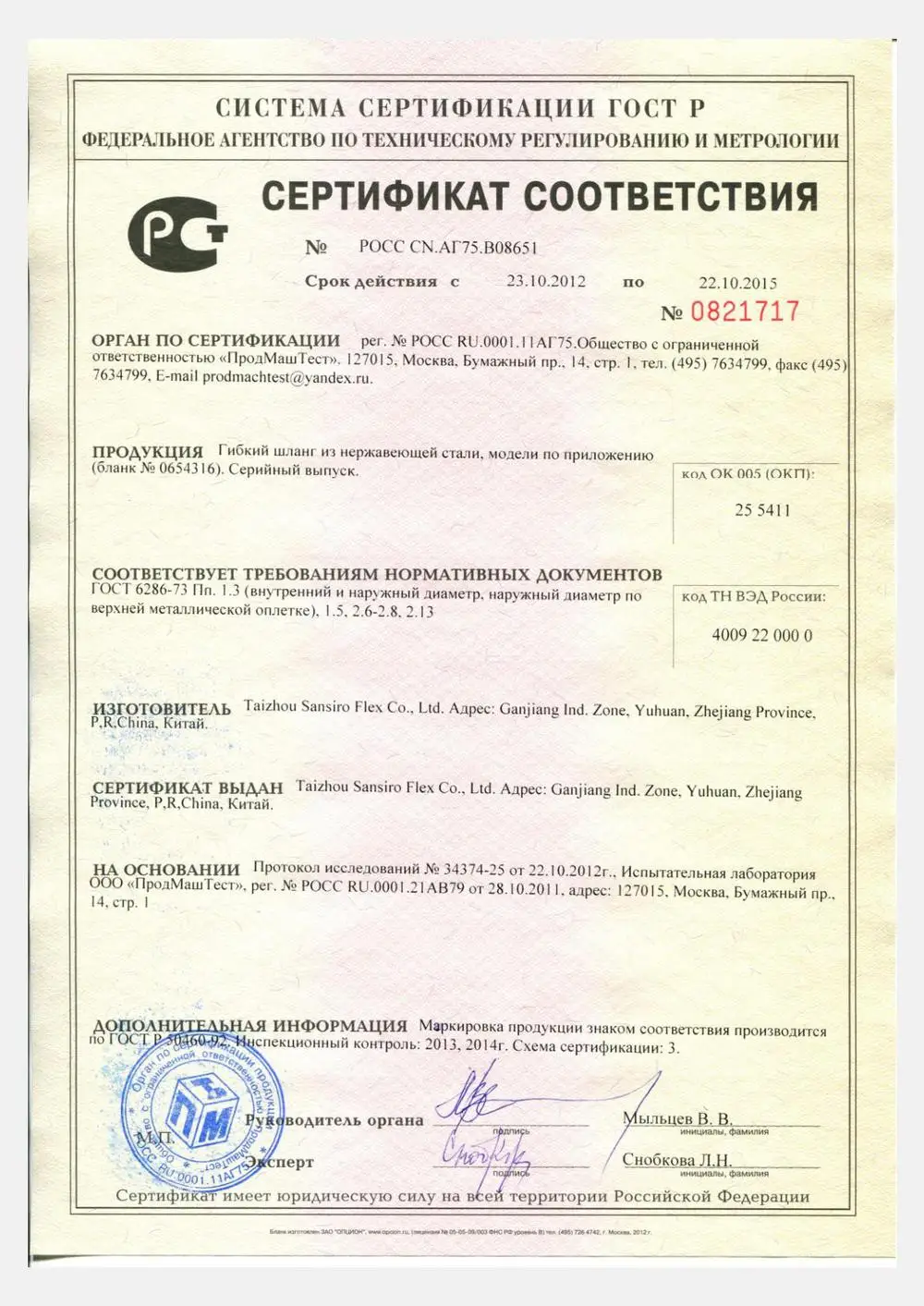

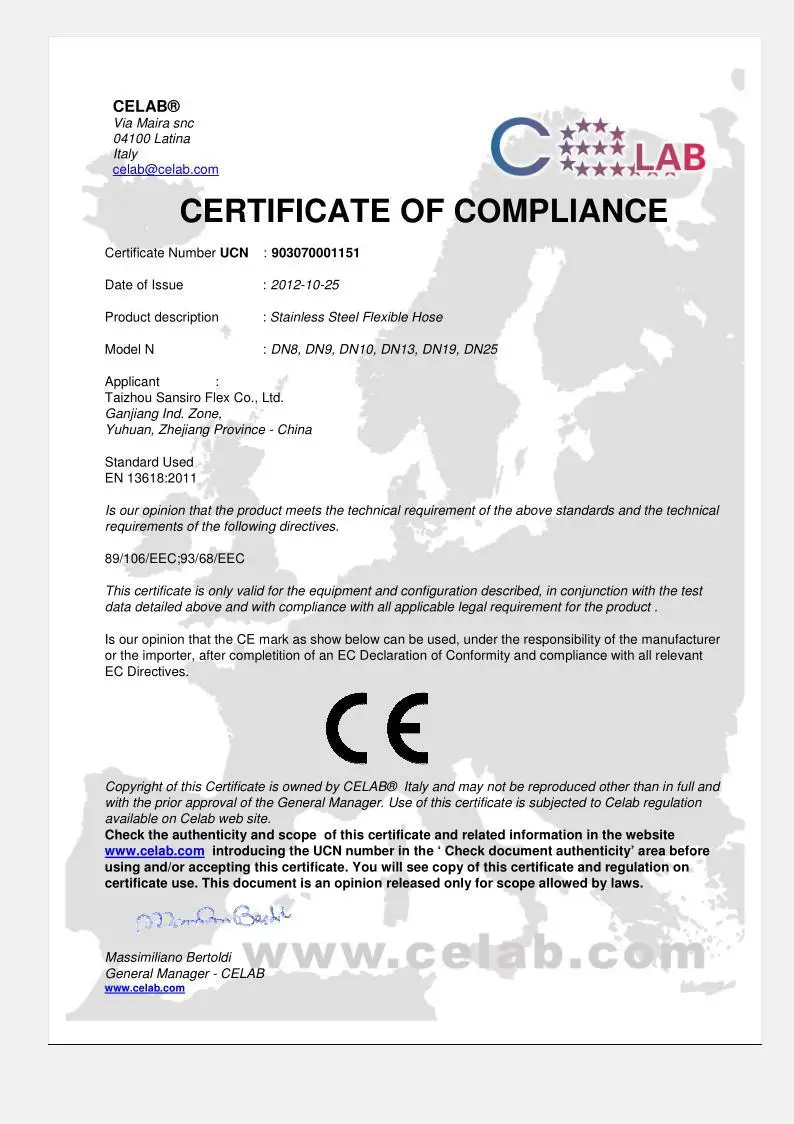

Certifications
Trade Shows
FAQ
M.O.Q:
1000 pieces each size and the total amount of each order is no less than 8000 US Dollar, otherwise you need to pay us extra export charges, which usually to be USD200/bill.
Payment Term:
TT 30% deposit and the balance paid against the copy of Bill of Lading;
Delivery Time:
35-40 days after deposit
Loading Port:
Ningbo or Shanghai port,China
Price Term:
EXW,FOB,CNF,CIF
Our Services
1- Put your Logo on our hoses or Packing
2- Customize the hose specially for you
3- Customize label and packing specially for you
Company Information
Taizhou Sansiro Flex Co.,Ltd. was established in 2006,specialized in manufacturing all kinds of braided flexible hose for water and gas applications to satisfy our global market and cover a wide range of applications. Sansiro is a dynamic, technologically advanced company. Our Main Products is Braided flexible Hose with rubber seals for water and gas applications,We make progressing continually in every aspect, that is able to anticipate market requirements and develop innovative solutions to meet changing needs. Investment in sophisticated production machinery ensures that every Sansiro product performs to it's full capacity and meets the customer's requirements in every detail. We especially welcome OEM production,custom rubber parts andrubber washers; we believe every effort is a step to success, so your new samples or drawing is appreciated by us. Quality is the watchword for our design and production departments and the key feature of our product range, which is produced to strict quality control standards. Sansiro's on-going growth and development is confirmation that our "Quality first,Customer first,Service first" management policy finds a welcome response in both national and international markets.
