  • 50X50mm Heavy Duty Mesh Size Fiberglass gritted Outdoor Drain Grate
50X50mm Heavy Duty Mesh Size Fiberglass gritted Outdoor Drain Grate
50X50mm Heavy Duty Mesh Size Fiberglass gritted Outdoor Drain Grate
50X50mm Heavy Duty Mesh Size Fiberglass gritted Outdoor Drain Grate
50X50mm Heavy Duty Mesh Size Fiberglass gritted Outdoor Drain Grate
50X50mm Heavy Duty Mesh Size Fiberglass gritted Outdoor Drain Grate
50X50mm Heavy Duty Mesh Size Fiberglass gritted Outdoor Drain Grate

50X50mm Heavy Duty Mesh Size Fiberglass gritted Outdoor Drain Grate

Share on (60668411570):


Price:RUB 1,533.51 - RUB 3,833.77

Quantity:


Product Overview

Description

Product Description

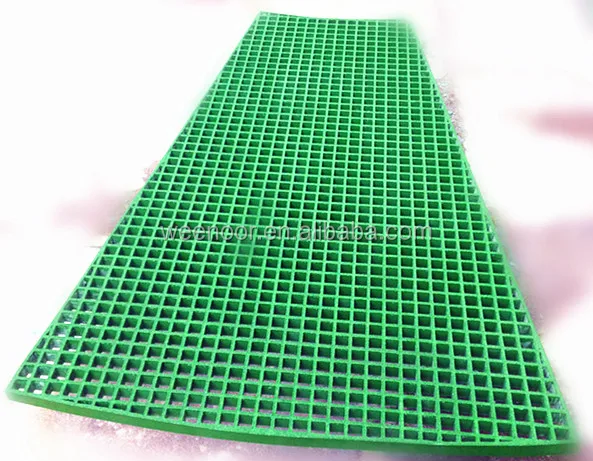

50X50mm Heavy Duty Mesh Size Fiberglass gritted Outdoor Drain Grate

The popularity of fibre reinforced polymer (FRP) grating is slowly gaining momentum as they offer numerous advantages over customary materials for use in platforms and walkways, particularly within harsh and corrosive environments.



FRP molded grating is made of vertical and horizontal continuous fiberglass fully soaked in unsaturated polyester resin giving perfect bi-directional mechanical properties. Combining the lasting non-slip properties, the resilience to corrosion and the proven long term cost advantages, molded gratings provide the ultimate in reliable performance.

Grating Type
Resin Type
Description
Grating Type
Application
Type V
Vinyl Ester
Superior Corrosion Resistance and Fire Retardant
110℃
Environment with serious corrosion issues
Type I
Isophthalic Polyester Resin
Industrial Grade Corrosion Resistance and Fire Retardant
105℃
Environment of middle concentration inorganic acid, alkali
Type O
Orthophthalic Polyester Resin
Moderate Corrosion Resistance and Fire Retardant
70℃
For use in waster,waster or air-ageing application,light industrial application where the environment is moderate
Type P
Phenolic Resin
Low smoke and superior Fire Retardant
180℃
Offshore and subway application where fire resistance, low smoke and low toxic fumes are critical

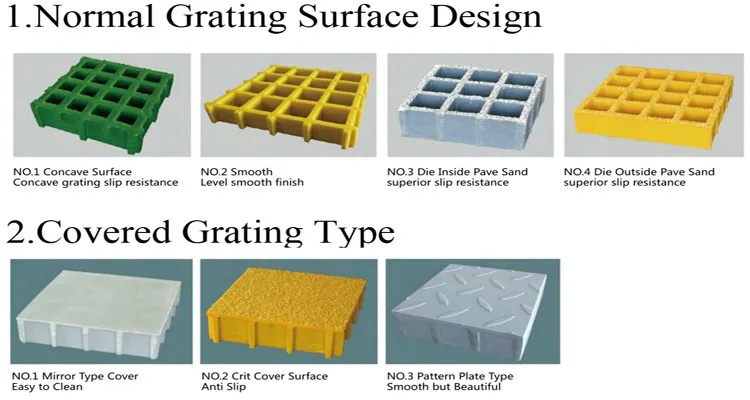

Surface Type

We offer you sevsral kinds of surface type to choose, you will find the one you need as following.

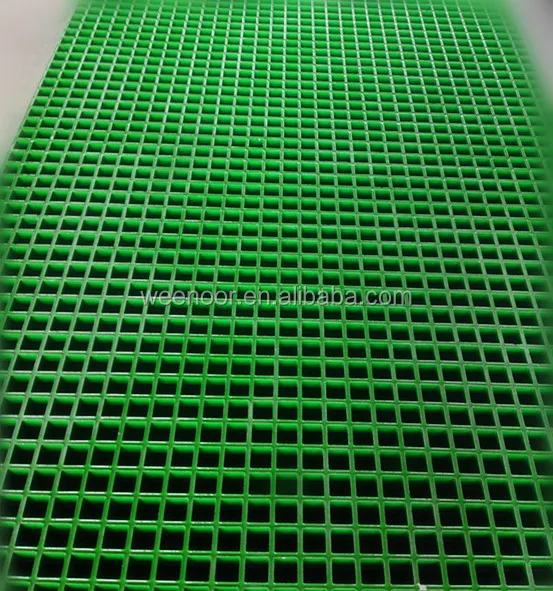

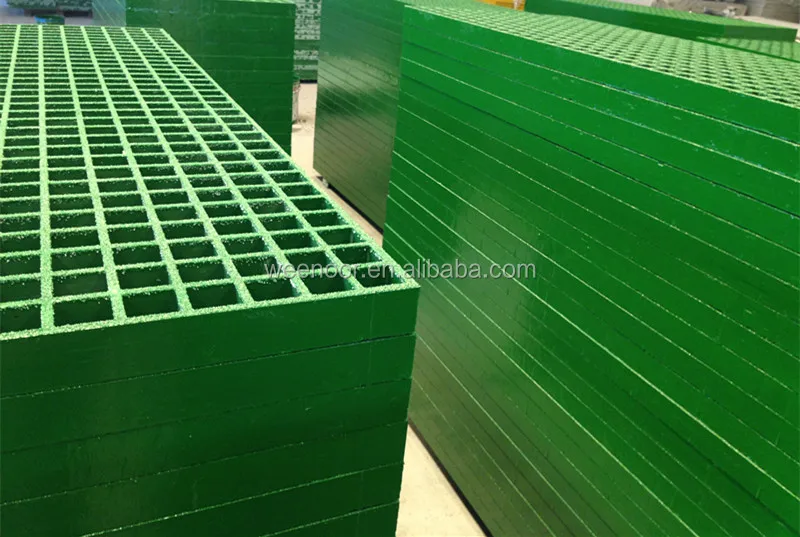

Detailed Images

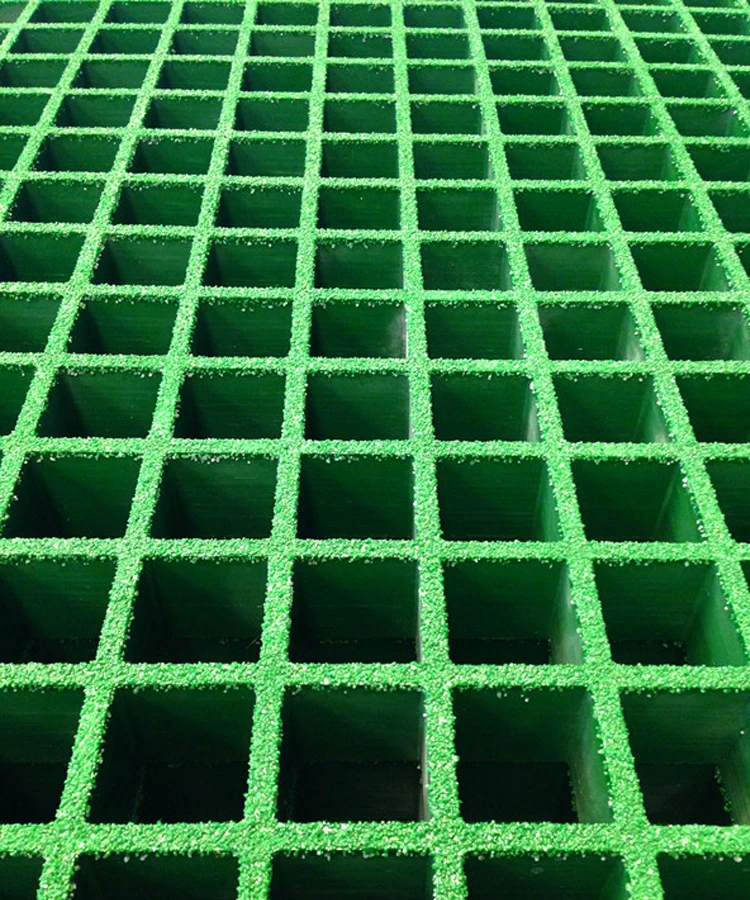

mesh sizes

there are many kinds of mesh size for you to chose, you can tell us the one you needed following.

Item
Thickness
Mesh Size
Bar Thickness
Panel Size
Weight
Open Area
1
25
38x38
7/5
1220x3660
12.49
68
2
25
40x40
7/5
1247x4047
12.2
67
3
30
38x38
7/5
1220x3660
14.9
68
4
30
40x40
7/5
1007x4007
14.2
67
5
38
38x38
7/5
1220x3660
19.1
68
6
40
40x40
7/5
1247x4047
19.4
67
7
50
50x50
7/5
1525x4025
21.5
78
8
30
40x40(20x20)
7/5
1007x4047
18.8
42
9
40
40x40(20x20)
7/5
1007x4047
23.78
42
10
30
38x38(19x19)
7/5
1220x3660
18.8
42
11
38
38x38(19x19)
7/5
1220x3660
23.6
42



WHY CHOOSE US

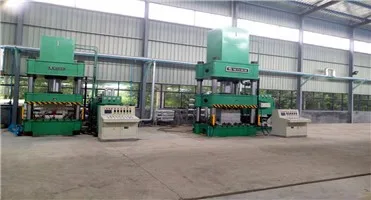

Tidy Pultrusion Line

to make sure high quality goods

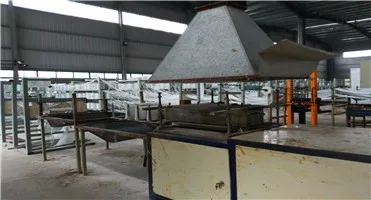

Dust Removal Equipment

controlling pollution and protecting worker safety

Cupping Machine.

help you to choose the right one by mechanical analysis.

Our Lab

Many simple tests can be done in our lab such as loading tests, surface hardness, thermal deformation and so on.

Typical Project


FRP decorative cover grating in building

Handrail system in power plant

FRP sandwich plate used as cover and wall for Wastewater treatment plant

FRP sandwich plate roof

Three rail FRP protection cover

Phenolic pultrusion subway evacuation platform

PRODUCT PACKING
FAQ

1. Samples:

Free samll sample will be sent if you pay express fee.

2. About purchase of security:

Weenoor is the Assurance Supplier on alibaba which has joined in Trade Assurance System, The delivery time and

quality is guaranteed.

3. About FRP grating payment:

A: Small funds (Lower than 5000USD), 100%TT deposit;

B: 30%TT as deposit, 70% balance to be paid against copy of B/L;

4. About FRP grating Receiving:

When pick up the goods, please confirm the quantity, if do not conform to the requirements of the order, please contact with us immediately.
