Magnifier For Dentist Orthopedic Medical Ophthalmic Operating Ent Operation Microscope

Features

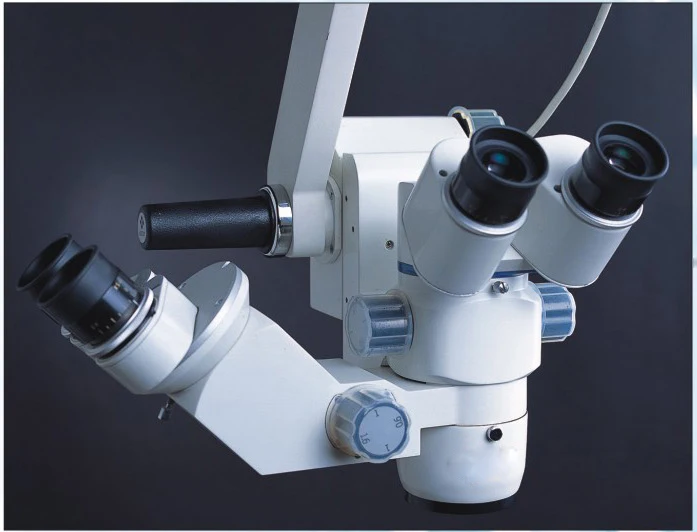

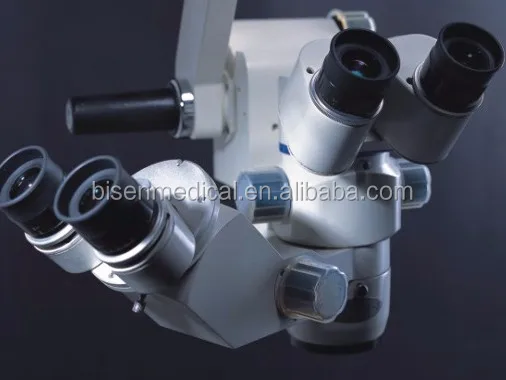

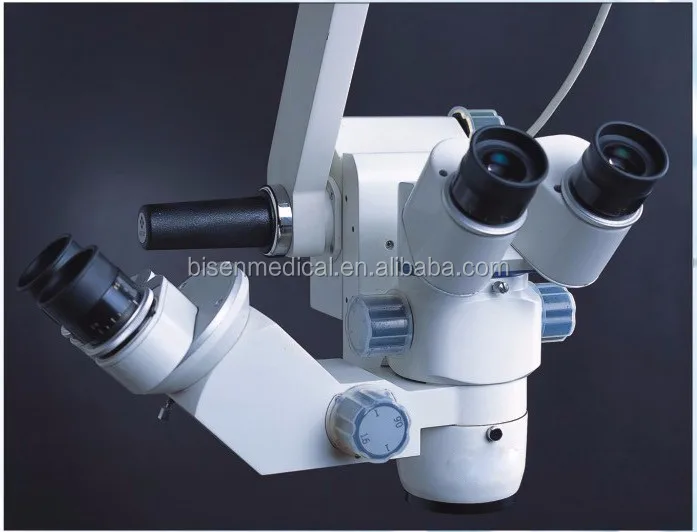

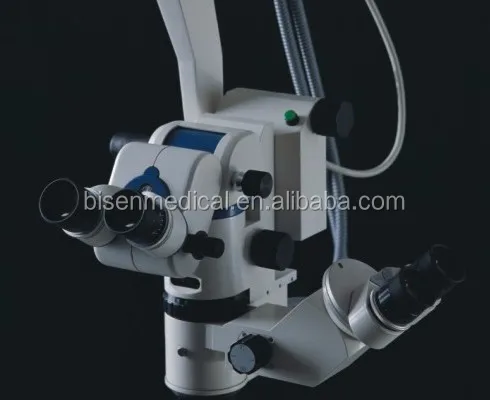

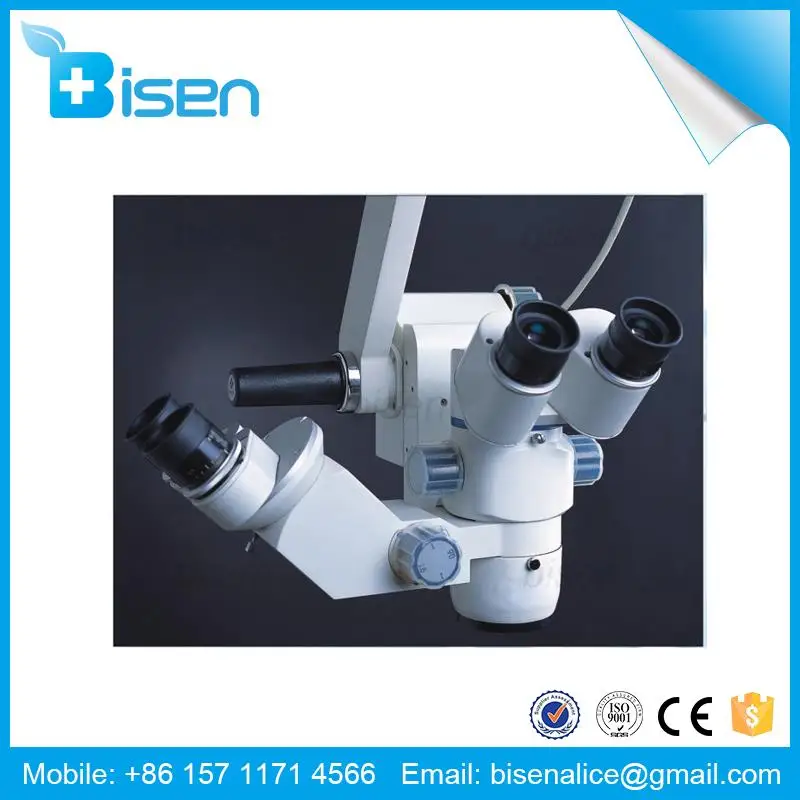

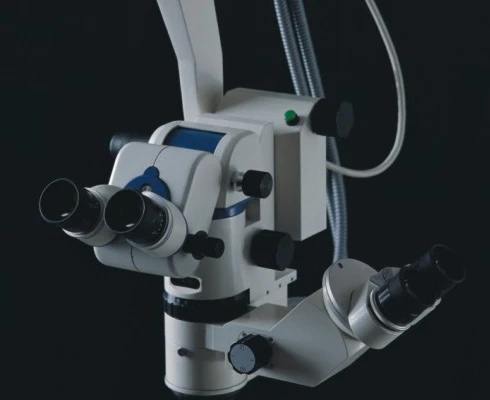

It have a X-Y translation machine on the cantilever, so the head of the operation microscope can move left, right, forward and back. The optics system is a copy of BS-4A.BS-4B operation microscope can be used in orthopedics, plastic, hand surgery and ophthalmology surgery.

Specification

Eyepieces:

magnification 12.5x, pupil distance adjustable range 55mm~75mm, diopter adjustment range +6D ~ -6D. Focus of second object lens 125mm.

Binocular tube:

high brightness 45°binocular tube

Magnification

manual 3-step changer, total magnification 6x,10x,16x; field of view Φ34mm,Φ20mm,Φ13mm

Coaxial assistant's binocular tube

manual 3-step changer, total magnification 6x,10x,16x; field of view Φ34mm,Φ20mm,Φ13mm

Coaxial illumination

illumination diameter of light spot Φ50mm, illumination intensity 60000lux

Objectives

f200mm(175mm, 250mm etc )

Focusing

motorized, range +/-25mm, speed 33s/whole distance

X-Y translator

move in X-Y direction motorised, range +/-30mm

Maximum length of arm

1100mm

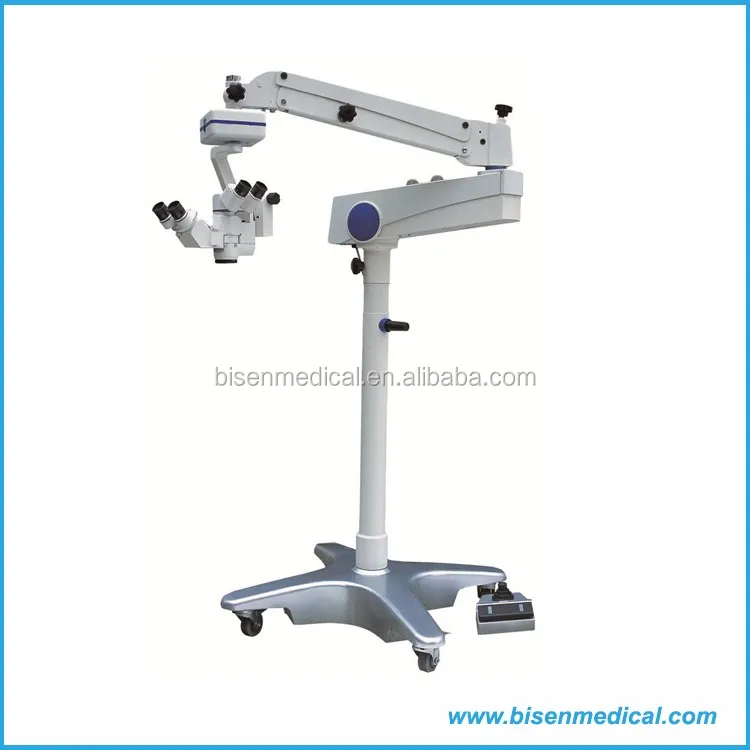

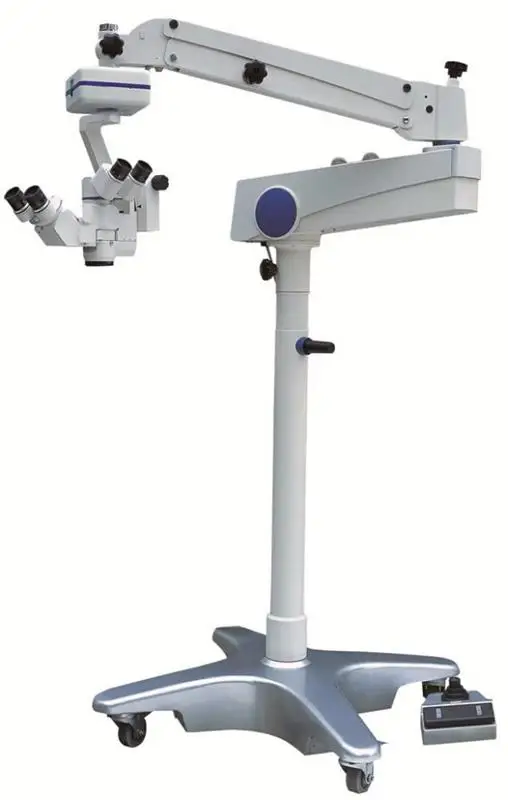

New stand

swing angle of the carrier arm 0 ~300°,height from objective to floor 800mm

Foot switch

waterproof, 6 function steps

Weight

115kg
