High Speed Straight PP Plastic Drinking Straw Extruder/Making Machine
- Category: >>>
- Supplier: Zhangjiagang MC Machinery Co. Ltd.
Share on (60668441453):
Product Overview
Description
Product Description
Product Description
High Speed Straight PP Plastic Drinking Straw Extruder/Making Machine is special used for producing one color,double color,three color drinking straw with diameter 1mm-14mm.
This machine using polypropylene as raw material, with the use of masterbatch, after melting, extrusion, shaping, cooling, pulling, cutting, then produce transparent, one color, two color and three color drink straws. It is composed of main body, tooling, cooling system, cutting machine, with a variety of models such as single color extrusion line, two color and two color co-extrusion line, three color extrusion line, etc.
Application:
Producing Drinking straws, Lollipop sticks, Coffee stirring stick, ball-pen tube, Cotton swab sticks, brake tube, medical tube and all kinds of toy tubes.
Main Machine Flow Chart:

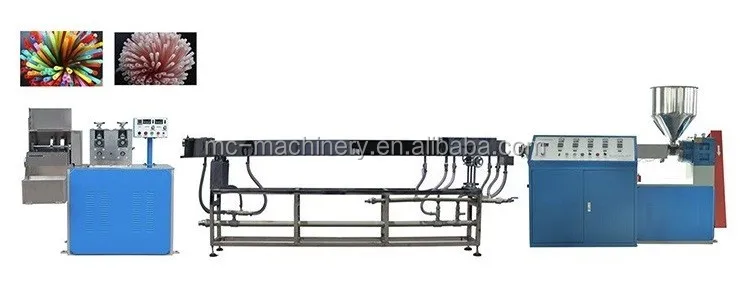

SJ30 Single screw extruder (one color,two color,three color)---Straw Mold head---Vacuum calibration and water cooling tank---Traction and Cutting machine
No. | Machine Name | Quantity |

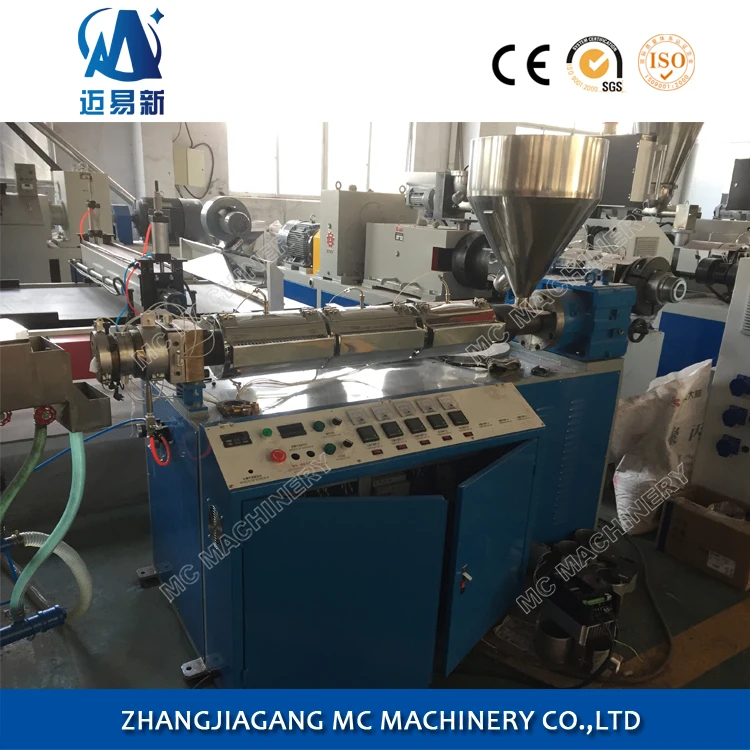

1 | SJ serious Single Screw Extruder (one color,two color,three color) | 1 set |

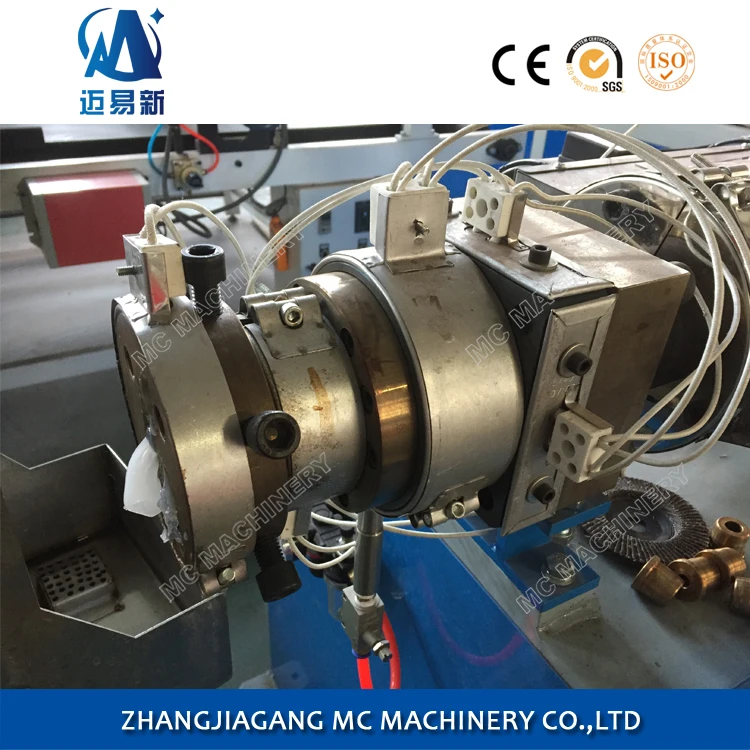

2 | Straw Mold head | 1 set |

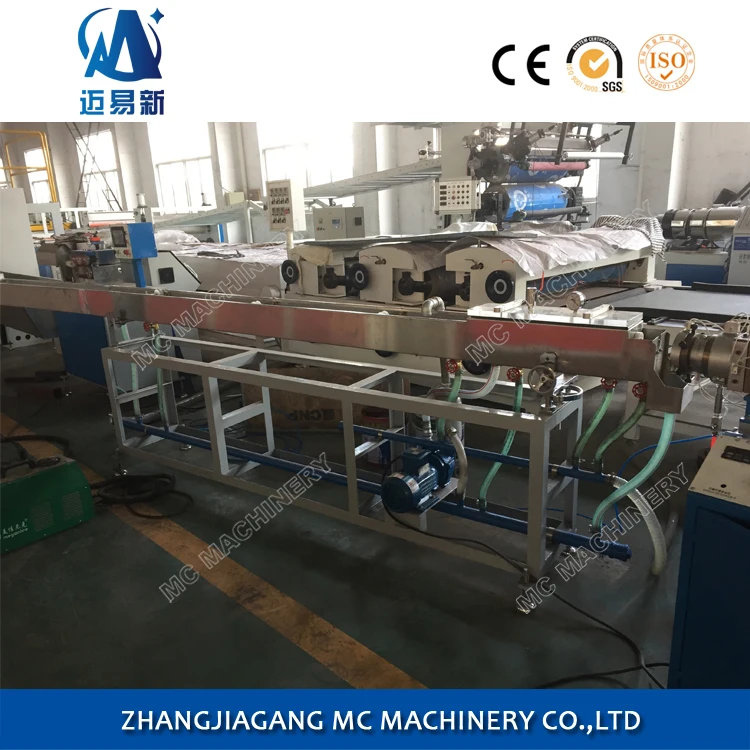

3 | Vacuum calibration and water cooling tank | 1 set |

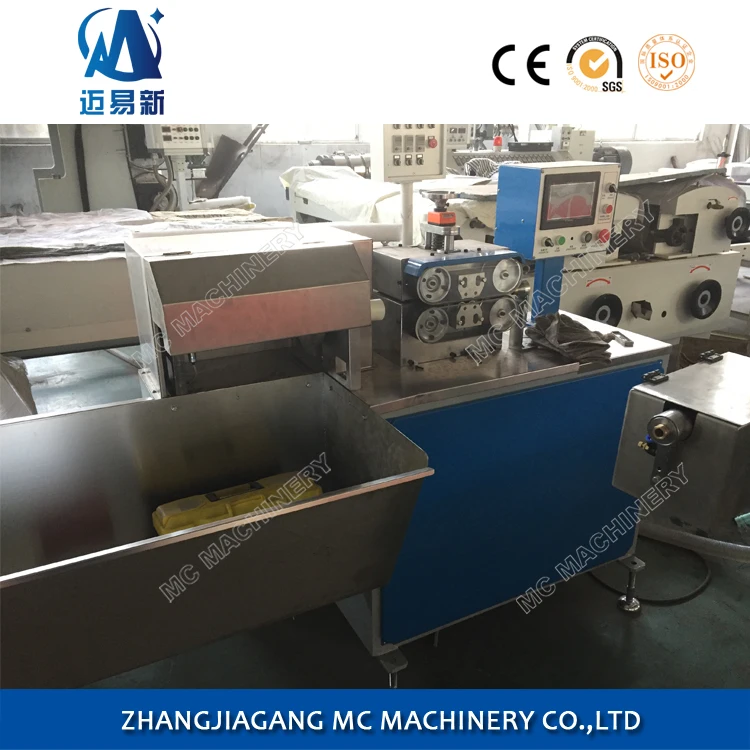

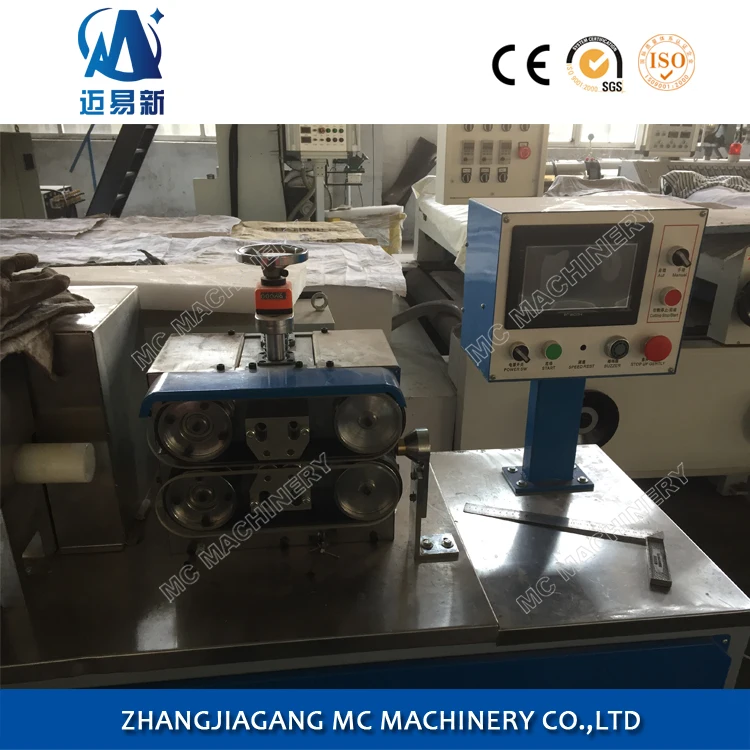

4 | Traction and Cutting machine | 1 set |
Main Features
1) Straw head cutting form: Diversified cut-end: 90° /90° , 90° /45° , 90° /60° , 45° /45° , 60° /60°
2) Screw and barrel are bought from Zhoushan,38CrMoVAlA with good nitriding treatment,good quality and long lifetime.
3) Gearbox adapt rigid teeth face reducer,RUIDESENG China famous brand.
4) Extruder feeding hopper,water cooling tank are all made by #304 stainless steel.
5) Motor adapt Siemens brand,ABB brand frequency inverter,Schneider electric contactor.
Technical Date
Driving motor | 1) Main motor:7.5-11kw,speed control by frequency inverter 2) Traction and cutting device :0.75kwX2 | ||
Drinking straws:60,000pcs/h | |||
Cotton swab sticks:50,000 pcs/h | |||
Ballpen refills:3,000 pcs/h | |||
Raw material | PP,PE | ||
Straw specifications | Diameter | 2mm-13mm | |
Length tolerance | ±0.1-1mm | ||
Cutting and traction device | control by double frequency inverter | 0.75kw×2 | |
Main Screw | Main Screw: diameter 50 mm Length/Diameter: 28/1 | ||
Complete line size | 10m*1m*1.7m | ||
Complete line weight | 1000kg | ||

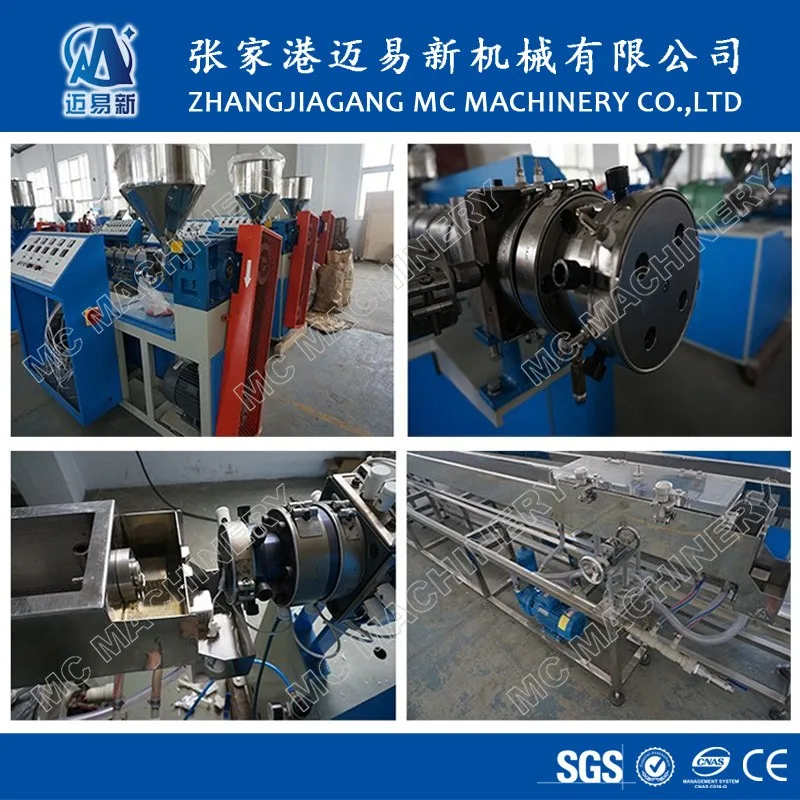

Detailed Images
Our Service
Pre-Sales Service
* Professional advice for Inquiry and technical support.
* supply the details layout, installation instruction, technician support for the clients
* View our Factory,sales manager accompany.
* 24 hours English support.
* Trade assurance service,third part guarantee machine quality,quantity,delivery time from payment to delivery.
After-Sales Service
* We arrange engineer to install the machinery and training the workers for client abroad if clients required.
* We have 24 hours team to solve problems after sales.
* We have free spare parts with the right machine during warranty time.
* We supply whole machine lifetime spare parts for every customer with low cost after warranty time.
* We always update the new technology to every customer.
Packing & Delivery
Related Products
Plastic Straw Bending Machine
Plastic Straw Packing Machine
Lollipop sticks Making Extruder
Two color straw Extruder Machine
Three color straw making machine
Waste Plastic Crushing Machine
Our Company
FAQ
1.How about the quality of your product?
Marksim:
1)Our products manufactured strictly according to national and international standard
2)We have CE ,ISO,BV,SGS certification
3)We take testing on every product before delivery.
4)Our quality supervision department oversees the whole process during manufacturing and machine testing before machine made
shippment.
2.What is the MOQ?
2)We have CE ,ISO,BV,SGS certification
3)We take testing on every product before delivery.
4)Our quality supervision department oversees the whole process during manufacturing and machine testing before machine made
shippment.
2.What is the MOQ?
Marksim:1 set.
3.If you can make machine custom-made?
Marksim:Yes,we can make products special design according to customer's requirements.
4.What is the machine voltage?
Marksim:Normally 380V,50hz,3 phase.But we can change it according to customer's requirement, like 220V,240V,415V,440V,600V and so on.
5.What is this machine guarantee time?
Marksim:1 year
6.When the machine can be deliveried?
3.If you can make machine custom-made?
Marksim:Yes,we can make products special design according to customer's requirements.
4.What is the machine voltage?
Marksim:Normally 380V,50hz,3 phase.But we can change it according to customer's requirement, like 220V,240V,415V,440V,600V and so on.
5.What is this machine guarantee time?
Marksim:1 year
6.When the machine can be deliveried?
Marksim:Normally 30 working days.
7.We want to visiting your factory first before order,if it is avaliable?
7.We want to visiting your factory first before order,if it is avaliable?
Marksim:Yes,welcome to visit our factory any time,our factory normally have ready machines in stock,you can see real machine by your eyes and it will be the best for you to know our machine and our company.
8.If we finally buy your machine,you can send engineers to our country and help installation and training our workers?
Marksim:Yes,of course,if you needed,we will send engineer to your country to your factory to help installation and training your workers,but you have to bear our engineer's flight charge around,take responsibility of engineer's food and hotel during his visiting and pay salary USD100 per day for one person.
9.I’m a foreign customer,if the machine some part is broken one day,how can we get help from you?
8.If we finally buy your machine,you can send engineers to our country and help installation and training our workers?
Marksim:Yes,of course,if you needed,we will send engineer to your country to your factory to help installation and training your workers,but you have to bear our engineer's flight charge around,take responsibility of engineer's food and hotel during his visiting and pay salary USD100 per day for one person.
9.I’m a foreign customer,if the machine some part is broken one day,how can we get help from you?
Marksim:If the machine part is broken,during warranty we will sending spare parts to you without any charge and help you make it change to new by phone or whatsapp or video.If out of warranty,we will also provide you spare part but with raw material cost,and we also will help you change to new instead of broken part.We provide spare parts and technical service whole machine lifetime.
If you have interests in our machine,please do not hesitate to send us an inquiry!
