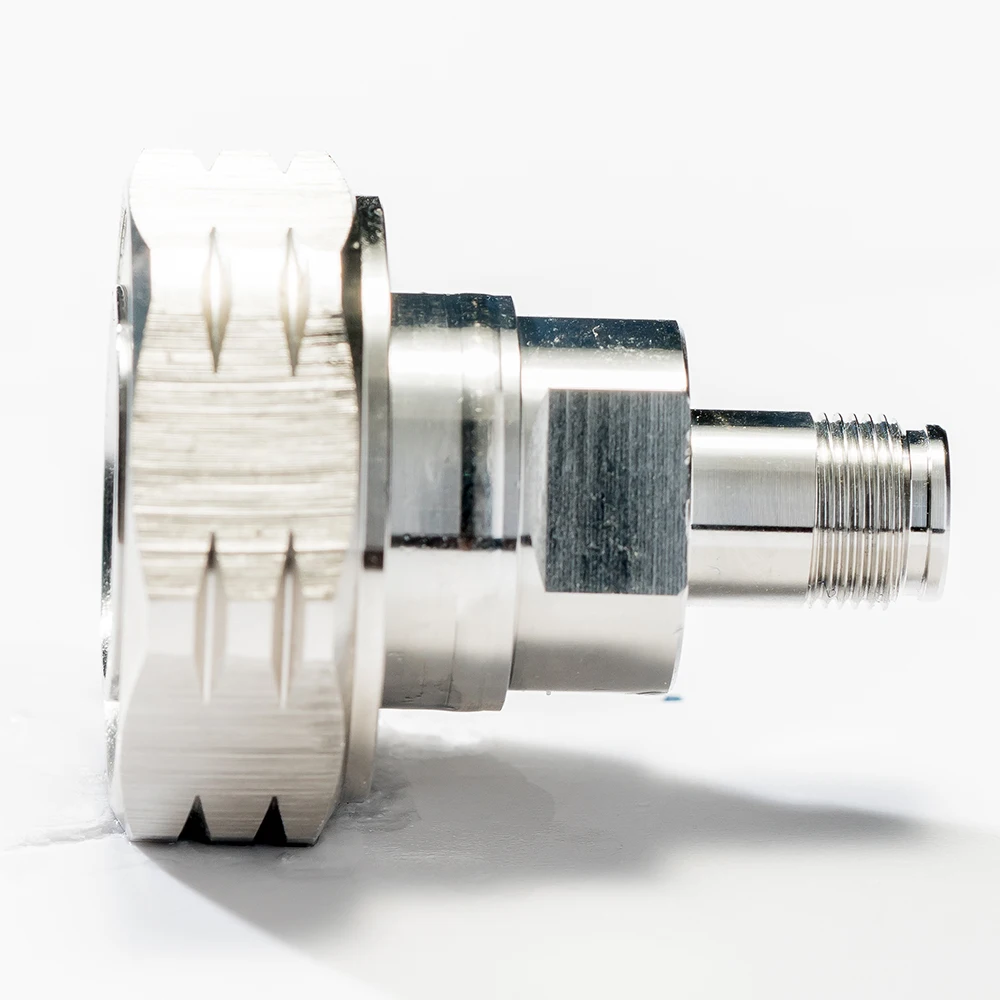

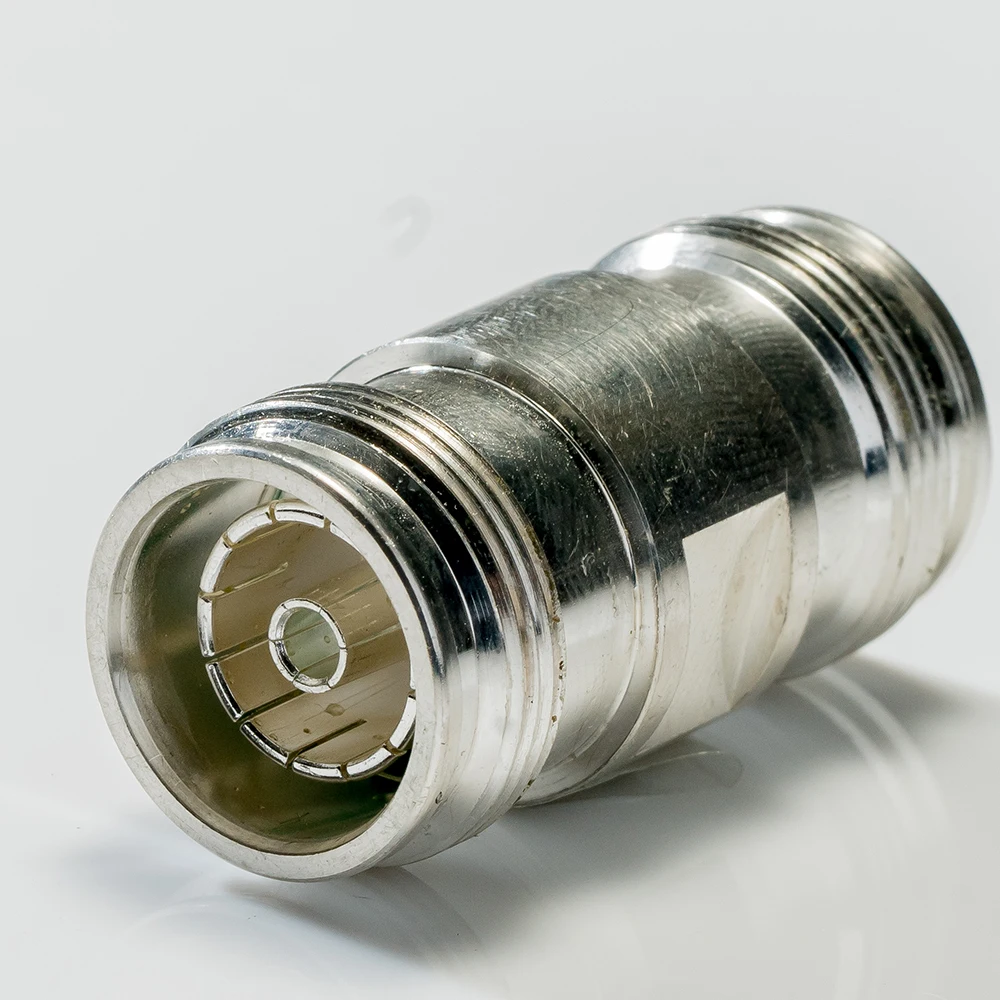

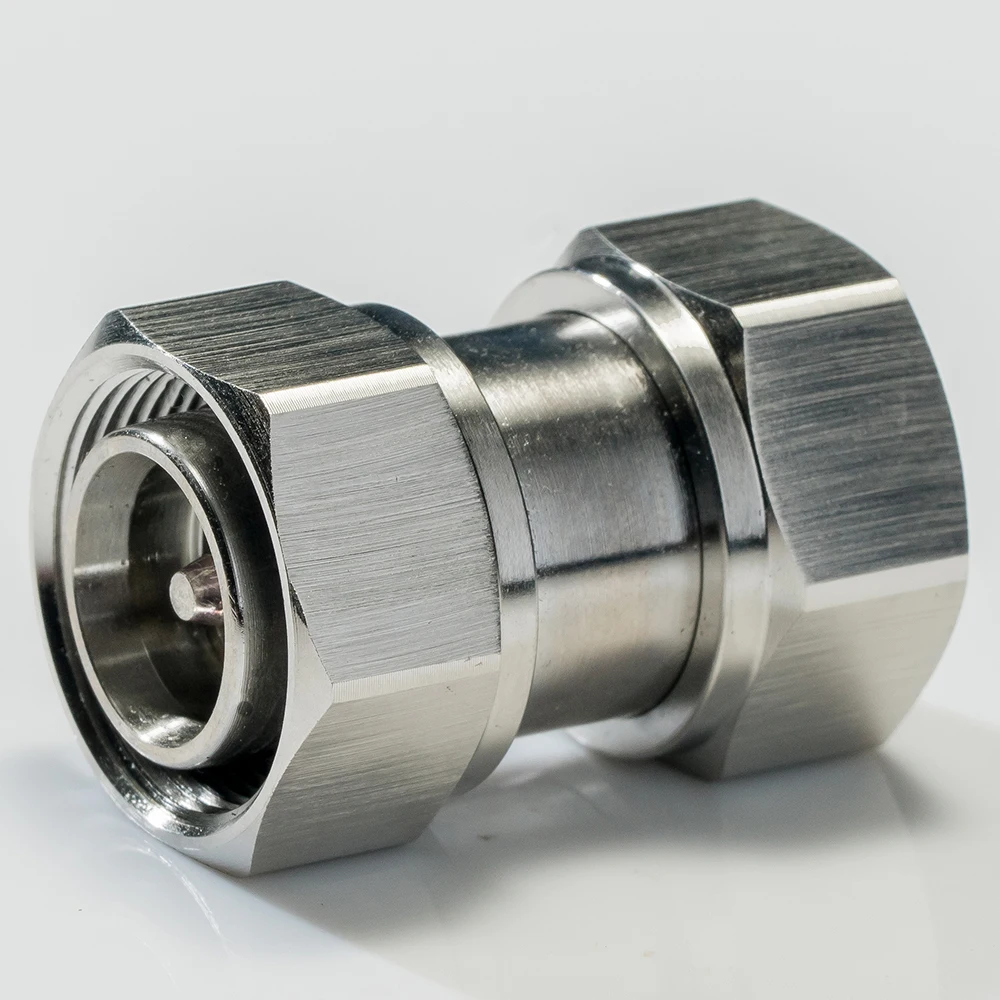

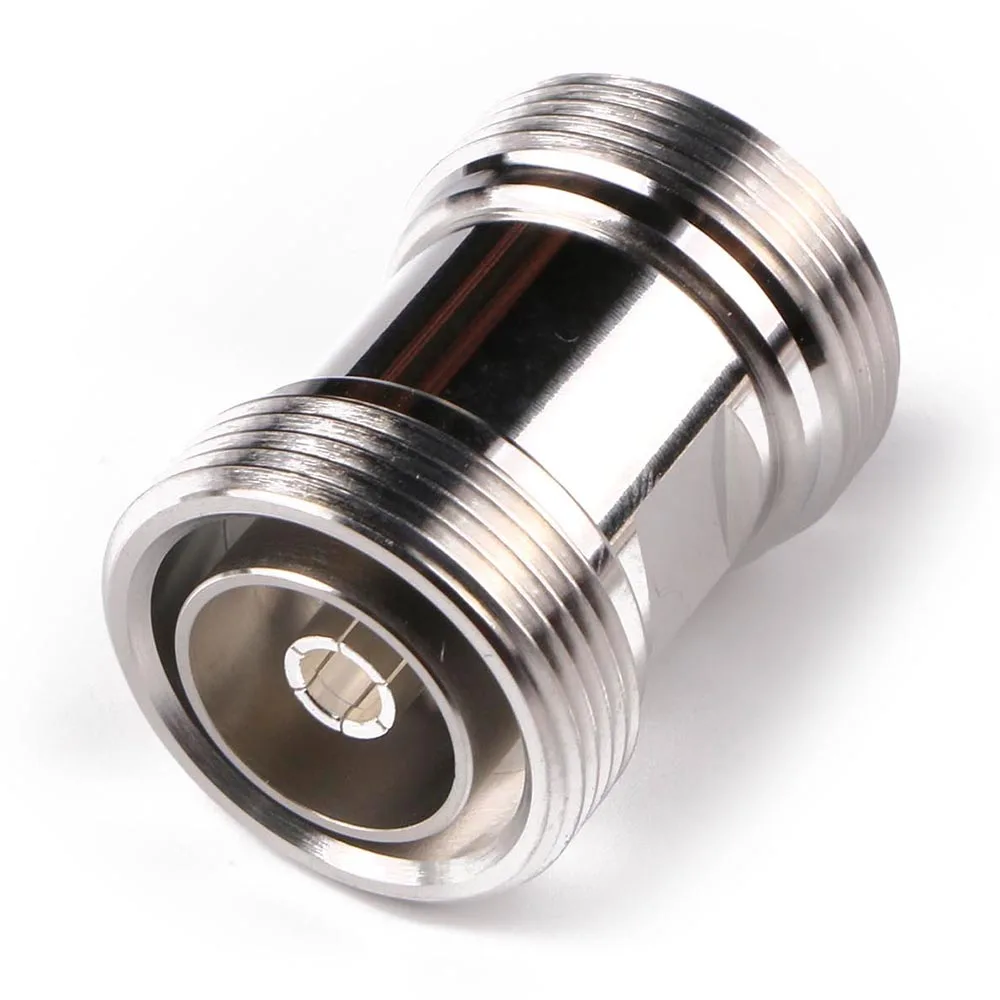

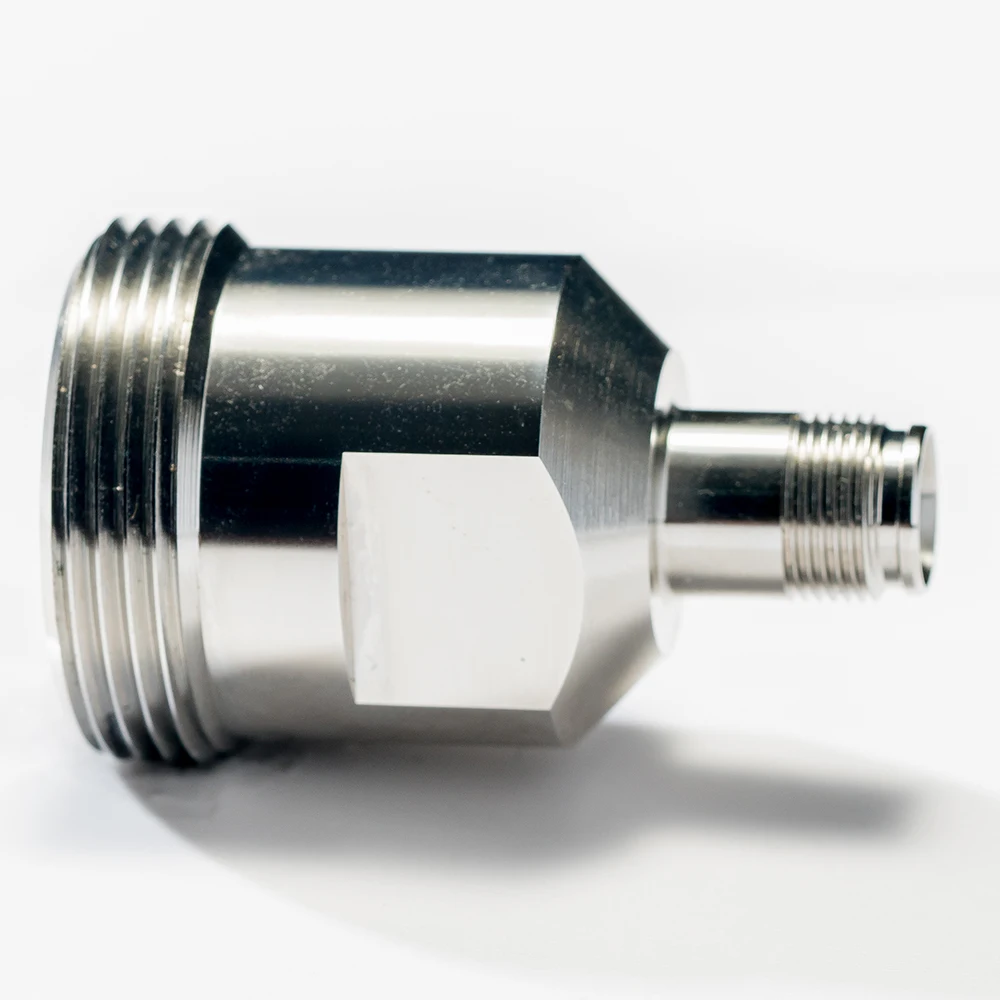

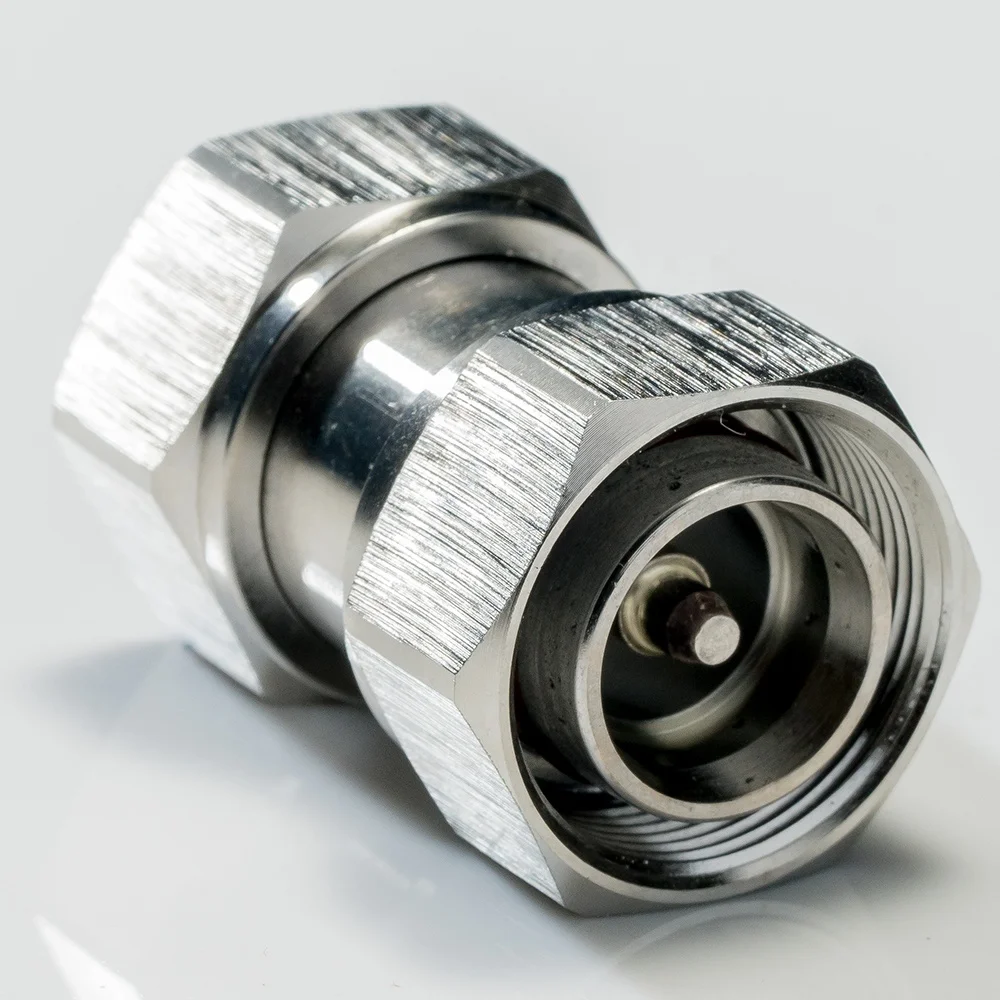

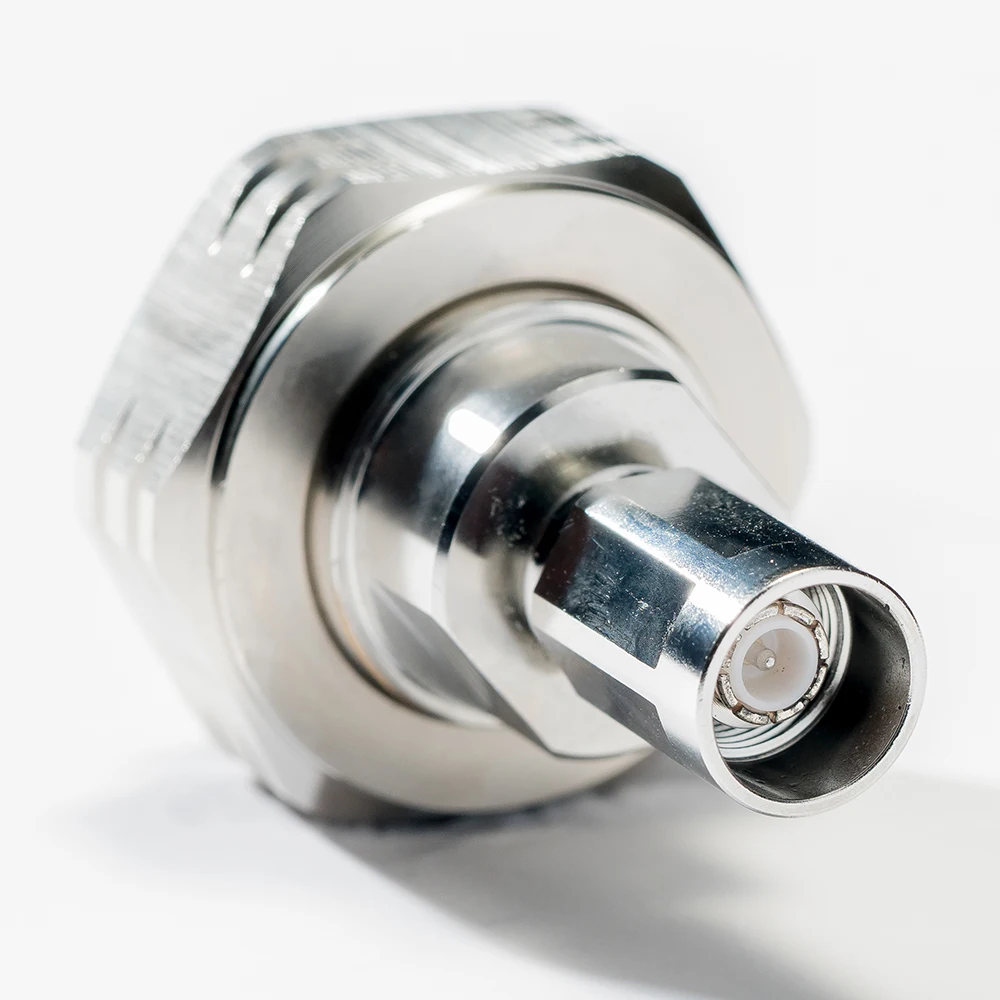

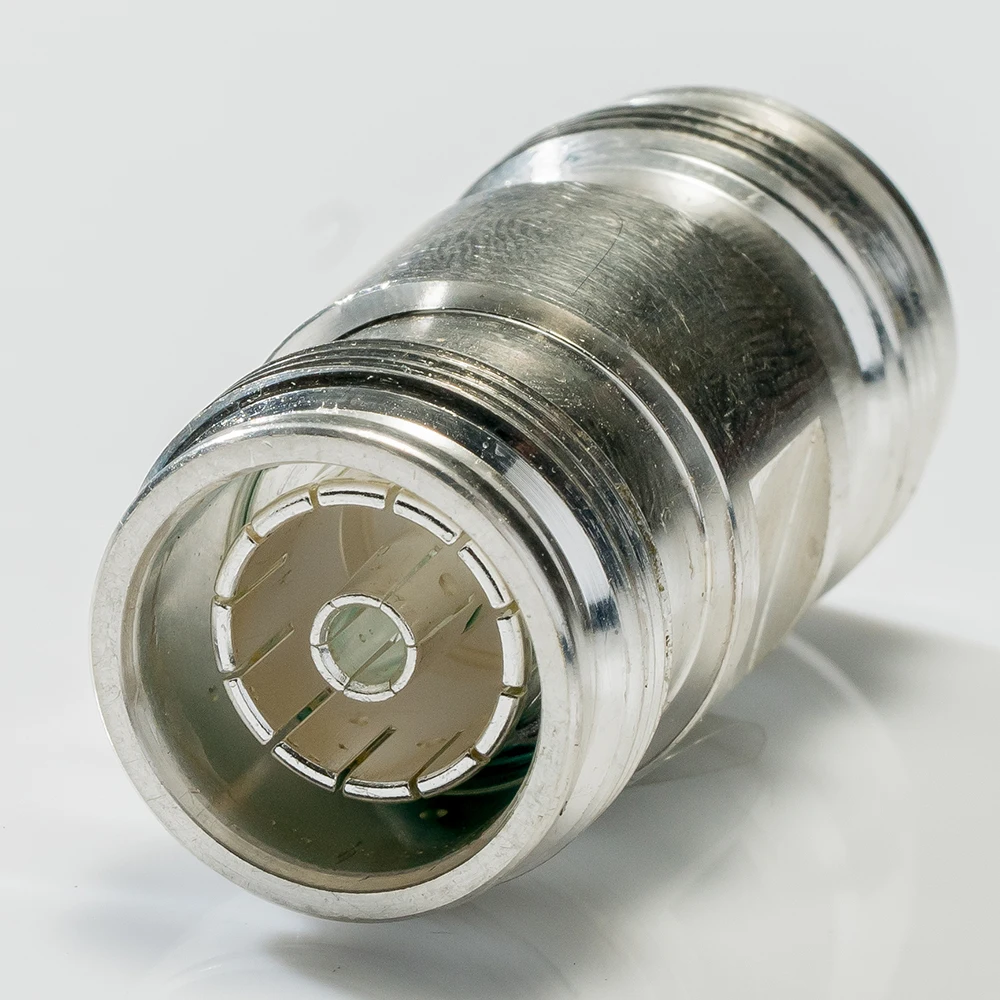

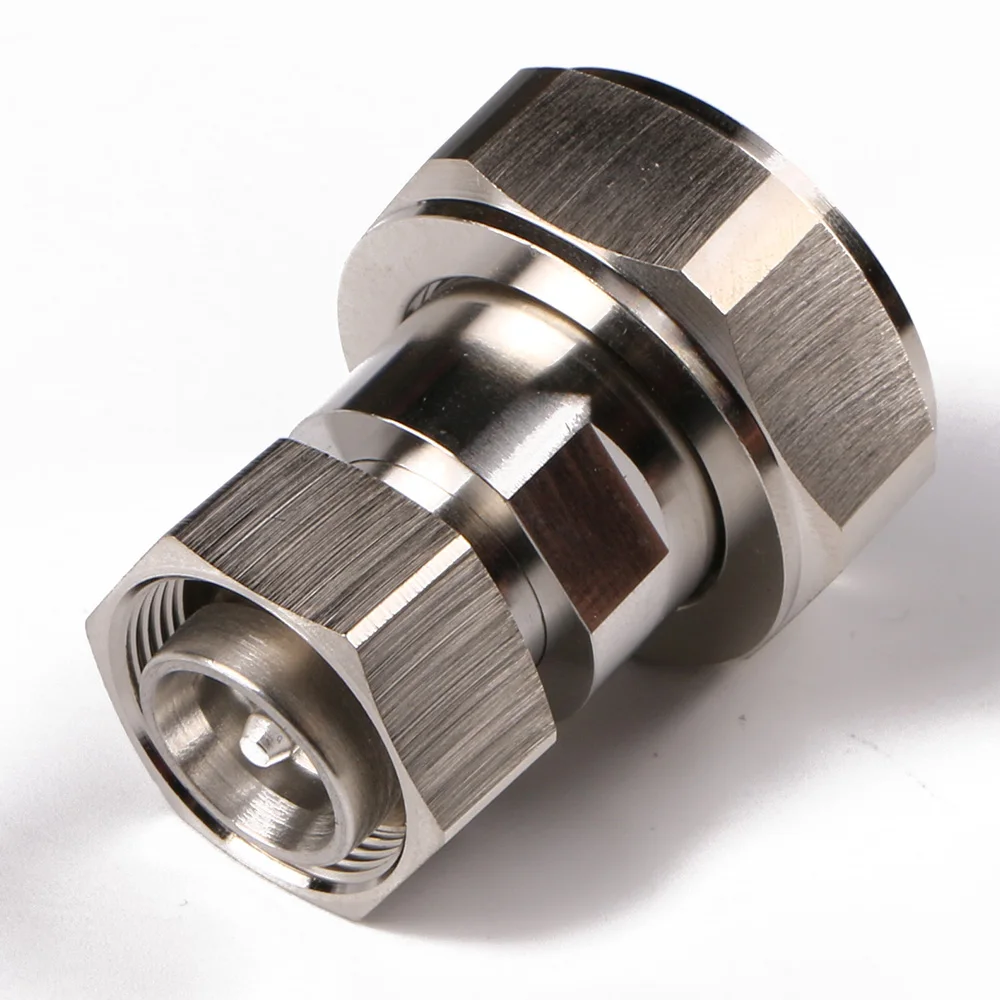

RF adapter 4.3 10 MINI DIN male connector adapter for RF Wireless communication Testing
- Category: >>>
- Supplier: Raynool Technology Co. Ltd.
Share on (60668444061):
Product Overview
Description
Product Description
NEX10 to DIN Series
NEX10 to 4.3-10 Series
NEX10 to N Series
4.3-10 to DIN Series
4.3-10 to N Series
N to DIN Series

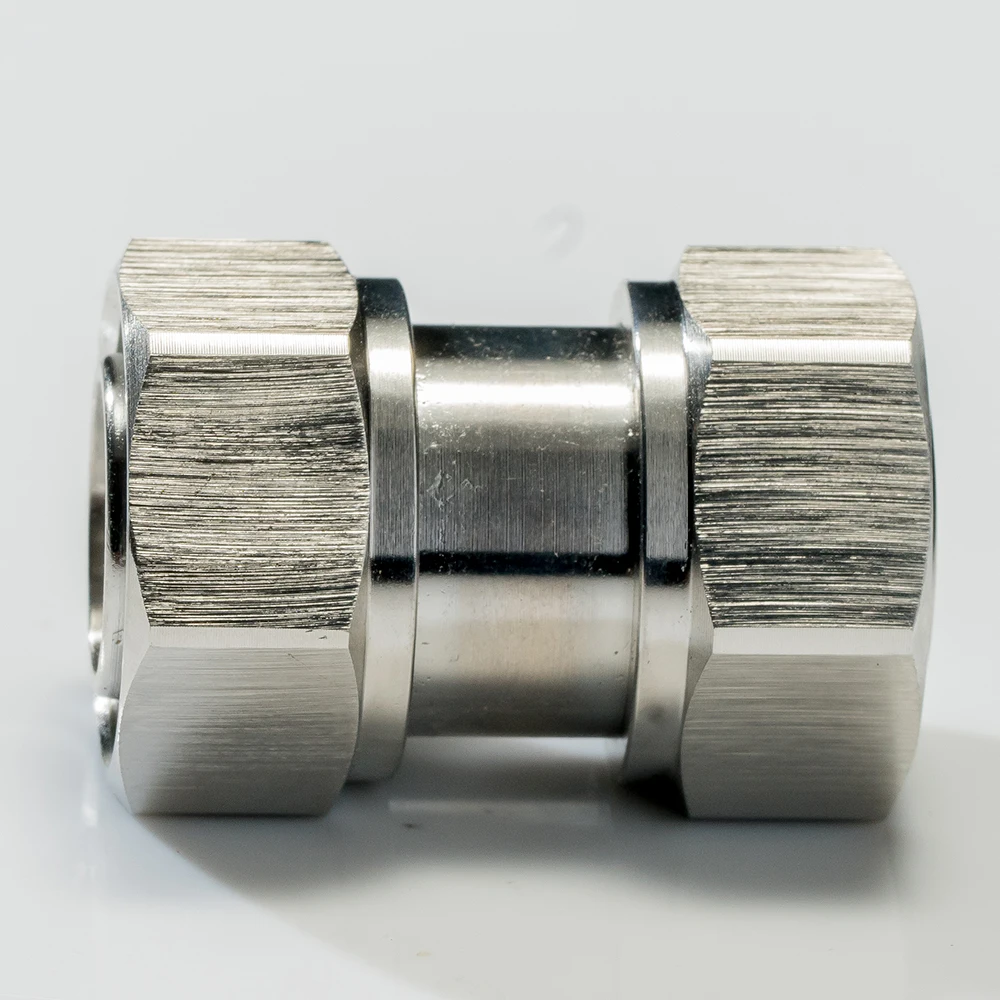

Inner Series Adaptor
NEX10 to NEX10 Series
2.2-5 to 2.2-5 Series
4.3-10 to 4.3-10 Series
N to N Series
DIN to DIN Sereis
NEX10 features a compact design which is 50% smaller than 4.3-10.
NEX10 | 4.3-10 | DIN | N | |
Passive Intermodulation | -166dBc @2*43dBm | -166dBc @2*43dBm | -165dBc @2*43dBm | -155dBc @2*43dBm |
Power Handling | 100W(2GHz) | 500W(2GHz) | 1000W(2GHz) | 300W(2GHz) |
Frequency Range | 20GHz | 6GHz | 6GHz | 6GHz |
Return Loss | 36dB@4GHz 34dB@6GHz | 36dB@4GHz 32dB@6GHz | 36dB@4GHz 32dB@6GHz | 36dB@4GHz 32dB@6GHz |
Coupling Mechanisms | Screw Push Pull Hand Screw | Screw Push Pull Hand Screw | Screw | Screw |
Packaging Density | 12.7mm | 25.4mm | 32mm | 25.4mm |

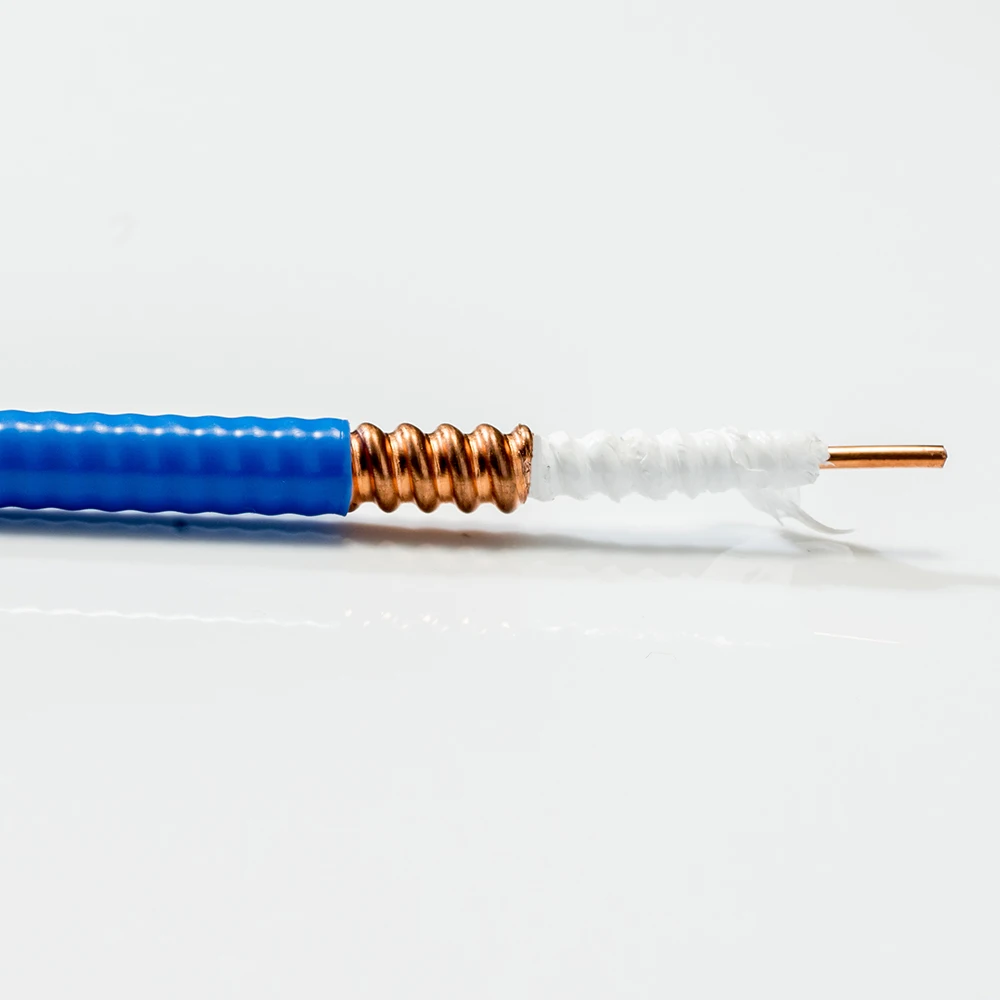

Optimized for 1/4'' Super flexible(SPP-250-LLPL)
Plenum Cable RG402
Plenum Cable RG401
Plenum Cable 1/4''S(Compatible with SPP-250-LLPL)
Small Cell and MINO
DAS/In-building
Antennas
Outdoor and Indoor
