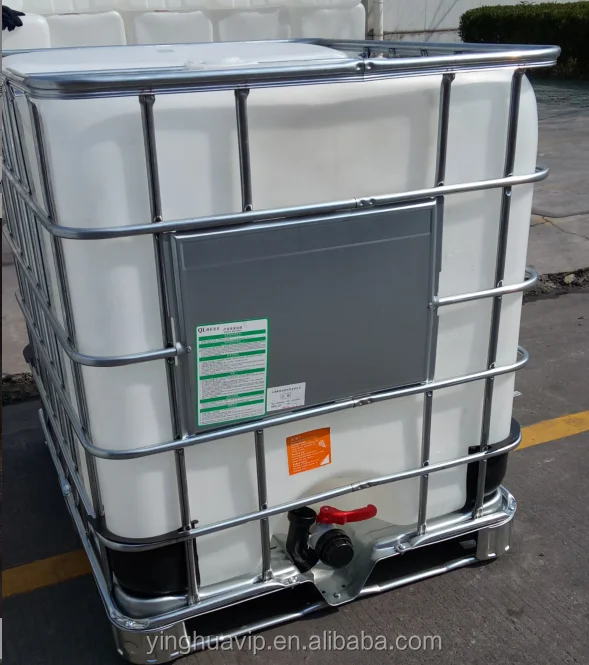

customized galvanized steel ibc tote tank 1000l for petrol storage or transportation in china
Product Description
IBC medium bulk container. Is a modern warehousing, transportation of liquid products, the necessary tools. The container barrel inner container and galvanized steel framework combination, the content of high molecular weight high density polyethylene blow molding, high strength, corrosion resistance, good health.
The Technical Date of 1000L HDPE ibc tank of YingHua
Item Specification Tolerance
Item
Specification
Tolerance
Rated Volume(L)
1000
/
Brimful Volume(L)
≥1050
/
Overall Dimension(mm)
1200x1000x1150
±5
Top cap Mouth diameter
142(diameter of thread SLCS 160mm,Pitch 7mm)
±2
Weight for Inner Tank(kg)
15.5
±0.5
Weight for IBC Tank(kg)
58
±2
Valve outside diameter(mm)
50
±1
Wall Thickness(min)
≥1.5mm
/
Outlet Valve(discharge valve)
DN50 ball valve& butterfly valve
/
Height for Pallet(mm)
120
/
Height for forklift holes(mm)
90
/
Length for forklift holes(mm)
795
Other detailed date for our IBC Tank 1000L 1.Model:YH-1000L 2.UNMark:each IBC Tank will mark exclusive UN Uumber 3.Overall dimensiobn:1200*1000*1150mm(±5mm) 4.Max Allowable Weight:2013 kg 5.Tare Weight:58±2kg 6.Allowable Stacking Weight:4056kg 7.Material of inner Receptacle: HDPE 8.Material of outer Casing :Galvanized steel DCD51D 9.Material of pallet: Galvanized steel DC53D 10.Material of seal :EPDM,FKM,Nitrile,PE 11.Valve and Material:Ball Valve DN50 or Butterfly Valve DN 50 12.Stacking Test Weight;4056kg 13.Dropping Test Height:1.9mm 14.Hydraulic Test pressure:100kpa 15.Vibration Test:Amplitude:25±5%mm,Time Duration:1 hour
