Cheap Price PVC Outsole Injection Molding Machine

1. New Technology for making shoes, easy operation.
2. Non-noisy, high quality, save labour and improve production.
3. Suitable for all kinds of thermoplastic raw materials, such as PVC, TPR, etc.
4. Air Blowing system device with air release function.

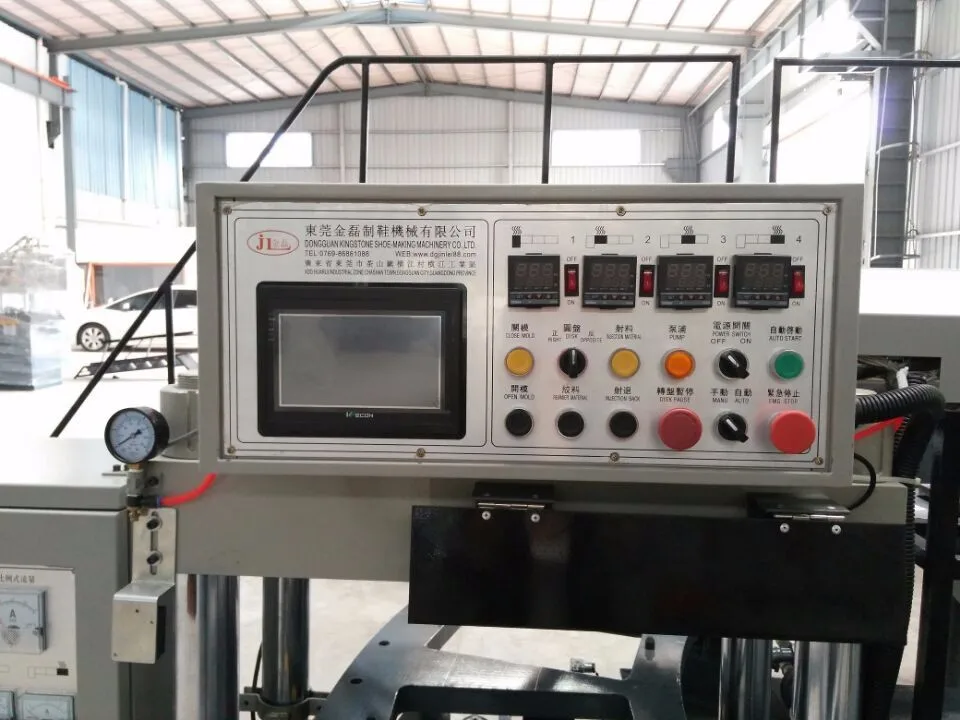

5. Make the shoes soft, lightweight, high value.
6. PLC touch screen system.
7. Can produce slippers, sandals, flip flop, pvc soles, etc.

Specifications

Machine Model

Unit

JL-108

Mould-clamping Unit
Work Station	Stations	8,10,12,16,20,24,30
Clamping Force	TON	80,100,120
Opening Stroke	MM	210
Mould Dimension	MM	420*320(Adjustable)
Height of Injection Nozzle	MM	280

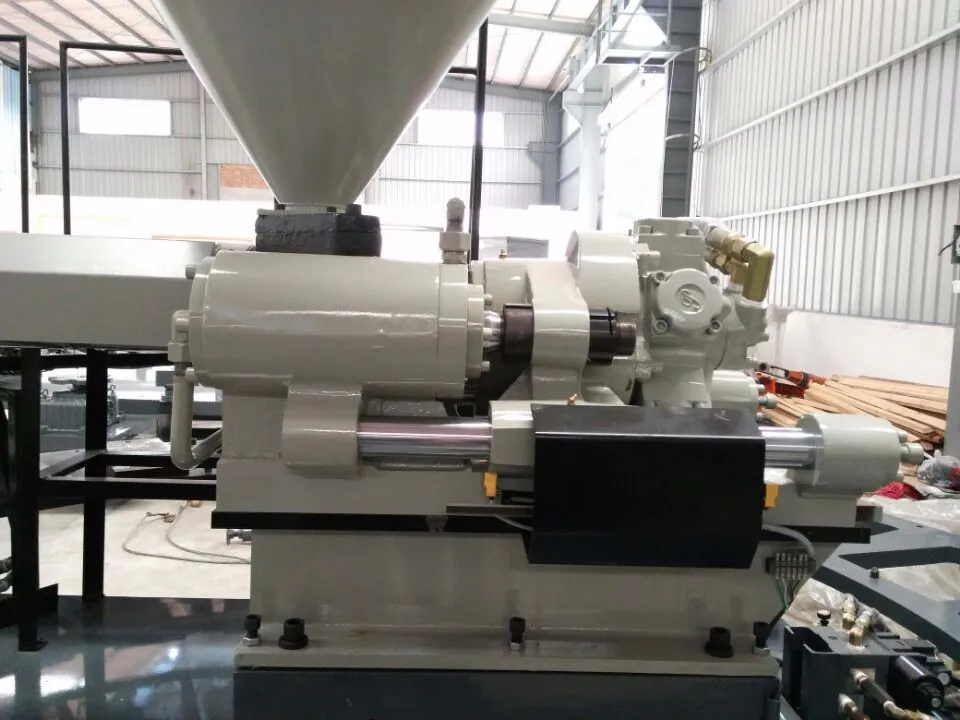

Injection Unit
Injector	SET	1
Screw Diameter	MM	55,60,65,70
Screw L/D Ratio	L/D	20
Max. Injection Volume	CM3	700,800,900,1000
Injection Speed	CM/S	500
Screw Rotation Speed	R.P.M	10

Electricity Consumption		Normal System	Servo System (Energy Saving)
Heating Power of Injector	KW	7	7
Hydraulic Unit Motor	KW	18.5	7.5
Total Electric Consumption	KW	25.5	14.5
Temperature Control	Section	4	4

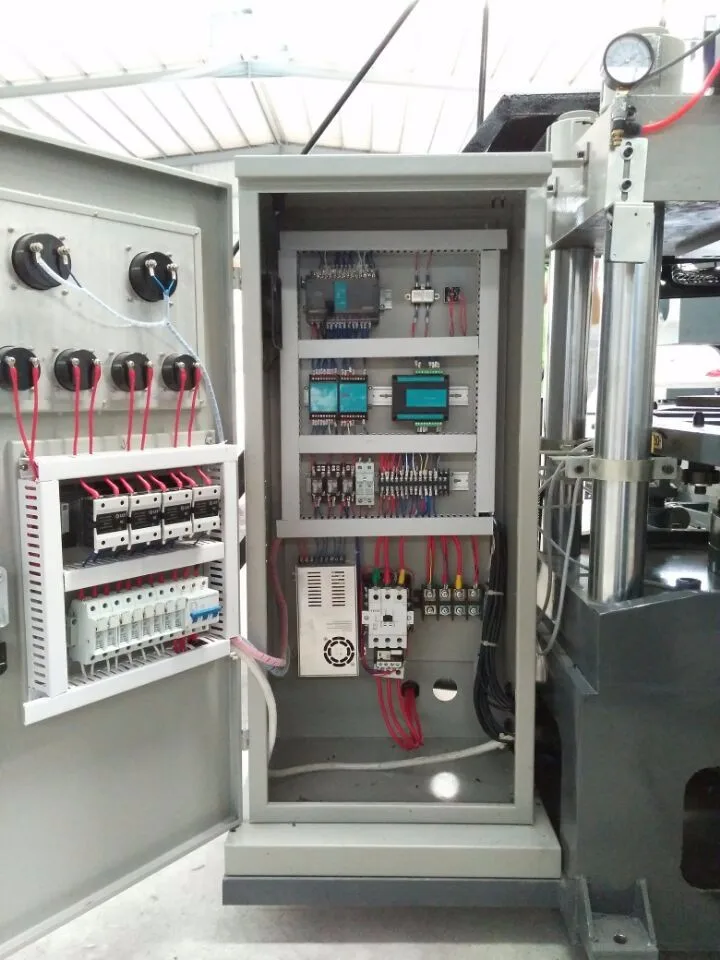

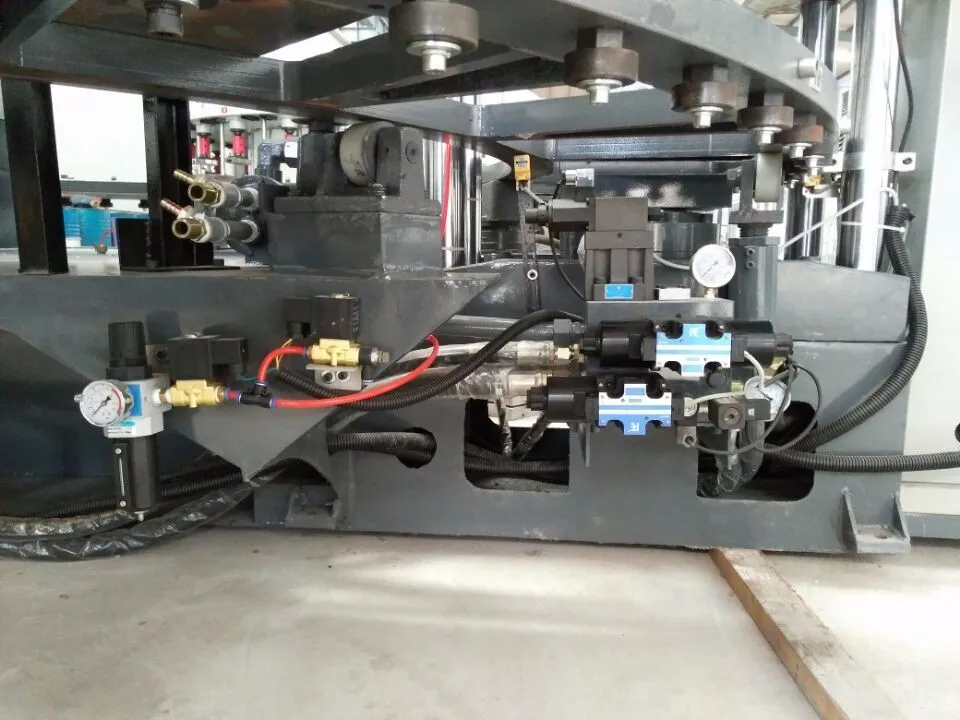

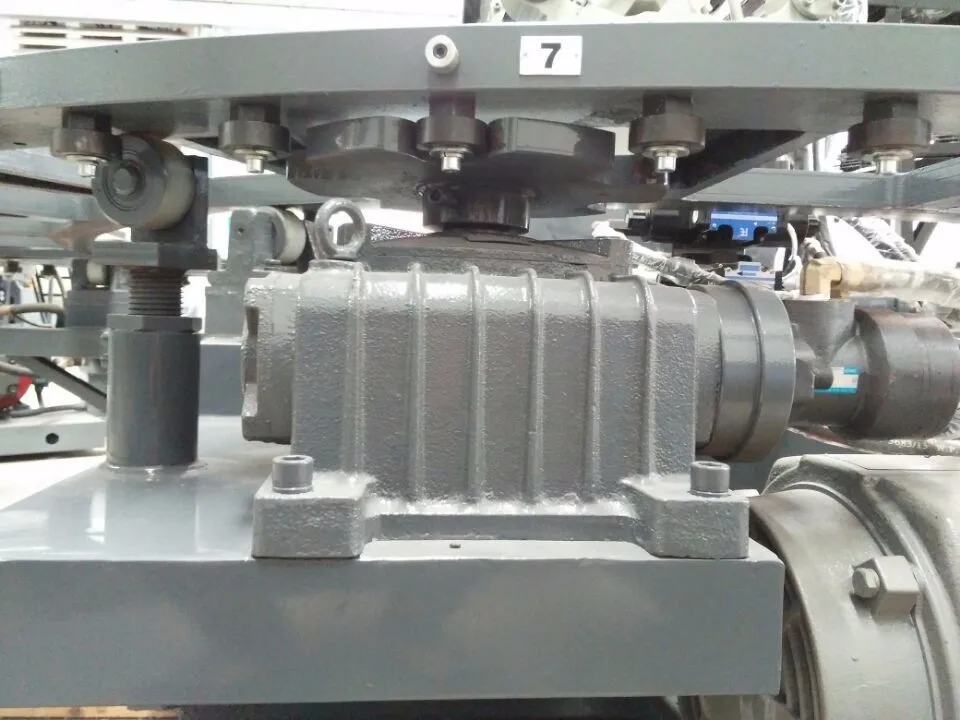

Details

Samples

This machine can produce one color PVC and TPR soles, below is for reference:

Machine Design

Package and Shipping

Package and Shipping

Package: standard export package to keep the machine well in the shipping way.

Shipping: suitable shipping way. one machine one 20 feet container.
