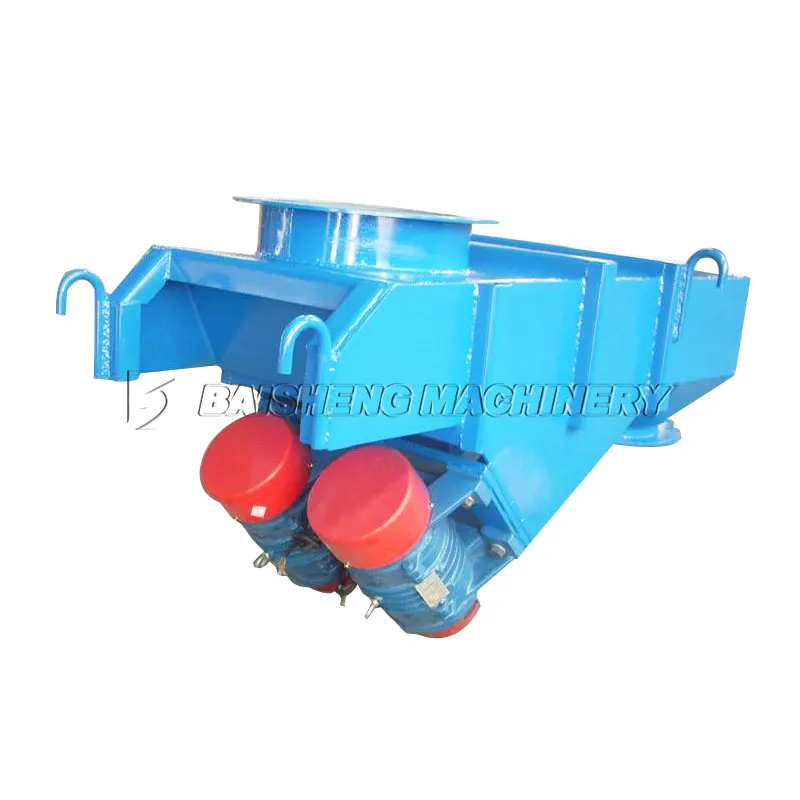

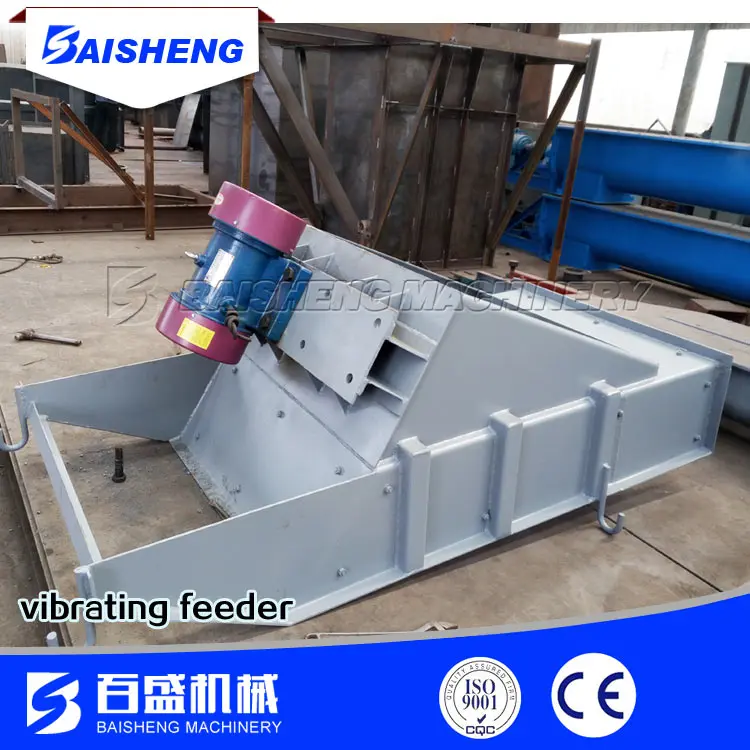

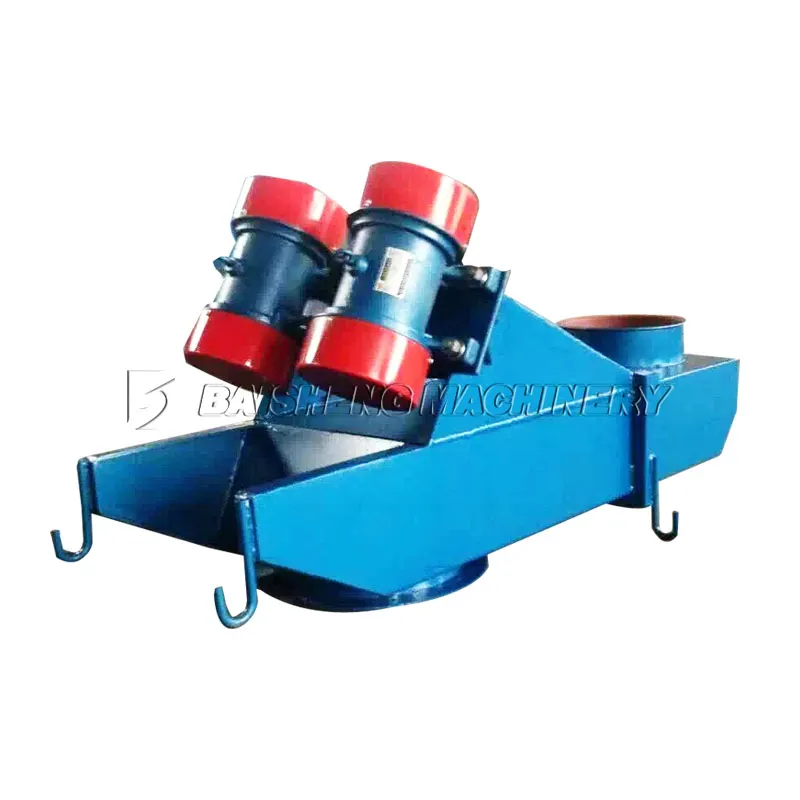

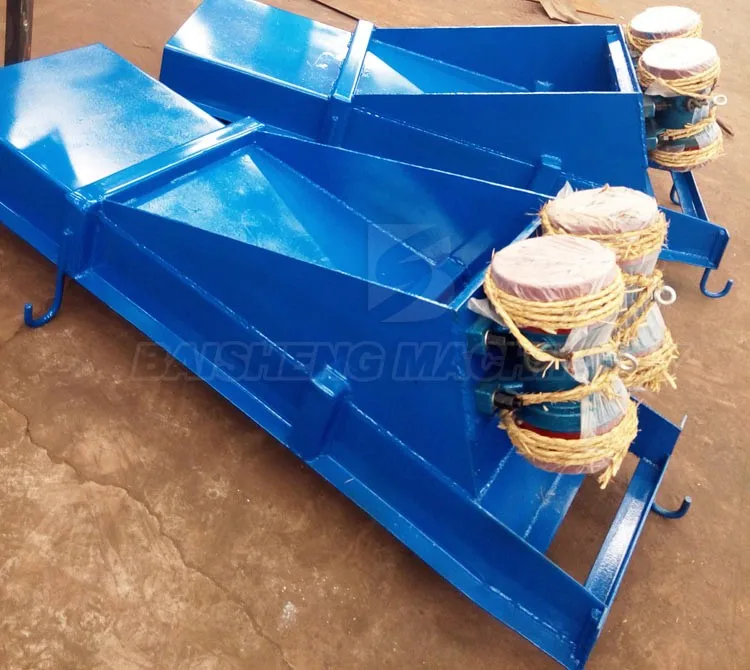

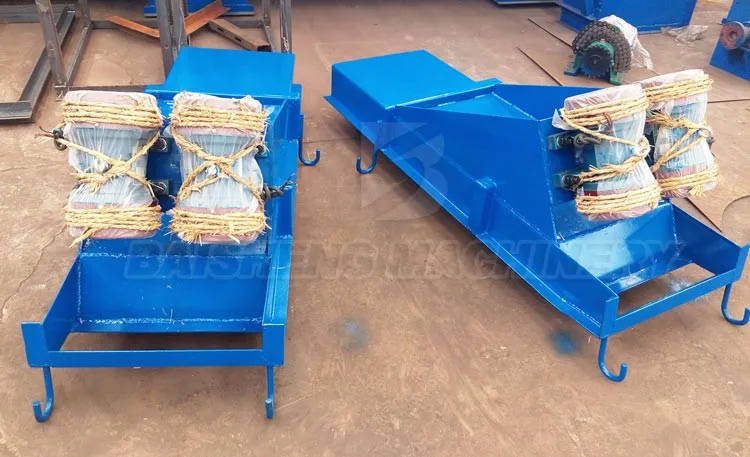

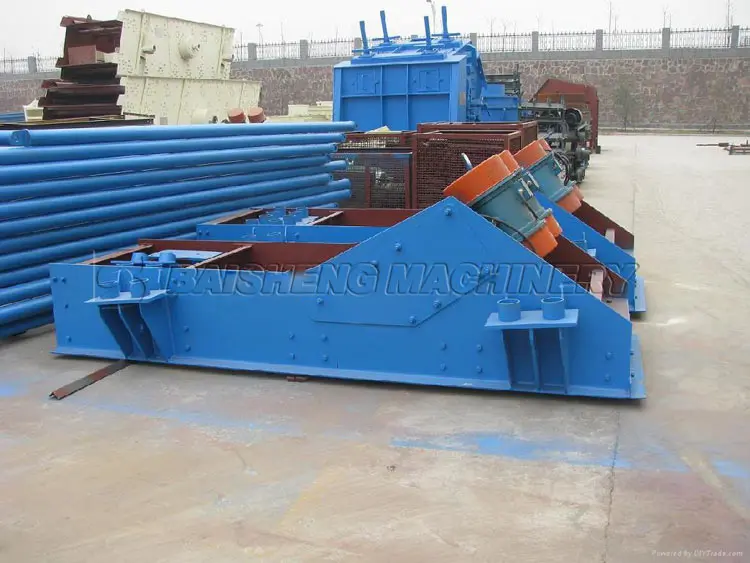

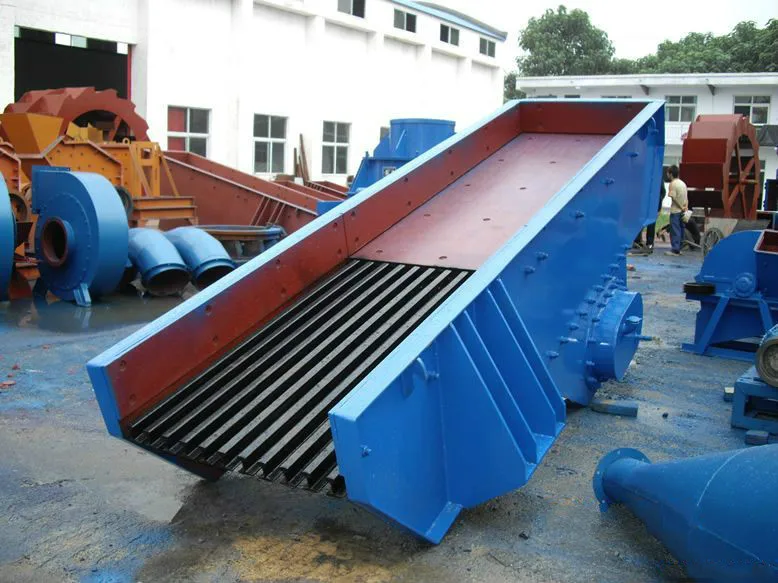

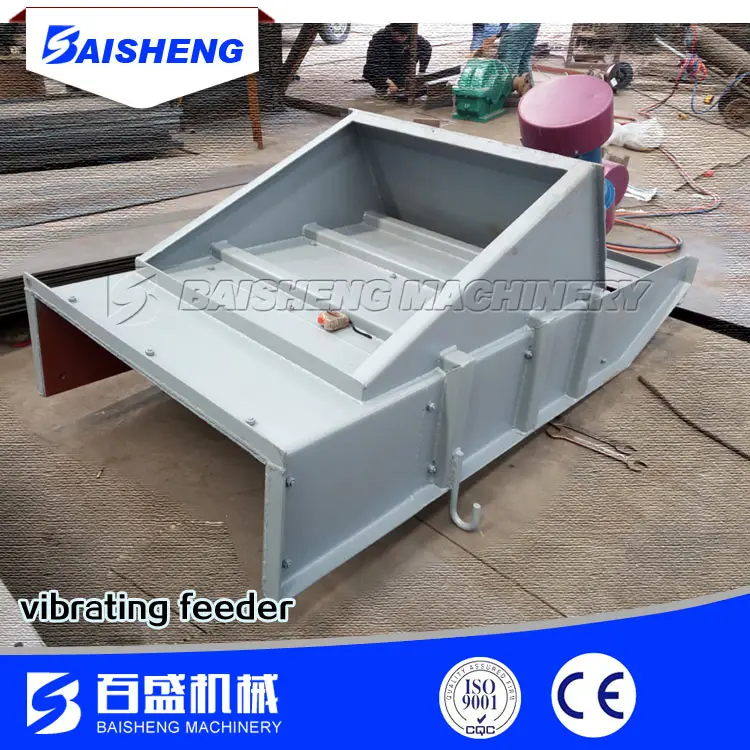

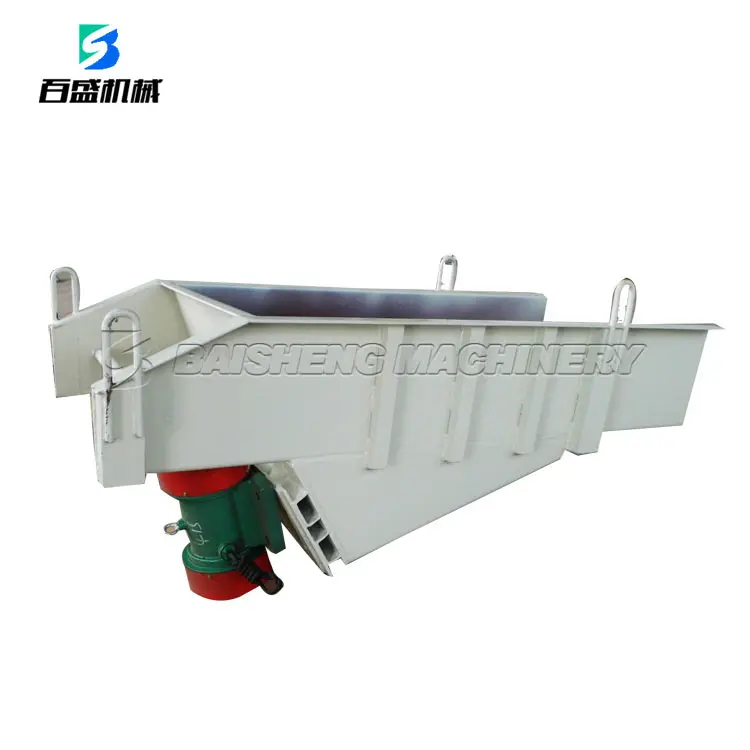

Motor vibrating feeder is a kind of linear direction feeding equipment. It features smooth vibrating, reliable operation, long service life and being suitable for feeding. Vibrating feeders are widely used in mining, building-material, silicate andchemical industry in the crushing and screening plants.In the sand-stone production line, vibrating feeder can send materials to crusher evenly and continuously and at the same time, it can screen materials roughly.
Advantages
1. Stable vibration and reliable operation;
2. Convenient and stable adjustment; 3. Vibration motor as vibration source,low noise and small power consumption; 4. Simple structure and easy maintenance;
Vibrating Feeder Working priciple:
The vibrating motors force the feeding trough body to make simple harmonic vibration or similar to simple harmonic vibration in a certain direction. When the acceleration of its vibration achieves some certain value, the materials will make continuous and small throws or slides along the transmission direction in the feeding trough body, which causes the forward motion and transmission of the materials.
Applications
GZG series vibration feeder is widely used in mining, metallurgy,coal,construction, light industry, chemical industry,electric power, food and other industries.
Model
Max feed size (mm)
Vibration frequency(r/min)
double-amplitude
(mm)
processing capacity
(t/h)
Motor power(kw)
Screen
size(mm)
Dimension(mm)
weight (kg)
Line screen
-10·
GZG40-4
100
1450
4
30
40
2×0.25
400×1000×200
1337×750×600
171
GZG50-4
150
1450
4
60
85
2×0.25
500×1000×200
1374×800×630
202
GZG63-4
200
1450
4
110
150
2×0.50
630×1250×250
1648×1000×767
379
GZG70-4
200
1450
4
120
170
2×0.50
700×1290×250
1548×1010×787
389
GZG80-4
250
1450
4
160
230
2×0.75
800×1500×250
1910×1188×850
563
GZG90-4
250
1450
4
180
250
2×0.75
900×1483×250
2003×1178×960
613
GZG100-4
300
1450
4
270
380
2×1.1
1000×1750×250
2190×1362×900
762
GZG110-4
300
1450
4
300
420
2×1.1
1100×1673×250
2151×1362×970
854
GZG125-4
350
1450
4
460
650
2×1.5
1250×2000×315
2540×1500×1030
1099
GZG130-4
350
1450
4
480
670
2×1.5
1300×2040×300
2544×1556×1084
1117
GZG150-4
500
1450
3.5
720
1000
2×2.25
1500×2250×300
2794×1776×1220
1477
GZG160-4
500
1450
4
770
1100
2×2.25
1600×2500×315
3050×1850×1110
1555
GZG180-4
500
1450
3
900
1200
2×2.25
1800×2325×375
2885×2210×1260
2350
GZG200-4
500
1450
2.5
1000
1400
2×2.25
2000×3000×400
3490×2400×1220
2705
GZG150-6
500
960
5
780
1080
2×3
1500×1800×400
2500×1864×1412
1441
Delivery time
5 working days after receiving your 30% deposit

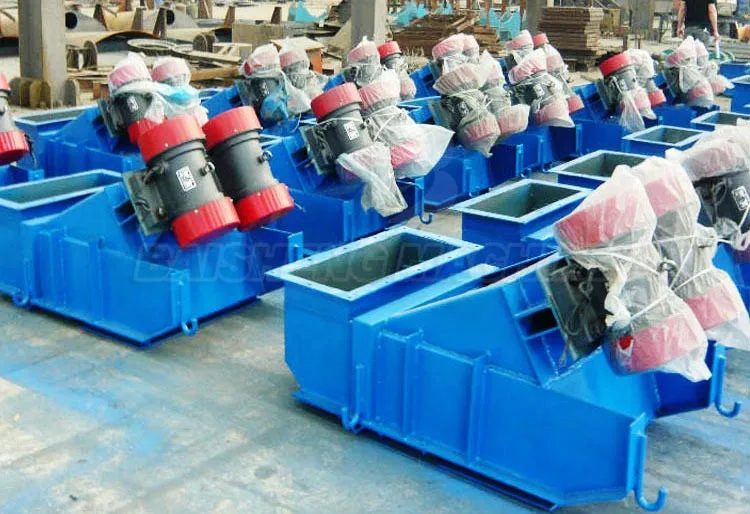

Packing details
Standard wooden case packing and One set one case
MOQ
1 set
Payment terms:
L/C and T/T or others
Shipping ways
By sea, by air or by couriers(TNT, DHL and so on)
Port:
Shanghai or Tianjing or Qingdao
Warranty
12 months
Trade Terms
FOB, CIF
Customer Visit
Company Information
FAQ: How about the quality of our machine? Our machine manufactured strictly according to national and international standard. We take a test on every machine before delivery.
How about price of machine? We can give the lowest price than market one. We do quotation of machine as soon as possible for any customer. Discount of machine can be given according to quantity.
How about the after-sale service of your company? Our engineer is available to installation machine overseas. The guarantee period of our machine is one year. Spare parts will supply at any time.
