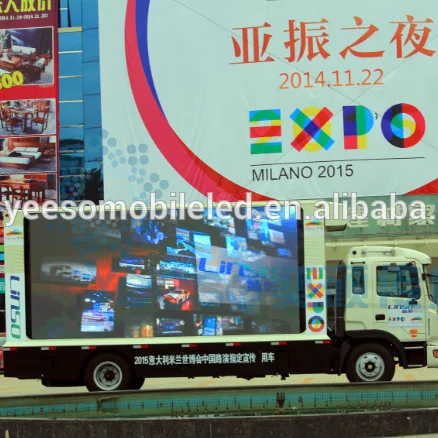

Giant LED board truck, Mobile TV truck, LED screen on truck, YES V9

Product Overview

Description

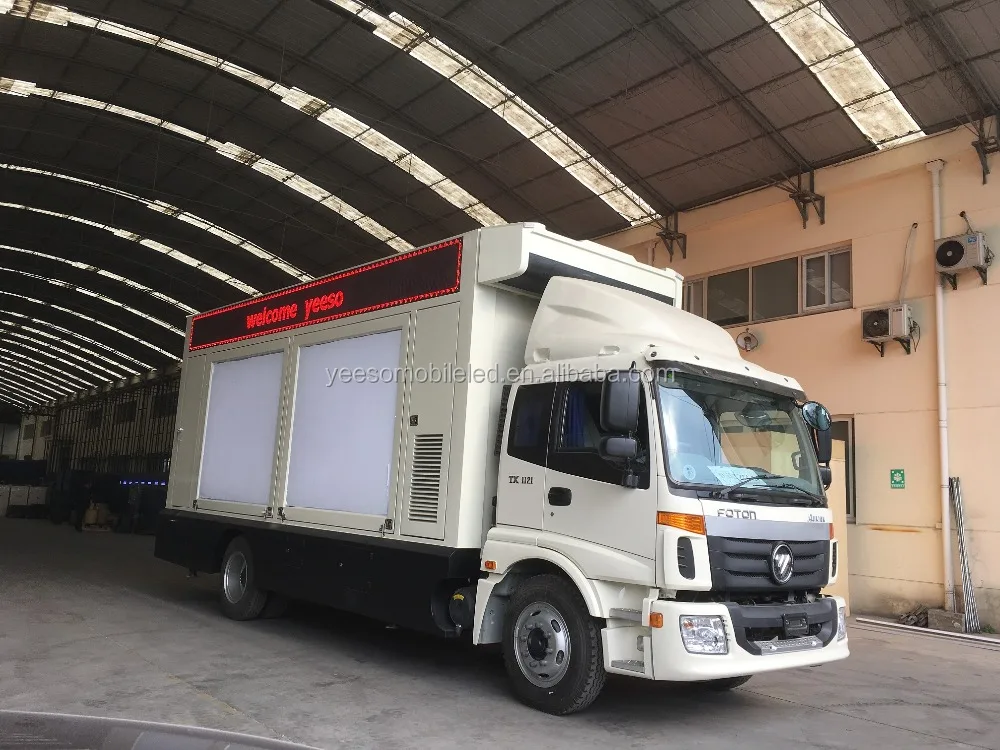

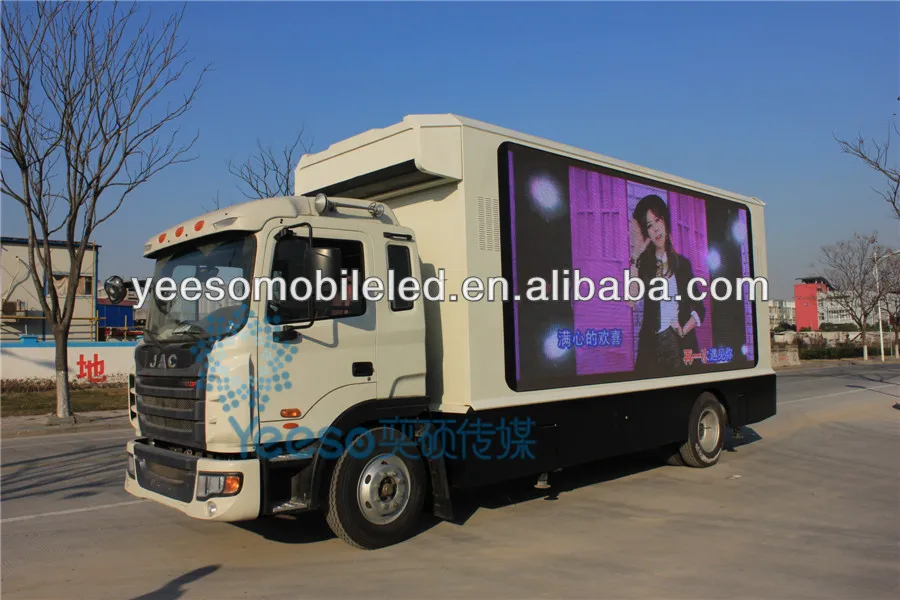

Giant LED board truck, Mobile TV truck, LED screen on truck, YES-V9

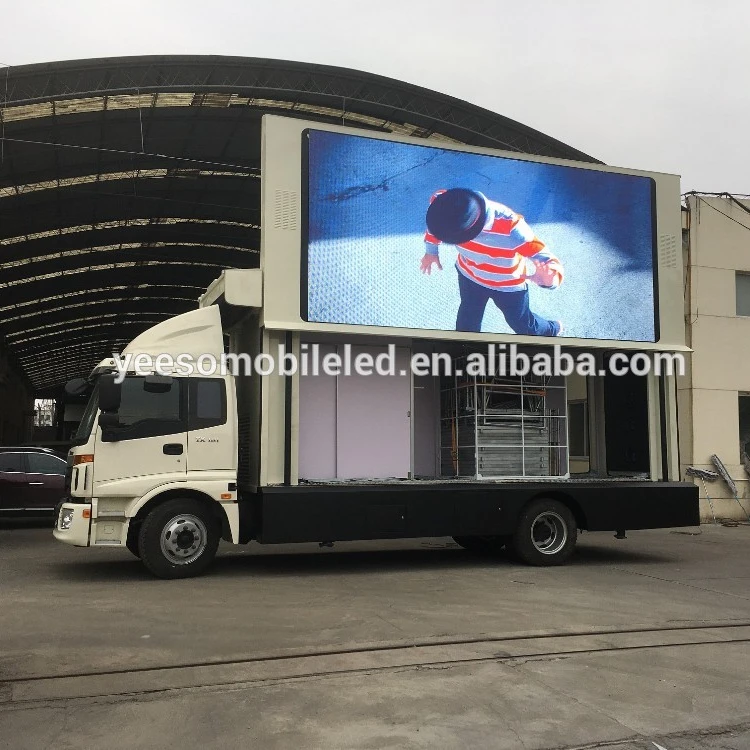

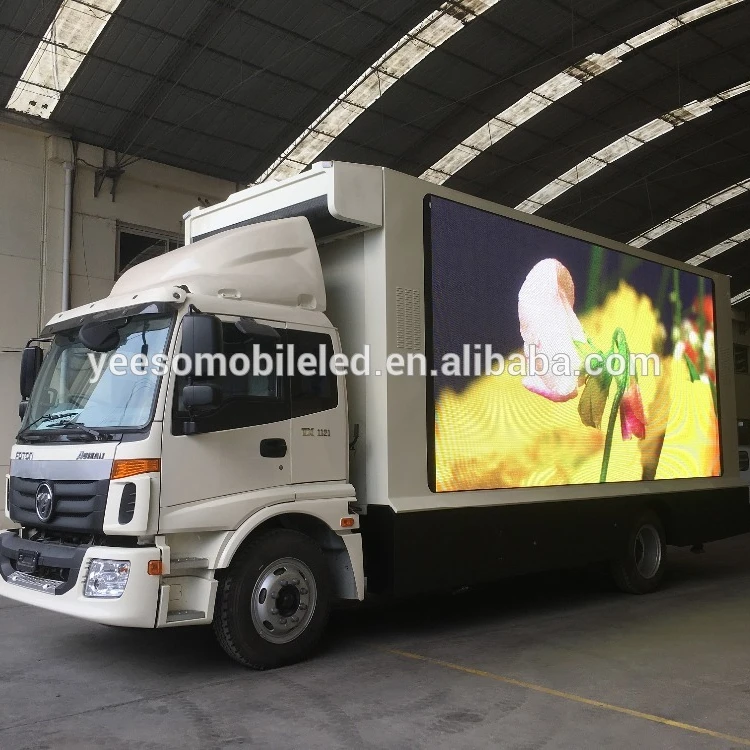

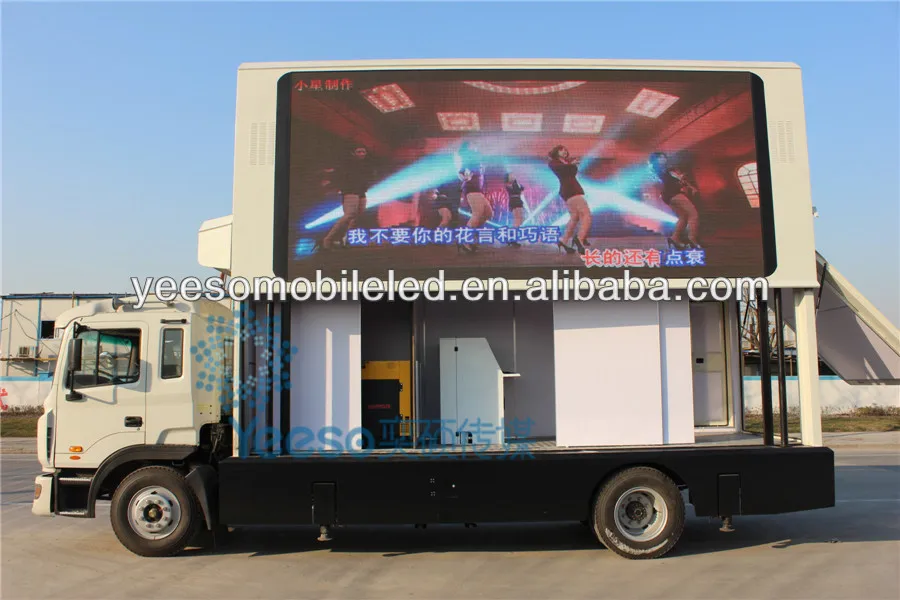

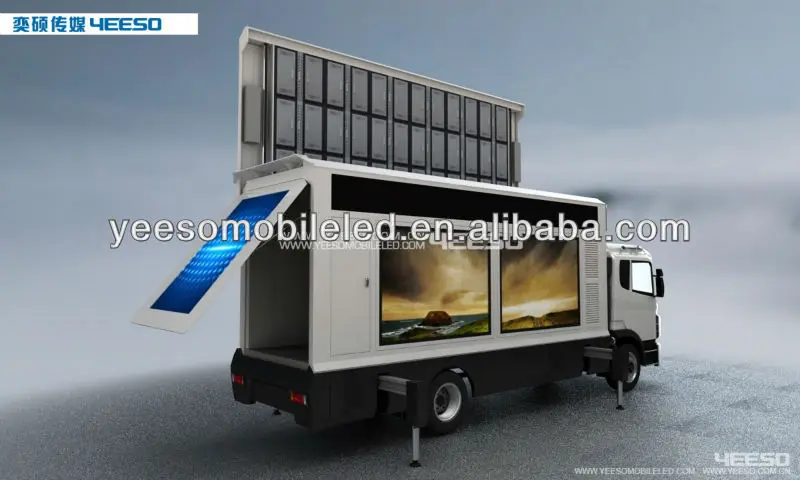

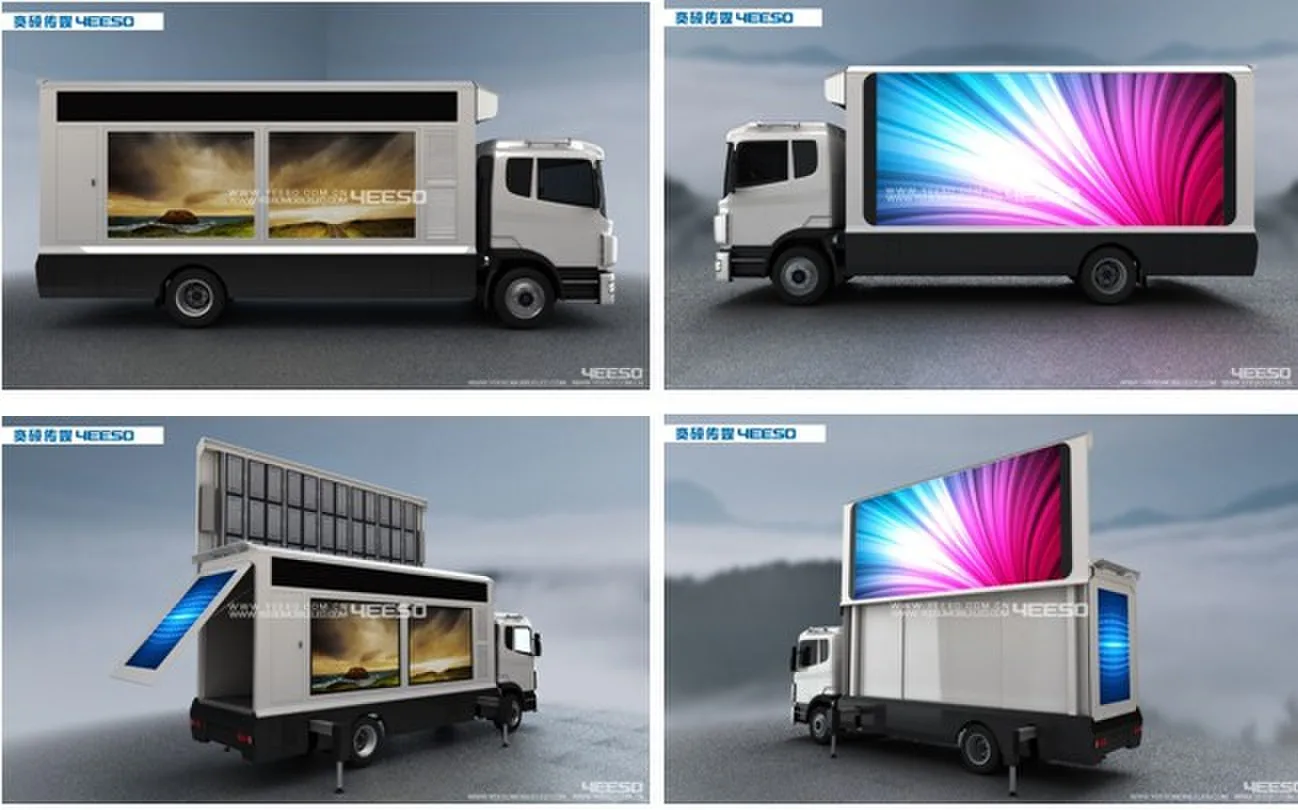

1.One side 12.67 SQM LED(can be lifted up 2m)
2.Another side a LED strip screen & scrolling light box
3.a full color LED screen at the rear
4.Equipped multimedia playing system
5.Inside generator can supply powers

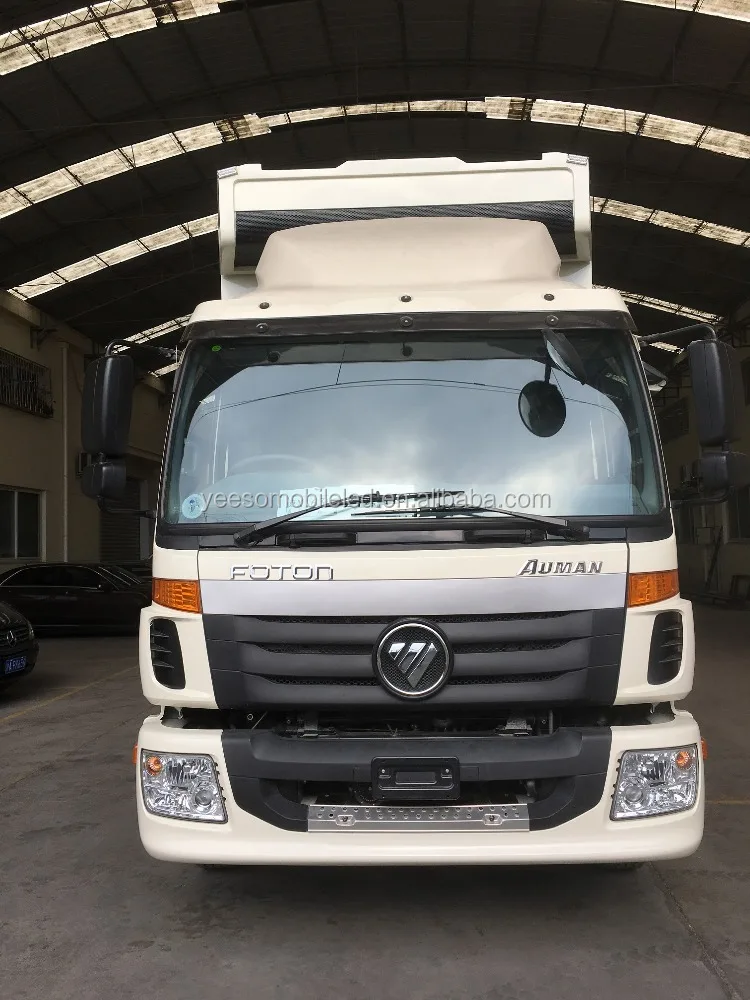

6.With JAC chassis



Giant LED board truck, Mobile TV truck, LED screen on truck, YES-V9

Technical Parameters of YES-V9
Mode	YES-V8
Weight	8700Kg
External dimension	8.7m*2.4m*3.9m
LED screen dimension	5.28m*2.4m
Scrolling light box dimension	3.91m*1.5m
Strip screen dimension	5.44m*0.48m
Rear full color screen dimension	1.22m*1.83m
Horizontal angle of view	110° (±55°)
Vertical angle of view	50° (±25°)
LED display system	P10 full-color outdoor LED display
Multi-media system	IPC+ 15-inch display + professional sound system
Power supply system	outer power or built-in generator power
Input voltage	AC380V±1% 47~64Hz
Average power consumption	0.5KW/m²/H
Total power consumption	9KW/H
Generator	KIPOR KED16SS-15.5KW
Electric system	Standard section:Button control and operate system (standard)
	Deluxe section: CPU control and operate system (optional)
	VIP section: touch screen, wireless,upper computer control and operate system(optional)
Mechanism operates system	lifting up & down (1.9m)
Lifting system	power driven screw rod lifting system, afford: 5000Kg
Chassis	Japan brand
Security system	overheat protection + two fire extinguishers



Giant LED board truck, Mobile TV truck, LED screen on truck, YES-V9-V9

















YEESO’s products include large led truck series, led truck series, election car series, government authorities car series, led trailers series, led container series, etc which can be applied to brand promotion, sales promotion, road-show cruise, public election, sport events, popular concerts, festivals, exhibitions and political campaigns etc. YEESO focuses on providing a comprehensive solution of outdoor mobile advertising vehicles. At any budget, in any size, for any issue, you will find your ideal and unique promotion solution here.



With a global view, YEESO has always been utilizing our own technologies as the core competencies along with our leading manufacturing management system, comprehensive operation system and international sales teams which aim at the international market with our productions, sales, research and development bases in Shanghai. Our products are now sold across Europe, Australia, South America, Africa, Southeast Asia, Middle East, West Asia, and so on. Moreover, we have a branch in Australia and a sale company in Europe.
