Low price woodworking double sided thickness planer
- Category: >>>
- Supplier: Guangdong Reignmac Machinery Co. Ltd.
Share on (60668605604):
Product Overview
Description
Product Description

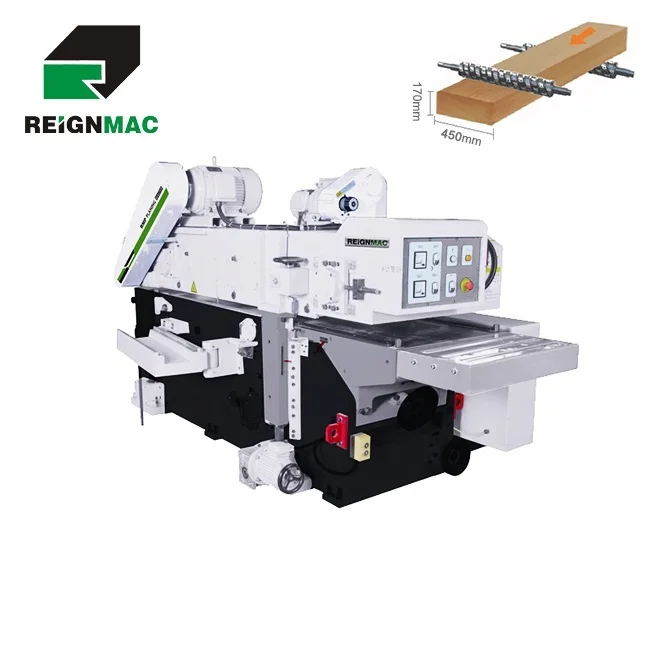

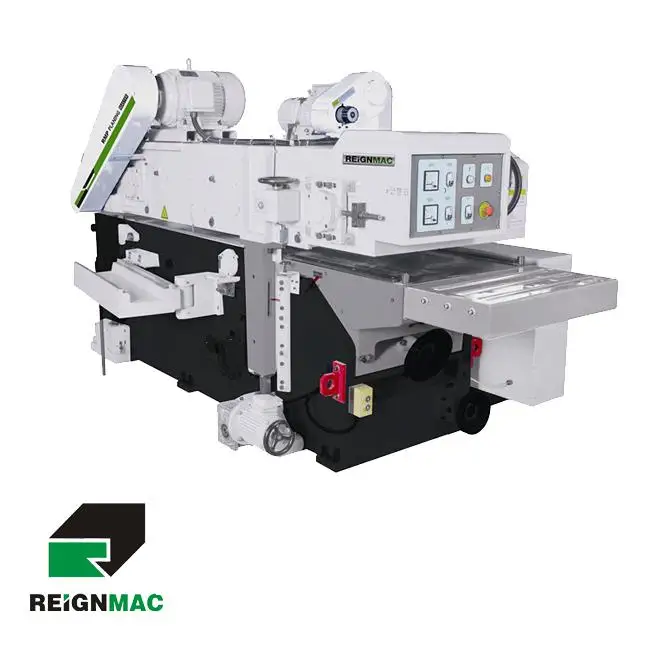

Low price woodworking double sided thickness planer
| Double Side planner | |||
| Specification &model | RMP650 | RMP450 | |
| Working width | 25-650mm | 25-450mm | |
| Working thickness | 10-170mm | 10-170mm | |
| Min. working length | 310mm | 310mm | |
| Max. planning capacity | Top spindle | 8mm | 8mm |
| Bottom spindle | 5mm | 5mm | |
| Dust port diameter | Ø150mm | Ø150mm | |
| Knife cutting diamete | Ø127mm | Ø127mm | |
| Spindle speed | 6000r/min | 6000r/min | |
| Feed speed | 4-16m/min | 4-16m/min | |
| Motor power | Top spindle | 11kW/13HP | 7.5kW/10HP |
| Bottom spindle | 7.5kW/10HP | 5.5kW/7.5HP | |
| Feed | 3kW/4HP | 2.2kW/3HP | |
| Lift | 0.75kW/1HP | 0.75kW/1HP | |
| Total motor power | 22.25kW/28HP | 15.95kW/28HP | |
| Overall size(L×W×H) | 3400×1700×1900mm | 3400×1500×1900mm | |
| Weight | 4820kg | 4720kg | |
| Note: Any variation to the specification above mentioned will not be further notified since the product specification and design keeps on changing all the time. | |||
Double Side planner Outstanding character
1.Heavy-duty machine body design,after numerous aging and 5-axis CNC precision machining, stable performance,more suitablefor large cutting capacity requirement.
2.The work surface using a special wear-resistant materials, long life.
3.Spindles with high quality materials, heat treatment,precision machining, dynamic balancing processing,ensure stableand reliable operation.
4.Feeding device is equipped with elastic pressure claw, compression strength can be adjusted according to the feeding speed fordifferent material,different thickness of timber, which improves the processing quality.
5.Active top and bottom feeding wheels with strong power of feeding, min processing length is 310mm.
6.Bottom shafts has quick tool change design,easy to operate, efficient and safe.
7.Adopt stepless variable speed or inverter for feeding control, to ensure the quality of processing a variety of wood products withdifferent thickness and material.
8.Overload protection design for the feeding system.
9.With manual lubrication pump for vertical pillar skateboard lubrication, ensures flexible and durable lifting. Automatic lubrication pump feed lubricate feeding chain plate automatic,with no-oil protection function.
10.Quick adjustment of belt tension and quick replacement of planning tool, easy to operate.
11.Feeding device with electric lifting equipment, convenient to adjust and improve productivity.
12.Feeding speed and working thickness adjustment are controlled by PLC+text displayer, precision up to 0.1mm.
13.Electric components with international class, stable and reliable.
Hot products & video
Wood sample diagram
Company Information
Reignmac machine are welcomed by many companies over the world, we are not only your supplier, but also your partner. If you want more information, pls click here to send inquiry to us. Thank you.
Welcome to visit our factory! Our working hours: 8 am to 6 pm from Monday to Saturday. The contact information are as follows:
Export manger: Ms Landy Luo
Mobile/Whatsapp/Wechat/Veber: +86 13923251885
Click here to directly send email to us~
Exhibtion & customer
Reignmac is not only your supplier, but also your partner! Hope to have chance to cooperate with you!
Packaging & Shipping
Most of the machine are fully assembled in Reignmac factory,so just open the package,remove the lubrication grease and get power connected. For other machines, the main parts are well assembled, you might need to install some parts which are easy to install and our engineer will contact with you to install.
