2019 new design S/SS/SSS PP spunbond nonwoven fabric making machine with good running

Share on (60668648445):


Price:$550,000.00

Quantity:


Product Overview

Description



Product Description


Product Application

The equipment produces nonwoven fabric with PP, adopts the technology of air drawing into web forming machine by negative pressure to make the PP spunbond nonwoven fabric, the product is featured by uniform cover, great intensity, good breathable and good feeling. It's widely used for medical、protective products、household、hotel accessories、beauty care disposable product、agricultural cover、clothes package and architecture.



S Model


Working Width
Fabric GSM
Power input
Consumption
Annual Output/Year
1600mm
9-250
200KVA
130KW
1500T
2400mm
9-250
250KVA
180KW
2400T
3200mm
9-250
300KVA
200KW
3000T
4200mm
9-250
450KVA
300KW
3800T


SS Model


Working Width
Fabric GSM
Power Input
Consumption
Annual Output
1600mm
10-250
300KVA
200KW
3000T
2400mm
10-250
350KVA
250KW
4800T
3200mm
10-250
600KVA
300KW
6000T
4200mm
10-250
800KVA
450KW
7500T


SSS Model


Working Width
Fabric GSM
Power Input
Consumption
Annual Output
1600mm
12-250
600KVA
300KW
4000T
2400mm
12-250
850KVA
400KW
6000T
3200mm
12-250
1000KVA
600KW
8000T


SMS Model


Working Width
Fabric GSM
Power Input
Consumption
Annual Output
1600mm
15-250
600KVA
400KW
3500T
2400mm
15-250
800KVA
600KW
5000T
3200mm
15-250
1000KVA
800KW
6500T




Main Features

1) The whole line is well-structured and easy operating.
2) Control elements are of well-know made,high performance and reliable technology.
3) The whole line are controlled by PLC and operated with touch-screen.
4) The allocation of the main frame and auxiliary equipment can be specially designed and adjusted according to customer's requirement.



Certifications




Detailed Images


Main Machine

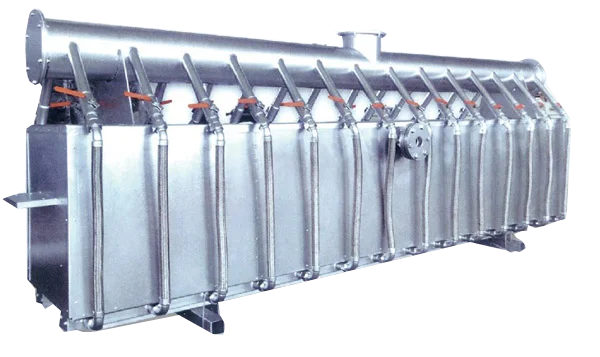

Name: Spinning box

Orifice number: 11019 for 1.6m,
                              17651 for 3.2m
Orifice diameter: φ0.45mm
                                L/D=4:1
Max temperature: 300℃



Main Machine

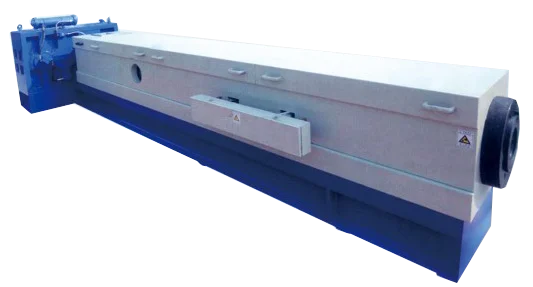

Name: Extruder
Diameter: φ130mm for 1.6m,
                   φ170mm for 3.2m
                    L/D=30:1
Max speed: 75r/min for 1.6m,
                     85r/min for 3.2m
Motor: 90KW for 1.6m,
             132KW for 3.2m



Main Machine

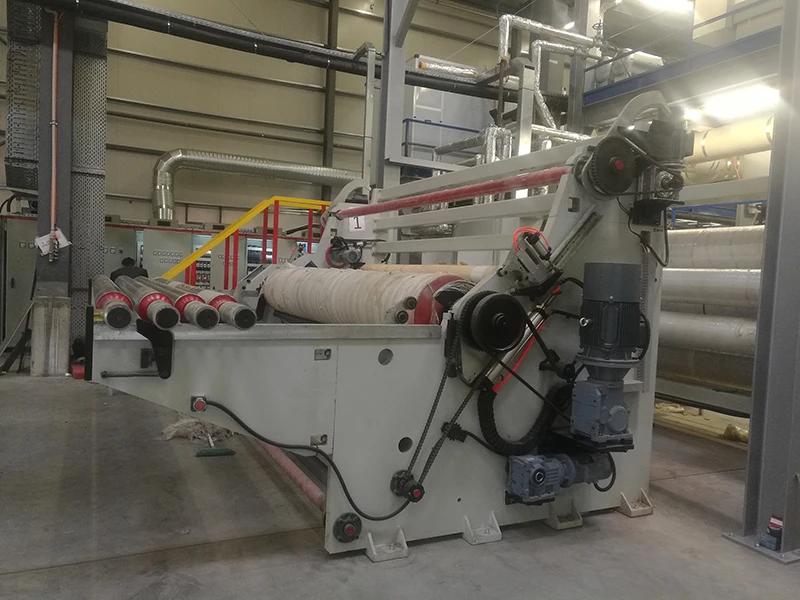

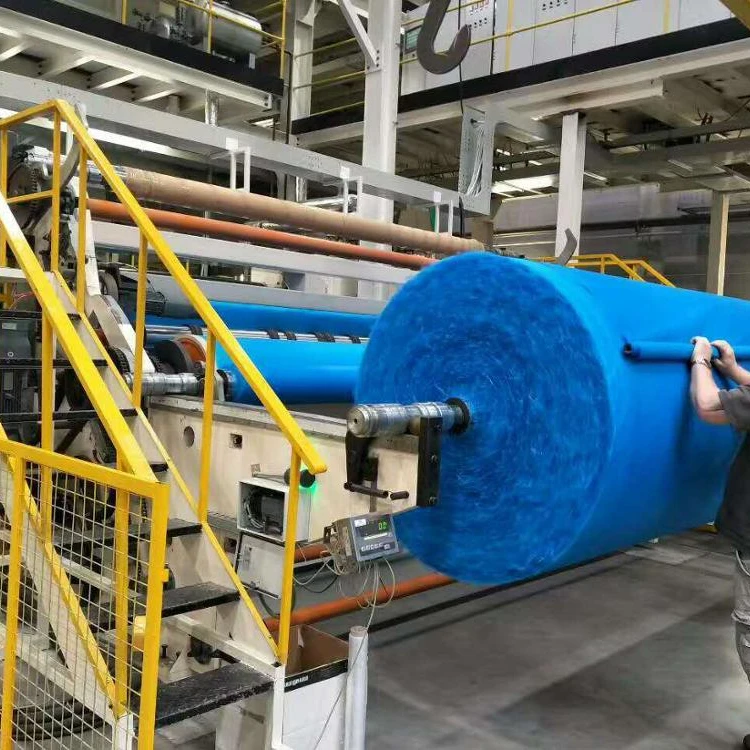

Name: Winding machine
Max winding diameter: φ1200mm
Speed: 10-150m/min for S type,
             10-300m/min for SS/SMS type
Motor: 5.5-7.5KW



Main Machine

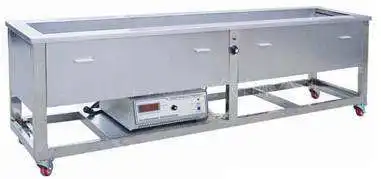

Name: Ultrasonic cleaner
Function: The main function of ultrasonic cleaning machine is to export high frequency ultrasonic vibrating  the rest of macromolecule polymer that after burnning in calciner remain on filtering cores and spinnerets.

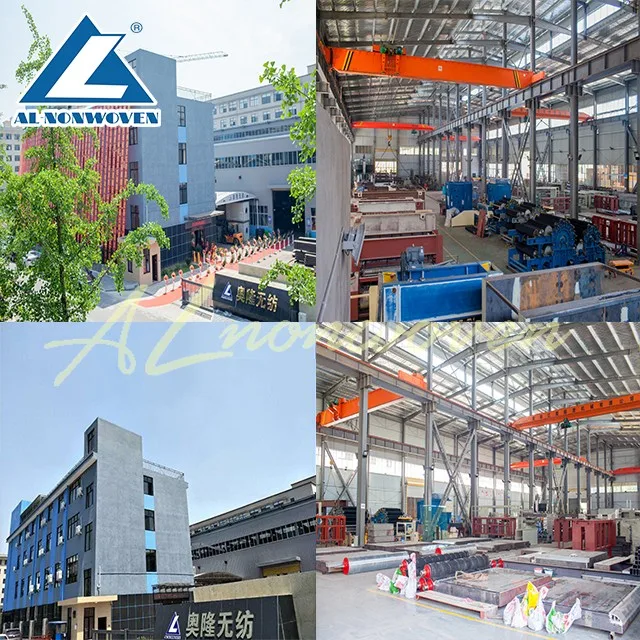

Our Factory




DongYang AoLong Nonwoven Equipment Co., Ltd. is a professional manufacturer for PP spun bonded non-woven fabric production lines ,bag making machine, PET needle punching production lines and special application treatment equipments like hydrophobic, anti-alcohol(blood, oil, static, aging, bacteria, UV) and fire retardant, which integrates project design, processing, installation and operation training of PP non-woven fabric production lines.

Our factory has many years’ experienced engineers and service team to develop and install our “AL” brand of PP spun bonded non-woven fabric production lines from 1.6m, 1,8m, 2.4m, 3.2m to 4.2m with different models like S, SS, SSS,SMS, SMMS and SSMMS.

PET needle punching line includes Carpet line, PU leather line, Filtering felt line, Waisted felt line, Polyfill line, Geotextile line etc.

We have our own exporting license with ISO and CE certificate, we have installed numbers of PP spun bonded non-woven fabric production lines in China local market and India, Bangladesh, Turkey, Russia, Vietnam U.A.E, Indonesia, Thailand, Brazil, Uzbekistan, South Africa etc.  Every customer’s feedback are important for our technical innovation and improvement.

We believe that only “Best Quality Machine With Innovative Ideas and Excellent After-sale Service” shall meet your special requirements.

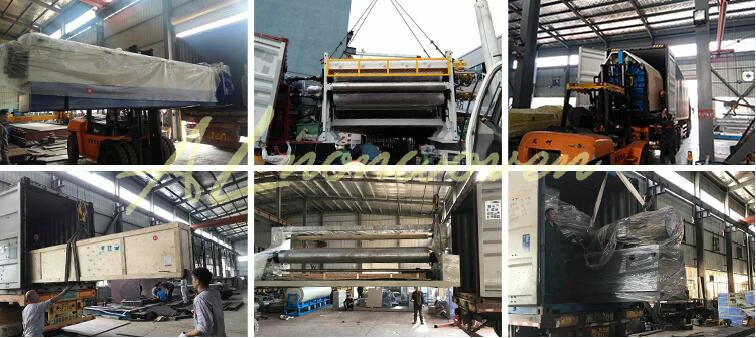

Packing & Delivery




FAQ


A. How I get right Machine for me , If I have no ideal about  the machine ?
B: It doesn't matter. Tell me what kind of fabric that you want  the machine , how much you want to produce  and factory szie etc. We will design for you.
A.I already have  one factory but there is a little of different  in the size ,For example  the height  can't meet the 13m , only 12m?
B:Don't worry. Your machine will be customized.
A How to make sure your machine's quality?how about the service?
B: Each machine gets ISO9001:2008,CE, SGS. And warranty is one year. you can enjoy the service  within production lifetime.
