CE ISO Approved 500LPH RO water treatment system with auto water softener
- Category: >>>
- Supplier: Guangzhou Kaiyuan Water Treatment Equipment Co. Ltd.
Share on (60668683679):
Product Overview
Description
Product Description
Introduction of Reverse Osmosis (RO) System
The reverse osmosis(RO) water treatment plant is an equipment to purify water with the action of pressure difference of semi permeable membrane. RO membranes can effectively remove majority of organics, harmful substances, bacteria, particulates etc in the raw water. RO system is widely used in water treatment, purification for tap water, well water, underground water, borehole salty water, brackish water and seawater, pure water and ultra-pure water production, power stations, electronic industries, cosmetics production, medicine(pharmaceuticals) manufactories, and medical treatment(such as hemodialysis). It is a key equipment for pure water plant and ultrapure water equipment.
This water treatment system is suitable for purifying borehole salty water, normal municipal tap water, underground water, lake water, river water, requires water source TDS (Total Dissolved Solids) less than 2000mg/L. If your source water is very salty water, please send email and inform us about the features of the water, it will be better if you have water quality analysis report. Thank you for clicking our products in more than ten thousands of products.

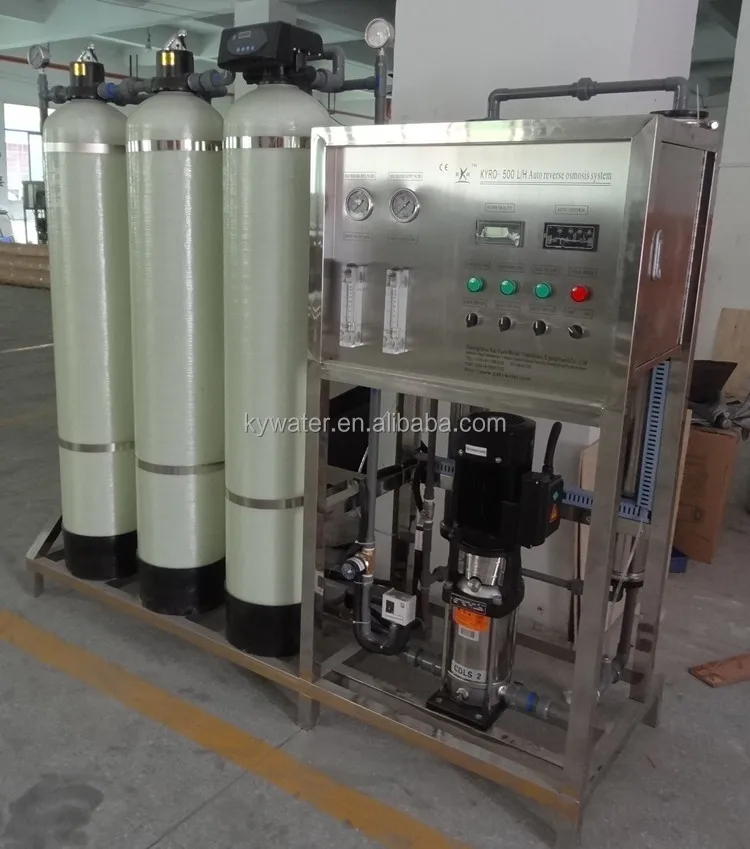

500 liter per hour ro water treatment system with auto softener

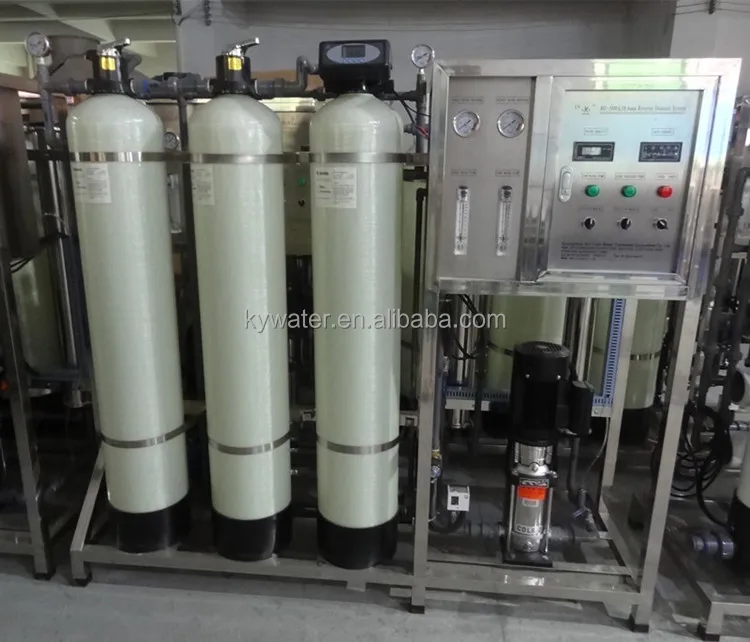

Remark: Now we change all the control panel of water filtration system to be the same as the first picture.

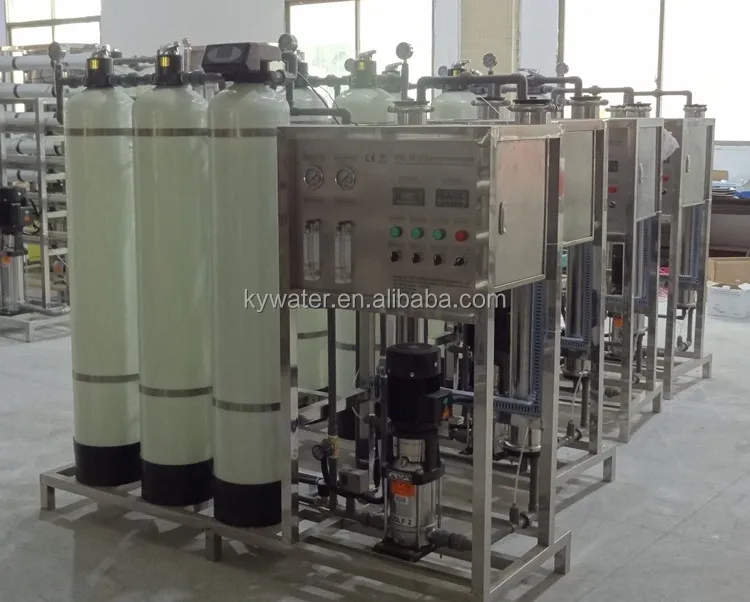

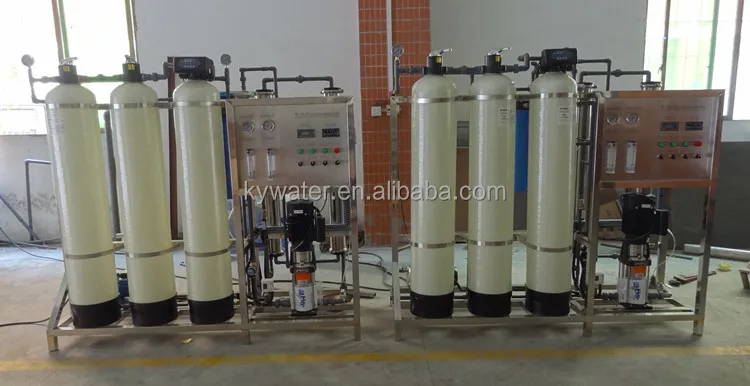

500LPH ro water treatment system in our warehouse, we have many in stock
Specification of the Water Treatment Equipment | ||
Output water production capacity | 500L/H | |
Water source TDS | less than 2000ppm | |
Raw water pump& high pressure pump | CNP Nanfang | |
Reverse osmosis (RO)membrane | Imported USA Filmtec DOW | |
Membrane housing | FRP (fiber glass) | |
Desalination rate | ≥97% | |
Recovery rate | ≥40% | |
Power supply: | 380V/50Hz/3Phase | |
Control system | RO-PLC or Mitsubishi PLC with touch screen | |
Electrical components | CHNT or ABB | |
Packing | wooden case | |
Warranty | 1 year | |
Application | drinking water, bottled water or for industry use | |
Remark | for more detailed specification, send us email or leave message on alibaba | |
Working Process
raw water→ raw water pump→quartz sand filter→activated carbon filter→water softener →security filter →high pressure pump→RO system →UV light/ozone generator →water supply point
S/N. | Commodity name | Application | Remark |
1 | Raw water tank | Store water, buffering pressure, overcome instability of supplying water by pipe, ensure to supply water stably and continuously for whole system | Customers provide for themselves, because big size will result in expensive freight. |
2 | Raw water pump or called booster pump | Provides needed pressure for every pretreatment filter | We can provide CNP pumps or Grundfos pumps |
3 | Mechanical filter or called quartz sand filter or sand filter | We use fiber glass or stainless steel vessel as housing, fill quarts sand, it can filter big particles impurities, suspended substances, colloids etc. | |
4 | Activated carbon filter | We use fiber glass or stainless steel vessel as housing, fill activated carbon, remove color, odor, residual chlorine and organics substances. | |
5 | Water softener, demineralizer, or called Na+ exchanger | Adopt cation resin to soften water, cation resin will absorb Ca2+, Mg2+(main elements for composing scale), reduce hardness of raw water, System can make resin intelligently regenerate, recycling | Optional, when total hardness is between 100ppm to 500ppm, have to use water softener. |
6 | Security filter or pp filter, or called PP sediment filter | prevent large particles, bacteria, viruses into RO membrane, accuracy is 5µm, | |
7 | High pressure pump | Provide needed working pressure for RO system, ensure production capacity of pure water. | CNP pump, Grundfos optional |
8 | RO(reverse osmosis) system | Can remove particles, colloids, organic impurities, heavy metal ions, bacteria, virus, heat source etc. harmful substances and 99% dissolved salts. | RO membranes USA Filmtec Dow |
9 | UV sterilizer or Ozone generator | Kill 99.99% bacteria, virus etc. |
Detailed Images
Main Parameters of the 500L/H ro water treatment system
Power | 1.5kw |
Raw water pump | Nanfang |
Quartz sand filter | φ250×1450 FRP 1pc |
Activated Carbon filter | φ250×1450 FRP 1pc |
Water softener | φ250×1450 FRP 1pc |
Security filter | 20 "× 5μm , 2pcs |
High pressure pump | Nanfang |
Reverse osmosis (RO)membrane | LCLE-4040 2pcs USA DOW |
Membrane housing | 4040 SUS-304 |
Quartz sand | 100KG |
Activated carbon | 25KG |
Resin | 50L |
Packing size (L*W*H) | RO unit:1.92*0.62*1.85m (wooden box) Filter medium:0.61*0.5*0.32 m (5pcs woven bags), for shipping, you can calculate as total 2.7CBM. |
Advantages
Features and Advantages
1.System can produce water continuously and high degree automation.
2.No need chemical to regenerate, easy operation and maintenance.
3.Core components of ro system are imported USA DOW membranes.
4.Automatic switch on when low water level, and switch off when high water level
5.System flushes RO membranes automatically, reducing membranes polluted speed.
6.Water shortage protection for multi-stage pump
7.Product water conductivity meter can monitor water quality online continuously.
8.Low operation cost and long life span
9. There's RO controller, make whole RO system operating automatically.
10.Easily control and Maintain
11. Auto flush and backwash the prefilters
12. Integrating water flow indicator, conductivity indicator, pressure indicator, control panel
Our Service
1. We can offer OEM services and make the product design as customers' requirements.
2. Skype, whatsApp and trade manager will be online for service within 24 hours.
3. English manual book and video will be shipped with machines.
4.One month PP filter cartridges can be provided for free.
5. 1 year warranty time. If there is any problem with machine, spare parts will be provided for free.
6. Engineers are available for solving problems any time and go abroad for installation.
7. We can teach customers how to operate machines in our factory step by step.
8.the layout and flow chart can be provided.
9.If you have other goods in Guangzhou, we can send our machine to your appointed warehouse or factory in Guangzhou or Foshan for free, and ship out it with your other cargos together.
2. Skype, whatsApp and trade manager will be online for service within 24 hours.
3. English manual book and video will be shipped with machines.
4.One month PP filter cartridges can be provided for free.
5. 1 year warranty time. If there is any problem with machine, spare parts will be provided for free.
6. Engineers are available for solving problems any time and go abroad for installation.
7. We can teach customers how to operate machines in our factory step by step.
8.the layout and flow chart can be provided.
9.If you have other goods in Guangzhou, we can send our machine to your appointed warehouse or factory in Guangzhou or Foshan for free, and ship out it with your other cargos together.
Quality Guarantee
We can't give you very low price, can only give you very good quality. We would rather explain for the price for a while, are not willing to apologize for the quality problem during machine's lifetime, we think only if we have good quality and after-sale service, it is what we are proud of. For promise, we will not betray the future for short-term profits, in order to get the customer's approval and follow, we work hard and insist!
Engineers available to install abroad
Our engineers can go abroad for installing the water filtration systems, but clients must bear the round air tickets and visa application, food, accommodation etc.We will teach workers how to operate step by step. Installation details will be illustrated in sales contract. For small production capacity, clinets will know how to operate as our English manual book, operation video etc.

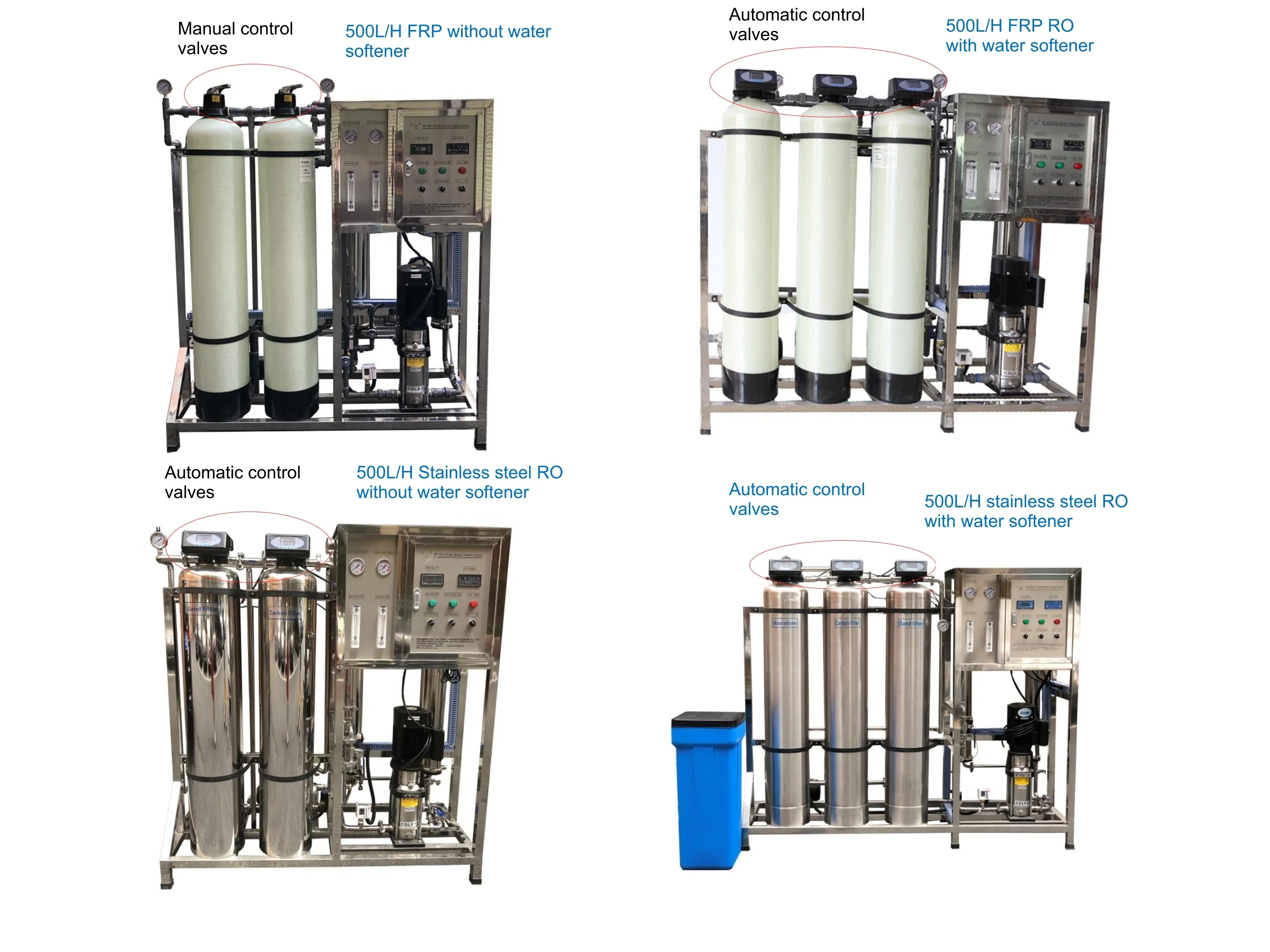

Other Models
500LPH water treatment system with auto water softener for reducing hardness
1000LPH RO water treatment system with UV sterilizer for TDS less than 1000ppm
3000LPH ro water treatment system full stainless steel SUS-304 for TDS less than 1000ppm
5000LPH reverse osmosis water treatment system for brackish salty water ( TDS less than 10000ppm)
12m3/h reverse osmosis water treatment system for brackish water (TDS less than 10000ppm)
30T/h ro reverse osmosis water treatment system for purifying river water, for TDS less than 5000ppm
