MACON indoor pool dehumidifier for pool dehumidifier for warehouse r410a dehumidifier

Share on (60668688667):


Price:$798.00

Quantity:


Product Overview

Description



Product Description

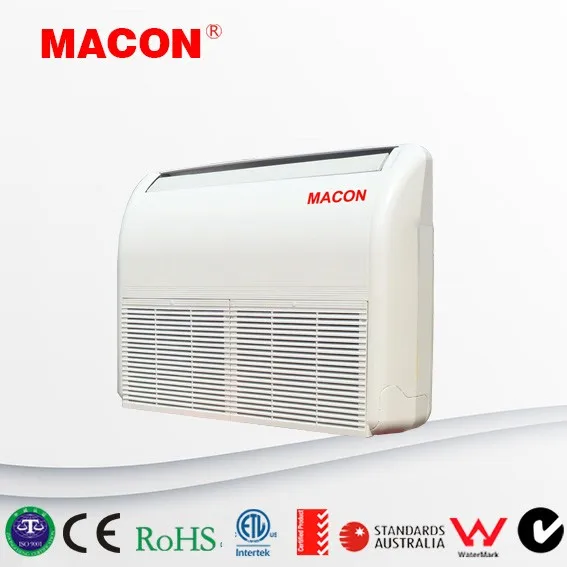

Macon dehumidifier





Main Features

1. Streamline appearance design.
2. Can be in stalled by ceiling mounted, floor standing or wall mounted.
3. With LCD line controller and LCD remote control design.
4. Wide air flowing range.
5. Auto swing.
6. Super quiet operation, rotary compressor.
7. Air heating: built-in auxiliary electrical heating, power range:1.0kw,1.5kw,2.0kw.
8. Corrosion free, easy to clean aluminium cover with easy-clean air filter. All heat exchange surfaces polyester coated.
9. Timing, automatic startup, automatic shutdown.
10. Automatic defrosting.
11. R410a Zero ozone depletion refrigerant.
12. High/low pressure and delay timer protections.
13. High moisture extraction for low power consumption.
14. Condensate connection at either side, Can drain continuously.



Product Parameters


                       MDH75A


                     MDH125A


                    MDH170A




Model
MDH
75A
125A
170A
Dehumidification @30℃/70%RH)
kg/day
75
125
170
Heat recovered to air @30℃/70%RH)
kW
3.2
5.0
8.2
Sound level
dB(A)
48
50
52
Circulating air volume
m3/h
600
1200
1800
Power supply
V/PH/Hz
220/1/50
Power input
kW
1.30
2.00
2.92
Current input
A
5.9
9.1
13.3
Starting current
A
25
42
63
Water connections
inch
3/4
Condensate drainage
mm OD
16
Working temperature
5~35
Compressor protection
3 minutes delay
Defrost mode
Automatic
Refrigerant
R410a
Compressor
Rotary
Unit Dimensions (L/M/H)
mm
905/243*673
1288/243/673
1672/243/673


Detailed Image


How a MACON dehumidifier works?

The process of dehumidification involves moisture-laden air being drawn into a dhumidifier where the air passes across a refrigerated coil. The air is rapidly cooled below its dew point, condensing the water vapour and recovering its latent heat energy for re-use. The cooled air is then passed across the condenser where it is reheated and returned to served are at the required lower relative humidity.

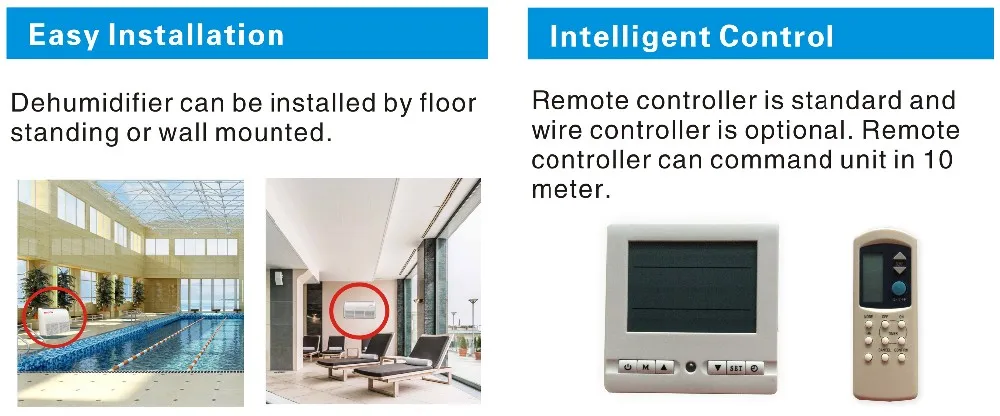

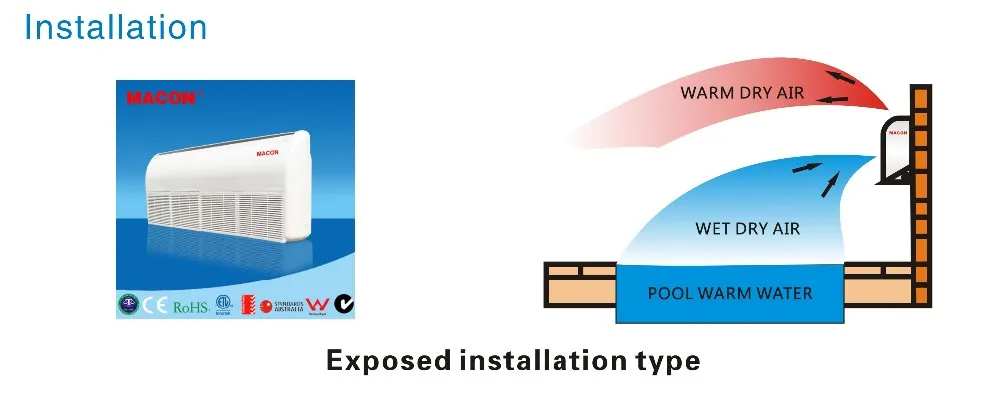

Free installation

Can be installed by floor standing or wall mounted

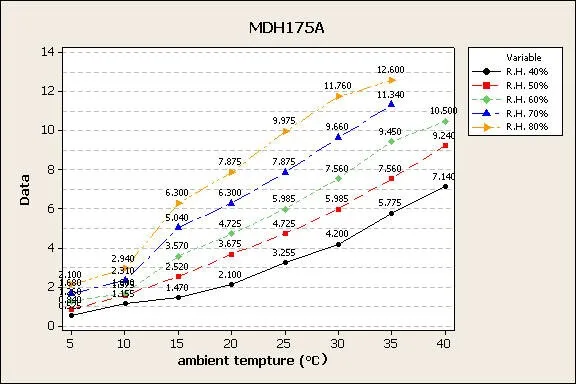

Capacity curves

Good dehumidification at different ambient temperature







Auto swing

Auto swing with wide air flowing range






Smart control

 With LCD wired controller and LCD remote control.






Remote control

details of remote control



Product Certificates




Our products are highly qualified by international standards. We gain various certifications such as CE, RoHS, EN14511 for European market, SAA, Water Mark, C-Tick for Australian market, ETL for North American market, etc.
