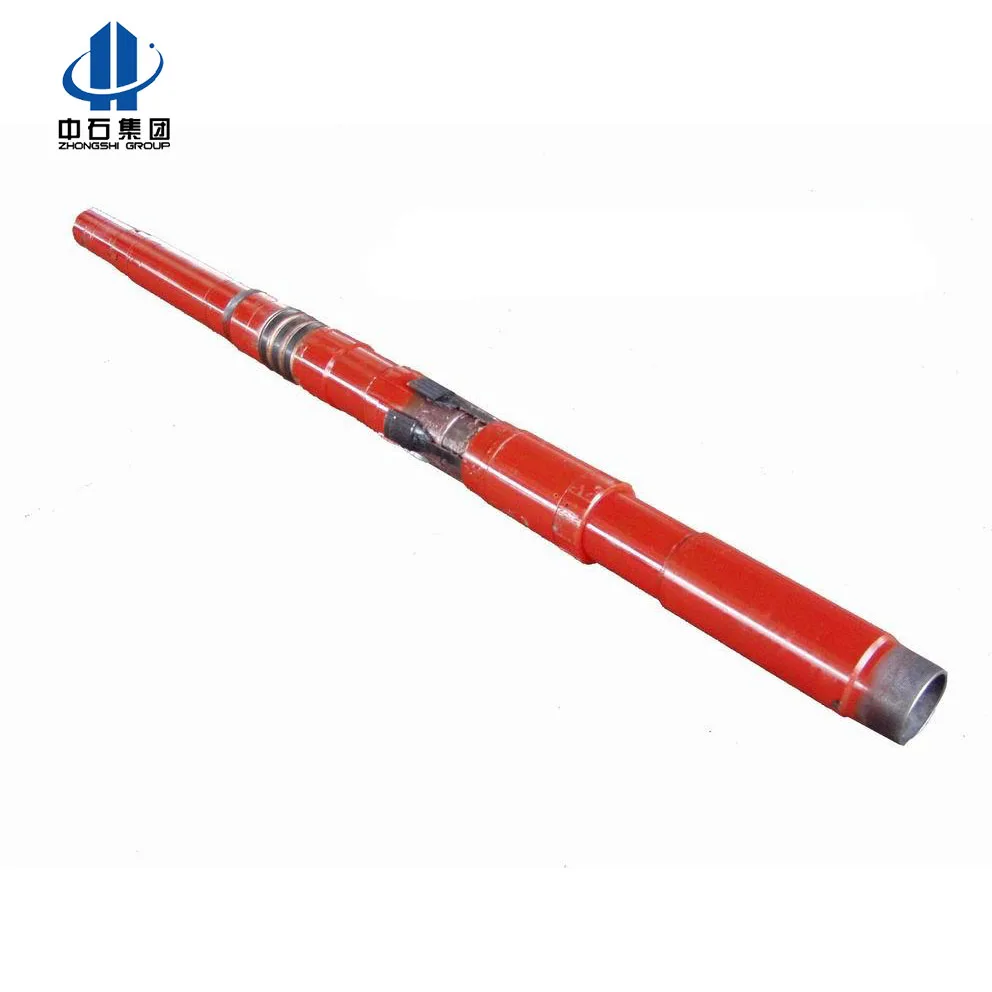

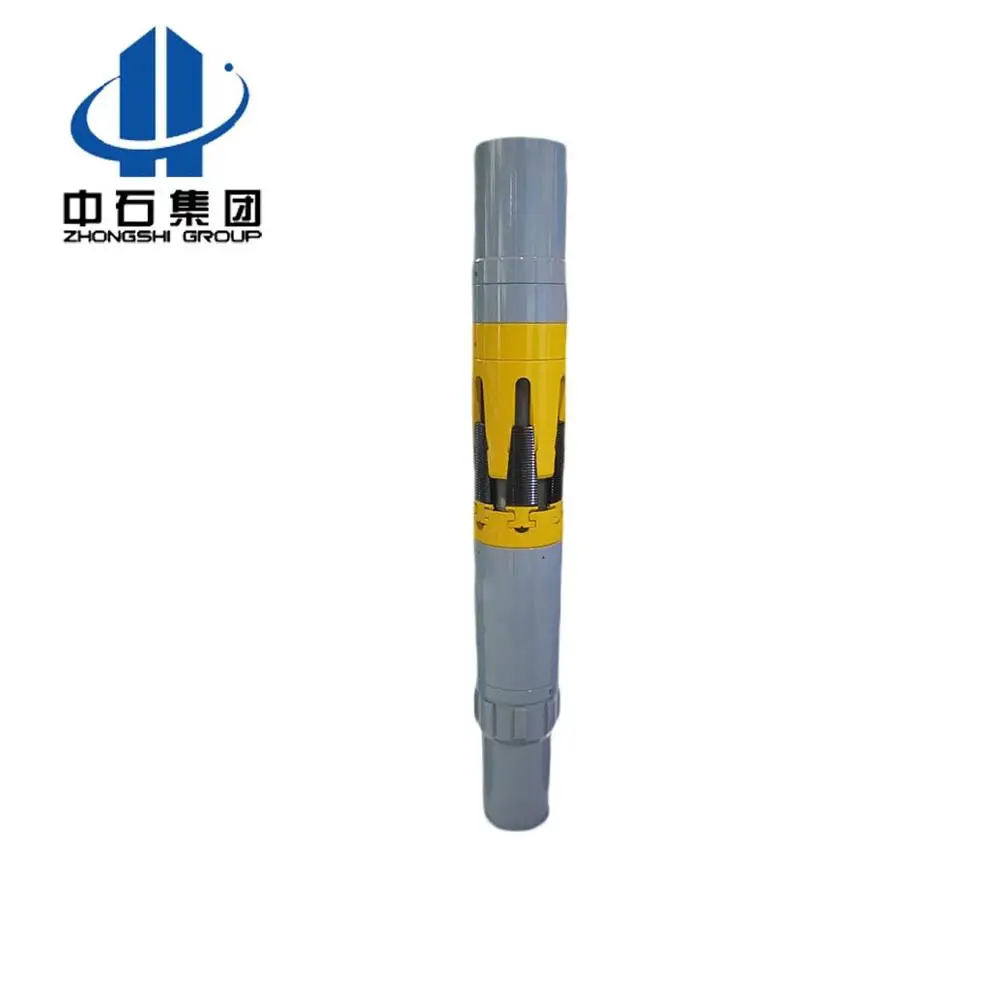

Hydraulic set liner hanger
- Category: Petroleum Processing Equipment >>>
- Supplier: Puyang Zhongshi Group Co. Ltd.Puyang Ltd.
Share on (60668707519):
Product Overview
Description
Product Description
A liner hanger is a device used in oil fields to hang liners within an oil well. So that oil can be pumped out of the well, a liner is used to create a vacuum. Liners can be installed mechanically or hydraulically, depending on the well. Setting a hanger is a crucial part of the process of "completion" which is the preparation of an oil well for drilling.
Mechanical liner hangers are designed to be used on vertical, onshore wells. These are durable machines capable of providing light to medium density liners. A mechanical liner hanger is lowered into a well and when it reaches its intended depth it attaches itself to the well’s cones, which are components that keep oil and dangerous gasses from escaping. Through using its mechanical parts, the liner hanger attaches itself to the cone, allowing for oil to pass through to the surface.
For offshore oil wells, onshore wells that are extremely deep, or high pressure high temperature (HPHT) wells, hydraulic liner hangers are used. These hang heavy liners and can be used horizontally as well as vertically. If the well is to be cemented, it is possible for the lining and cementing to be done simultaneously with hydraulic liner hangers, as this improves the stability of both the cement and the liner. As the name suggests, when the hydraulic liner hanger reaches its intended depth it attaches the liner to the cone by using
Size(Csg × Liner) | Casing Weight | Max O.D. | ||
in. | kg/m | lb/ft | mm | in. |
10-3/4 × 7 | 75.90 | 51.00 | 240 | 9.449 |
82.59 | 55.50 | |||
90.33 | 60.70 | |||
9-5/8 × 7 | 59.53 | 40.00 | 215 | 8.465 |
64.74 | 43.50 | |||
69 94 | 47.00 | |||
7-5/8 × 5-1/2 | 44.20 | 29.70 | 165 | 6.496 |
50.15 | 33.70 | |||
58.04 | 39.00 | |||
7 × 5 | 38.69 | 26.00 | 152 | 5.984 |
43.16 | 29.00 | |||
47.62 | 32.00 | |||
Packaging & Shipping
FAQ
1. Why do you choose our company?
We have a long development history in the industry in China; the products and technology have been improved to a higher level. Our strong technical team can ensure high quality products.
2. How can we guarantee our quality?
Our products are under API standard. Every time we will inspect our factories first. This inspect will include the persons, the present products, their scale etc. If everything is OK, we will start to cooperate. During production, we will go to the factories to test the products to guarantee the products have good quality.
If it doesn't meet our requirement, the goods will be refused.
3. Do we have price advantage?
We have our own factories and outstanding working team .And also establish long term business relationship with many manufacturers in China market. So we can get more competitive price from them.
Company Information
Puyang Zhongshi Group Co., Ltd. was founded in 1996, which is the restructured enterprise of Central Plains oilfield
Branch Company of SINOPEC. The company registered capital is 60.83 million yuan, with annual output value 200 million yuan, 580 employees, including more than 160 technical and administrative staff. Oil machinery is our main products; the leading products include pumping unit, subsurface sucker rod pump, wellhead (Christmas tree), pressure vessels, drilling solid control series products and cementing accessories. We had attained ISO 9001 in 1998 and API Certificates in 2002.

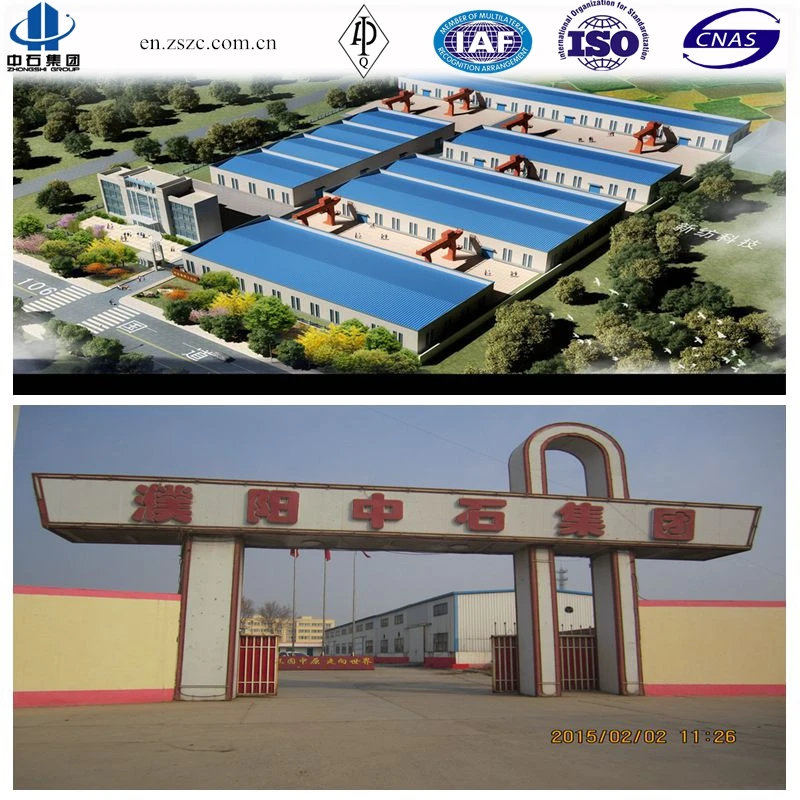

Showroom
