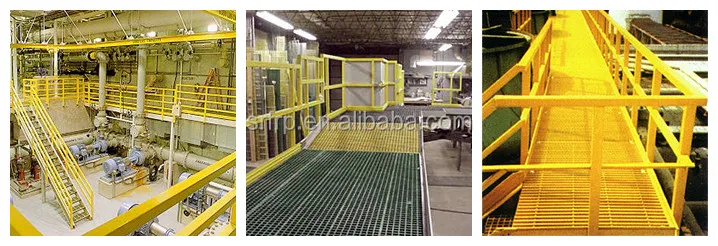

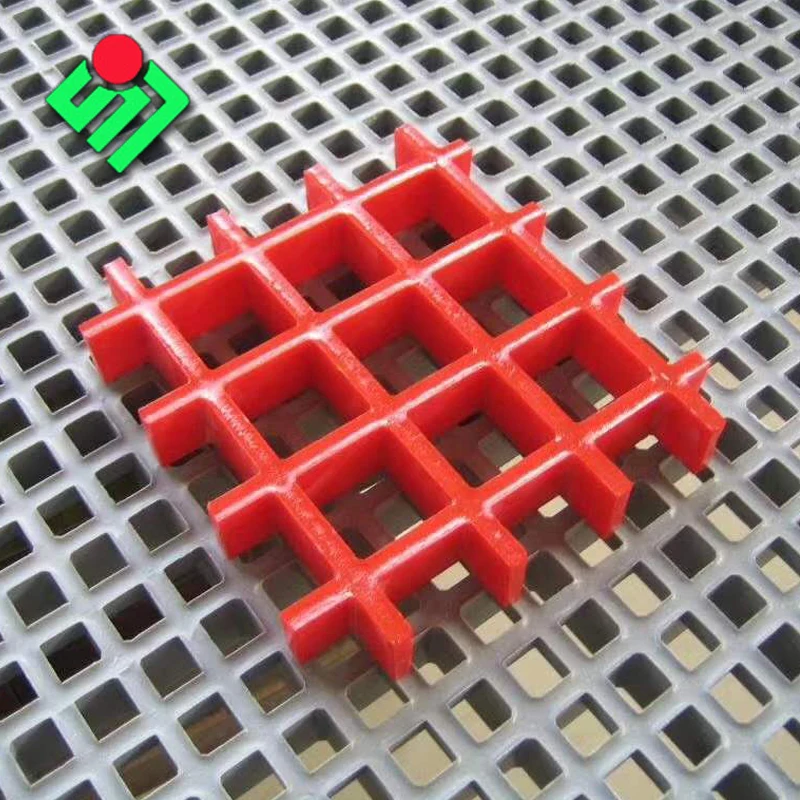

Fiberglss grating is a structural panel which uses high-strength E-Glass roving as reinforcing material, thermosetting resin as matrix and then casted and formed in a special metal mold. It provides properties of light weight, high strength, corrosion resistance, fire resistance and anti-skid. FRP Molded Grating is widely used in oil industry, power engineering, water & waste water treatment, ocean survey as working floor, stair tread, trench cover, etc. and is an ideal loading frame for corrosion circumstances.

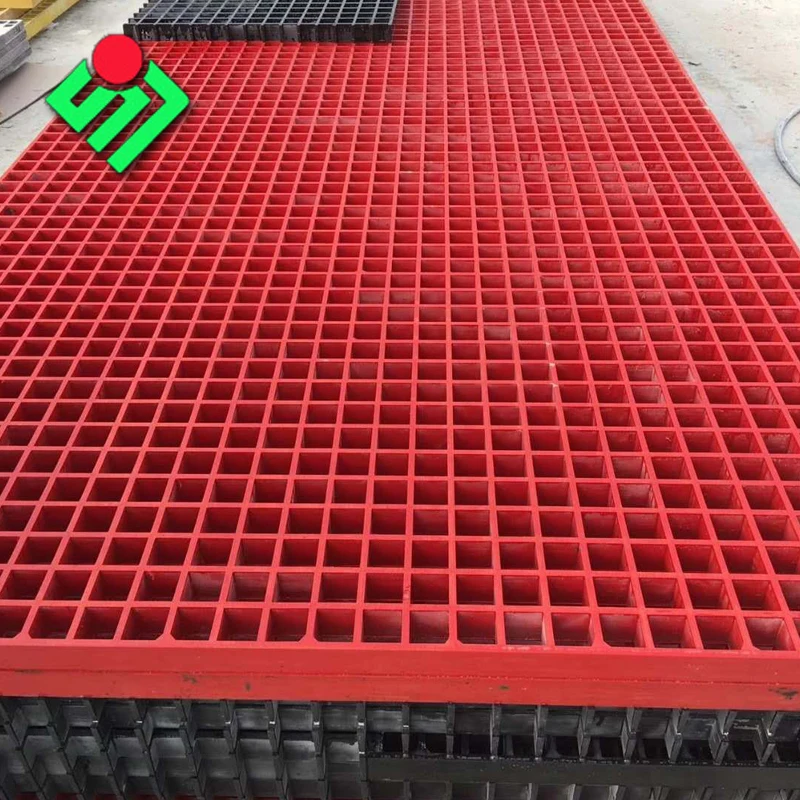

Plastic Grating Sheet Standard Panel
Thickness (mm)
Panel size (mm)
Mesh size (mm)
Bar thick (mm)
panel Wt.per m2
Weight (Kg)
25
1007x2007
40x40
6.5
12.8Kg
25.8
1220x3660
38x38
6.5
13.4Kg
60.0
1007x4007
40x40
6.5
12.8Kg
52.0
1220x3660
25x100
6.5
13.8Kg
62.0
1220x3660
38x38/19x19
6.5
16.8Kg
75.1
30
1007x4007
40x40
6.5
14.8Kg
60.0
1220x3660
38x38
6.5
14.7Kg
65.6
1220x3660
38x38/19x19
6.5
18.4Kg
82.2
38
1220x3660
38x38
6.9
18.7Kg
83.5
1007x4007
40x40
6.9
18.8Kg
76.0
1220x3660
38.1x152.4
6.9
16.0Kg
71.5
1220x3660
38x38/19x19
6.9
23.5Kg
105.0
40
1007x3007
40x40
7.0
19.8Kg
60.0
1007x4007
40x40
7.0
19.8Kg
79.9
50
1220x3660
50x50
8.0
21.3Kg
95.1

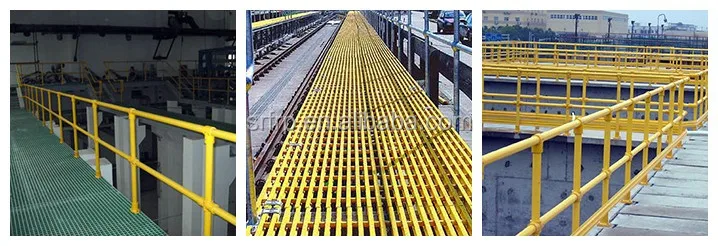

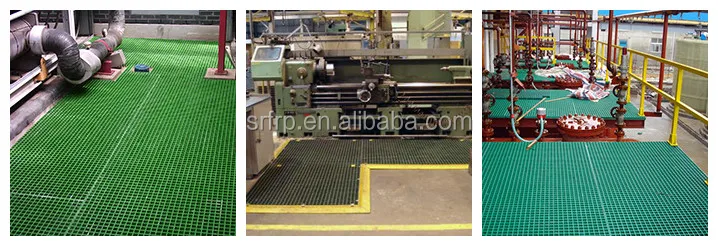

Plastic Grating Sheet Applications
Our molded FRP gratings have applications in many industries, including:
chemical processing
food & beverage
marine
oil & gas
power
manufacturing
construction
pharmaceutical
metals & mining
pulp & paper
recreation
water parks
telecommunications
IT server farms
shipping centers
transportation facilities
water & waste treatment, and
numerous architectural uses.

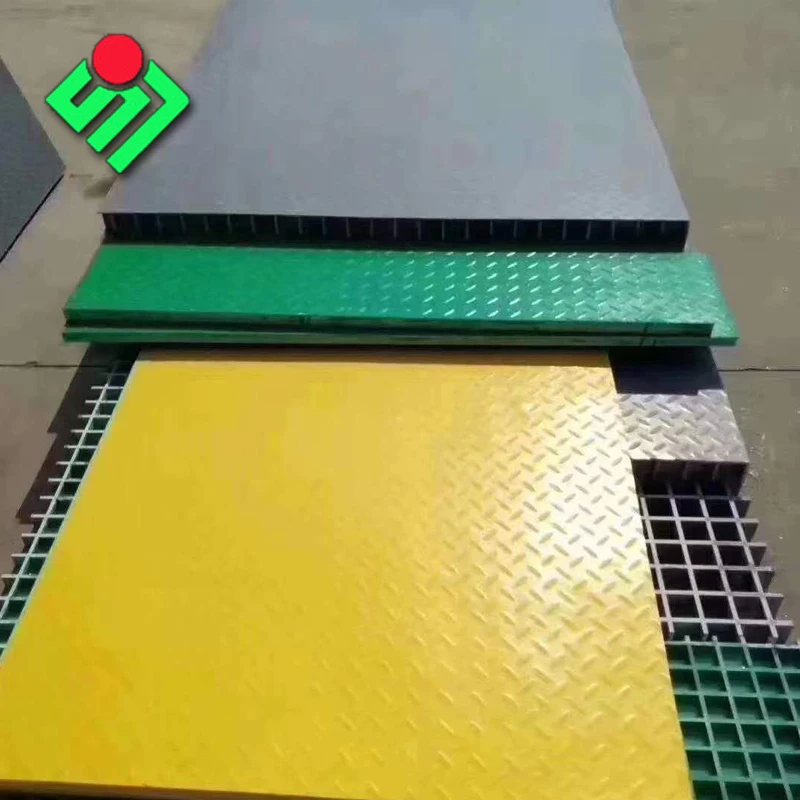

Plastic Grating Sheet Surface Treatment
Plastic Grating Sheet Advantages
Strong, Lightweight and Corrosion-Resistant
Molded FRP Grating has the strength of steel, but it won’t corrode like steel can.
Safer Walking Surface for Trench Covers and Fiberglass Walkways A coarse, gritted epoxy coating enhances traction.
Support and Stability Molded Fiberglass Grating Panels are equally strong in both directions
Easy Fabrication FRP Flooring Panels are lightweight, easy to transport, and can be cut and fabricated using standard hand tools.
Extended Life The coated resin surface increases resistance to chemical corrosion and continuous UV exposure.
