Стандартный пневматический цилиндр двойного действия ISO6431 DNC
- Category: Pneumatic Parts >>>
- Supplier: Ningbo Vpc Pneumatic Co. Ltd.
Share on (60668762355):
Product Overview
Description

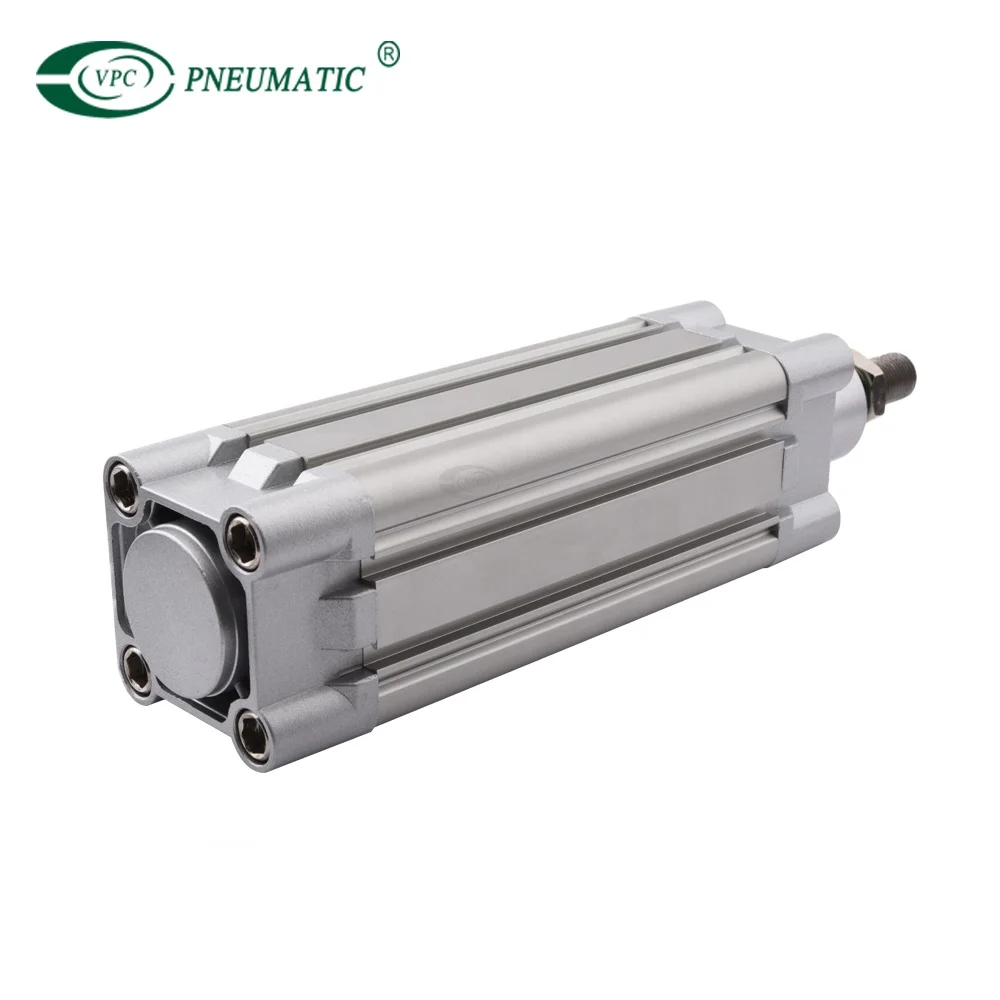

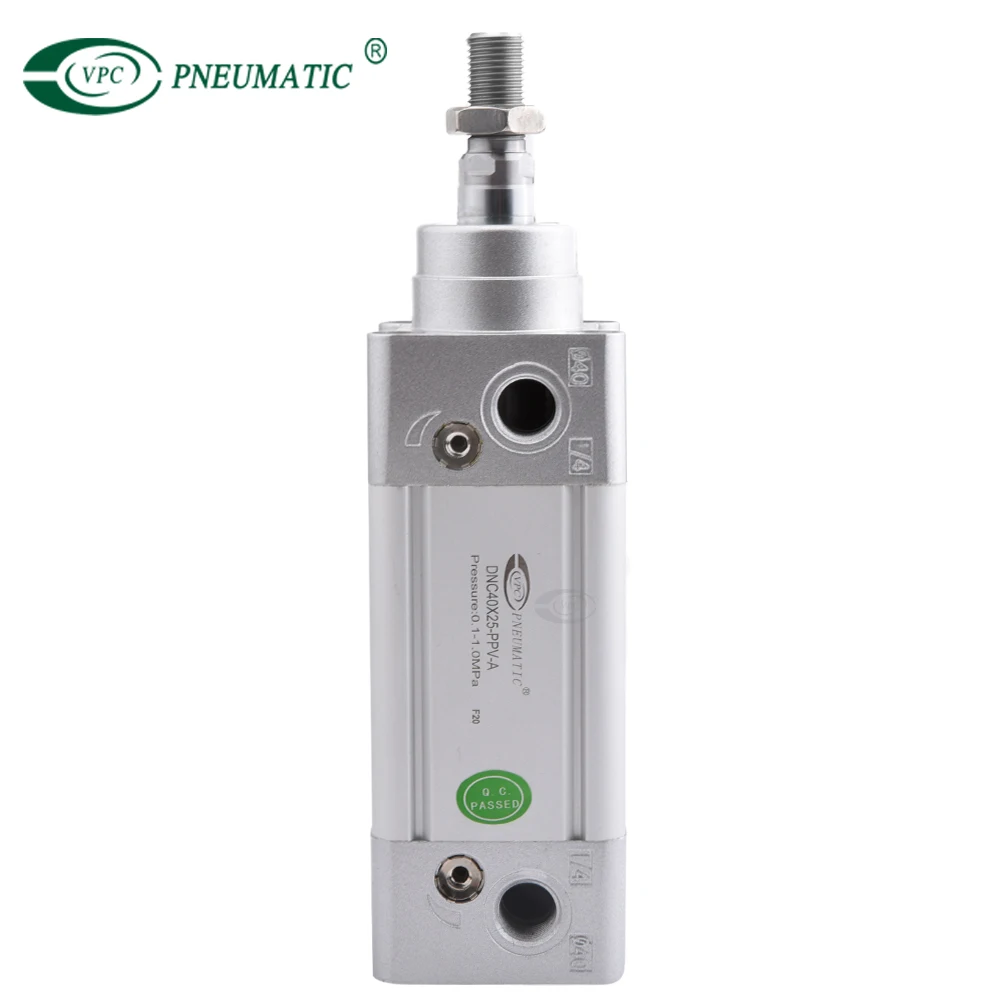

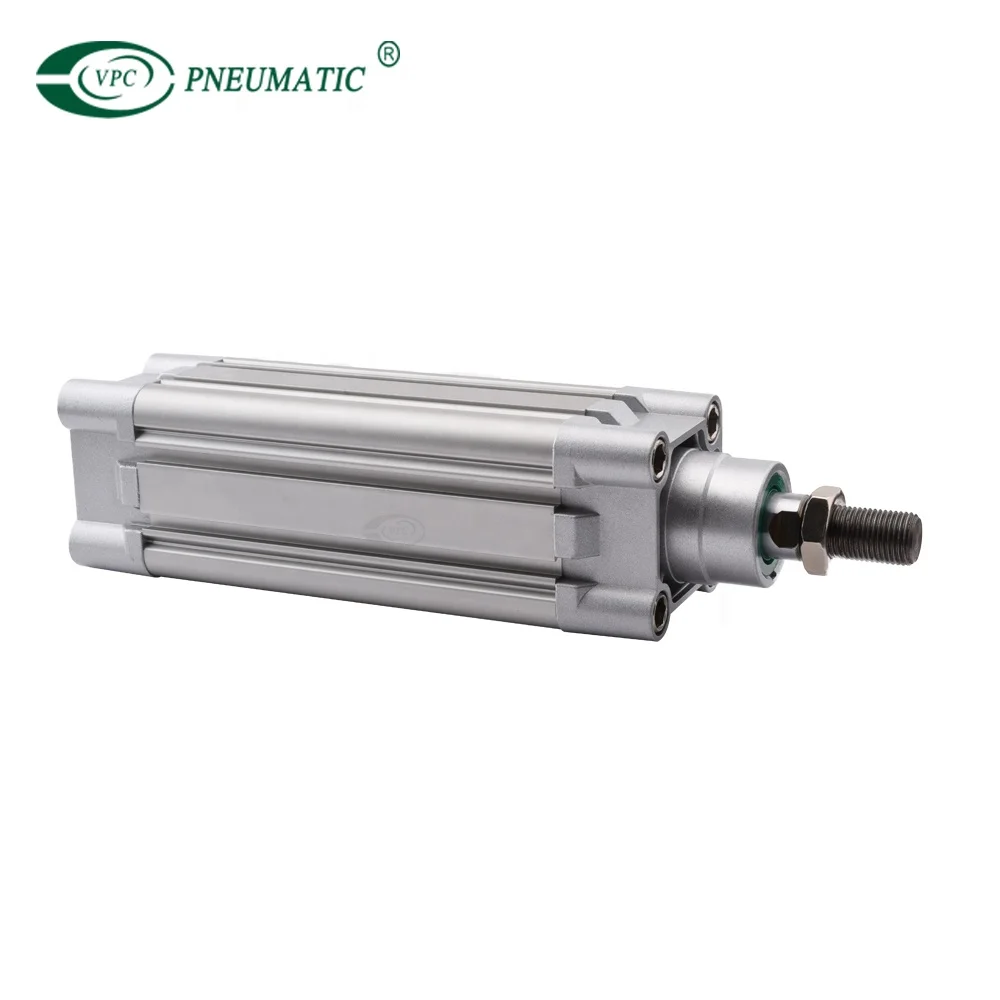

ISO6431 DNC standard double acting pneumatic cylinder
Bore(mm) | 32 | 40 | 50 | 63 | 80 | 100 | 125 | ||||||
Acting type | Double acting | ||||||||||||
Mounting type | Clean air(40um Filteration) | ||||||||||||
DNC Series | Basic type:FA FB CA CB CR LB TC TC-M | ||||||||||||
DNC-S2 | Basic type :FA LB TC TC-M | ||||||||||||
Working pressure range | 0.1-1Mpa | ||||||||||||
Guaranteed pressure | 1.35Mpa | ||||||||||||
Working temperature | -5~70℃ | ||||||||||||
Speed Range | 50-800mm/s | ||||||||||||
Cushion type | adjustable cushion | ||||||||||||
Cushion stroke | 24mm | 32mm | |||||||||||
Working life | >=4000Km | ||||||||||||
Port size | G1/8 | G1/4 | G3/8 | G1/2 | |||||||||
Ordering Code DNC Series ISO6431 Standard Cylinder
DNC 32 X 50 - 20 - PPV - A - S2
DNC→Series Code DNC:Basic type
FNC:Front Rear Plate Mounting
ZNCF:Centre Trunnion Mounting SNCB:Single Trunnion Mounting
SNCL:Double Trunnion Mounting 32→Bore
50→ Stroke
ZNCF:Centre Trunnion Mounting SNCB:Single Trunnion Mounting
SNCL:Double Trunnion Mounting 32→Bore
50→ Stroke
20→Adjustable Stroke
10:10mm 20:20mm 30:30mm 40:40mm 50:50mm 75:75mm 100:100mm
10:10mm 20:20mm 30:30mm 40:40mm 50:50mm 75:75mm 100:100mm
PPV→Cushion
Blank：No Cushion
Blank：No Cushion
PPV:With Cushion
A→Magnet
Blank：Without Magnet A:With Magnet
S2→Type
Blank:Standard Cylinder S1:Double-shaft, adjustable stroke type S2:Double -shaft type
Blank：Without Magnet A:With Magnet
S2→Type
Blank:Standard Cylinder S1:Double-shaft, adjustable stroke type S2:Double -shaft type
