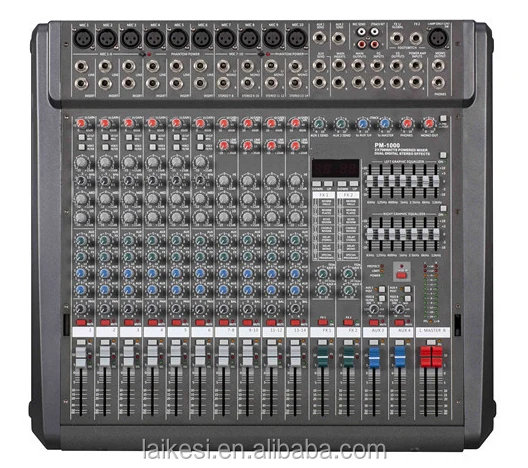

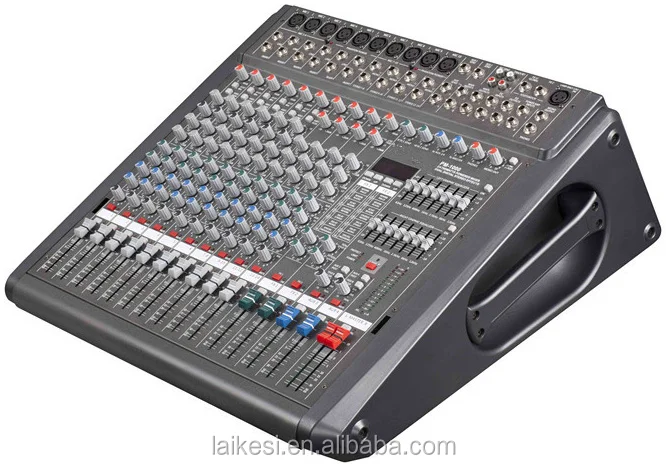

PM 1600 2 Professional 16 channel mixer with double DSP mixer audio

Product Overview

Description

Professional 16 channel mixer with double DSP dynacord mixer

• +48V Phantasm Power,Dual 7-band EQ,2X99DSP LCD Display Digital Effects Selection,DJ Lamp.


• With Amplifier


• S/N Rate:≥93dB


• Frequency Response: 20Hz~20KHz


• Equalization: Hi 12KHz ± 15dB


• Mid 2.5KHz ± 15dB


• Low 80Hz± 15dB


• Effector:2x99 Band Digital Effector


• Power Output: 4Ω 600W x2


• Net Weight(Kg): 24.5


• Gross Weight(Kg):28


• Dimension(mm): 540x500x210


• Measurement(mm): 615x570x290


PowerMate 1600 powered mixer



• 16 +4 balanced stereo inputs, 16 channel mixer.


•  Mono and main output signals with some insertion point for external signal processors


• The effects 2 × 99 Zhong DSP LCD professional results


• Quality + 48V phantom power


• Each 3-band EQ with scanning, 9-band equalizer


• 12V / 5W-DJ Light


• The double-sided circuit board using SMT technology, the performance of the regulator reliable


• The high-precision three-color precision level column that shows exactly what the output level


• 60MM stroke high degree of fader Analysis


• It similar to dynacord design mixer





Model	PM-600	PM-1000	PM-1600
Channel MIC/Line	6ch	10ch	16ch
Channel EQ	4 band	4 band	4 band
Main Buses	1 stereo	1 stereo	1 stereo
Group Buses	1 stereo	1 stereo	1 stereo
Frequency Response	20Hz-20KHz	20Hz-20KHz	20Hz-20KHz
Amplifier output	2X650W	2X700W	2X700W





PM1600 dynacord mixer
