Product Overview
Description

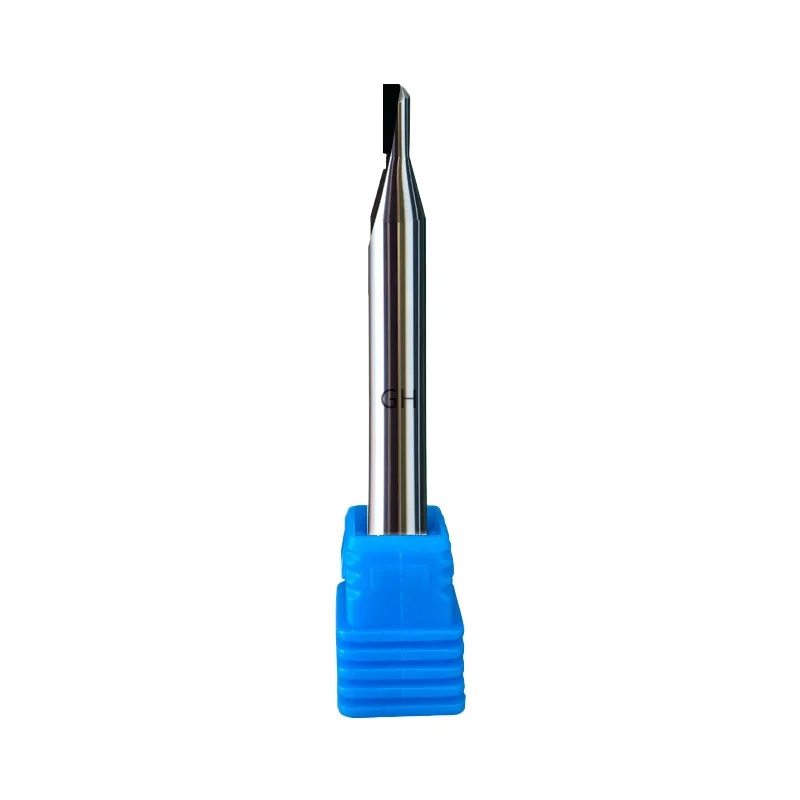

High Quality Diamond flute milling router bit tool PCD end mill for acrylic Aluminum graphite
Product Description
l PCD
PCD(Polycrystalline Diamond)is a synthesized, extremely tough, intergroup mass of randomly orientated diamond particles in a metal matrix. It is produced by sintering together selected diamond particles at high pressure and temperature.
Application
PCD End Mills for cutting plastics, aluminum and al-alloys

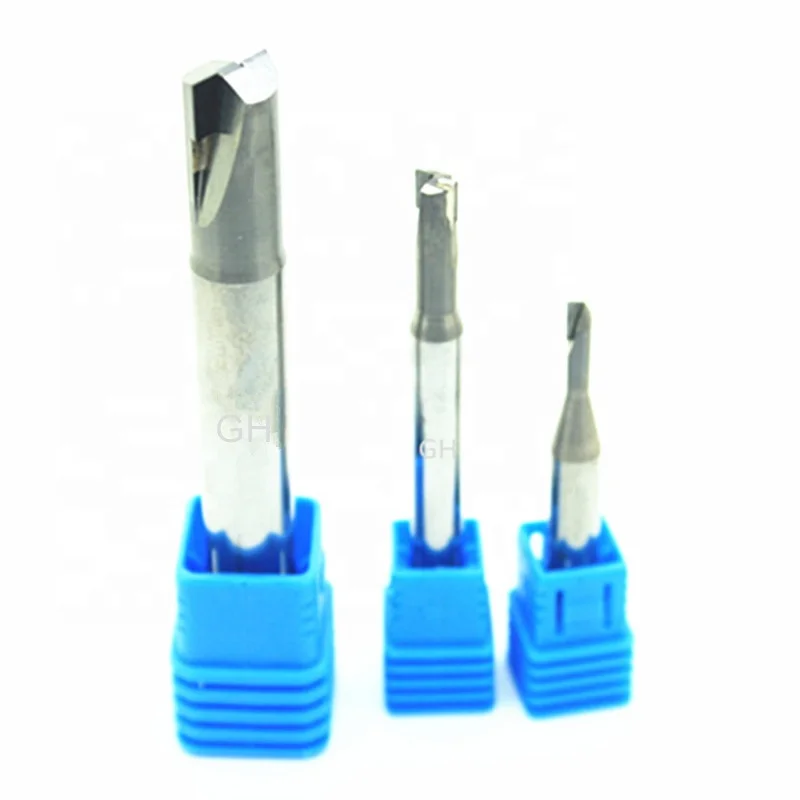

1. pcd step end mills with Multi- tips.
2. Application For plastics, aluminum, al-alloys, carbon, ceramics and every kind of non-ferrous materials
1. pcd step end mills with Multi- tips.
2. Application For plastics, aluminum, al-alloys, carbon, ceramics and every kind of non-ferrous materials

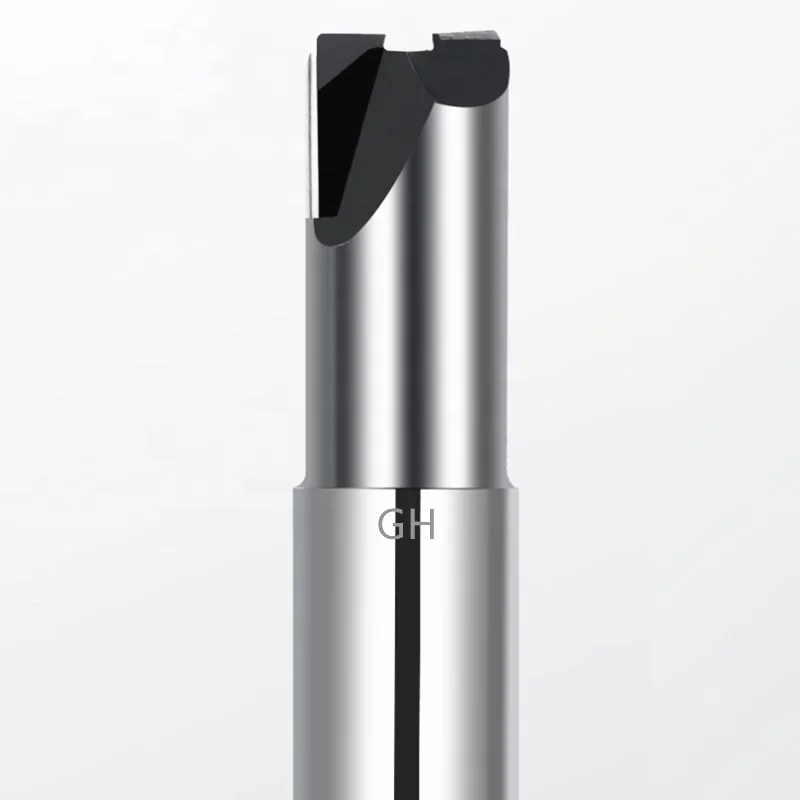

3. Straight flutes end mill with PCD blade
4. Carbide tungsten end mills with PCD blade
Processing material: copper, aluminum, plastic, acrylic, carbon fiber, composite materials, wooden materials, stone graphite, cement board, ceramics, glass fiber composite board

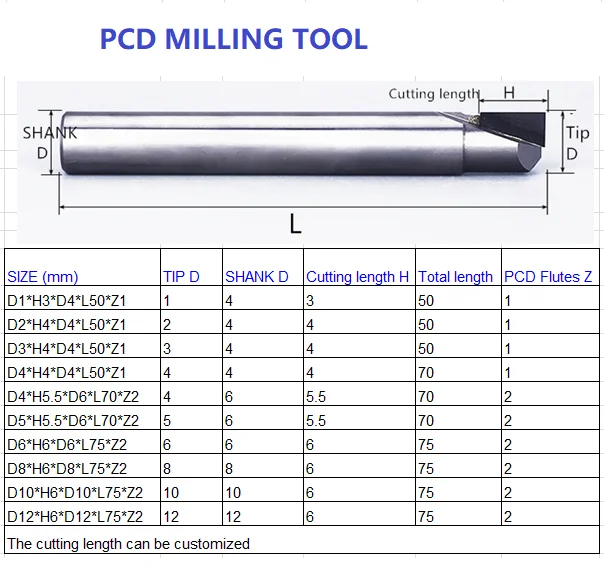

PCD MILLNG TOOLS

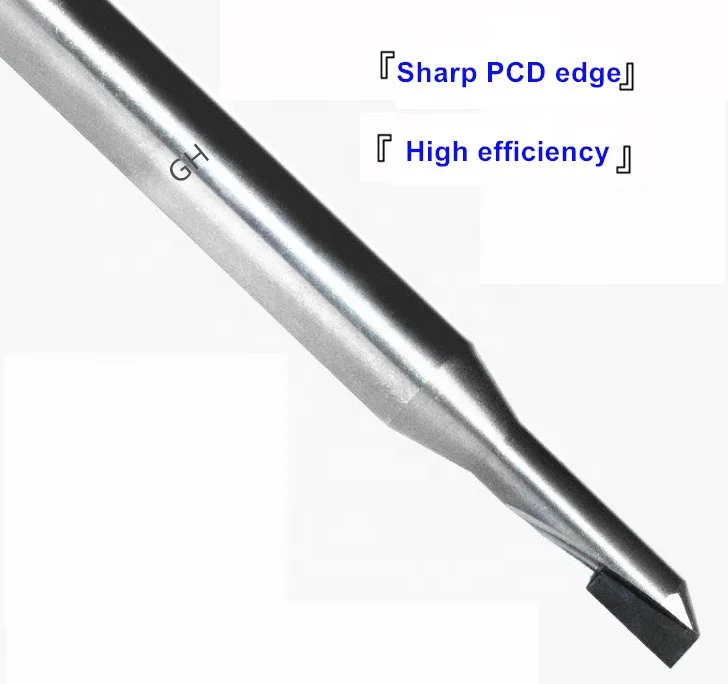

1, Imported Diamond PCD, sharp PCD edge with high wear-resistant, high finish gloss effect.
2. Tungsten steel base bar for shank, better wear resistance and strength.
3. High-precision shank.
4, Chip removal more smoothly, PCD flute in unique fine grinding design, high efficiency.

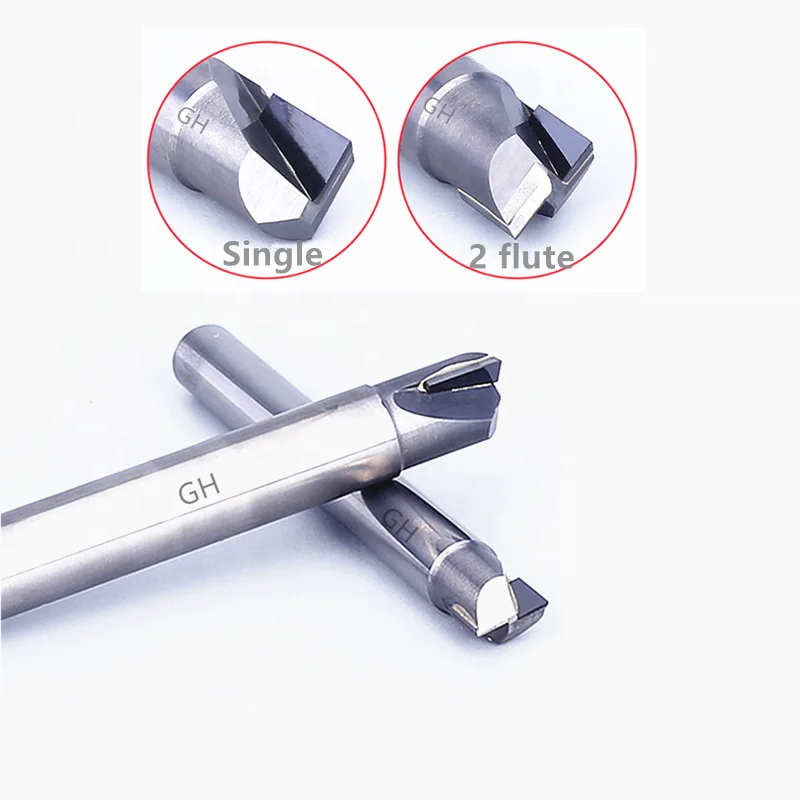

5, We could supply the single-flute and two flute end mill
PCD Recommended Cutting Condition | |||
Work piece | Cutting Speed | Depth of Cut | Feed Rate |
(m/min) | (mm) | (mm/rev) | |
Aluminum(5~8% SI ) | 350~1600 | 0.05~2.50 | 0.10~0.40 |
Aluminum(8~12% SI ) | 350~1300 | 0.05~2.50 | 0.10~0.40 |
Aluminum(14~18% SI ) | 160~800 | 0.05~2.50 | 0.05~0.25 |
Copper | 350~1000 | 0.15~2.50 | 0.05~0.20 |
Sintered Carbide | 15~25 | 0.05~0.60 | 0.10~0.20 |
Glass Fiber | 100~800 | 0.15~0.50 | 0.03~0.25 |
Carbon | 160~700 | 0.15~2.50 | 0.15~0.40 |
High Aluminum | 70~250 | 0.05~1.50 | 0.03~0.15 |
Ceramics | |||
Wood | 1000-2500 | 0.2~5.0 | 010~0.50 |
factory show
product categories
Company Information
GH Diamond Tools Co., LTD specializes PCD (polycrystalline diamond) and PCBN (polycrystalline cubic boron nitride) tools.
Main Products: PCD insert,PCBN Inserts,PCBN &PCD Turning and Milling Tools.PCD woodworking cutter ,Diamond Wire Drawing Die Blanks. Diamond Glass Scribing Wheel And axle.
We could maketools in accordance with your drawing or specifications.
