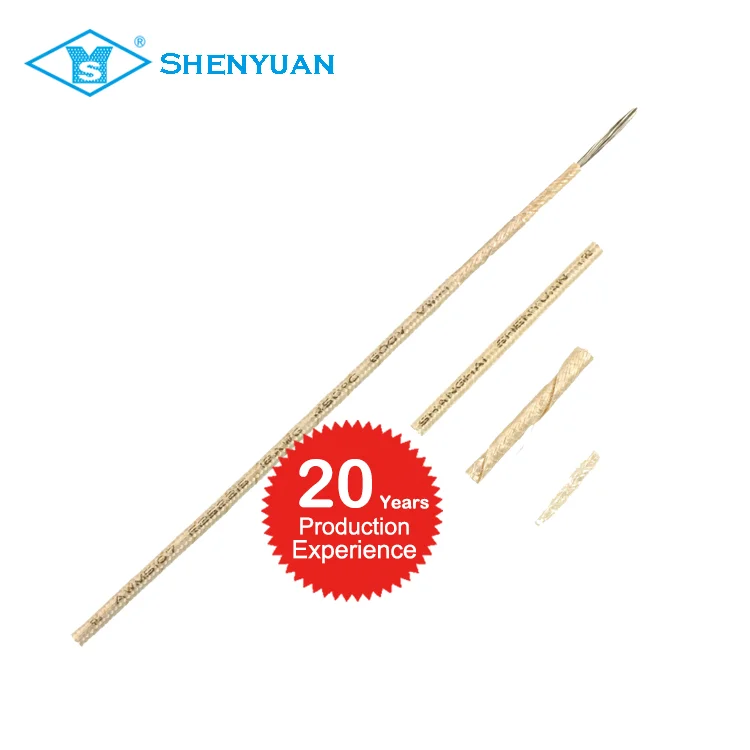

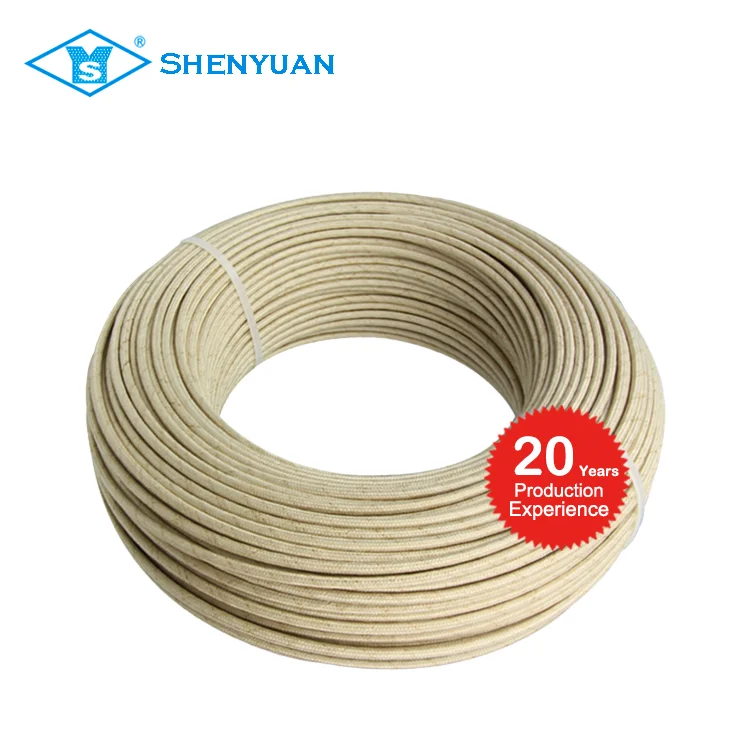

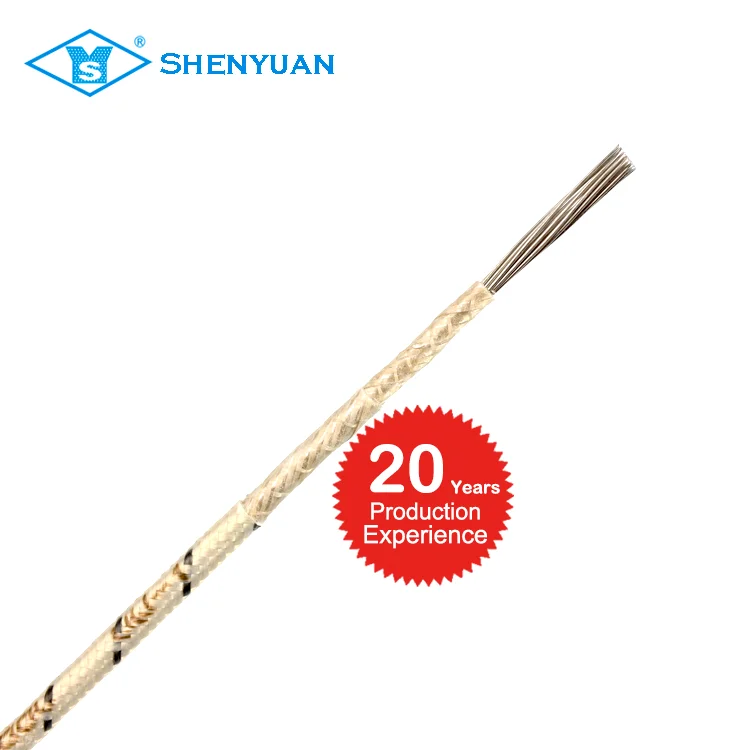

AWM5107 600v 450c Single core mica wrapped fiberglass braided fire resistant wire

Product Overview

Description

Description

1) Name: MGT wire
2) Style No.: AWM5107
3) Size: 24AWG~8AWG

Feature
1) Rated Voltage: 600V
2) Rated Temperature:-60°C~+450°C

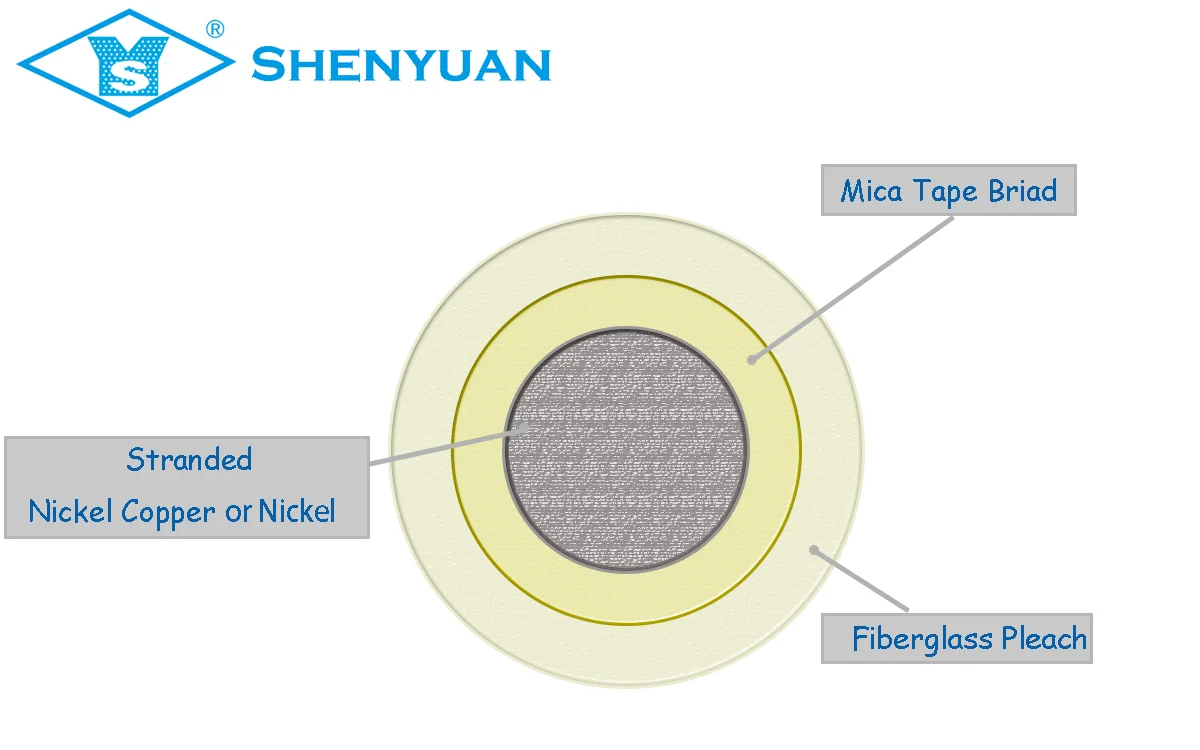

3) Conductor: Nickel Copper, Nickel
4) Insulation: Mica, Fiber Glass, High Temperature Saturant

Applications
* Wiring of furnaces and industrial ovens.
* Wiring of heating elements, cartridges, bands, and hot plates.
* Wiring of domestic or commercial electrical appliances.

AWG	Conductor construction NO.×mm	Outer Diameter mm	m/coil
22	5×0.30	2.4±0.3	305
20	7×0.30	2.7±0.3	305
18	11×0.30	2.8±0.3	305
17	14×0.30	2.9±0.3	305
16	18×0.30	3.1±0.3	305
15	21×0.30	3.2±0.3	305
14	28×0.30	3.5±0.3	305
13	35×0.30	3.7±0.3	305
12	49×0.30	4.3±0.3	305
11	56×0.30	5.1±0.5	305
10	77×0.30	5.7±0.5	305
8	112×0.30	6.5±0.5	305
7	140×0.30	6.8±0.5	305
6	190×0.30	7.8±0.5	305
5	228×0.30	8.3±0.5	305
4	304×0.30	9.3±0.5	305
3	380×0.30	10.6±1	305
2	494×0.30	11.6±1	305
1	342×0.40	12.6±1	305
1/0	396×0.40	13.4±1	305
2/0	532×0.40	15.0±1	305
3/0	684×0.40	16.7±1	305
4/0	836×0.40	18.1±1	305
