36V 48V 60V 72V to 24V 3A 5A DC DC Step down Buck Converter Regulator Car Voltage Reducer Module 36 48 60 72 Volt to 24 Volt
- Category: >>>
- Supplier: Shenzhen Fulree Electronics Co. Ltd.
Share on (60668907765):
Product Overview
Description
36V 48V 60V 72V to 24V 3A 5A DC-DC Step-down Buck Converter Regulator Car Voltage Reducer Module 36 48 60 72 Volt to 24 Volt
Product Description
Product Name | 36V 48V 60V 72V to 24V 3A 5A DC DC Converter | |
Brand | Fulree | |
Model No. | F60J24V3A3S / F60J24V5A3S / F72J24V3A3S / F72J24V5A3S / F90J24V3A3S / F90J24V5A3S | |
Module Properties | non-isolated buck module | |
Rectification | synchronous rectification | |
Input | ||
Input Voltage | DC 48V | |
Input Voltage Range | DC 30-60V / DC 30-72V / DC 30-90V | |
Output | ||
Output Voltage | DC 24V | |
Output Current | 3A / 5A Max | |
Output Power | 72W / 120W Max | |
Conversion Efficiency | >90%(full load),95% max | |
Voltage regulation | ±1% | |
Load regulation | ± 2% | |
Ripple (Full load test) | < 150mV | |
No-load current | < 100mA | |
Working Temperature | -40~80℃ | |
Waterproof Rating | IP68 | |
Protection | Over-current protection | |
Output Short circuit protection | ||
Input/Output Reverse Polarity Protection | No, please follow label instructions wiring strictly: red for input positive, black is negative, yellow for output positive. If you need this function, please contact with us to customize it. | |
Certification | CE/RoHS | |
Case Material | Plastic, anti-shock, anti-drop, anti-moisture, anti-dust and so on | |

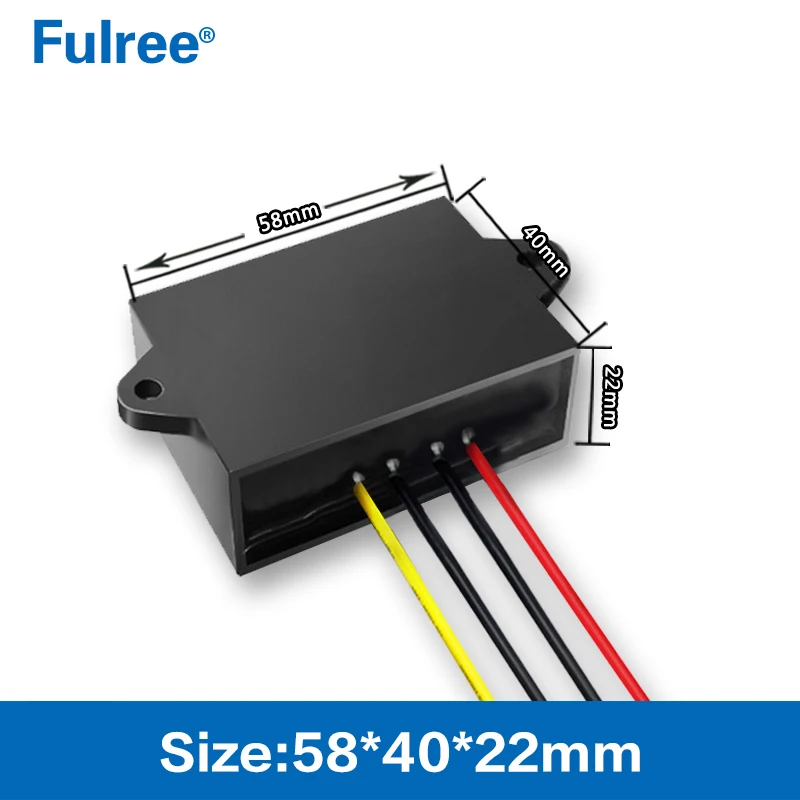

Product Size (L x W x H) | 58*40*22mm | |
Installation Cable Length | 13-14cm | |
Product Weight | 105g | |
Warranty | 12 months, lifetime up to 100,000 hours | |
Cooling Way | Free air convection | |
OEM Service | Accept OEM logo/label/manual/packing box, Contact Fulree Now! | |
Customized Service | ||

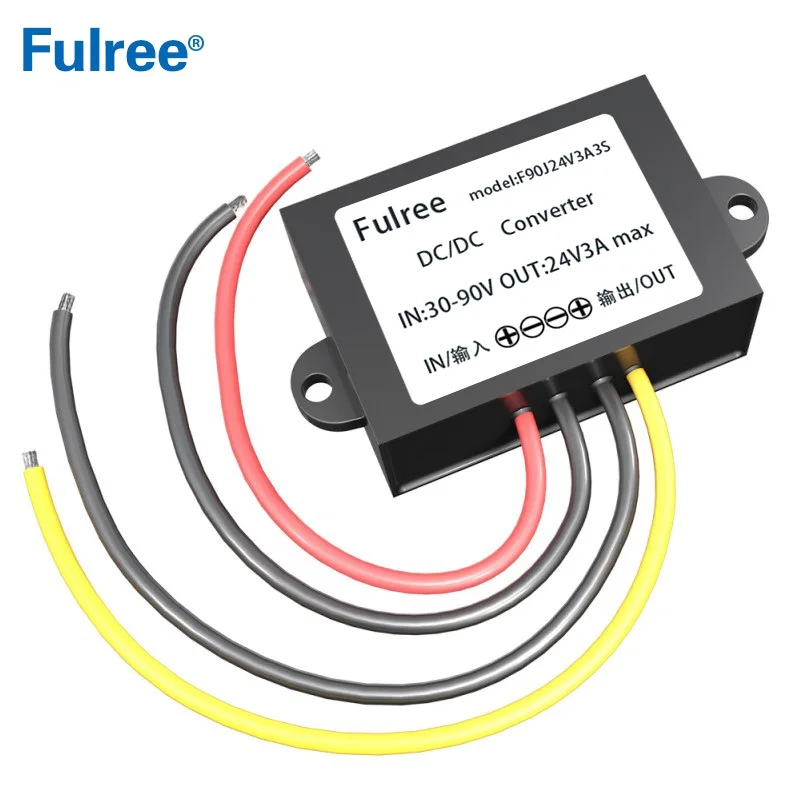

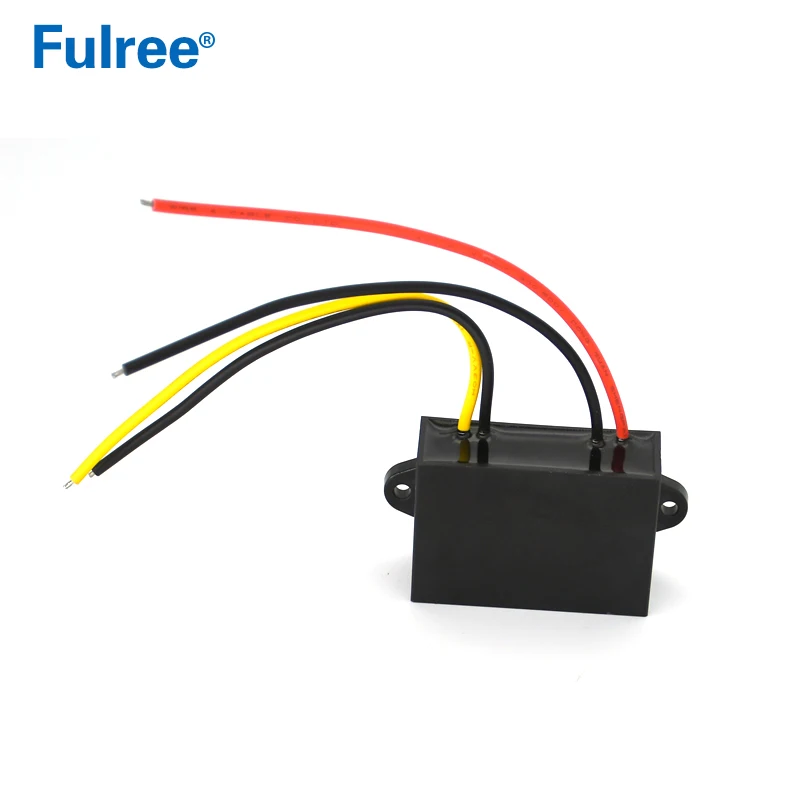

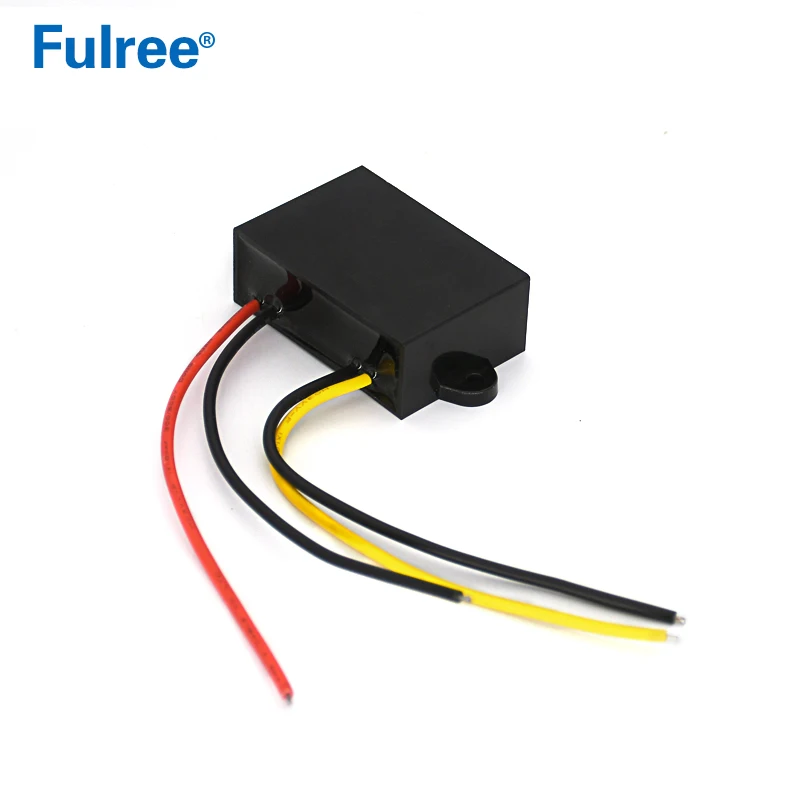

Product Picture
Packaging & Delivery
1. We pack each item with OPP bag individually, then put all items in export cartons (around 50-300pcs per carton). The export cartons will be taped to protect the parcel from water stains or something others, it's not easy to break or damage during the shipment by air or sea.
2. We make shipment between 3-15 days for normal order and 3 to 5 days for samples.
3. We can offer you express like FedEx, DHL, UPS & TNT when you make a relatively small order like samples. The ocean shipping is also available when you place a big order. The customers can use their own freight forwarder account.
4. If you need some special request on shipment, please note us before placing order.
Why Choose Fulree?
Service ......... RMA(24/7 Technical Support), OEM, ODM
Quality...........100% full inspection before delivery, Less than 0.5% of failure rate!
Warranty....... Up to 12 months!
Price..................Competitive Factory Price!
Professional......Produce security DC DC converter for 8 years in China!
Reliable.............One of the largest power supply business manufacturers in China!
Assurance.........Any problem of quality, Fulree would refund the payment!
Payment.............T/T bank wire transfer, Escrow, West Union and Paypal!
Delivery...............Fast! After receive payment 3-15 days for normal small orders!
Privacy …….....Protect your sales area, designs, ideas and all your private information!
Fulree................Your best DC DC Converter Solution Choice! We Design and support!
