Worner hot lab instrument vacuum drying oven with pump for drying

Product Overview

Description

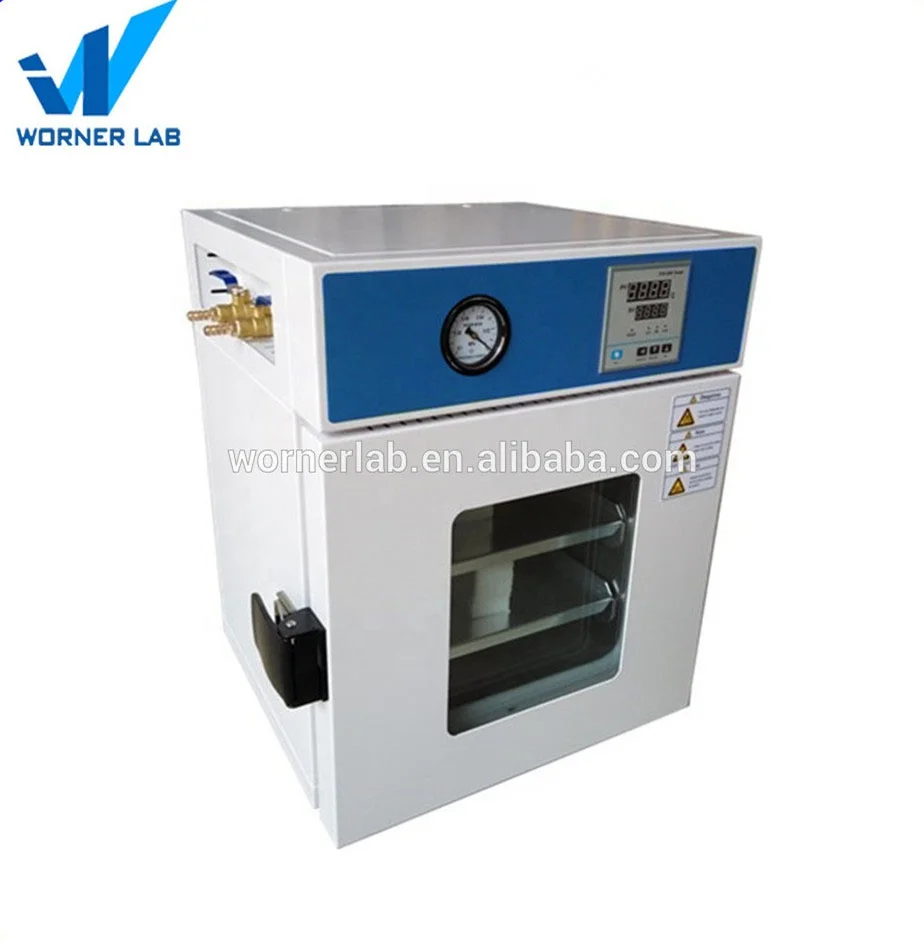

Worner hot lab instrument vacuum drying oven with pump for drying



Uses:                                     This product is designed for drying and heating powder articles, as well as disinfecting and sterilizing of glass containers. with characteristics of short warming up times, low pollution and non-destructive drying, it is widely used in the field of medicine, food, light industry, chemistry, agriculture, environmental protection and experiment etc.





Characteristics:

1.Stainless steel inner chamber,sernicircular arcs at corners for easy cleaning.

2.PID single chip Microprocessor digital controller has the function of timing and over-temperature protection.

3.Dual high brightness digital tube display.Touch keyboard for parameters setting easily.

4.The user can adjust the door tightness by the alastic knob.Explosion proof glass door, high temperature resistant silicone rubber sealing strip exsure the vacuum degree maintained for a long time.Outer observation window is a resin protective plate, to ensure more safety.

5.Storage,heating, test and drying are under the non-oxygen or insert gas condition ensure without oxidation.

6.Optional air inflating port for insert gas: $49.00



Optional accessories:

Sheives, RS485 interface, Printer, Recorder, External communication, Remote control, Program temperature control device, Wireless SMS alarm, USB data storage.



The DATA sheet:

Vacuum oven Model		Voltage	Power	Tem. Range	Tem. Resolution Ratio	Vacuum degree	Inner  chamber size (cm)	Exterior size (cm)	Timing
Econo mical Type	WN-1A II	200-240v/ 100-120v	800W	RT+ 10~250℃	0.1℃	<133pa	30*30*27	48*48*61	0-999 min
	WN-2A II		1400W				43*37*34	56*54*68
	WN-3A II	220-240v	2000W				45*45*45	64*59*78
Sanderd Type	WN-1BC II	200-240v/ 100-120v	800W				30*30*27	48*48*61
	WN-2BC II		1400W				43*37*34	56*54*68
	WN-3BC II	220-240v	2000W				45*45*45	64*59*78



Tips: A II Economical type means: Intelligent Cobtroller and steel inner chamber .

          BC II Standard type means: Intelligent Cobtroller and stainless steel inner chamber .



More Pictures:
