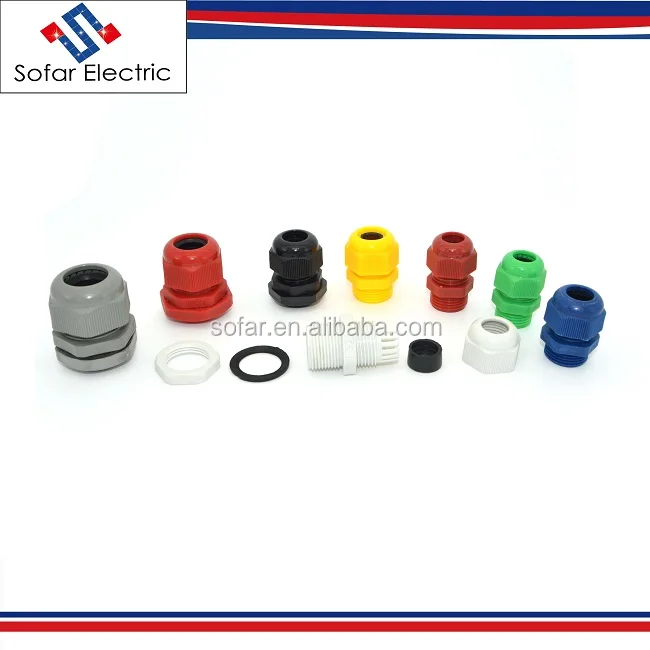

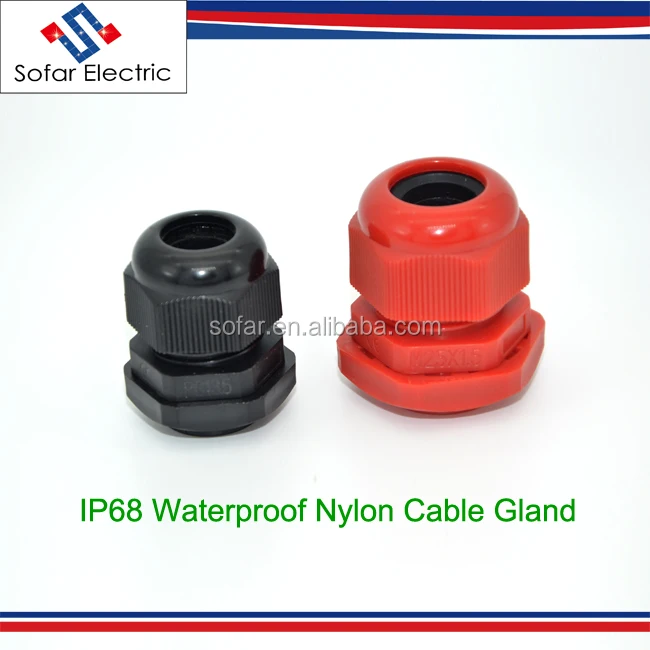

CE IP68 Weatherproof Nylon Cable Gland

Detailed Specification of IP68 Weatherproof Nylon Cable Gland

Thread

Metric, PG, G(PF), and NPT thread

Material

Nylon PA66 (flammability Class V-0) for A. C. F parts, (can make flammability Class V-0 ); EPDM rubber for B. D parts, (Also accept to make super rubber: resist high temperature rubber, resist strong acid/alkali,etc).

Protection degree

IP68

Working temperature

-40℃ to 100℃

Features

Different cable range for different cable diameter,

Different thread length for different junction box

Certificates

CE,ROHS,SGS,IP68

Color

Black(RAL9005),gray(RAL7035),other color available upon request.

Thread

Item.No.

Cable Range
(mm)

Thread O.D.
C1(mm)

Thread Length
C2(mm)

Spanner Size
A&F(mm)

Std.Pkg
(pcs)

PG7

SFG-PG7S  -6

3-6.5

12.5

8

17/15

50

SFG-PG7   -5

3-5.5

12.5

8

17/19

50

SFG-PG7   -7

4-8

12.5

8

17/19

50

PG 9

SFG-PG9   -5.5

3-5.5

15.2

8.2

22/19

50

SFG-PG9   -7.5

4-8

15.2

8.2

22/19

50

PG11

SFG-PG11  -7

3-7

18.6

10

24/22

50

SFG-PG11  -10

5-10

18.6

10

24/22

50

PG13.5

SFG-PG13.5-9

5-9

20.4

10

27/24

50

SFG-PG13.5-12.5

6-12.5

20.4

10

27/24

50

PG16

SFG-PG16  -11

5-11

22.5

10.8

30/27

50

SFG-PG16  -14

8.5-14

22.5

10.8

30/27

50

PG19

SFG-PG19  -11

5-11

24.0

11

30/27

50

SFG-PG19  -14

8.5-14

24.0

11

30/27

50

PG21

SFG-PG21  -13

7-13

28.3

12

36/33

50

SFG-PG21  -17.5

12.5-18

28.3

12

36/33

50

PG25

SFG-PG25  -20

14-20

30

13

36/37

50

PG29

SFG-PG29  -21

14-22

37

12

46/41

20

SFG-PG29  -24

17-25

37

12

46/41

20

PG36

SFG-PG36  -25.5

17-25.5

47

14

57/52

10

SFG-PG36  -31

24-32

47

14

57/52

10

PG42

SFG-PG42  -32

25-32

54

15

64/62

10

SFG-PG42  -41

30-41

54

15

64/62

10

PG48

SFG-PG48  -38

29-38

59.3

18.2

70/65

10

SFG-PG48  -45.5

35-45.5

59.3

18.2

70/65

10
