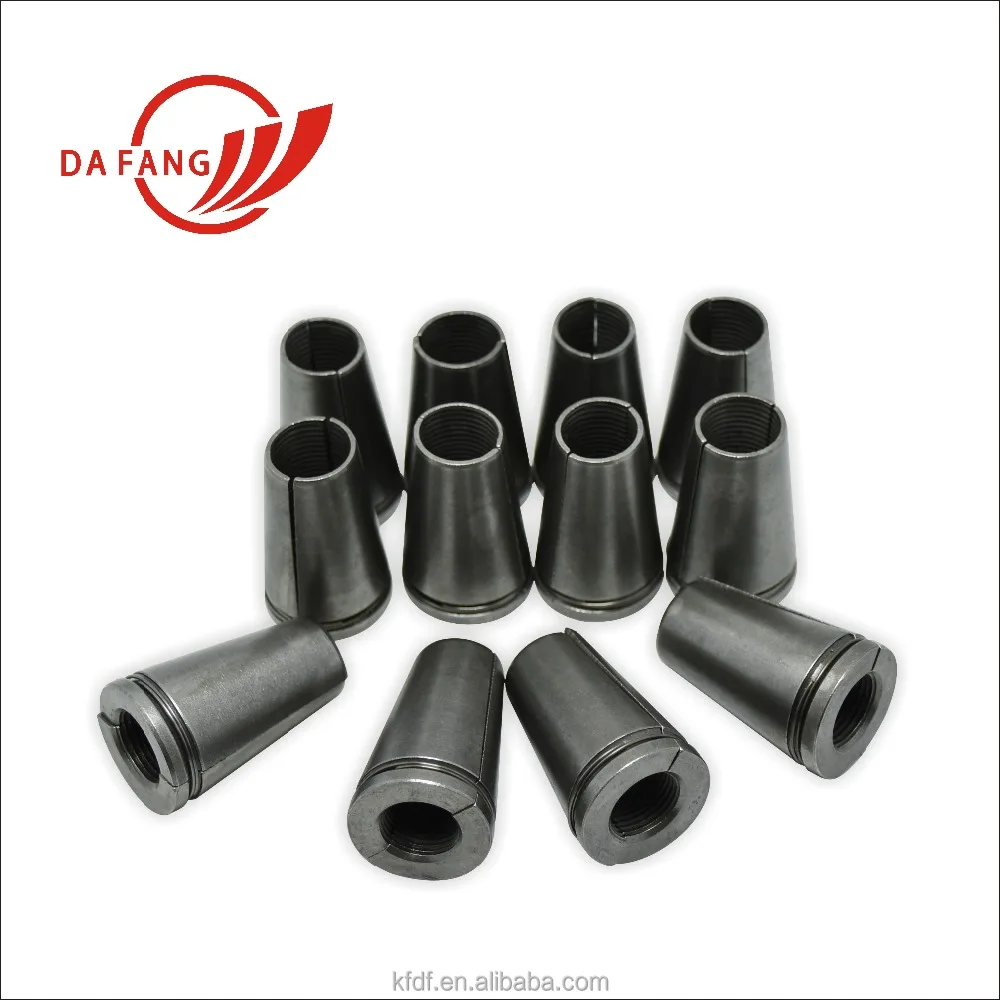

YM Prestressed Anchorage High Quality Double Head Forged Lifting Anchor Wedge Anchor Block
- Category: >>>
- Supplier: Kaifeng Dafang Prestressed Co. Ltd.
Share on (60669004454):
Product Overview
Description
Round Prestressing Anchorage for strand Made in China
Product Description
| JM15 Series Tension End Set Design-JT Standard | |||||
Anchorage Model | Anchorage | Casting Plate(Round Type) | Strand Number | ||
Diameter (φD) | Thickness (B) | Diameter (C) | Height (D) | ||
| JT15-01 | 48 | 48 | 1 | ||
| JT15-02, 03 | 91 | 50 | 130 | 110 | 2, 3 |
| JT15-04 | 102 | 50 | 145 | 120 | 4 |
| JT15-05 | 112 | 50 | 160 | 130 | 5 |
| JT15-06 | 126 | 52 | 180 | 150 | 6 |
| JT15-07 | 126 | 52 | 180 | 150 | 7 |
| JT15-08 | 136 | 55 | 195 | 160 | 8 |
| JT15-09 | 146 | 55 | 208 | 160 | 9 |
| JT15-10 | 156 | 58 | 220 | 180 | 10 |
| JT15-11 | 166 | 58 | 235 | 190 | 11 |
| JT15-12 | 166 | 60 | 235 | 190 | 12 |
| JT15-13 | 170 | 63 | 235 | 190 | 13 |
| JT15-14 | 176 | 65 | 250 | 210 | 14 |
| JT15-15 | 186 | 68 | 265 | 245 | 15 |
| JT15-16 | 196 | 70 | 265 | 245 | 16 |
| JT15-17 | 196 | 73 | 275 | 265 | 17 |
| JT15-18 | 206 | 75 | 285 | 280 | 18 |
| JT15-19 | 206 | 75 | 285 | 280 | 19 |
