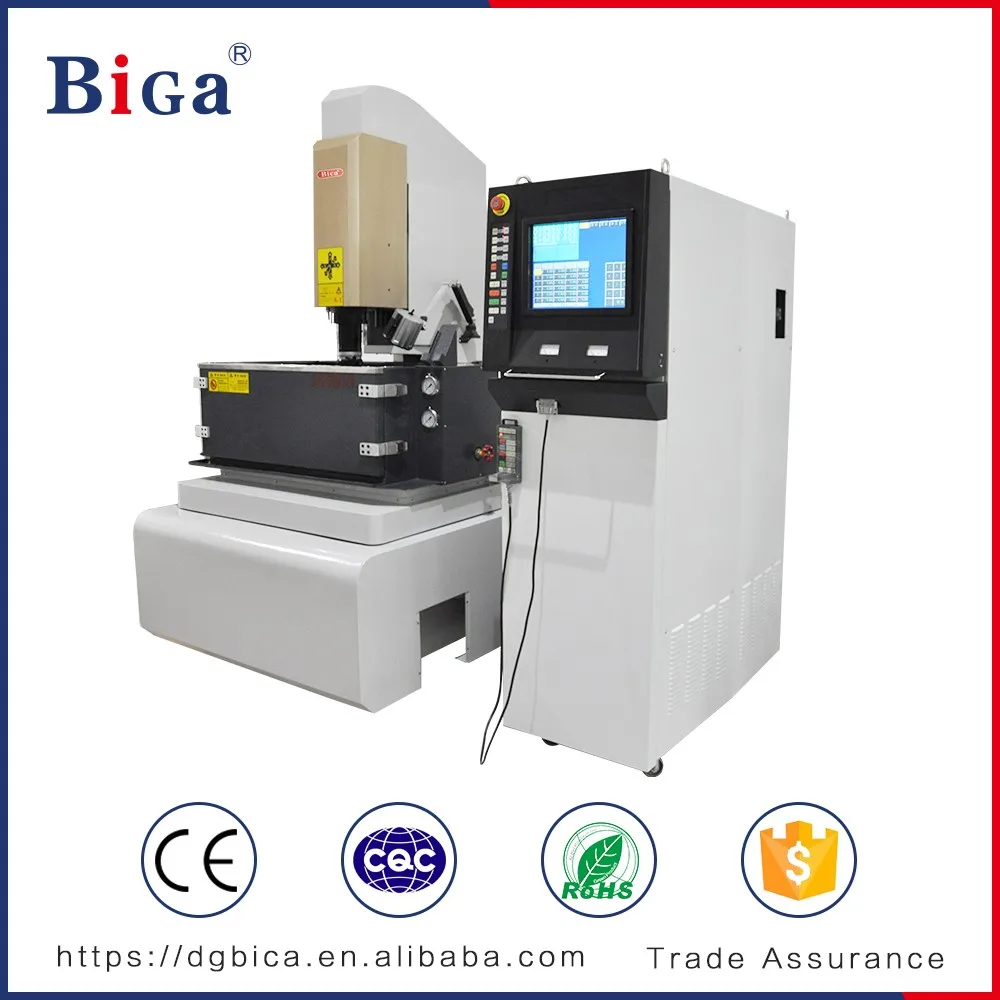

Hot sale & high quality Bica A35 CNC EDM Machine with good after sale service

Product Overview

Description

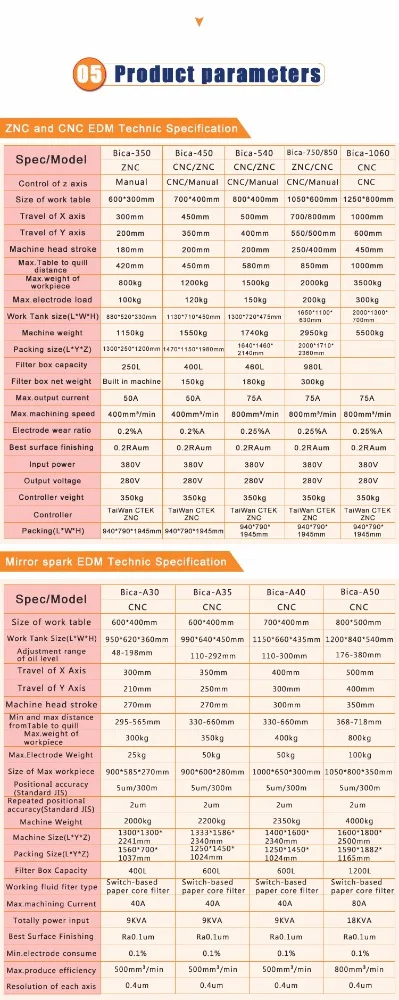

Specifications of  Bica A 35 CNC EDM Machine  :



Spec/Model	Bica-A30		Bica-A35
	CNC		CNC
Size of work table	600×400mm		600×400mm
Work Tank Size(L*W*H)	950×620×360mm		990×640×450mm
Adjustment range of oil level	48-198mm		110-292mm
Travel of X Axis	300mm		350mm
Travel of y Axis	210mm		250mm
Machine head stroke	270mm		270mm
Min and Max distance fromTable to Quill	295-565mm		330-660mm
Max.weight of workpiece	300kg		350kg
Max.Electrode Weight	25kg		50kg
Size of Max workpiece	900×585×270mm		900×600×280mm
PositionaI accuracy(Standard JIS)	5um/300m		5um/300m
repeated positionaI accuracy(Standard JIS)	2um		2um
Machine Weight	2000kg		2200kg
Machine Size(L*Y*Z)	1300×1300×2241mm		1333×1586×2340mm
Packing Size(L*Y*Z)	1560×700×1037mm		1250×1450×1024mm
Filter Box Capacity	400L		600L
Working fluid fiter type	Switch-based paper core filter		Switch-based paper core filter
Max.machining Current	40A		40A
Totally power input	9KVA		9KVA
Best Surface Finishing	Ra0.1um		Ra0.1um
Min.electrode consume	0.1%		0.1%
Max.produce efficiency	500mm³/min		500mm³/min
Resolution of each axis	0.4um		0.4um

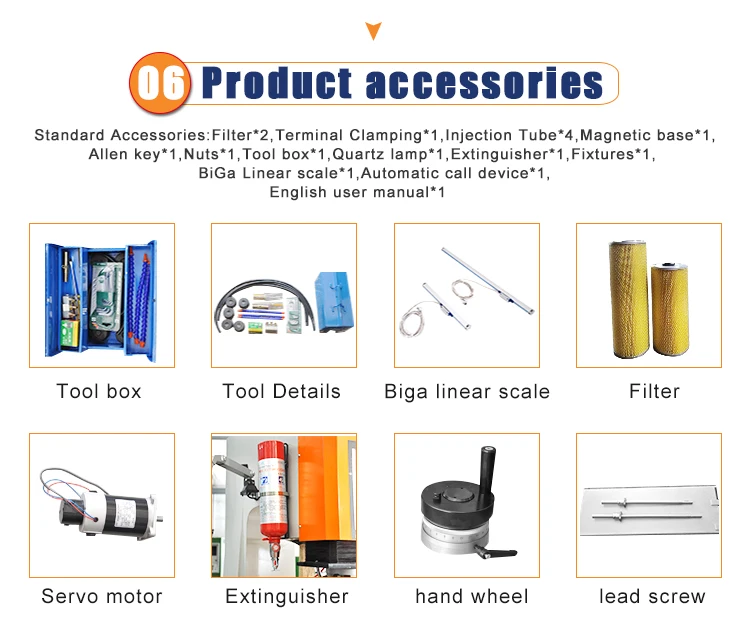

Bica A35  CNC EDM Machine Accessories:
Filter	2 pcs
Terminal Clamping	1 pcs
Injection Tube	4 pcs
Magnetic base	1 set
Allen key	1 set
Nuts	1 set
Tool box	1 set
Quartz lamp	1 pcs
Extinguisher	1 pcs
Fixtures	1 set
BiGa Linear scale	1 set
Automatic call device	1 set
English user manual	1 pcs







More information about the CNC EDM ,ZNC EDM and wire-cut EDM , pls click:https://dgbica.en.alibaba.com/productlist.html?spm=a2700.8304367.0.0.fKTrEY.





And be free to contact us if you need the products.
