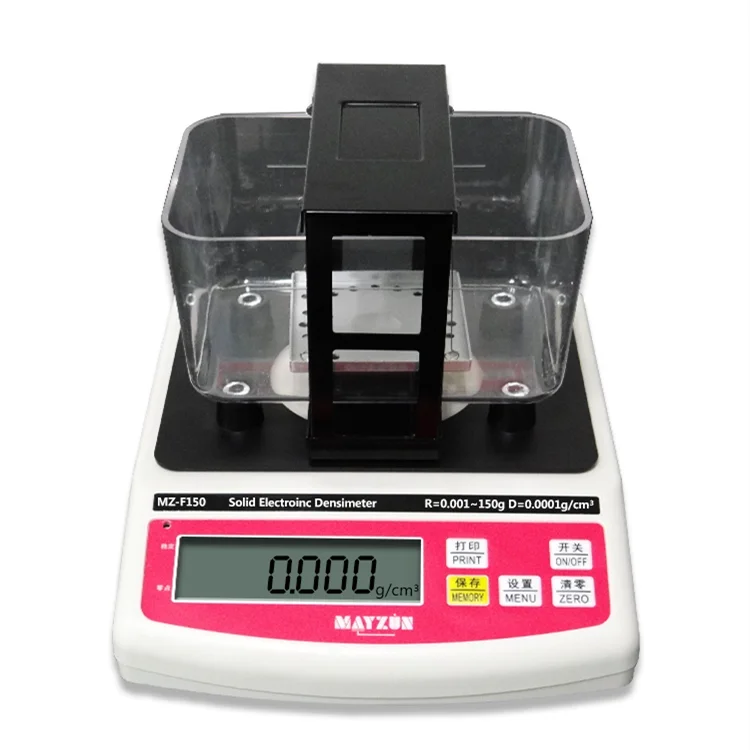

Graphite Volume Density Meter / Powder True Density Tester

Graphite Volume Density Meter / Powder True Density Tester

Warm Tips:

The price includes the costs of delivery and insurance, which varies in types. For details, please contact our client service.

Notice:Every model but for its difference in accuracy, they are of the same function.

In accordance with ASTM B311, MPIF Standard 42, JIS Z2505, GB/T5163, and by adopting the buoyancy method of Archimedean principle, and by applying wax-sealing method, the boiling water method and vacuum saturation method, it can show the measuring result accurately and fast.

Application:

Graphite carbon, refractories, conductive materials, corrosion resistant materials, new materials research experiments.

Features:

1. Digital display and direct reading, without manual calculation, directly display density and volume,etc.

2.Graphite carbon, refractories, conductive materials, corrosion resistant materials and similar products can be quickly measured.

3. Adopt the original German HBM sensor for accurate measurement, simple operation, stable and durable.

4. It has the function of actual water temperature compensation and can adapt to the change of test environment.

5. The media liquid density can be set, water and other liquid media can be used as the medium.

6.Adopt integrated forming large-capacity measuring platform, corrosion resistant and fall resistant, free replacement for life.

7.Adopt special windproof dustproof cover,which makes the structure more convenient and durable.

8. It can be connected to the PC and printer easily by RS-232. Optional mz-p1 printer to print the measurement data.

Functions:

MZ-F151/MZ-F152 function description:

1. Directly read volume density, wet density, dry density, apparent porosity, water absorption rate, opening volume, sealing volume and total porosity.

2. Directly read the specific gravity and  volume of non-absorbent graphite and carbon brush of injection molding

3. Select specific specific specific gravity bottle to directly read the true density of graphite and carbon brush powder.

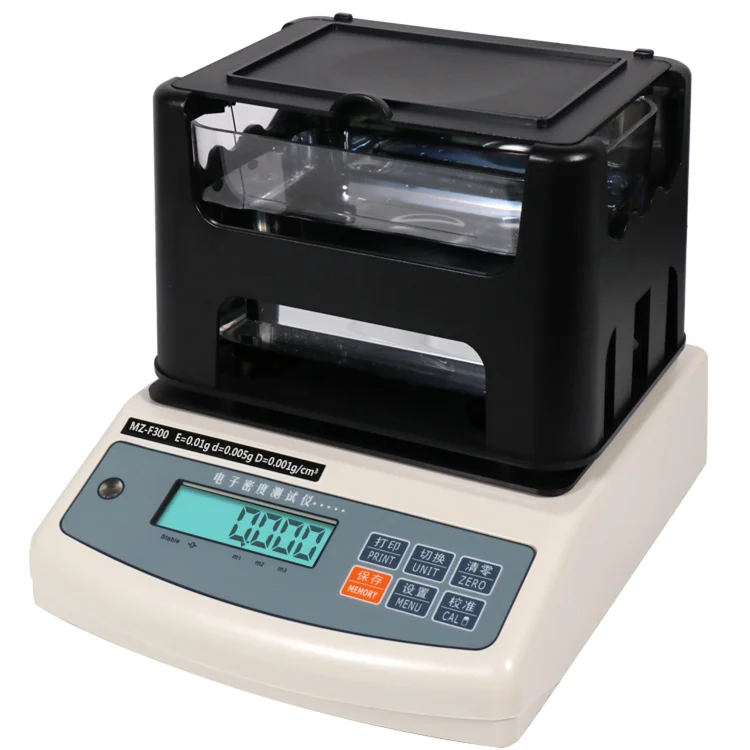

MZ-F300 /MZ-F600 function description:

1. Directly read volume density, dry density, wet density, apparent porosity and water absorption rate.

2. Select specific specific gravity bottles to directly read the true density of graphite and carbon brush powder.

Qun Long (Mayzum is our brand) specialized in producing and selling professional densitometer for 11 years and we can provide professional density test instrument solution for you

1. Different program functions can be customized according to customer requirements.

2. We can provide OEM service.

3. Looking for brand agent wholesales all over the world.
