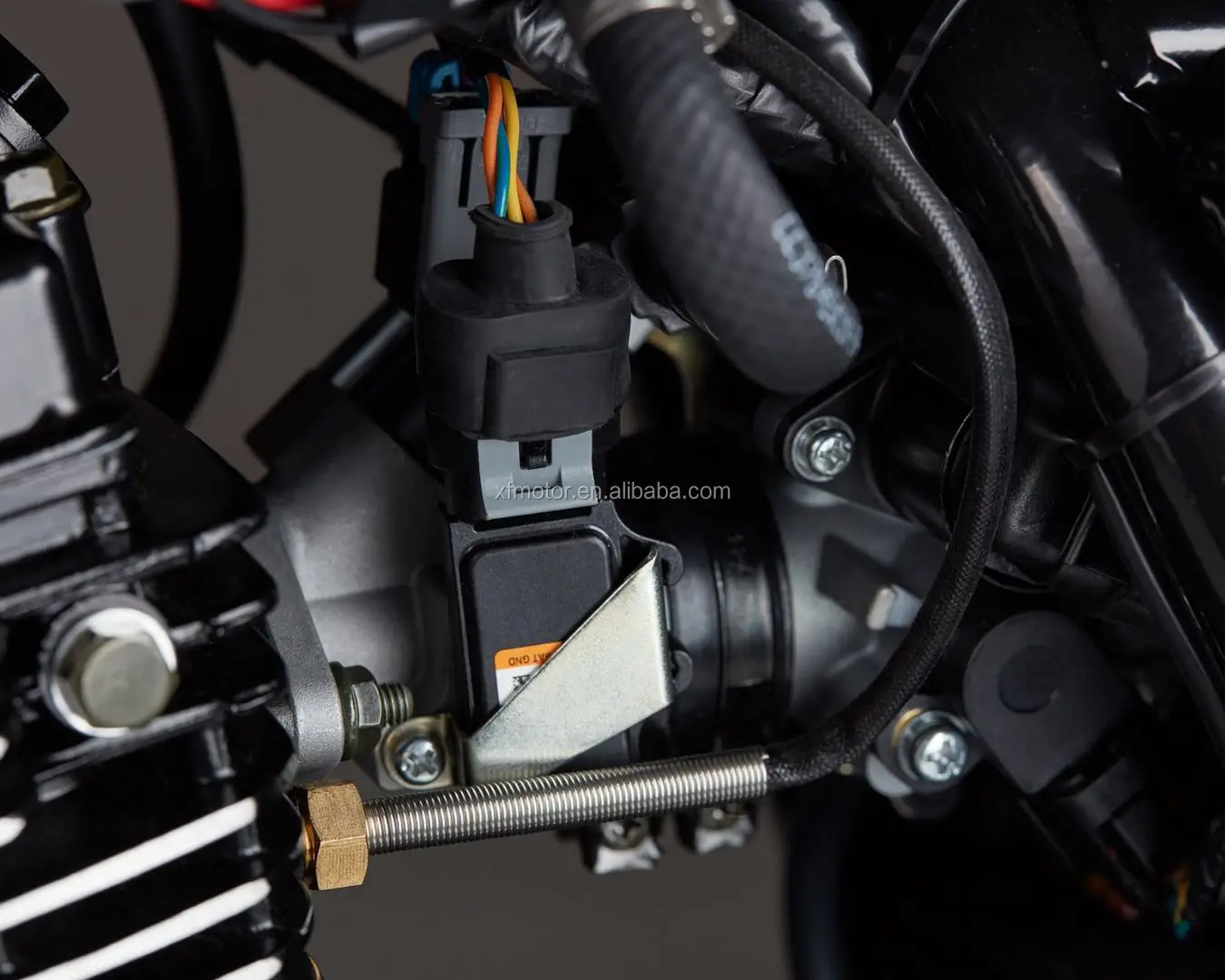

125cc EFI Engine

Type

Suzuki model EFI 124cc, single-cylinder, 4-stroke, air- cooled

Bore x Stroke (mm)

57 x 48.8

Compression Ratio

9.5:1

Ignition

ECU

Transmission

5-speed gear shift

Starting system

Electric

Max power

8.3kw/9500r/min

Max torque

8.1Nm/8500r/min

Max speed

≥95km/h

Drive

chain

Chassis

Suspension/Front

Spring oil damper

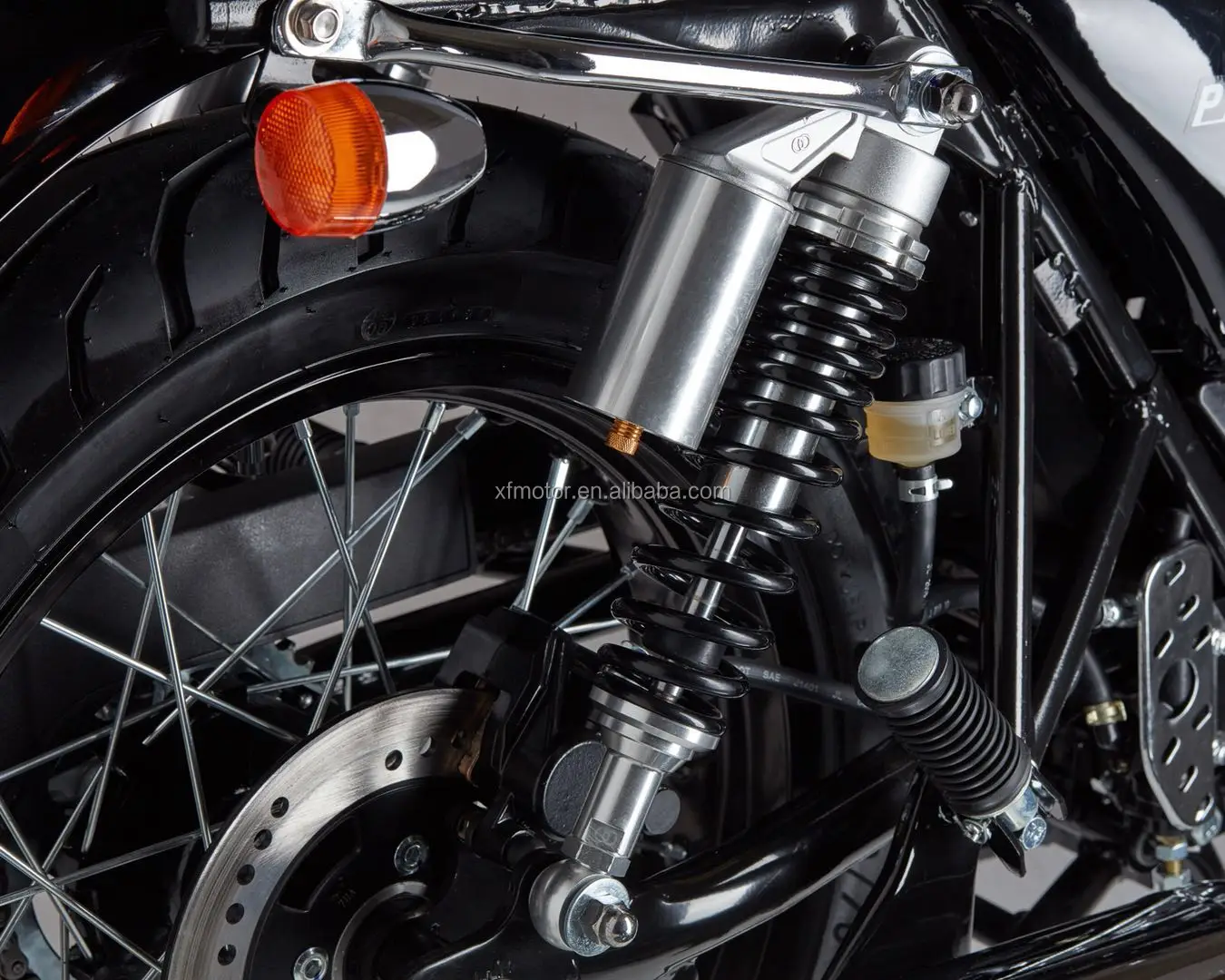

Suspension/Rear

Spring oil damper

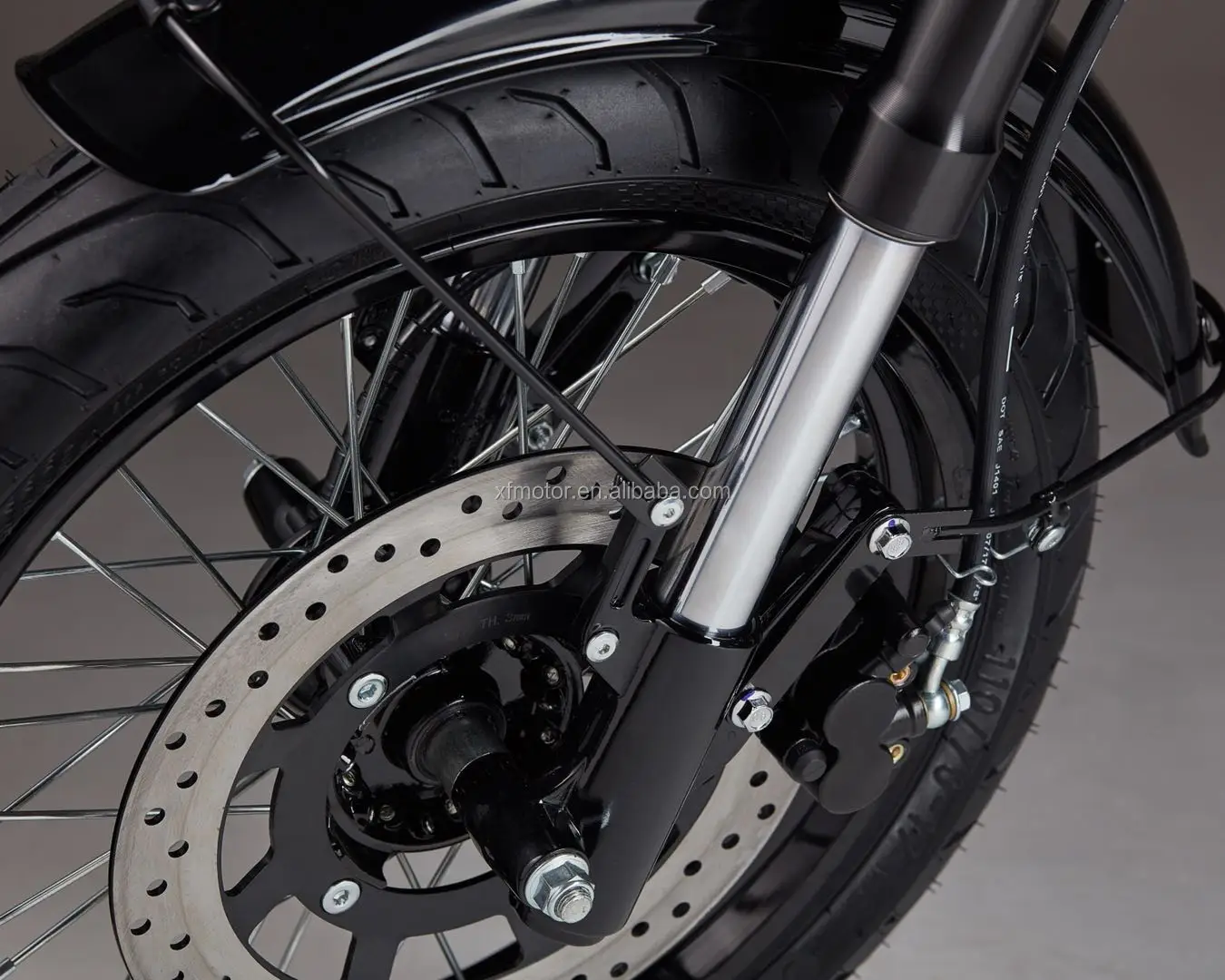

Brakes/Front

Disc type CBS

Brakes/Rear

Disc type CBS

Tires/Front

110/70-17

Tires/Rear

130/70-17

Dimensions

Length x Width x Height

1970mm x720mm x 1115mm

Wheelbase

1240mm

Dry Weight

115kg

Fuel Capacity

15.6L

Packing size:

1800*580*1020

Qty/40’

52units/40GP, 26units/30GP, 72units/40HQ
