Product Overview
Description
About Us
Steel media with different materials as following product description with different shapes: round balls, flying saucer or UFO media, or ballcone and other customized shape, that used in barrels, vibratory finishing machines for various metal finishing applications including polishing of gold and silver jewelry, zinc die casting, cast aluminum, hinges, bearing cages, pistons, sintered bushes, watch parts, zip sliders; burnishing of coin blanks and stamping, jewelry, cutlery, and copper pipe fittings; mirror finishing of spoons and flatware, etc. Grinding media, work pieces, compound and water are loaded into barrels at a certain ratio and are put into motion. Abrasive media and work pieces rub each other caused by the difference in weight, shape, speed and direction of abrasive media and work pieces. The friction generated under such movement results in surface finishing.

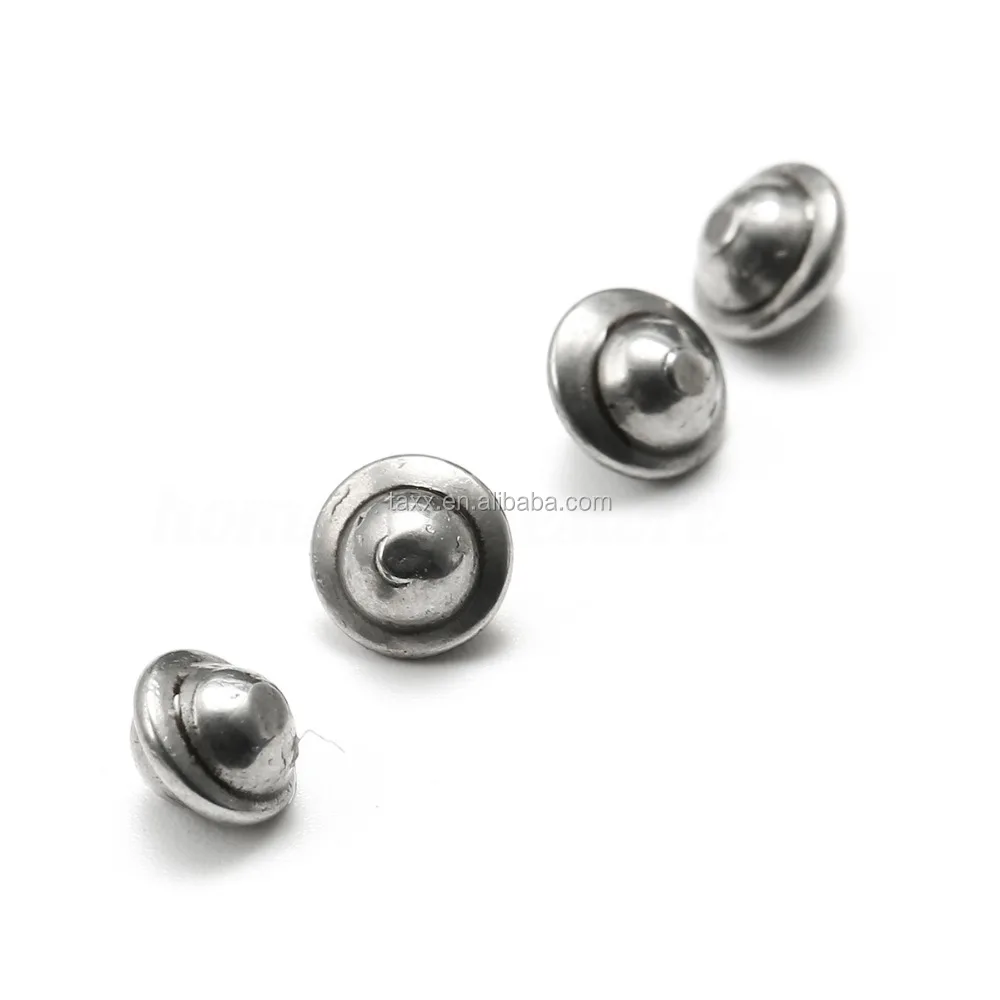

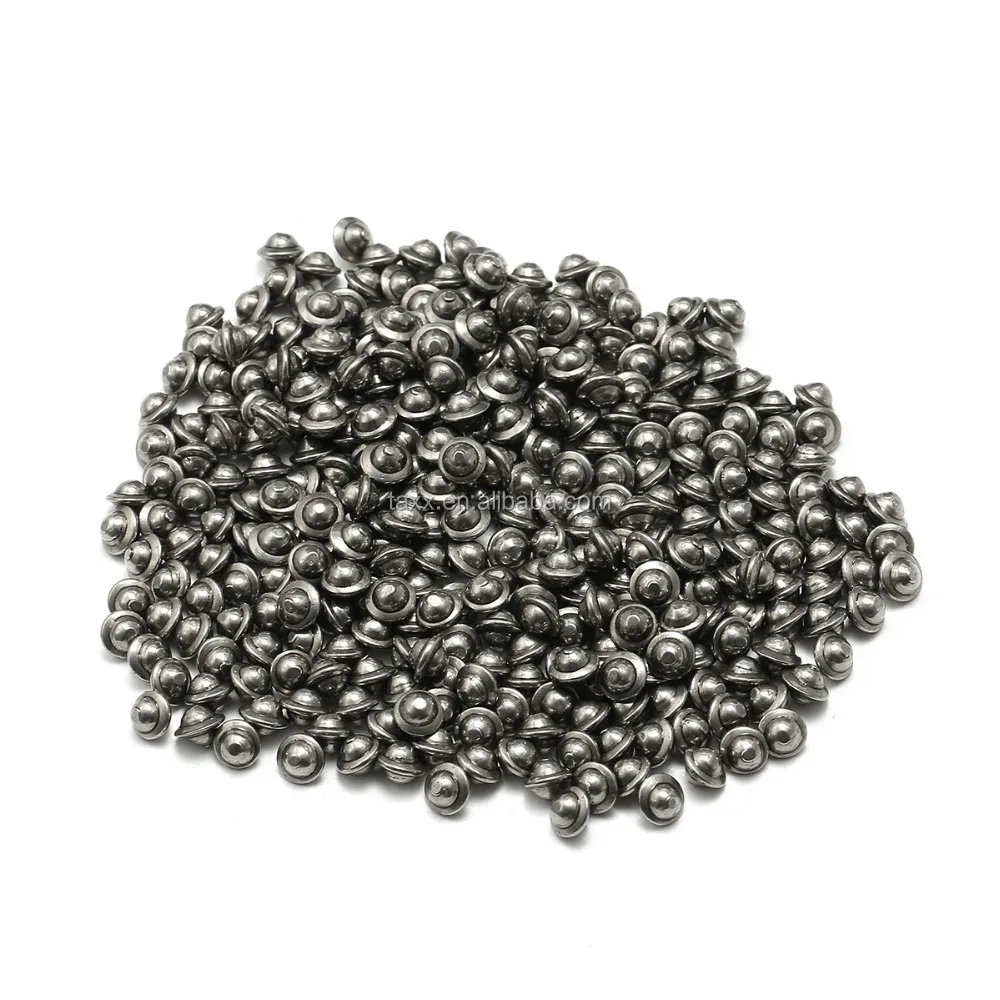

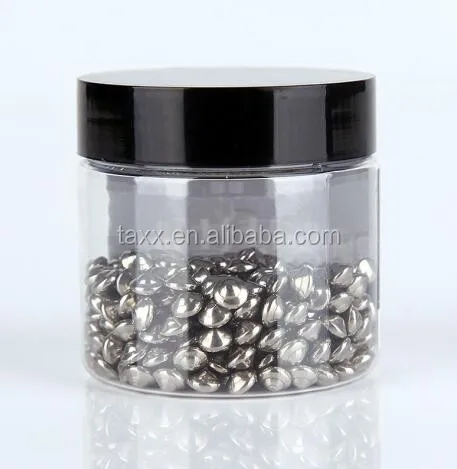

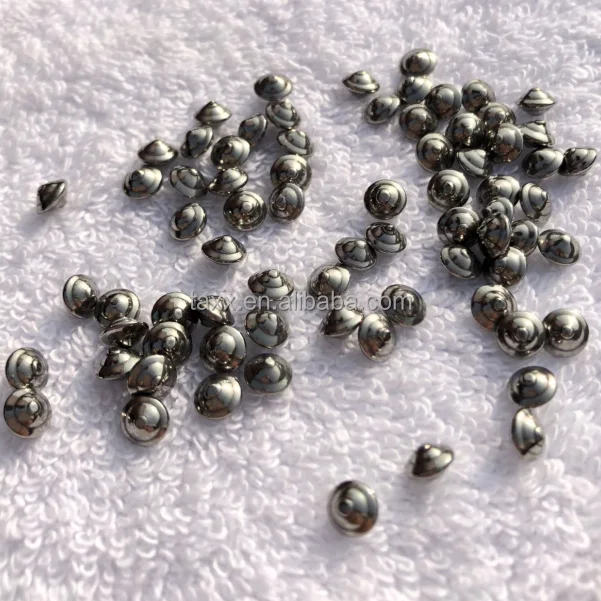

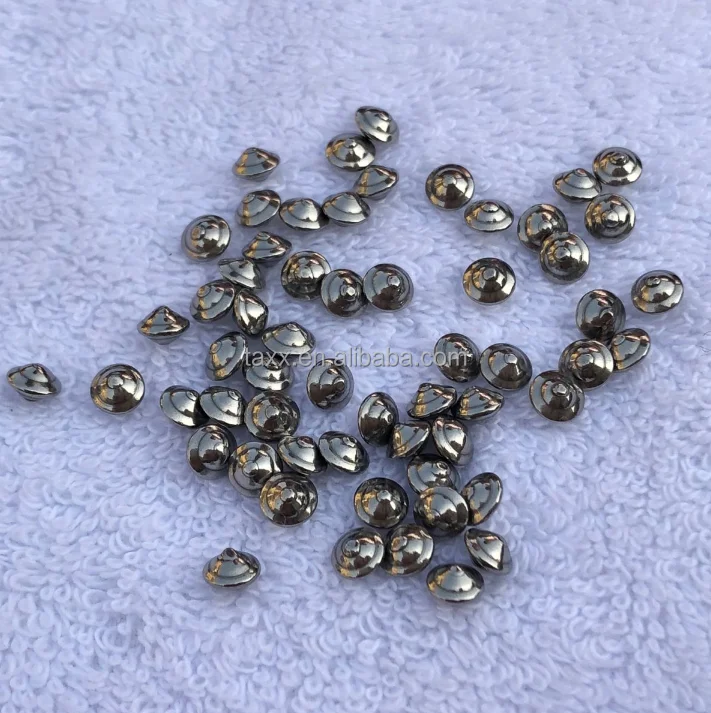

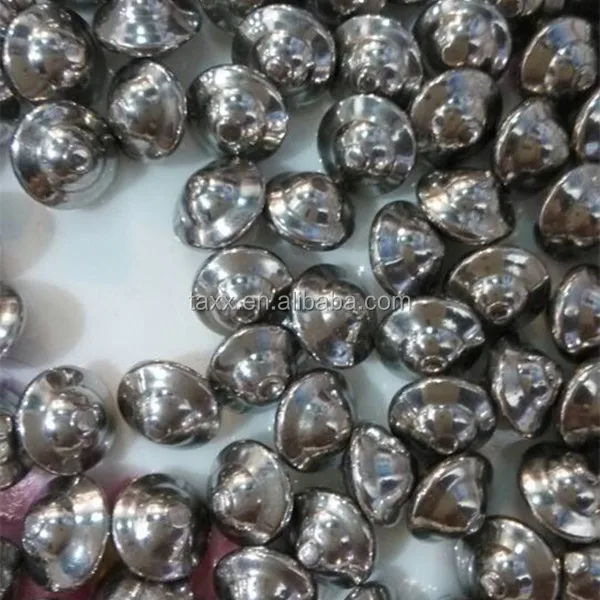

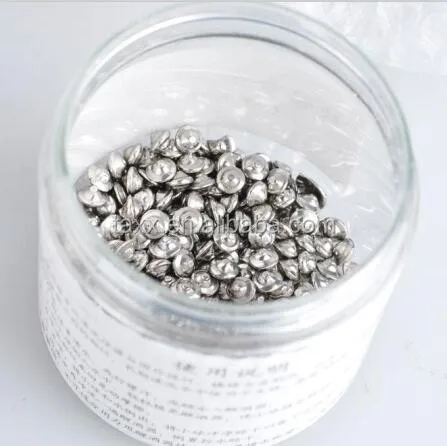

Flying saucer ball works perfect in polishing grinding Vibration cleaning.
The material of flying saucer ball mostly is carbon steel, 201/304 stainless steel.
Applied Area: Flying saucer ball is mainly used for polishing all kinds of hardware or jewelry, grinding foods or hard goods, cleaning decanter bottles, especially well for the works piece in anomalous form.

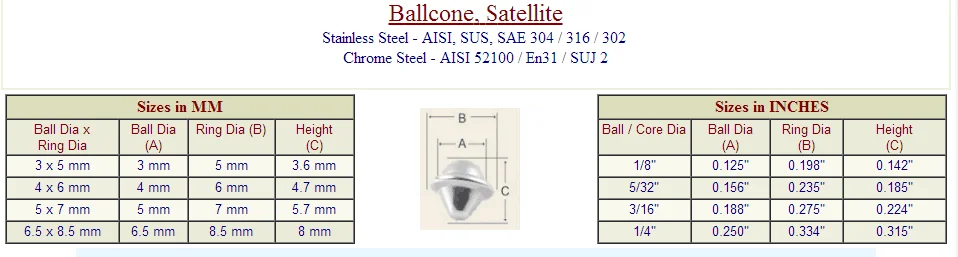

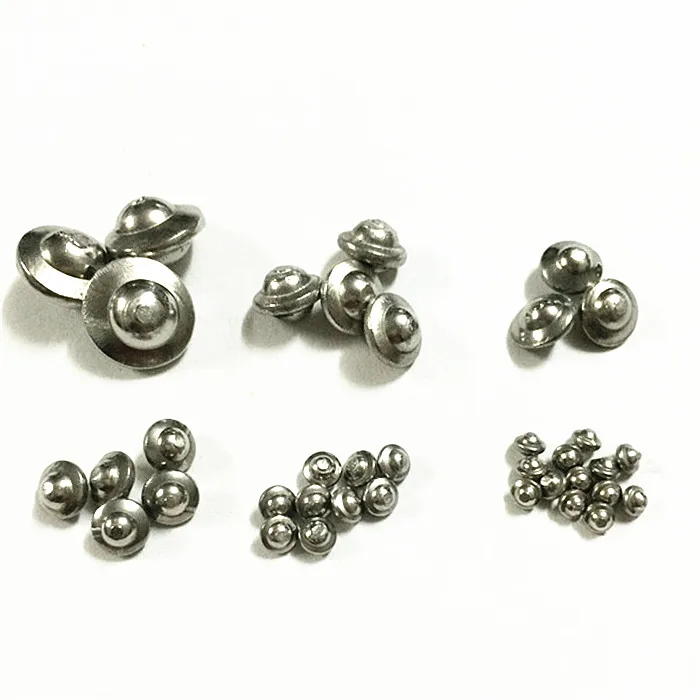

The sizes are 2*3mm, 2.5*3.5mm, 3*5mm , 3.5*5.5mm, 4*6mm, 5*7mm , 7*10mm, 8*12mm；1/5“ 5/32” 3/16“ 1/4”
you can customized in non standard.
Product Description

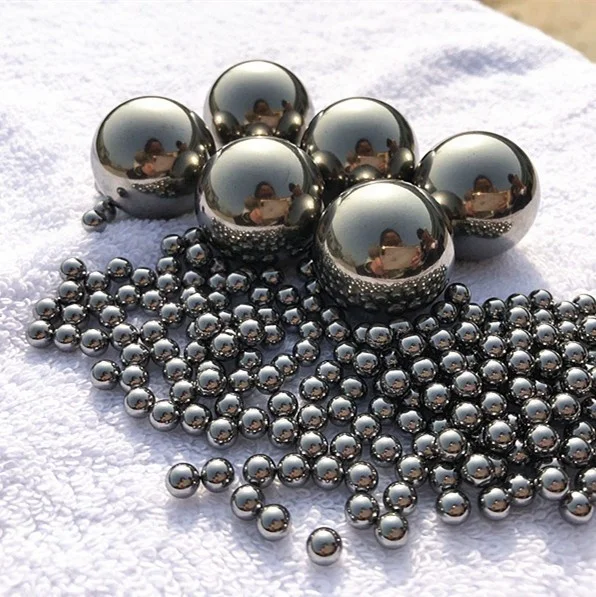

AISI420/420C Stainless Steel Ball for bearings and grinding
Applied Area：
420 stainless steel ball is used in the industry of high precision and antirust: motorcycle fittings, chain wheel,stainless steel bearings, plastic bearings, craftwork, valve, petroleum and so on.
Speciality：
It is also called stainless iron,it is magnetic and has good antirust capability.The HRC is 50-55.
Specification Stainless steel balls | Equivalence Stainless steel balls | Composition of stainless steel balls | Hardness | Density |
AISI 420 | DIN: W 1,4021 1.4031 ,1.4034 AFNOR: Z20C13 Z40C14 | Ask Emma Liu | 55/58 Hrc | 7.75 |
AISI440/440C Stainless Steel Ball for bearing and grinding
Applied Area：
440 stainless steel ball is used in the industry of high precision and antirust: avigation ,bearings, valve, petroleum and so on.
Capability：
It is very hard to produce 440C stainless steel ball,and there are few factory can produce,so the factory who can produce 440C material go by the name of exceptive stainless steel.the heat treatment is complicated,it is easy to split,the precision must be high,it is the most rigid, HRC≧58.Its hardness is close to bearing steel ball,but it is more antirust and anticorrosive than the bearing steel ball.
Specification Stainless steel balls | Equivalence Stainless steel balls | Composition of stainless steel balls | Hardness | Density |
AISI 440 | DIN: W1.4125 AFNOR: Z100CD17 | Ask Emma Liu | 58/64 Hrc | 7.75 |

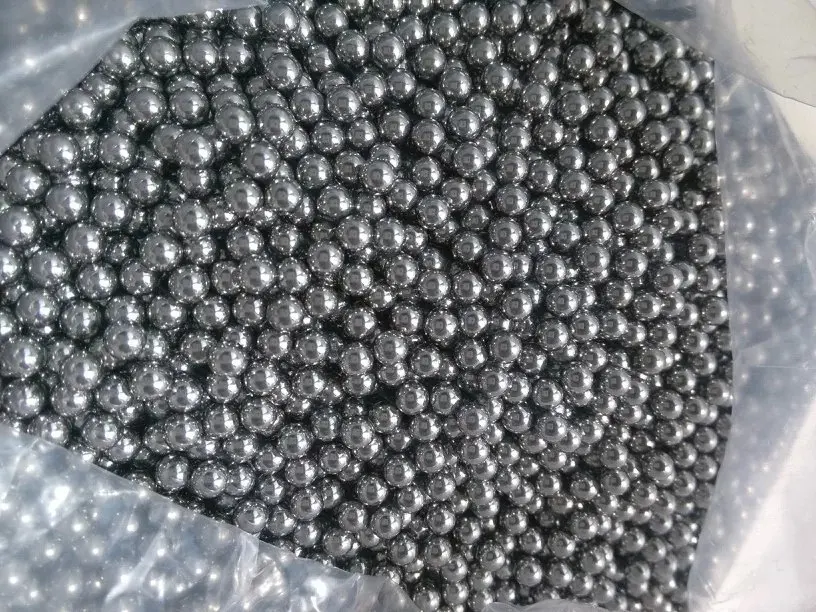

Hardened Carbon steel balls for bearing and grinding
Diameters: from 1mm
– Low carbon steel balls also called case hardened carbon provide substantial savings for applications where moderate loads and
low speed are requested. Typical applications include: bearings, castors, conveyors, bicycles…
– High carbon steel balls is through hardened and can be used for higher loads. It is a good alternative to chrome balls.
– Low carbon steel balls also called case hardened carbon provide substantial savings for applications where moderate loads and
low speed are requested. Typical applications include: bearings, castors, conveyors, bicycles…
– High carbon steel balls is through hardened and can be used for higher loads. It is a good alternative to chrome balls.
Specification | Equivalence | Carbon steel balls : Composition in % | Hard | Dens. |
AISI 1010/1015 | W 1.0301 | Ask Emma Liu | Hrc58-62Hrc | 7,87 |
AISI 1045-1070 | W 1,1249 | Ask Emma Liu | Hrc58-62Hrc | 7,87 |
AISI 1086 | W 1.1830 | Ask Emma Liu | Hrc58-62Hrc | 7,87 |

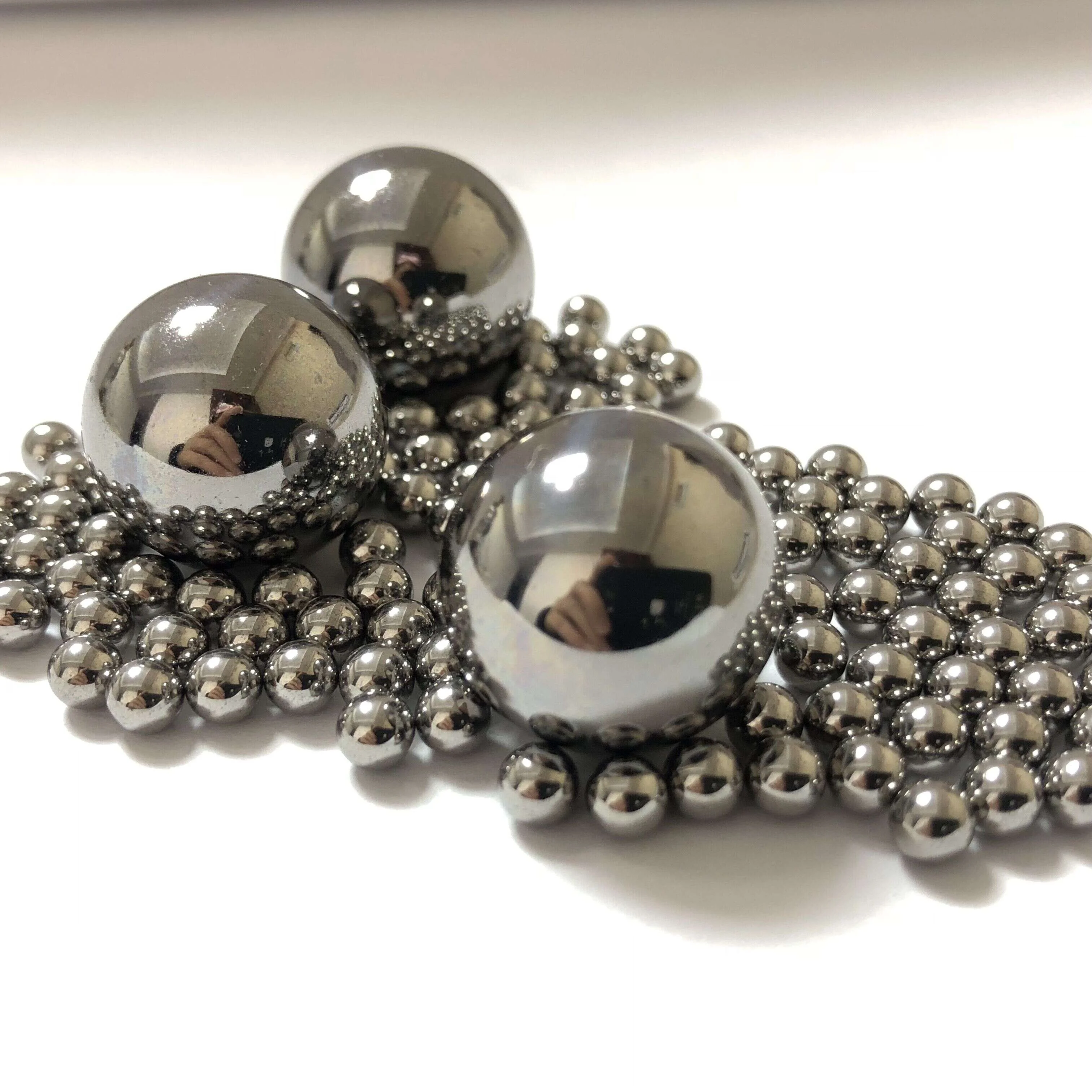

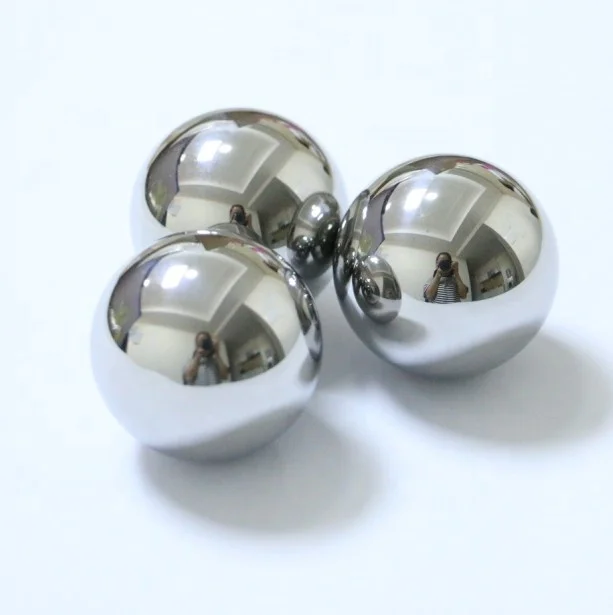

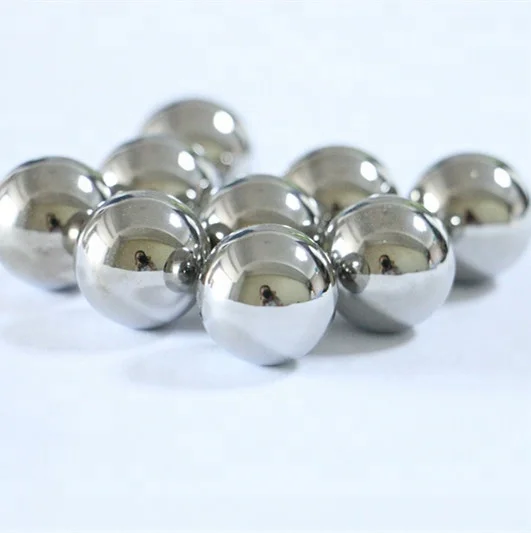

Chrome Steel balls 100Cr6 GCR15 AISI52100 for bearing and grinding
Diameters: 0.250mm – 200mm
Chrome steel balls are widely used in high speed ball bearings, as well as, in a number of other industrial applications.
AISI 52100, EN31, JIS G4805 SUJ2, Wks 1.3505
Chrome steel balls are widely used in high speed ball bearings, as well as, in a number of other industrial applications.
Chrome steel balls have excellent surface quality, high hardness and high load bearing capacity, as a result of through hardening.
International Equivalents for chrome steel balls:
International Equivalents for chrome steel balls:
AISI 52100, EN31, JIS G4805 SUJ2, Wks 1.3505
Compositions (chrome steel balls) | Tensile Strength | Yield Strength | Hard | Density |
Ask Emma Liu | 2240 MPa | 2034 MPa | HCr 60 – 66 | 7.85g/cm3 |

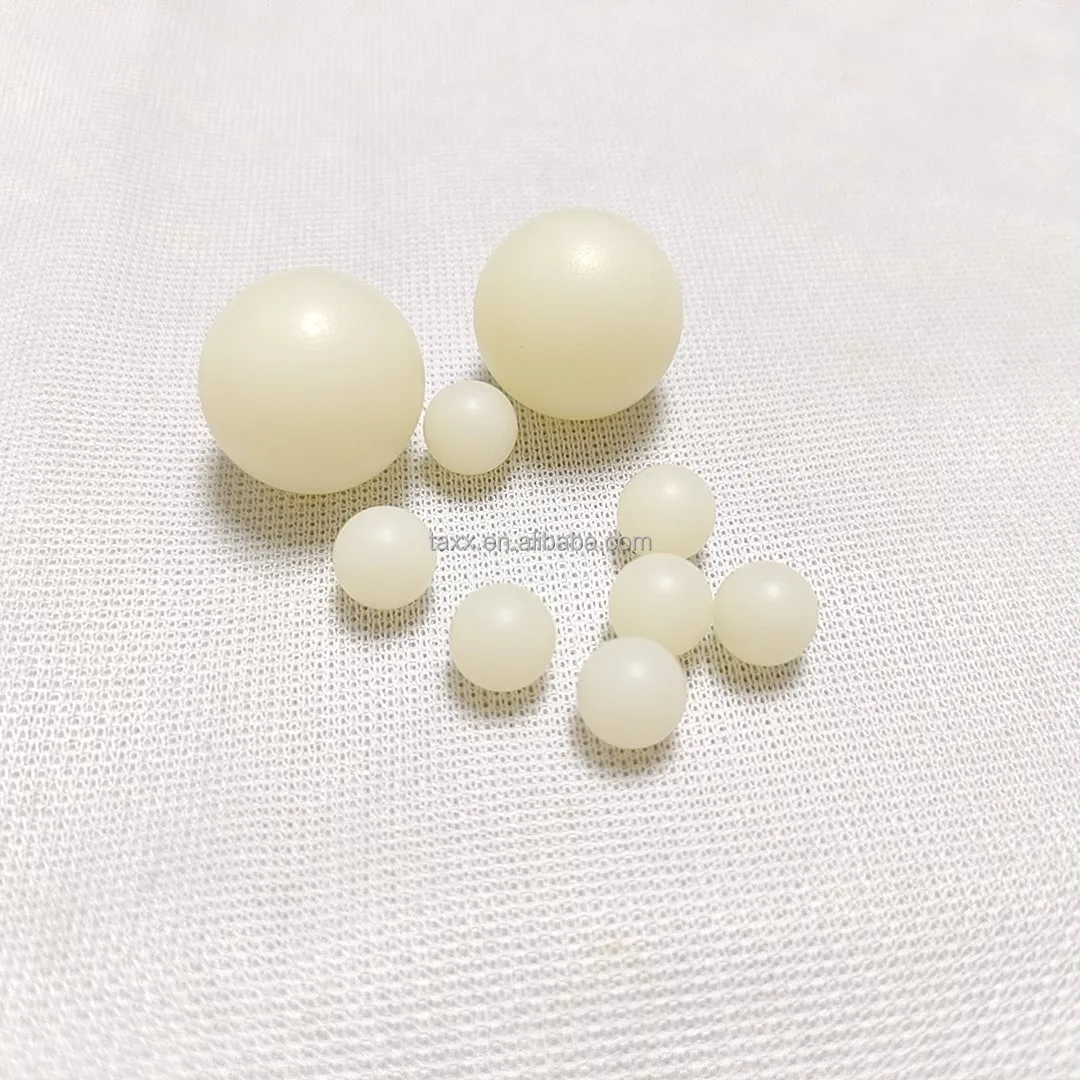

Nylon plastic balls for bearing and grinding
Nylon, also known as Polyamide, has high tensile strength, good abrasion wear resistant and impact resistance and is widely used in many home and industrial products. Having a higher melting temperature than other conventional plastics it can be used when added heat resistance is necessary. It offers good chemical resistance to common chemicals, alkalies, weak acids and is compatible with motor oil, transmission fluid, and methanol. Common uses include: screws, gears, knobs, and other low stress industrial applications formally made in metal.Nylon Balls (Zytel®, Polymide) are used in check valves, light load bearings, knobs and toggle switches and other applications where low cost and resiliency are more important than hardness. Nylon has good resistance to alkali, petroleum products and various mild chemicals. Use these nylon 6/6 balls as bearings and in sealing applications. They have a slippery surface that reduces wear caused by friction.

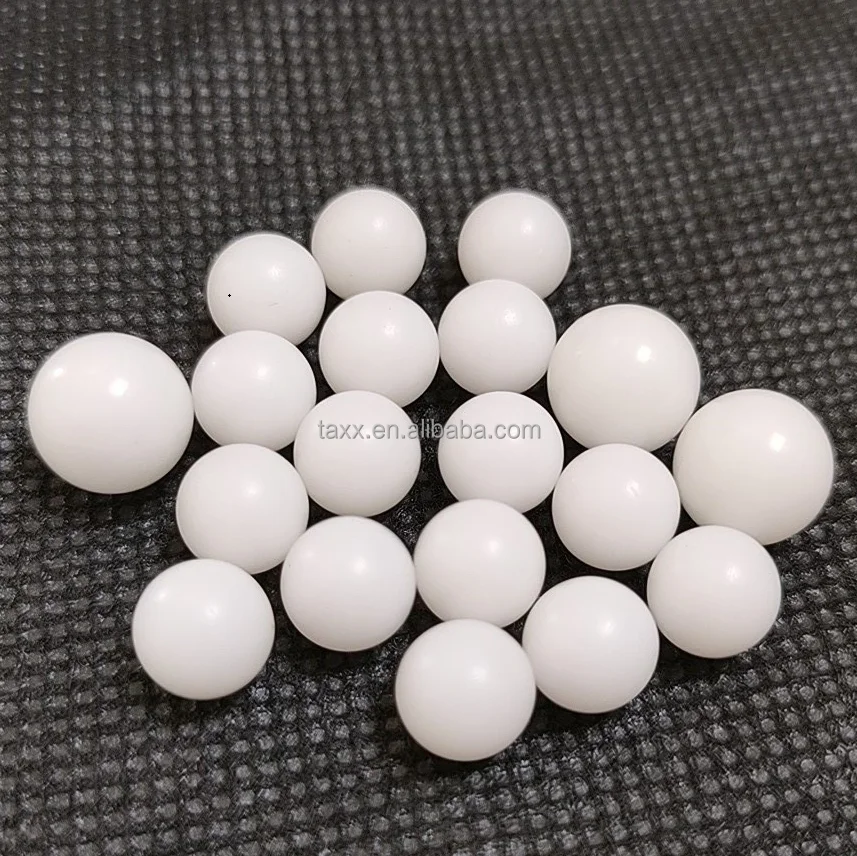

Acetal resin plastic balls for bearing and grinding
Delrin/POM Plastic Balls: Delrin is the name commonly used for the less commonly known polyoxymethylene (POM) acetal plastic. It has high mechanical strength and rigidity, is tough and tolerant to repeated impacts and has a good long term fatigue endurance. It has excellent resistance to petroleum based solvents, moisture and other neutral chemicals. Its has good electrical insulating properties and self lubricates in use. It can be operated within a wide operating temperature range up to 150℃. Note: There are many factors which may influence the performance of this product, temperature, chemical exposure etc. always test for your own application before selecting large quantities of this product. Performance: it is similar to nylon, but slightly harder than nylon, slightly larger than the density recommended products applied to the required low water absorption Application: POM ball table, drawer slide device, bearings, rollers, valves, electronic apparatus, sailing apparatus.

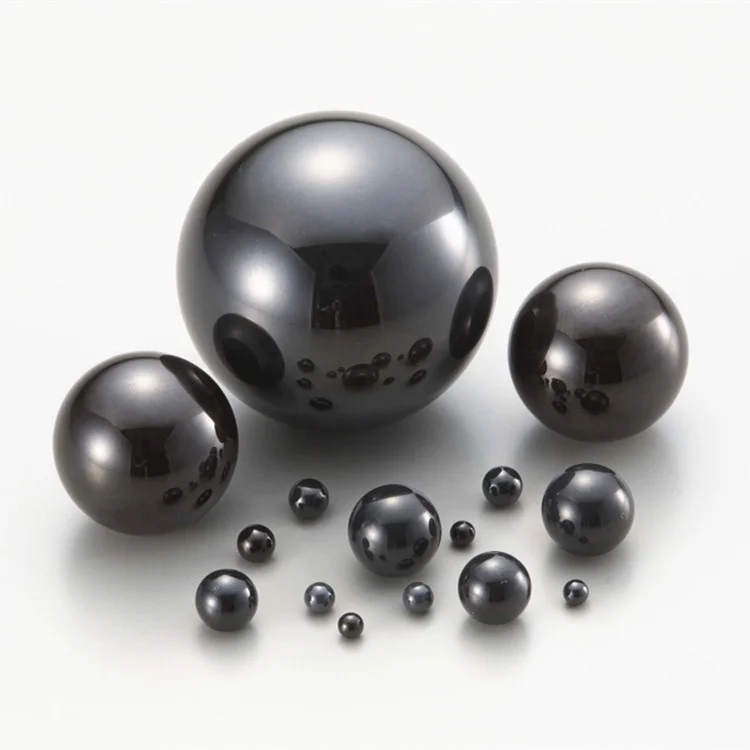

Ceramic balls for bearing(Si3N4 ) and grinding
Silicon Nitride Ceramic Ball (Si3N4) are precision ceramics sintered at high temperature in a non-oxidizing atmosphere. It has high strength, high wear resistance, high temperature resistance, corrosion resistance, acid and alkali resistance, and can be
used for a long time in the seawater, and has insulation good performance. At 800℃, the strength and hardness are almost unchanged. Its density is 3.23g/cm³, which is almost 1/3 of the weight of the bearing steel.
used for a long time in the seawater, and has insulation good performance. At 800℃, the strength and hardness are almost unchanged. Its density is 3.23g/cm³, which is almost 1/3 of the weight of the bearing steel.
The centrifugal force is small during rotation. High speed operation can be achieved. It also has self-lubricating properties, and it can be use is environments where no lubricate
medium is highly polluted.

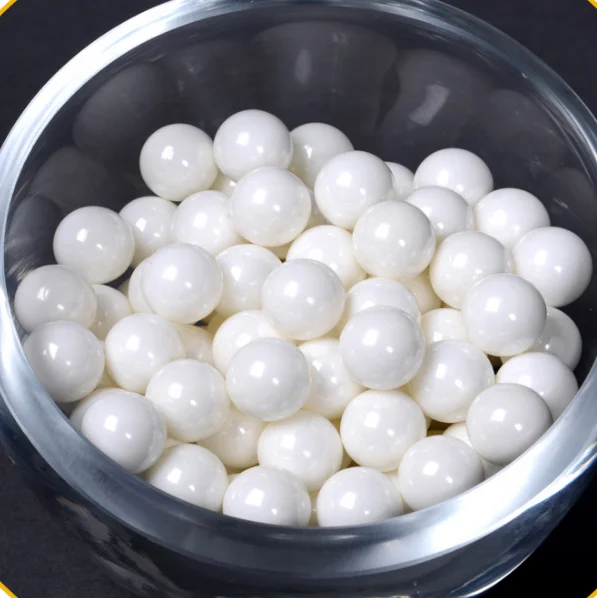

Ceramic balls for bearing(ZrO2 ball) and grinding
Zirconia Ceramic Ball (ZrO2) has high strength and toughness at room temperature, good wear resistance, high temperature and corrosion resistance, high rigidity, non-magnetic conductivity, and electrical insulation. The strength and hardness of zirconia ceramic ball is almost unchanged at 600℃. Its density is 6.05g/cm³, and the thermal expansion rate is close to the expansion rate of metal. If the expansion rate is used, it can be used in conjunction with metal.

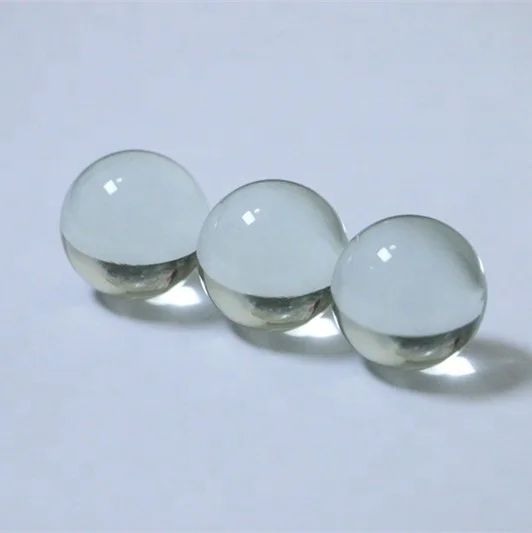

Glass balls for bearing and grinding in clear or black color
Soda lime precision glass balls will not stand thermal shock; can mechanically give continual service at 230°F; stands limited
static and torque load; good electric and corrosion resistant properties. Borosilicate glass balls can be used for example as ball valves, metering beads, grinding balls, filling material, as well as in numerous other areas in the pharmaceutical and cosmetic industries Borosilicate glass balls withstand high thermal shock; can mechanically give continual service at 450°F with extreme temperature limit at 900°F; very high electrical resistivity and dielectric strength; high chemical stability, withstands high applied torque loads.
static and torque load; good electric and corrosion resistant properties. Borosilicate glass balls can be used for example as ball valves, metering beads, grinding balls, filling material, as well as in numerous other areas in the pharmaceutical and cosmetic industries Borosilicate glass balls withstand high thermal shock; can mechanically give continual service at 450°F with extreme temperature limit at 900°F; very high electrical resistivity and dielectric strength; high chemical stability, withstands high applied torque loads.
Density:2.2 -2.5gm/cm
Continuous Operating Temperature:450°F
Continuous Operating Temperature:450°F
Product Line
Packing & Delivery
Packaging
A. Steel Drum packing
1) 250kg per steel drum;
2) Four steel drums in one pallet;
3) Drum with pallet size: 75CM*75CM*65CM.
B. Plywood Box packing
1) 40 cartons/woven bag in one plywood box;
2) Plywood box size:80CM*65CM*80CM.
C. Recommended to use 20"FT container, Maximum loading capacity of 24 tons.
D. 20"FT container loading of 24 tons Total: 24 Plywood Box or Drum.
Shipping
Shipping time: It will takes about 20-25days if by sea, It will takes about 5-7days if by air,By DHL,UPS,FEDEX,TNT,It will takes about 4-6 working days except festival and holiday.
1.If the quantity of order is not very big, we will send them to you by express delivery, such as TNT,DHL,UPS or EMS etc.
2.If order is big, we will advise you use Air Freight or Sea Freight. It through your pointed forwarders freight. FOB port is Ningbo or Shanghai.
3.If you don't have your specified forwarders freight, we can find the cheapest forwarders freight to ship the goods to your point port.
4.The balance payment should be paid before delivery to you.
Our Company

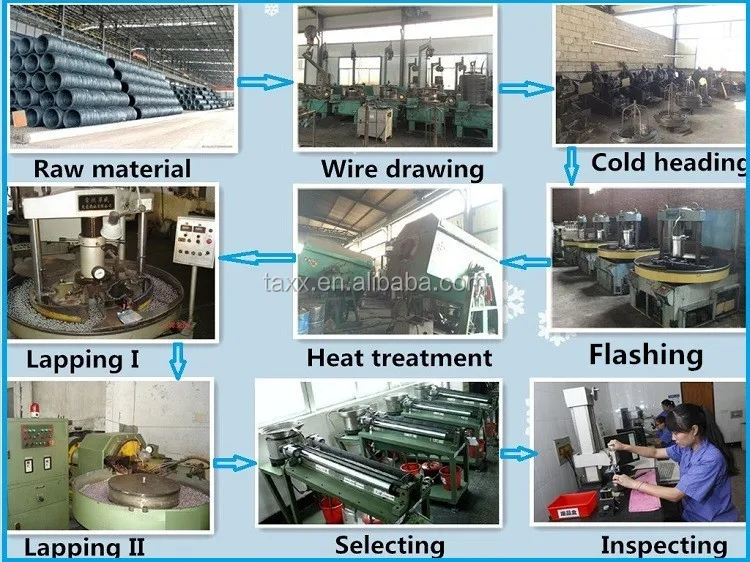

We produce according to the GB308-2002 standard and measure up to the international standard of ISO9001:2008 , AFMBA1989 and DIN5401-93 . We have the ability to provide many kinds of steel balls, of which accuracy range is level G10-level G1000.
We have advanced production equipment and consummative instruments. We use perfect equipment to detect the roundness, libration size and the quality of the surface of steel balls.We will sell our steel balls around the world; we believe we have a bright future.
Our Service
Advantage:
* Own ourselves facotry (Machine-intensive)
~~ Competitive quotation with strictly quality.
~~ Regular size ball are inventory.
* Documents offered
~~ Inspection Report & Material Certification & SGS certification
~~They can prove "Correct size and shiny surface and standard hardness"
* 0 cost SAMPLES can be sent on request.
~~Trial order comes after test Samples sent in advance.
~~Trial order keeps same with samples after test.
* Good quality balls offered can be in dry pack or oil pack.
~~Dry pack with rust protective paper in steel drums or paper box or poly bags.
~~Oil pack in steel drums or paper box or poly bags.
* All orders complete in time and shipped out on time.
~~All information of B/L and PACK-LIST and INVOICE confirmed with every client before shipment.
~~Certificate of Origin can be offered, let us know it in advance.
* Gurantee
~~ Not good balls, refund or return is acceptable.
~~Strictly quality and good service, make sure longer-term cooperation.
FAQ
Q1: Could you quote for us today?
A: If the details of products are enough, we will quote for you inmmediately.
Q2: Are you a manufacturer or a trader ?
A: We are manufacturer and we have our own independent export rights.
Q3: Do you have experience in foreign trade?
A : We have already 12 years foreign trade experience.
