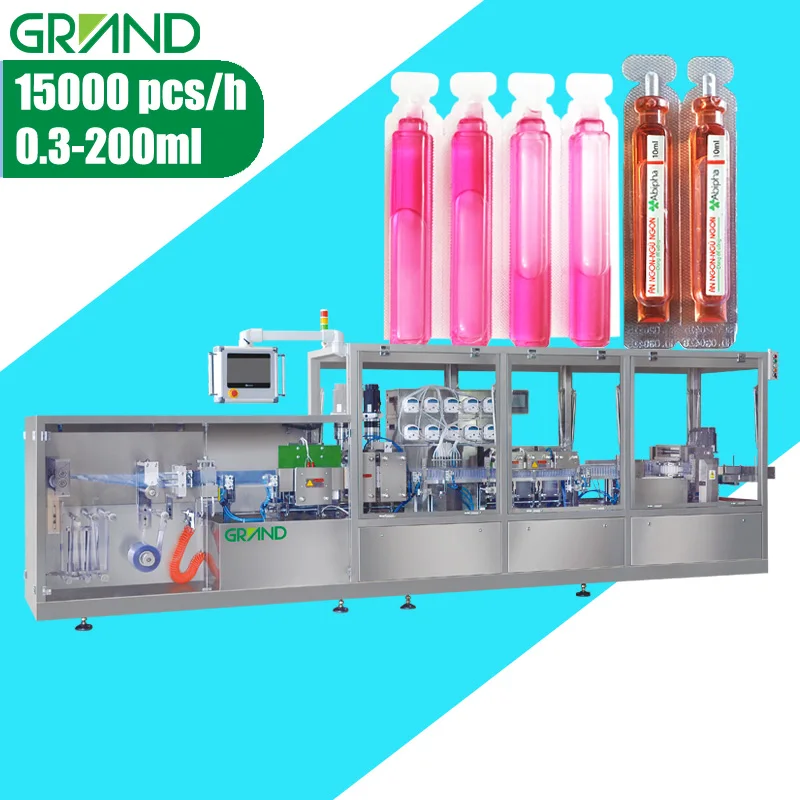

GGS240 TFFS machine Full Automatic Monodose Honey Olive Oil Liquid Plastic Ampoule form Fill Seal Machine
- Category: >>>
- Supplier: Hunan Grand International Trade Co. Ltd.
Share on (60669375425):
Product Overview
Description
TFFS Machine Automatic Plastic Ampoule Vial Bottle Thermoforming Filling And Sealing Machinery For Ph*rma Food Comestic Pesticide
Product Description
1. Machine Brief
GGS series machine is a kind of smaller type liquid filling and sealing machine, it’s suitable for small batch filling

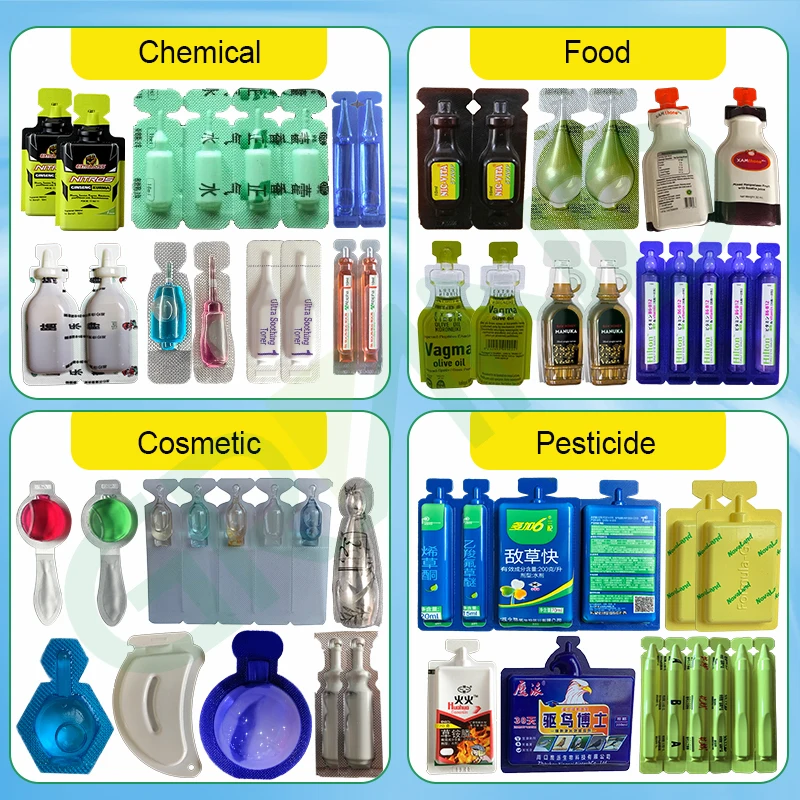

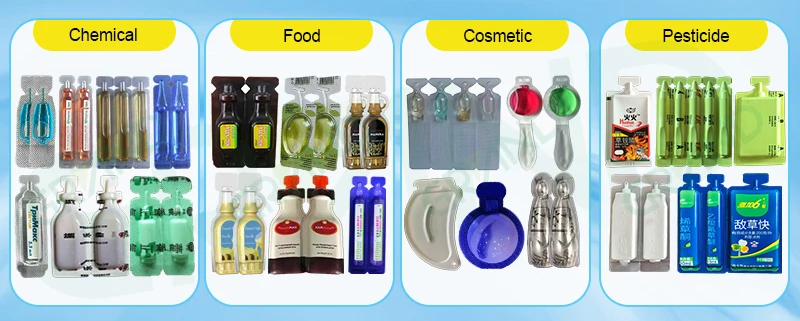

in ph*rmaceutical, pesticide, cosmetic, nutrition etc. field, it’s widely used for filling oral liquid, olive oil,perfume, liquid health care product etc.
in ph*rmaceutical, pesticide, cosmetic, nutrition etc. field, it’s widely used for filling oral liquid, olive oil,perfume, liquid health care product etc.
2. Main Features
1. The machine adopts PLC control and stepless altering frequency adjustment.
2. The machine can finish the following 6 working station automatically through the programmer, roller sheet release, PVC/PE forming, filling,press the batch number, back-end crop, slitting .
3. The machine adopt the human-machine interface operation, operation is easy and simple .
4. The filling head has no leak through, not appear foam and overflow.
5. The contact parts with the filled liquid adopt SUS316L, conforms to the GMP standard.
6. The main pneumatic component and electric parts adopt well-known brand products.
7.Filling system adopts mechanical pump, measuring is precisely and the difference is small.
Main Technical Parameters

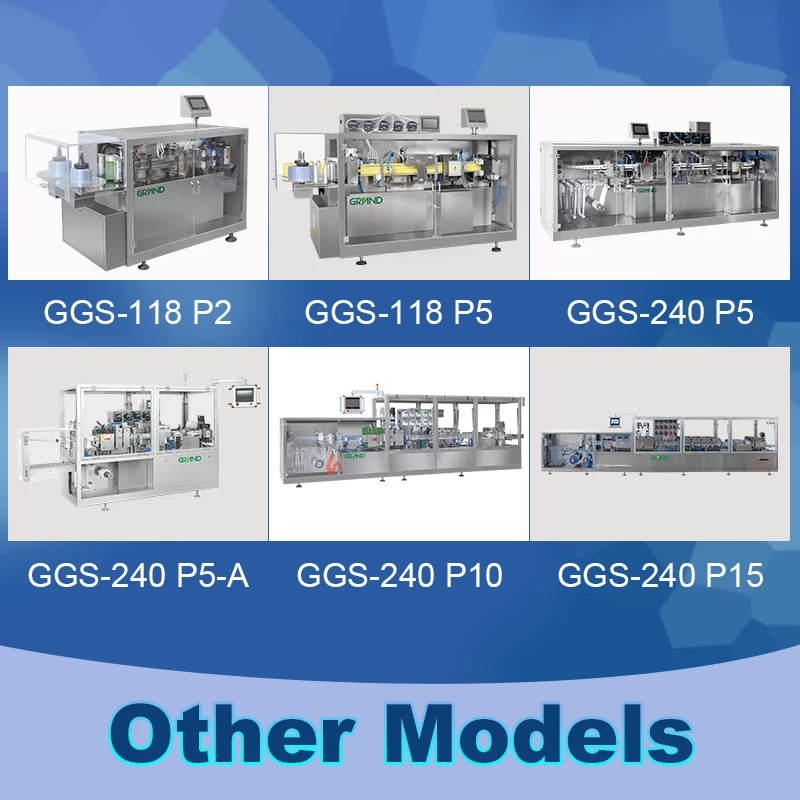

Model | GGS-118 P2 (2 heads) | GGS-118 P5 (5 heads) | GGS-240 P5 (5 heads) | GGS-240 P5-A (5 heads) | GGS-240 P10 (10 heads) | GGS-240 P15 (15 heads) | |||||
Max. Forming Depth | 12mm*2 sides or customized | ||||||||||
Max.Output | 50 pcs/min | 125 pcs/min | 125 pcs/min | 125 pcs/min | 250 pcs/min | 375 pcs/min | |||||
Filling Volume | 0.3-100ml | 0.3-200ml | |||||||||
Packing Material | PVC/PE, PET/PE, PET/EOE combined sheet (thickness: 0.2-0.4mm) | ||||||||||
Power Supply | 3.5KW | 4.5KW | 6.5KW | 7KW | 22KW | 22KW | |||||
Voltage | 220V/380V 50HZ (can be customized) | 380V 50HZ (can be customized) | |||||||||
Machine Dimension | 1800*800*1400mm | 2300*850*1500mm | 3200*850*1400mm | 3380*950*1800mm | 5200*850*1600mm | 7300*1050*1800mm | |||||
Machine Weight | 550KG | 750KG | 1200KG | 1000kg | 2200KG | 3000KG | |||||
PRICE | |||||||||||
Note:Alibaba APP user, click "Chat Now" or "Send Inquiry" in the lower right corner and you will get the best price.
Note:APP user, click "Chat Now" or "Send Inquiry" in the lower right corner to get the above information.
Note:APP user, click "Chat Now" or "Send Inquiry" in the lower right corner to get the above information.
Our Service
NOTE: APP user, click "Chat Now" or "Send Inquiry" in the lower right corner to get the above information.
Product Packaging
Customer Feedback
Company Profile
Hunan Grand packing machiney Co.,Ltd is specialized in the Multifunction filling and packing machinery for more than 10 years. such as ph*rmaceutical packing machine,plastic ampoule forming filling and sealing machine, capsule machine, blister packing machine, strip packaging machine, cartoning machine etc..
Our machines were exported to many different countries and regions in the whole world, such as Indonesia, Thailand, Malaysia, Philippines, New Zealand, Korea, the Middle East area, Poland, Belgium, France, UK, Greece, Italy, Turkey, USA, central and south America such as Trinidad and Tobago, Mexico, Brazil, Russia, Ukraine, UZ, Tunisia, Algeria, Morocco etc. Good reputation of the machine quality and after sales service always gained from customers.
Various kinds of factories and companies in different fields are cooperating with us. Such as ph*rmaceutical, food , supplement, stationery, hardware, agricultural and chemical factories. For pesticide, fertilizer, personal care products, like cosmetics, daily use products etc..
Our sales team are professional in communicating with customer about different aspects of our machines. We also have our own technical research group to do the new products development and professional group for customer overseas after sales service . For customer who doesn’t need our engineer for machine installation, we will provide them the detail and professional machine installation and running video for support and help.
Welcome to get in touch with us, we are always here for you....
Welcome to get in touch with us, we are always here for you....
NOTE: APP user, click "Chat Now" or "Send Inquiry" in the lower right corner to get in touch with us.
FAQ
Q: Where is your factory? How can I visit your factory?
A: Our factory is located In Wenzhou Zhejiang province. We warmly welcome you to visit our factory if you have a travel plan.
Click to contact me for business negotiation and investigation or Video inspection factory.
A: Our factory is located In Wenzhou Zhejiang province. We warmly welcome you to visit our factory if you have a travel plan.
Click to contact me for business negotiation and investigation or Video inspection factory.
NOTE: APP user, click "Chat Now" or "Send Inquiry" in the lower right corner to get the above information.
Q: How can I know your machine is designed for my product?
A: If you don't mind, you can send us samples and we will test on machines.During that time, we will take videos and clearer pictures for you. We can also show you on-line by video chatting.
Q: How can I trust you for the first-time business?
A: Please note our business license and certificates above. If you don't trust us, we suggest using Alibaba Trade Assurance Service for all transactions to protect your money and assure our service for you.
Q: How about the after service and guarantee period?
A: We offer 1 years warranty since the arrival of the machine. Technical support is available 24/7. Grand highly recommends that you keep all of your original packaging. This is precautionary to ensure you have what you need if the machine has to be sent in for repair. We have professional team with experienced technician to serve abroad and do the best after service to assure the machine whole life usage.
Q:How to contact you?
A: Please leave messages and click "send" to send us inquiries. If you are an APP user, click "Chat Now" or "Send Inquiry" in the lower right corner to get the above information.
Q:How about the after-sales service?
Q: How can I know your machine is designed for my product?
A: If you don't mind, you can send us samples and we will test on machines.During that time, we will take videos and clearer pictures for you. We can also show you on-line by video chatting.
Q: How can I trust you for the first-time business?
A: Please note our business license and certificates above. If you don't trust us, we suggest using Alibaba Trade Assurance Service for all transactions to protect your money and assure our service for you.
Q: How about the after service and guarantee period?
A: We offer 1 years warranty since the arrival of the machine. Technical support is available 24/7. Grand highly recommends that you keep all of your original packaging. This is precautionary to ensure you have what you need if the machine has to be sent in for repair. We have professional team with experienced technician to serve abroad and do the best after service to assure the machine whole life usage.
Q:How to contact you?
A: Please leave messages and click "send" to send us inquiries. If you are an APP user, click "Chat Now" or "Send Inquiry" in the lower right corner to get the above information.
Q:How about the after-sales service?
A:Our machine has one year guarantee,life-long maintenance. If customers need. We can also send our engineers to your country do service for you.
Q:What's your payment?
Q:What's your payment?
A:We prefer T/T,but other payment is also ok, If you have others,please tell us.
