30crmnsia Steel Price Sheet Manufacture And Factory Sold

Product Overview

Description

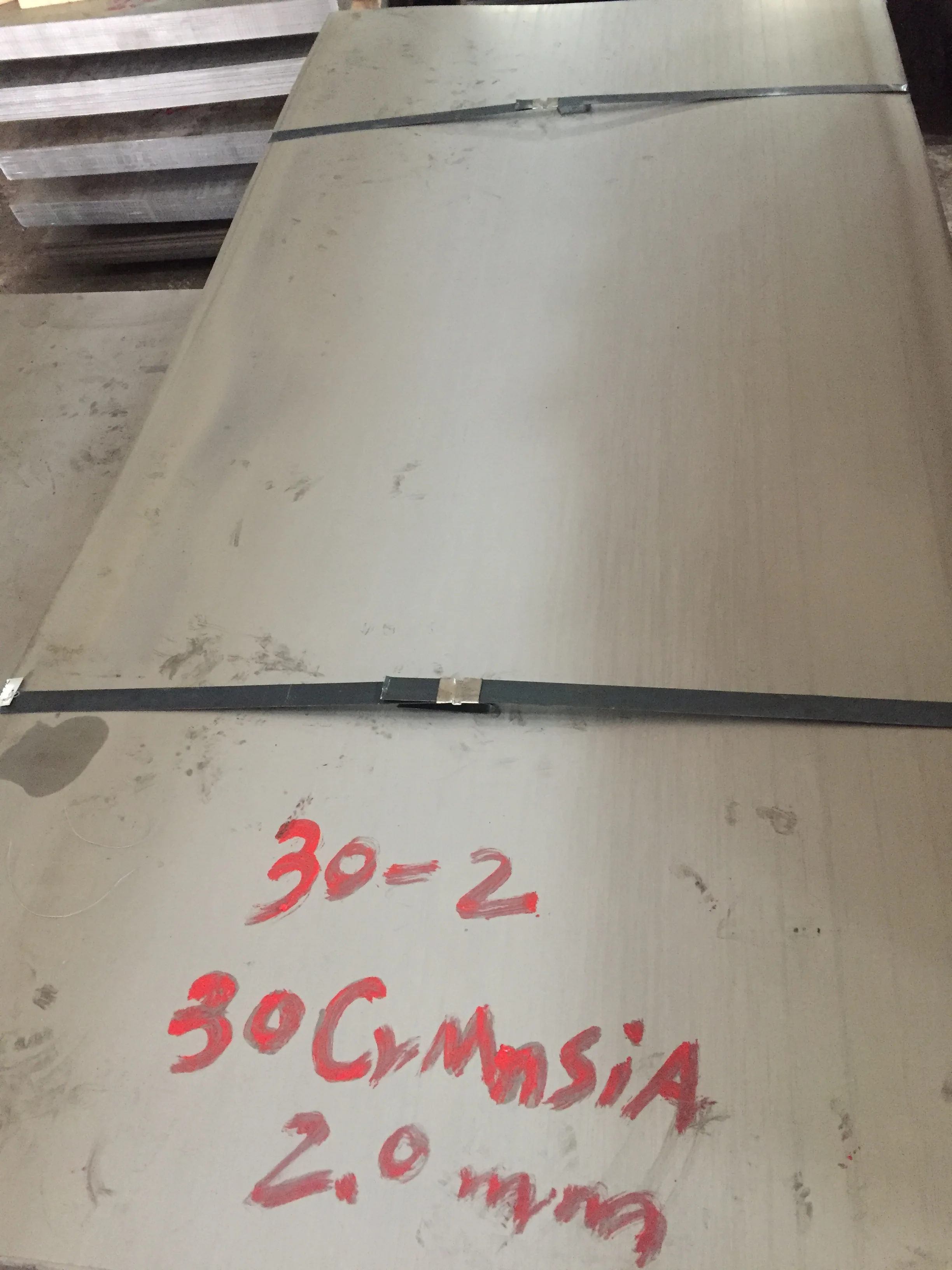

Material: GB 30CrMnSiA,30CrMnSi Alloy Steel Plate

  30 crmnsia carbon, high strength, poor welding performance. After 30 crmnsia quenched and tempered high strength and toughness, enough hardenability. After conditioning, the material spindle gear, chain wheel is ok. 30 crmnsia has good workability, machining deformation of small, anti-fatigue performance is quite good. Used for shaft, piston spare parts, etc. Used in automobile, aircraft, various special wear-resistant parts, etc

As for this material,we have the stocks,if need it,please contact us.

Standards:ASTM,JIS,GB,EN(DIN,BS,NF) Or Per as clients’ requires.





Product Basic Information:

1.Chemical Composition and Mechanical Properties(In Quenched & Tempered State):



Chemical Composition		Mechanical Properties(In Quenched & Tempered State)
C	0.27-0.34	Tensile strength(MPA)	≥1080
Si	0.90-1.20	Yield strength (MPA)	≥ 835
Mn	0.80-1.10	Elongation(δ5/%)	≥ 10
Cr	0.80-1.10	Reduction in Area (ψ/%)	≥ 45
Cu	≤ 0.30	Impact  (J)	≥ 39
Ni	≤ 0.30	Hardness	≤229HBS(not heat treatment)
Mo	≤ 0.15
S	≤0.035
P	≤0.035







 2.Product Application Areas:

Our products have been used in all kinds of areas, such as aviation,aerospace,navigation,nuclear energy,chemical

industry,electronic information,achine manufacture, petrochemical, automotive,instrument and meter, Communication ,

transportation, and medical instruments, etc.



3.Similar steel grade & equivalent steel materials:

USA	Japanese	Gemany	British	France	International	Chinese
ASTM&AISI&SAE	JIS	EN DIN	EN BS	EN NF	ISO	GB
---	---	----	----	----	----	30CrMnSiA 30CrMnSi







Product Sales Information:

Size	Thickness:1mm-500mm Length:500mm-6000mm
Origin place	Made In China
Delivery Condition	Hot rolled,cold drawn,forged
Surface require	Black,grinding,bright,polish
Heat treatment	Quenched,Tempered,annealed
Packing	seaworthy packing ,wooden case ,carton,woven bag or at client's requires
Delivery time	In 10-50 days
Trade Term	EXW,FOB,CIF
Payments	T/T or L/C at sight
Port	China main Port,such as shanghai,Dalian,Shenzhen port.
MOQ	100kg







Company Main Products:



Alloy Steel	4140,4142,42CrMo4,1.7225,SCM440,4130,SCM430,25CrMo4,1.7218,34CrNiMo6, 1.6582,4340,SNCM439,36CrNiMo4,1.6511,SACN645,1340,SMn438,SNC236,
Tool Steel	H13,1.2344,SKD61,D2,SKD11,1.2379,1.2510,01,SKS3,95MnWCr5,D3,SKD1,1.2419, SKS31,H21,SKD5,1.2581,P20,35CrMo7,1.2738,1.2316,M2
Bearing Steel	GCr15,52100,SUJ1,SUJ2,100Cr6,1.2067,55C,8620,4320,9310,440C,M50
Spring Steel	9260,SUP6,SUP7,1.7108,54SiCr6,1.7102,5155,SUP9,1.7176,5160,1.7177,6150, SUP10,51CrV4,1.8159
Stainless Steel	321,sus321,1.4541,304,SUS304,1.4301,410,SUS410,1.4006,420,1.4021,1.4028, 434,1.4113,316L,SUS316L,1.4435,630,1.4542,431,1.4057,





Contact Information:



Contact:Mr benny

Skype: bennyguo01

QQ:1431055683





Company verified by Bureau veritas:





Gold Supplier,  Assessed Supplier  ,Verified by Bureau Veritas











Our company management team:

Certifications:







 Factory Manufacture Process:



1.Forged Ingot



 2.Material Taking Machine



 3.Forged Machine



 4.Sawing Machine



 5.Steel Grinding



 6.Fished Steel Material

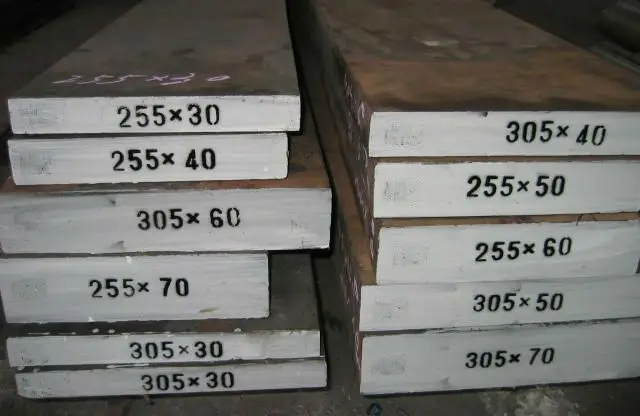

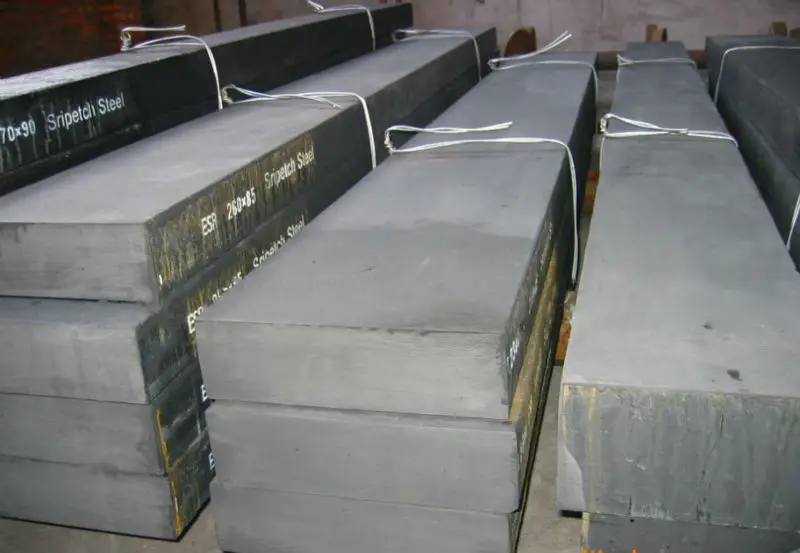

Products stocks:

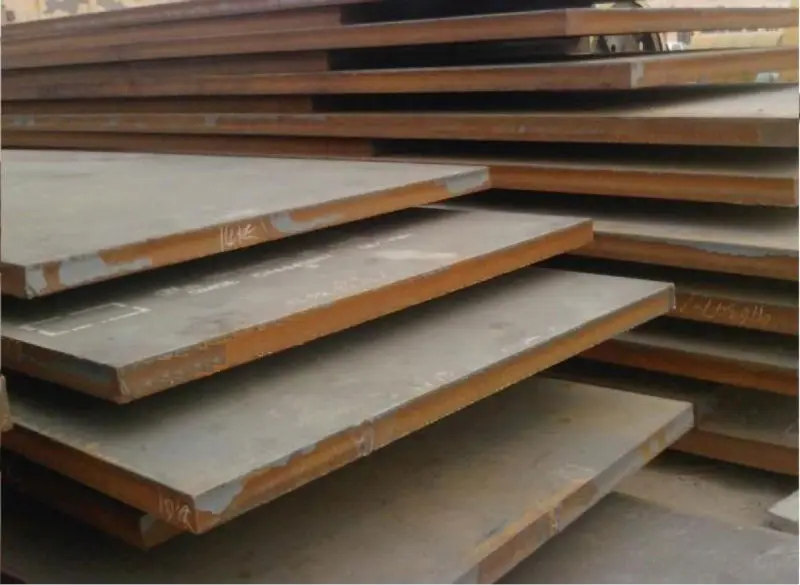

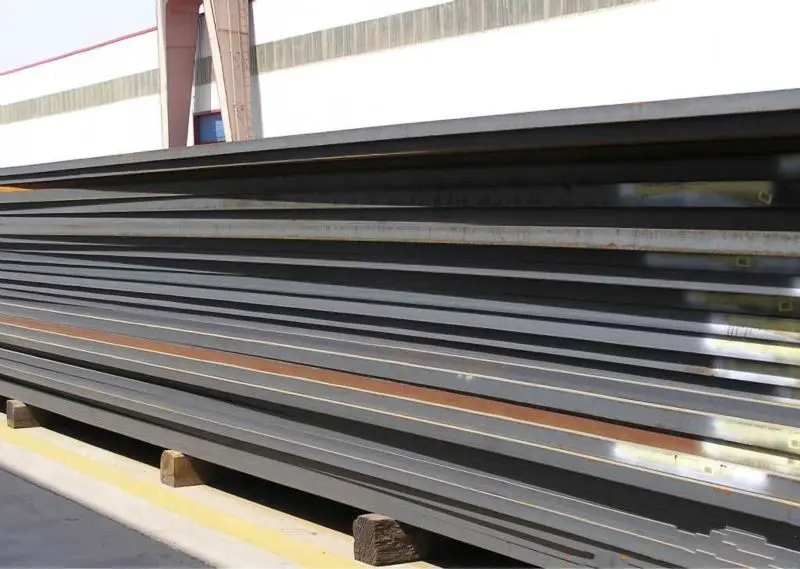

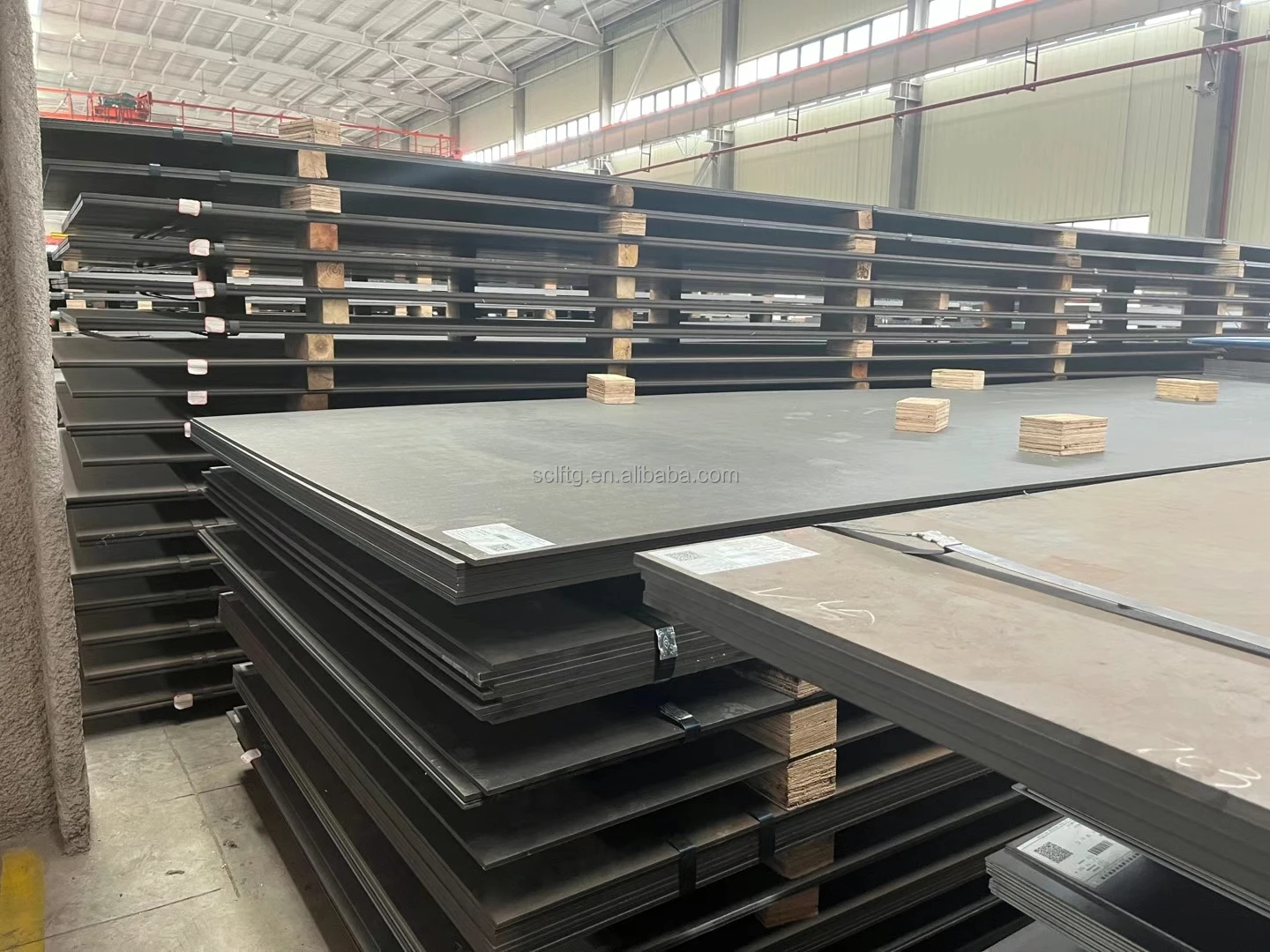

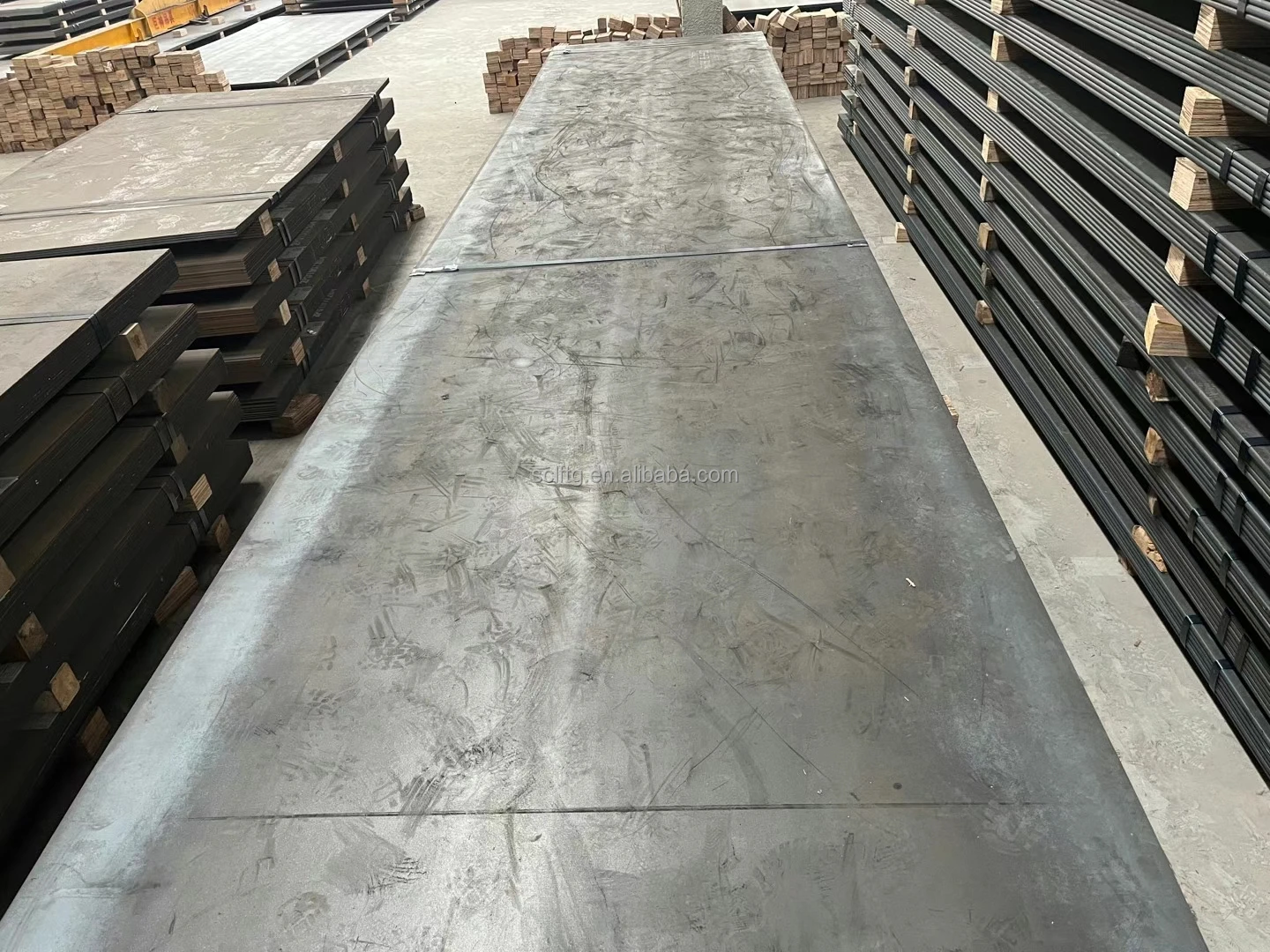

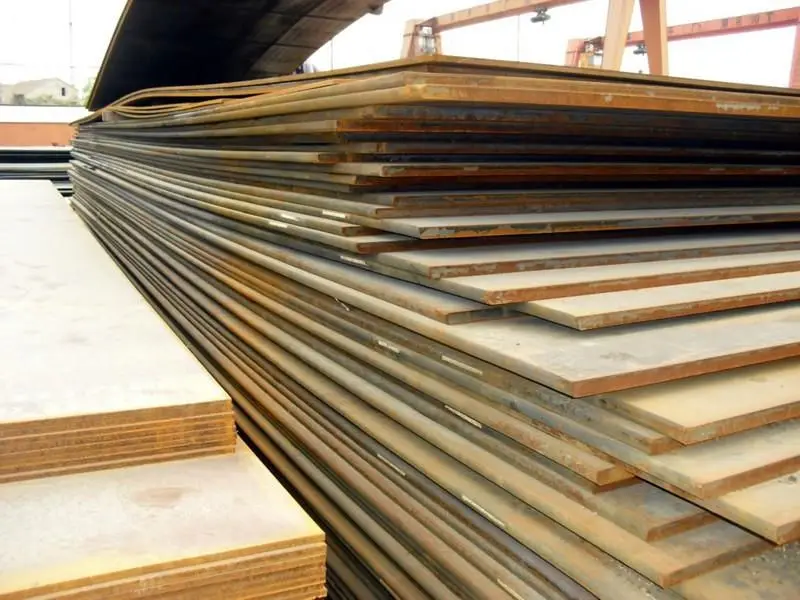

Surface Polish Steel plates:











Surface Black Steel  Plate











Black surface steel Plate







Grinding surface steel plate







Black Surface:
