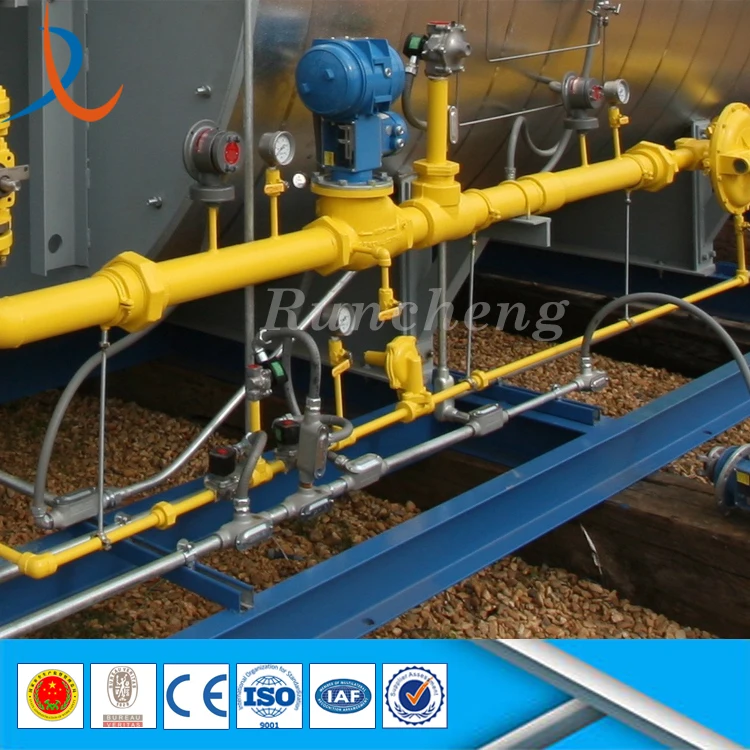

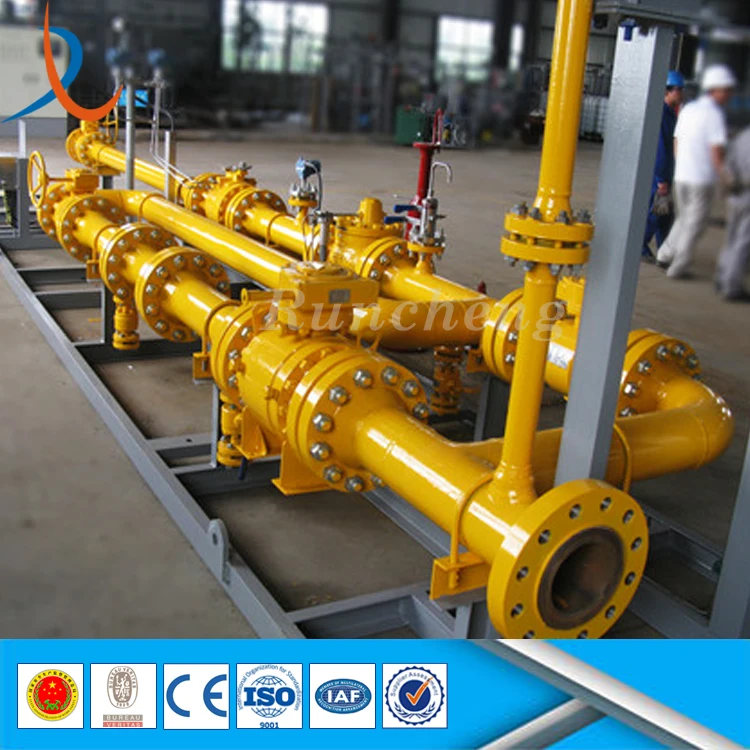

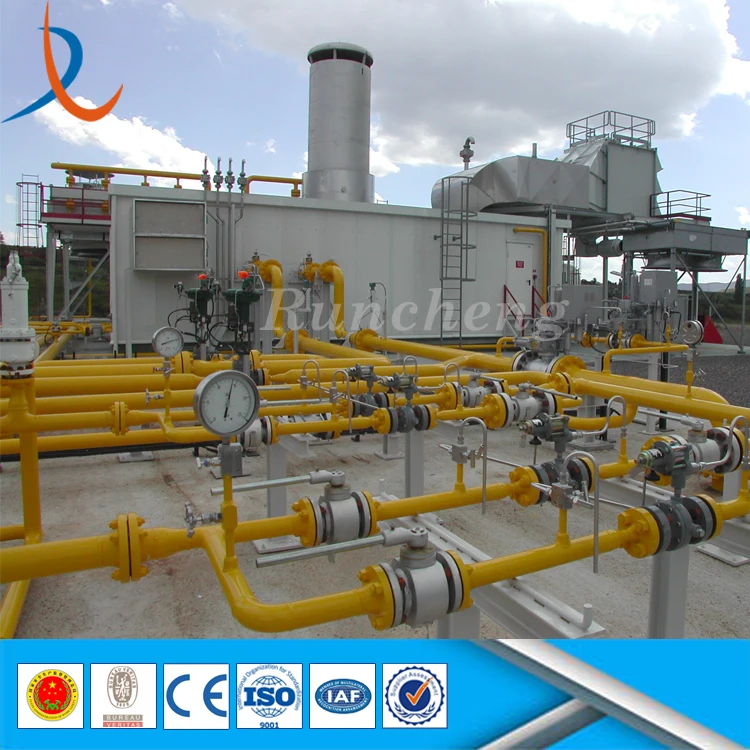

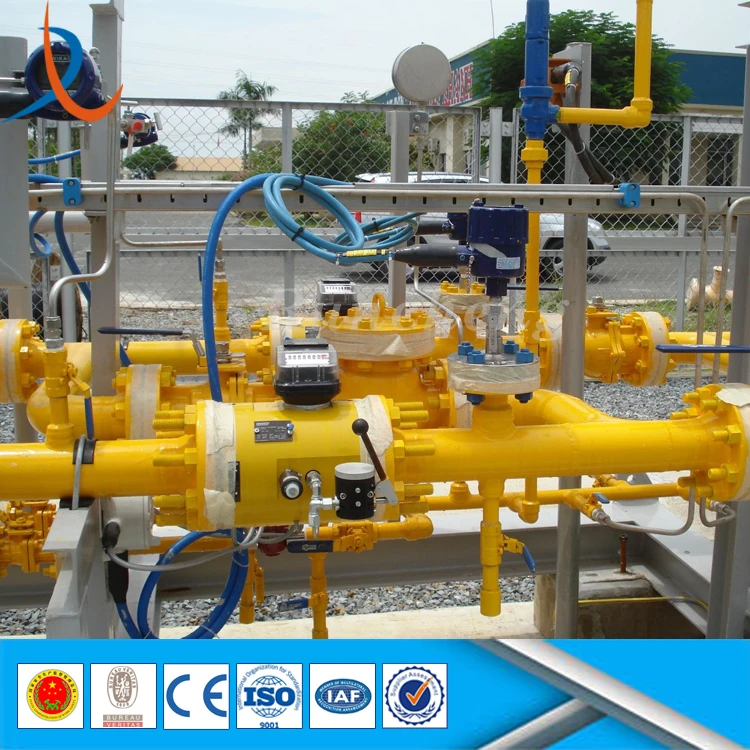

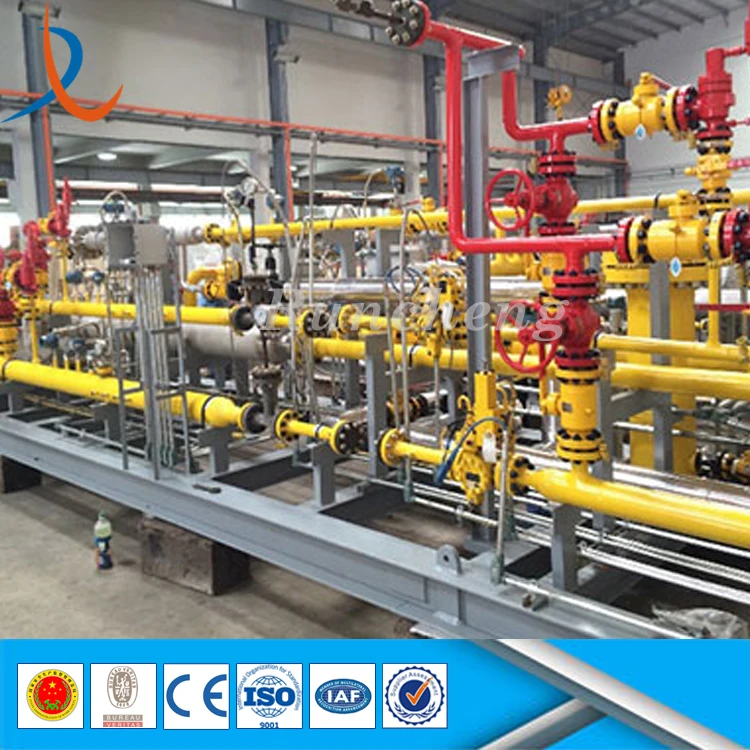

Skid-mounted natural gas metering station / natural gas metering skid
Natural gas metering skid consists of two ball valves,one orifice Valve and a bypass.It operates by opening the front and back valves of the orifice valve flowmeter, closing the bypass valve and using the differential pressure transmitter, pressure transmitter, and temperature transmitter on the pipeline to measure the flowrate of natural gas.

Technical parameters of natural gas metering skid:
1.Design pressure:9.8MPa
2.Design temperature:-19~80℃
3.The maximum natural gas measurements:20X104NM3/D
4.Connection type of inlet and outlet: 2-7/8″ TB GKY/65 clamp

Accessories of natural gas metering skid:
| Name | Item | Quantity | Unit | ||
| High pressure welded ball valve | Q61NK-160 DN25 | 1 | Piece | ||
| High pressure welded ball valve | Q61NK-160 DN50 | 2 | Piece | ||
|
| 1 | Piece | ||
|
| 1 | Piece | ||
|
| 1 | Piece | ||
| Orifice plate flowmeter | DN50 | 1 | Set | ||
| Measurement and control system | Computer,electric control cabinet,etc | 1 | Set | ||
| Skid base | 1 | Set |



Why choose us?
1. Own factories in China mainland
2. Engaged in the industry for over 12 years
3. Achieve patents for intellectual property protection
4.QUALITY SESTEM to make sure the superior high quality
5.Large product series for one-stop service
6.Consulting, suggesting, help find perfect solution



Any question or interest about our skid-mounted natural gas metering station / natural gas metering skid , please don't hesitate to contact with us. It's our honor to help and support your business.
