Product Overview
Description

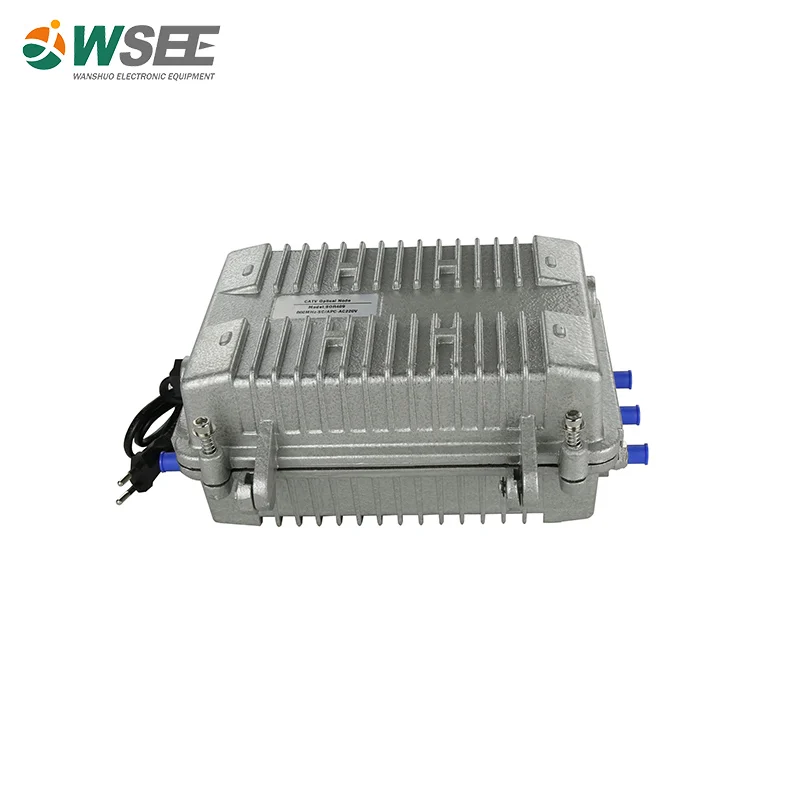

HFC CATV Outdoor 4 Outputs AGC Fiber Optic Node Cable Line Optical Receiver
Product Description
1. HFC CATV Outdoor 4 Outputs AGC Fiber Optic Node Cable Line Optical Receiver

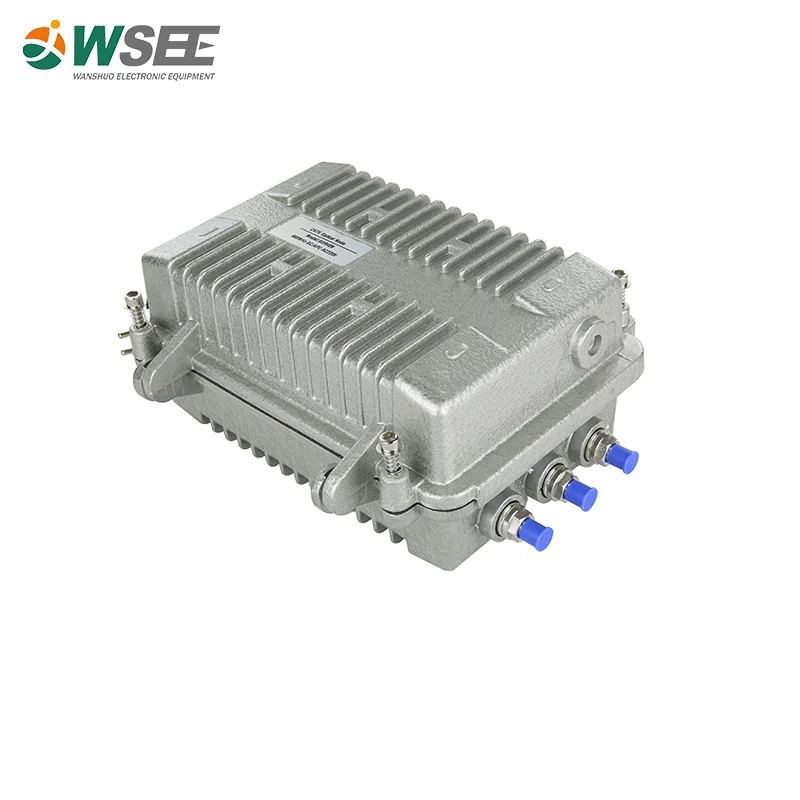

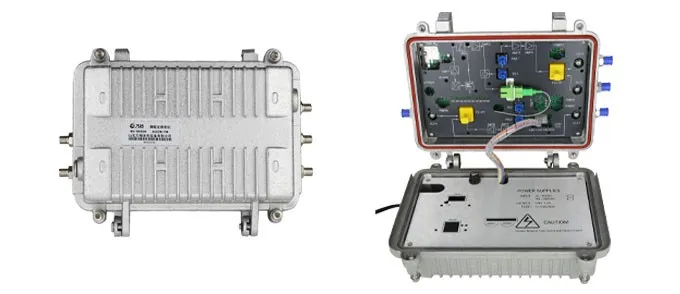

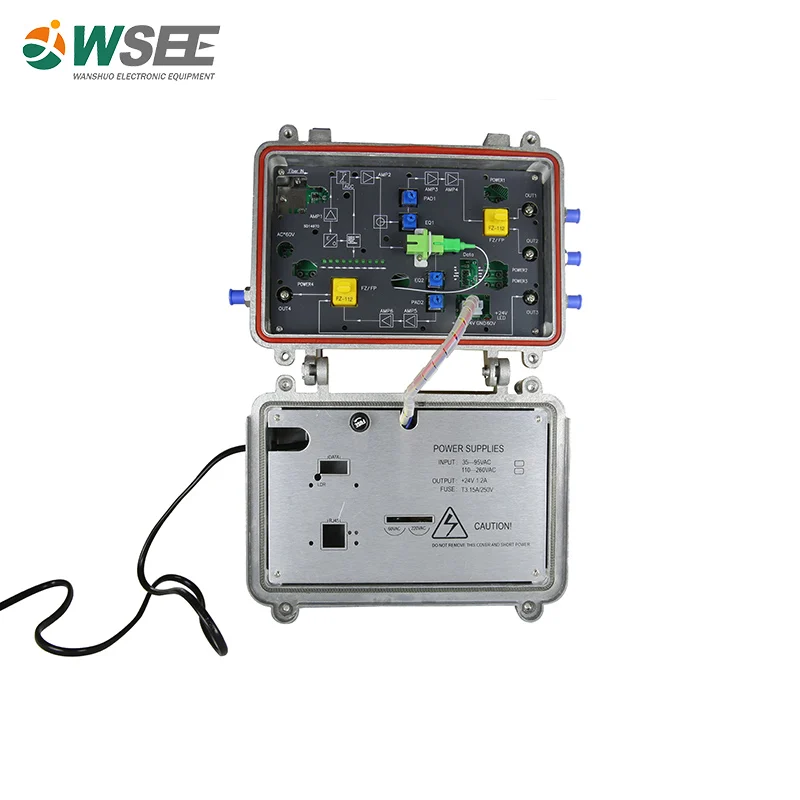

2. OR409 Fiber optic node is an outdoor 4 outlets waterproofing receiver. It is mainly used in the building, community or village with concentrated users and high level multi outputs distribution network. Also suitable to be used in the place where it is not convenient to take the electricity and single equipment drives many users. It can work together with ONU or EOC to realize the network convergence.

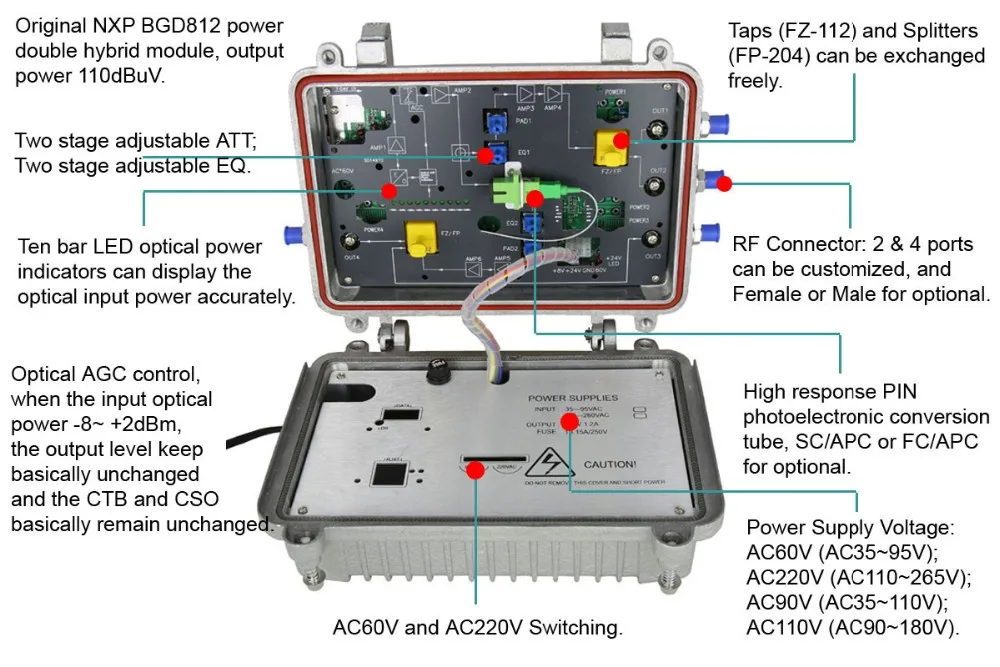

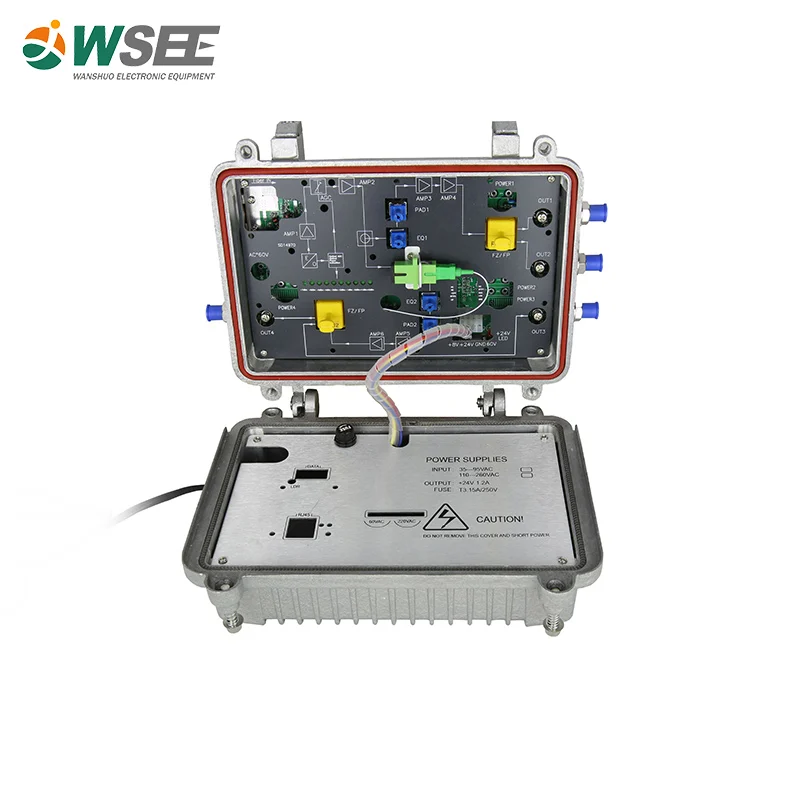

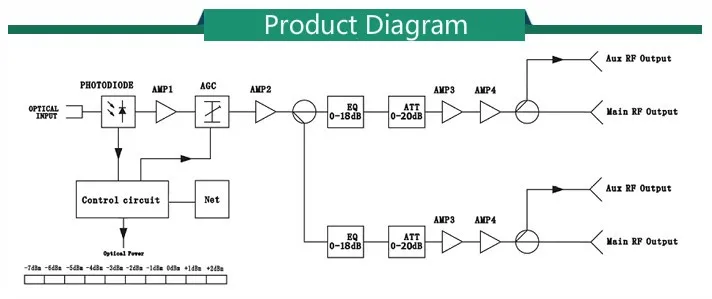

3. HFC CATV Outdoor 4 Outputs AGC Fiber Optic Node Cable Line Optical Receiver OR409 adopts MMIC as the pre-stage amplification and hybrid module in the backward stage. Adjustable attenuation and equilibrium makes the debugging extremely convenient. The users also can choose the module combination according to their actual requirements. Optimized circuit design guarantees the perfect performance and is the ideal model for CATV network.
Item | SOR409 Fiber Optic Node | |
Receiving Optical Power | dBm | (-8~+2) |
Optical Return Loss | dB | >45 |
Optical Receiving Wavelength | nm | 1100 ~ 1600 |
Optical Connector Type |
| FC/APC or SC/APC |
Bandwidth | MHz | 47-750&862 |
Flatness in Band | dB | ±0.75 |
Nominal output power | dBuV | 106 |
Max output power | dBuV | 110 |
Output Return Loss | dB | ≥14 |
Output Impedance | Ω | 75 |
C/N | dB | ≥ 51 |
CTB | dB | ≥ 65 |
CSO | dB | ≥ 60 |
Supply Voltage | V | AC35~AC90&AC140~AC265 |
Operating Temperature | °C | (-40~60) |
Dimension | mm | 240(L)x160(W)x110(H) |
Net Weight | kg | 2.5 |

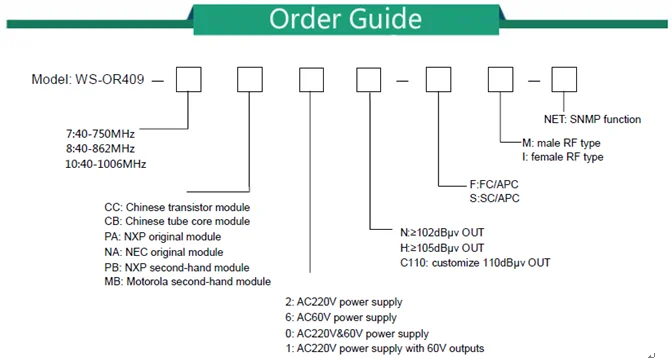

Model sample: WS-OR409-8CC2H-FM-N
Model explanation: OR409 HFC CATV Outdoor 4 Outputs AGC Fiber Optic Node Cable Line Optical Receiver, bandwidth 862MHz, Chinese transistor module, 220V power supply, output level more than 105dBuv, FC/APC optical connector, female RF connector, with SNMP.
Package & Payment

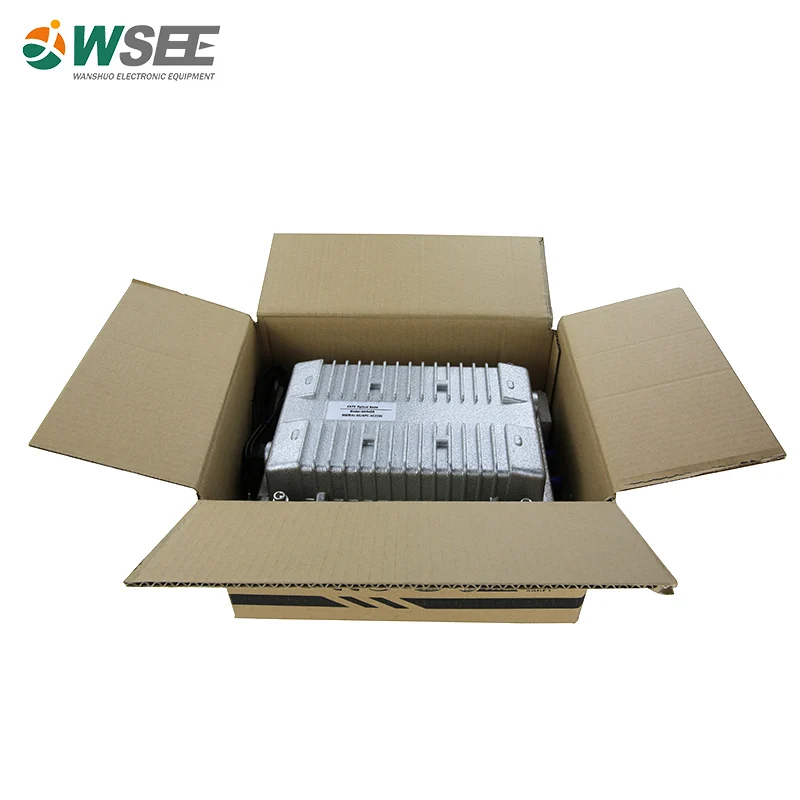

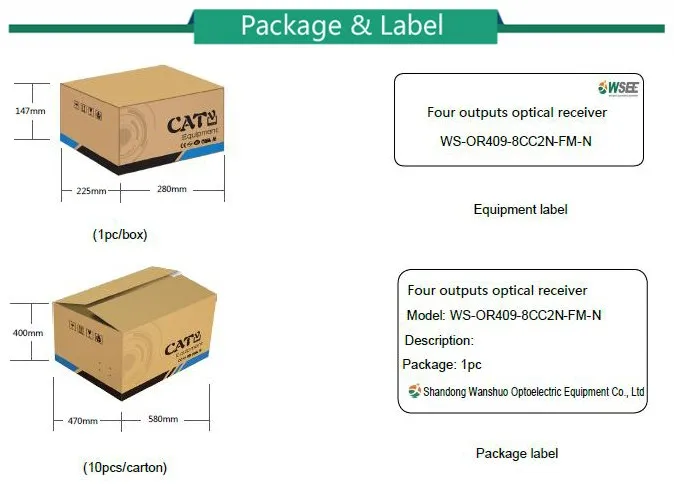

OR409 HFC CATV Outdoor 4 Outputs AGC Fiber Optic Node Cable Line Optical Receiver Package: 1pc / Box, 10pcs / Carton.
Our Services
1. Warranty 1 years: Direction modulation optical transmitter, High power optical fiber amplifier, Optical receiver, CATV trunk amplifier, FTTH optical receiver.
2. Warranty 3 years: EDFA, External modulation optical transmitter.
3. Bulk orders can deliver a certain number of wearing parts, such as power supplies, modules, etc.
4. The damaged products: during warranty period, we can provide parts to replace or repair for free. Outside the warranty period, lifetime warranty, charge a maintenance costs, round-trip freight shall be borne by the buyer. Bulk orders if had provided a certain percentage of free maintenance parts, no warranty.
5. Batch problem: If the products appear batch problems, can be returned.
6. OEM&ODM: We can help you to design and put your good idea into products.
7. Training service support: Provide free training service on installation and debugging.
Company Information
Shandong Wanshuo Optoelectronic Equipment Co., Ltd has been manufacturing CATV Optical equipment since 2008. Our company has become one of the biggest enterprises in the field of CATV equipment in China. We have been mainly engaged in designing, researching, manufacturing and marketing CATV HFC network equipment.
Our company has been researching and developing HFC network products, including 1550nm EDFA, Multi-ports High Power EDFA, 1550nm/1310nm Optical Transmitters, Outdoor Optical Receivers, FTTH Optical Nodes, Passive FTTH Optical Nodes, CATV Amplifiers, hybrid modules, power supplies and passive devices.
After years of development, we have strong overall operational capabilities, rich experiences in international trade, and have made good relationship with many countries like USA, India, Vietnam, Spain, Romania, Ukraine and Russia, Peru, Colombia, African countries, etc. We are looking forward to forming business relationship with new clients around the world.
If you are interested in our products, welcome to your inquiry and visit our factory.
