Product Overview

Description


Welcome to HT Sensor
Product Description

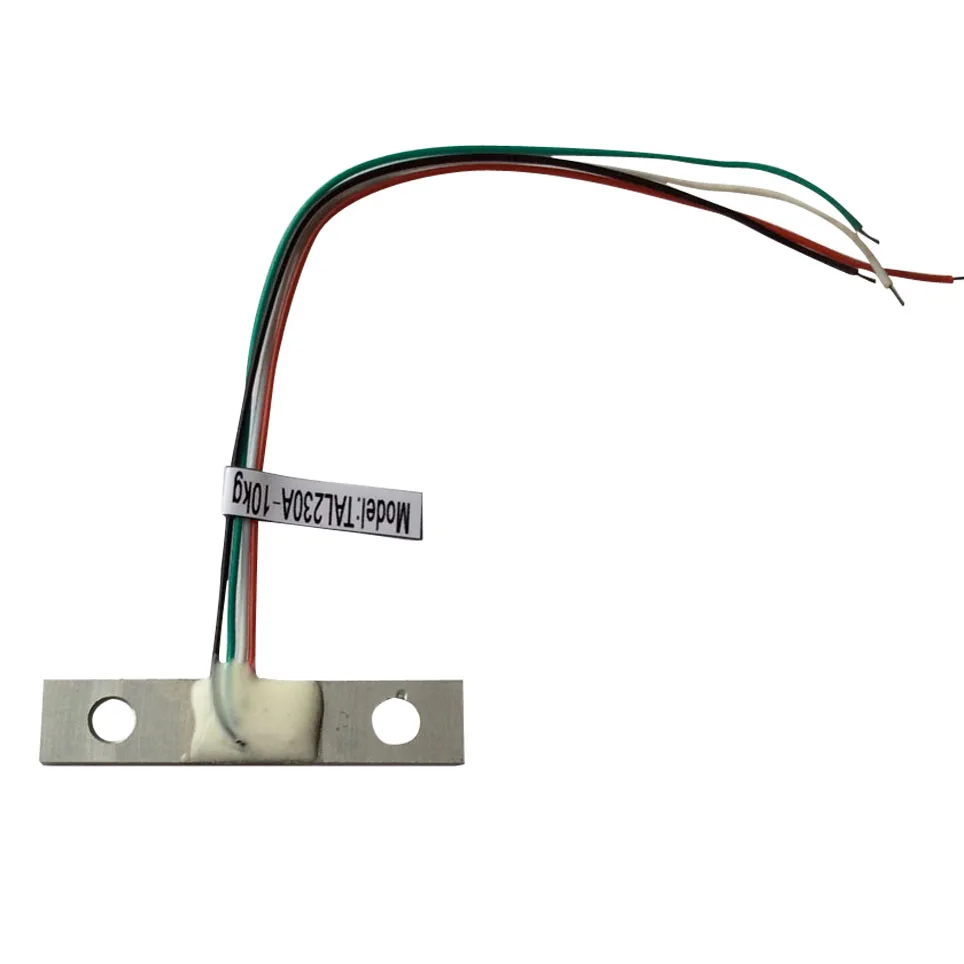

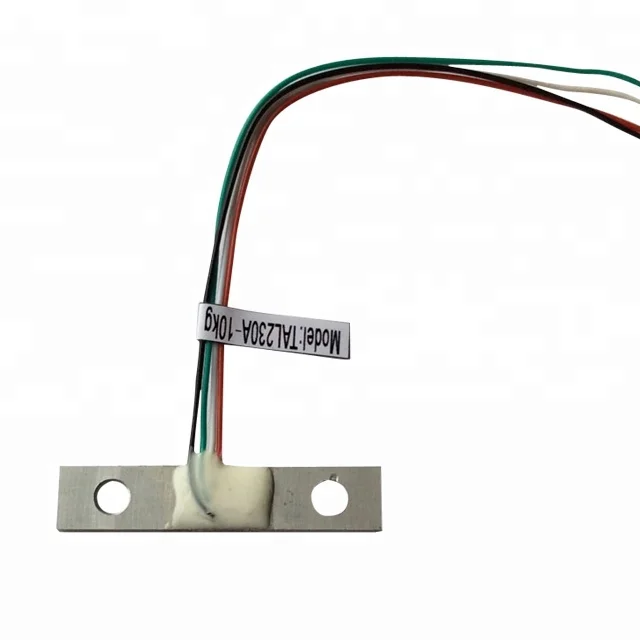

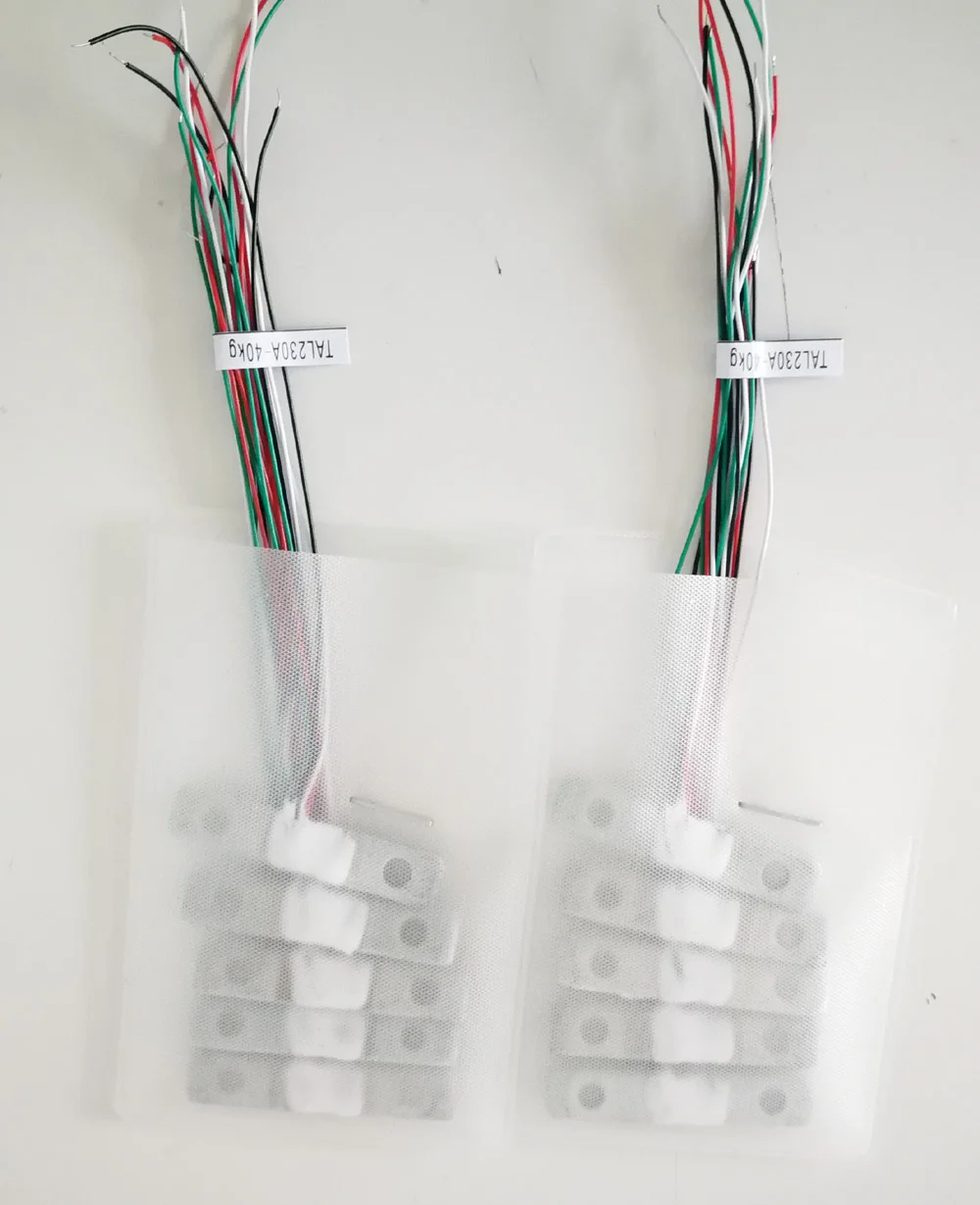

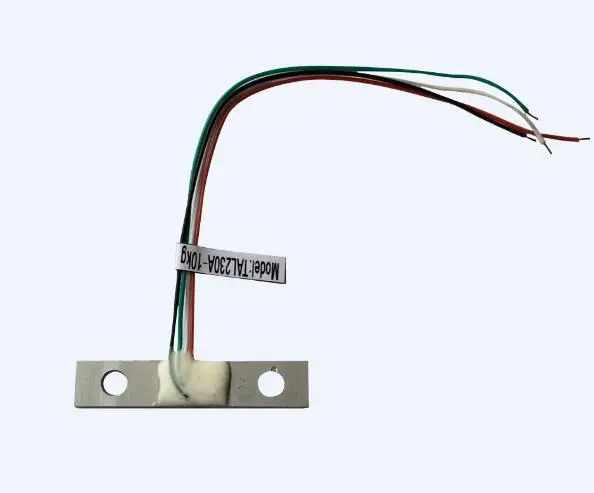

TAL230A    MINIATURE LOAD CELL

◆Capacity :10~40kg
◆Material: alloy steel
◆Defend grade: IP66

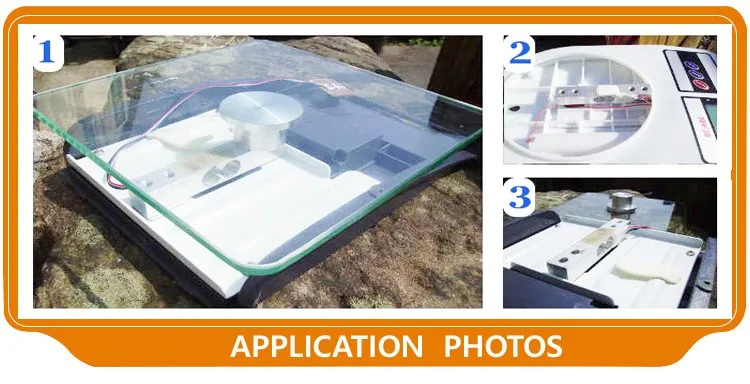

◆Application : Palm scale, hand scales, electronic jewelry scales and kitchen scales, postal scales,

fishing scales other electronic weighing devices.

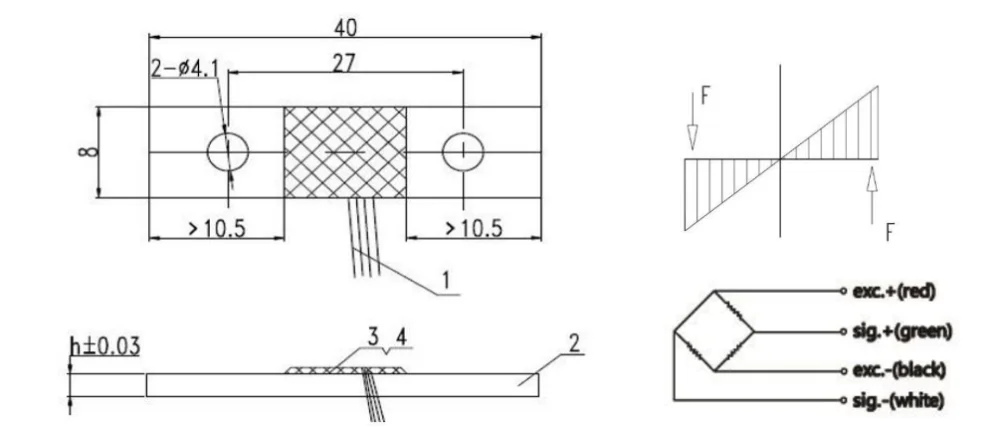

Dimensions
Specifications
\t
capacity
\t
kg
\t
10, 40
\t
safe overload
\t
%FS
\t
120
\t
ultimate overload

\t
%FS
\t
150
\t
rated output

\t
mV/V
\t
1.1±0.15
\t
excitation voltage

\t
Vdc
\t
5~10Vdc
\t
combined error
\t
%FS
\t
± 0.3
\t
zero balance

\t
%FS
\t
± 0.2
\t
non-linearity

\t
%FS
\t
± 0.2
\t
hysteresis

\t
%FS
\t
± 0.1
\t
repeatability

\t
%FS
\t
± 0.1
\t
creep
\t
%FS/30min

\t
± 0.1
\t
input resistance
\t
Ω
\t
1000± 50
\t
output resistance

\t
Ω
\t
1000± 50
\t
insulation resistance
\t
M Ω
\t
≥ 2000 @ 100 Vdc
\t
operating temperature range

\t
℃
\t
-10 ~ +40
\t
compensated temperature range

\t
℃
\t
-10 ~ +40
\t
temperature coefficient of SPAN

\t
%FS/10℃

\t
± 0.15
\t
temperature coefficient of ZERO

\t
%FS/10℃

\t
± 0.20
\t

Electrical    connection
\t
cable
\t
4 color wire , Ø 0.6×110 mm
\t
excitation(+):Red  excitation(-):Black  signal(+):Green  signal(-):White

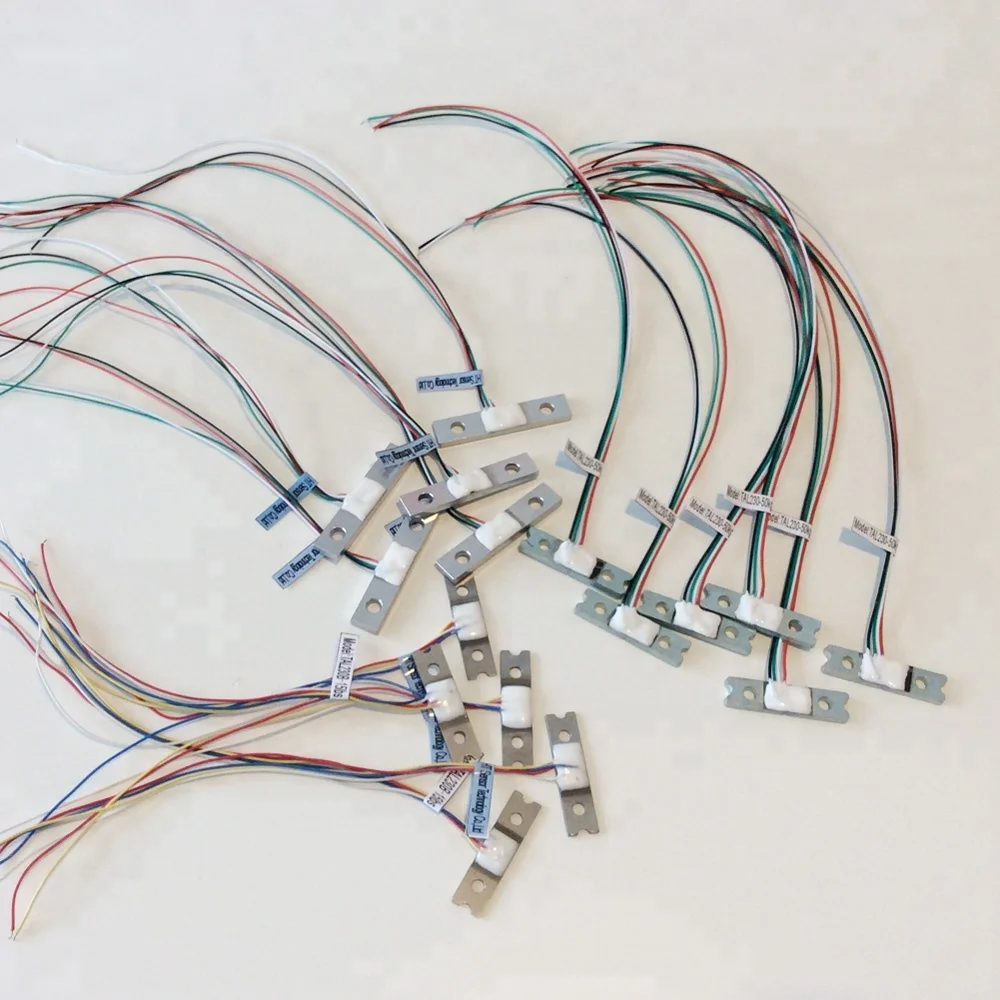

Detailed Image
