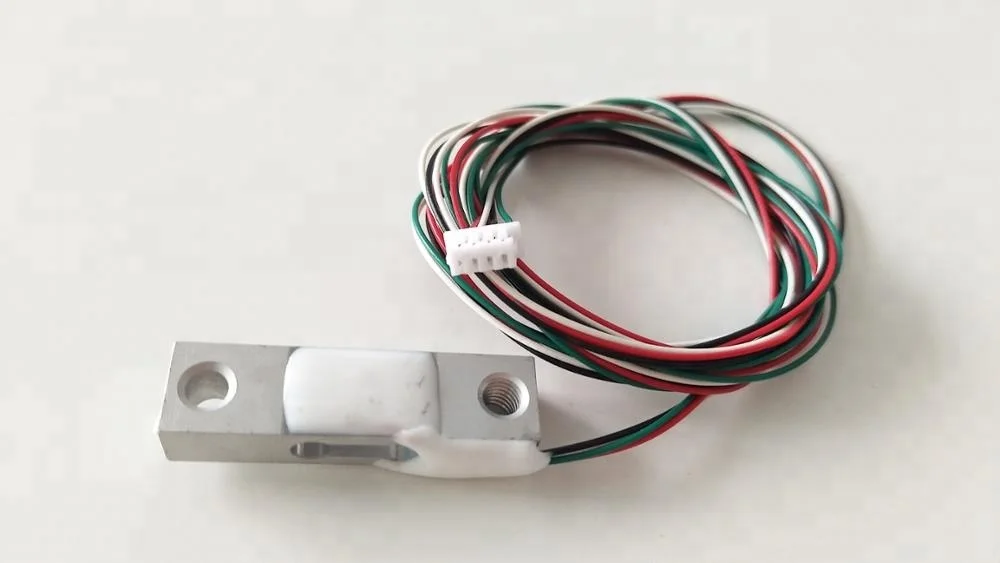

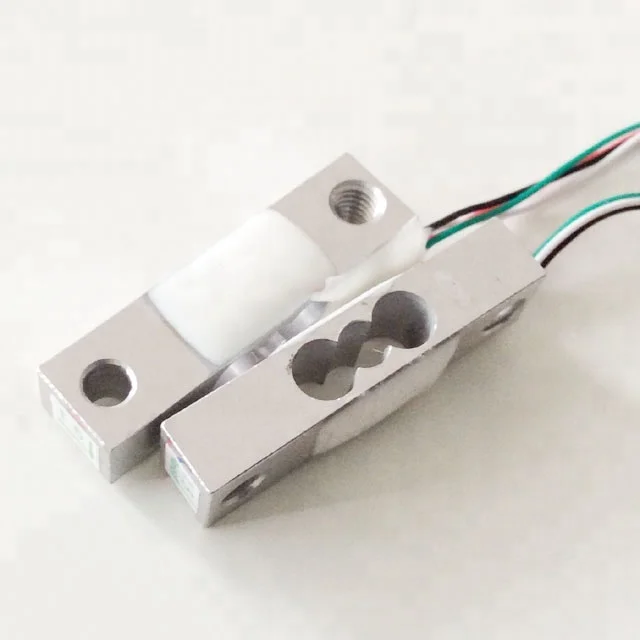

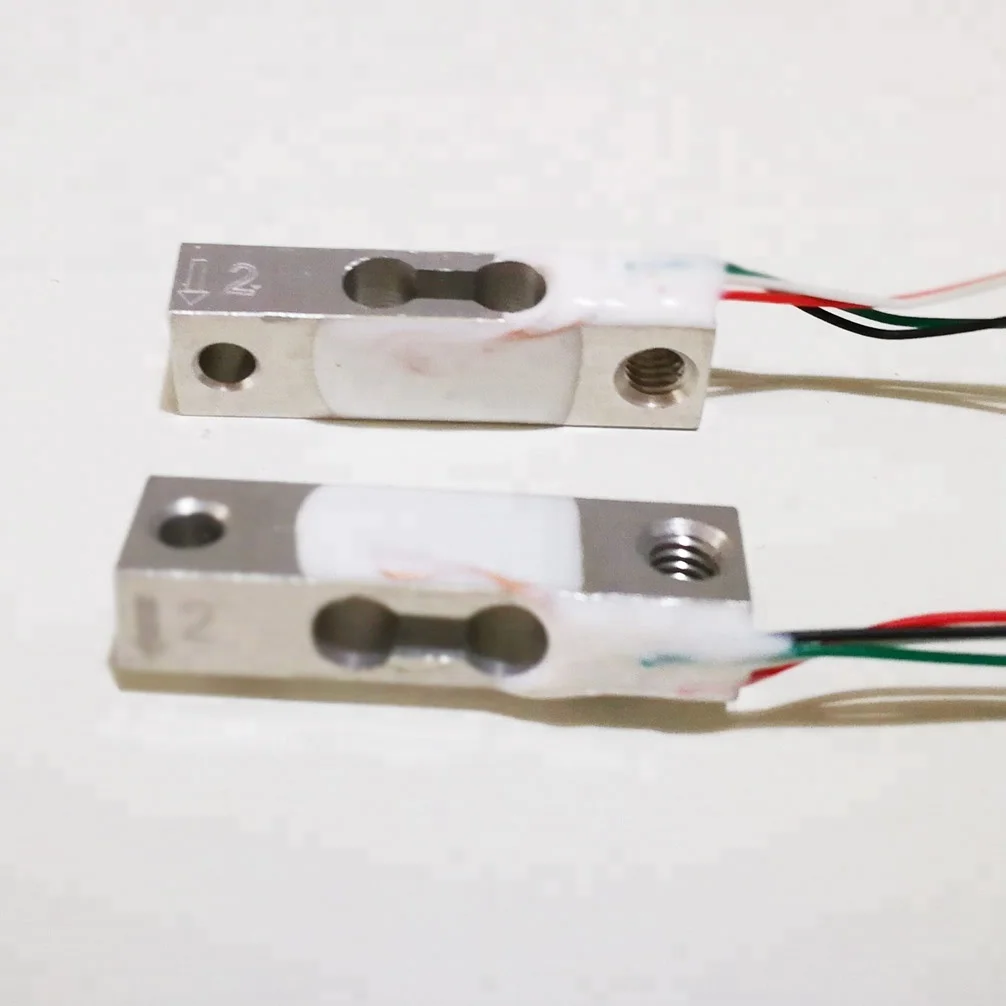

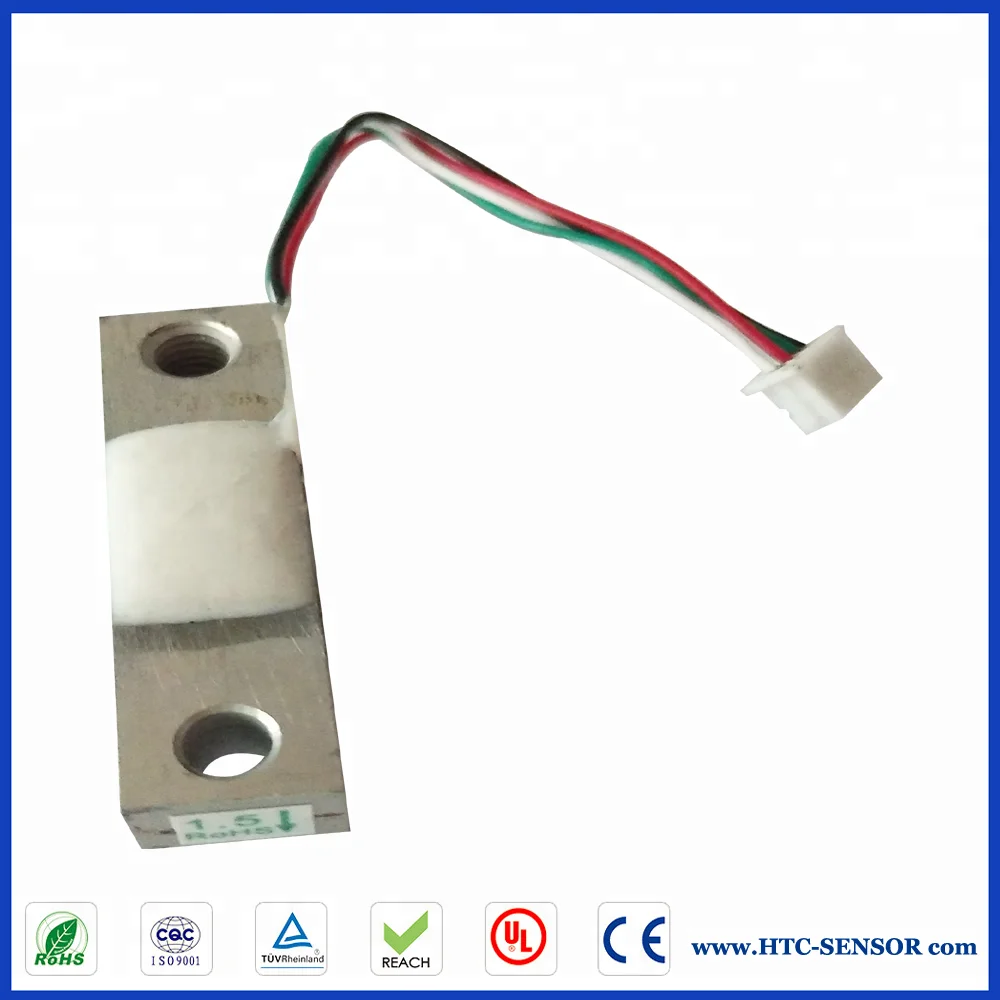

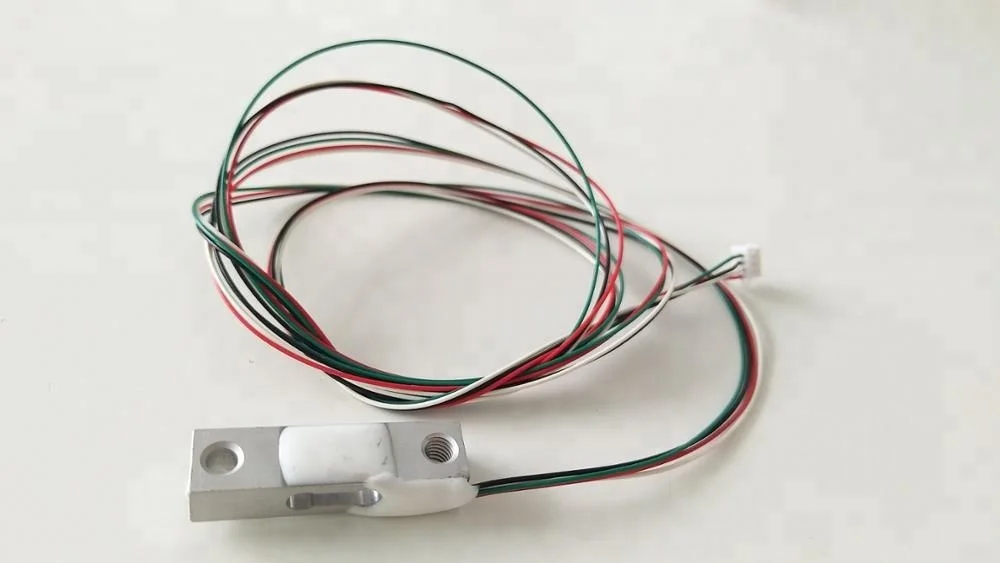

thin beam micro weight load cell sensor 1.5kg

Share on (60669574630):


Price:$8.00

Quantity:


Product Overview

Description


Product Description

TAL220G   MINIATURE PARALLEL BEAM LOAD CELL

◆Capacity :1.5kg
◆Material: aluminum-alloy
◆Type: Parallel beam type
◆Defend grade: IP65
◆Application : Palm scale, kitchen scale, electronic balance, fishing scale, electronic platform scale

 and other electronic weighing devices.

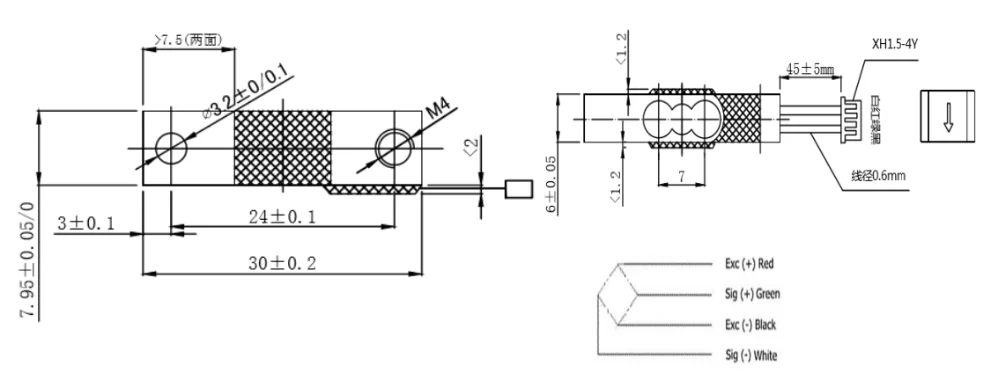

Dimensions
Specifications
\t
capacity
\t
kg
\t
1.5
\t
safe overload
\t
%FS
\t
120
\t
ultimate overload

\t
%FS
\t
150
\t
rated output

\t
mV/V
\t
1.0 ± 0.1
\t
excitation voltage

\t
Vdc
\t
3~ 10
\t
combined error
\t
%FS
\t
± 0.05
\t
zero balance

\t
%FS
\t
± 0.1
\t
non-linearity

\t
%FS
\t
± 0.05
\t
hysteresis

\t
%FS
\t
± 0.05
\t
repeatability

\t
%FS
\t
± 0.05
\t
creep
\t
%FS/30min

\t
± 0.05
\t
input resistance
\t
Ω
\t
1000 ± 10
\t
output resistance

\t
Ω
\t
1000 ± 10
\t
insulation resistance
\t
M Ω
\t
≥ 2000
\t
operating temperature range

\t
\t
-10 ~ +55
\t
compensated temperature range

\t
\t
-10 ~ +40
\t
temperature coefficient of SPAN

\t
%FS/10℃

\t
± 0.05
\t
temperature coefficient of ZERO

\t
%FS/10℃

\t
± 0.2
\t
Electrical connection
\t
cable
\t
4 color wire , Ø 0.6×450 mm with connector

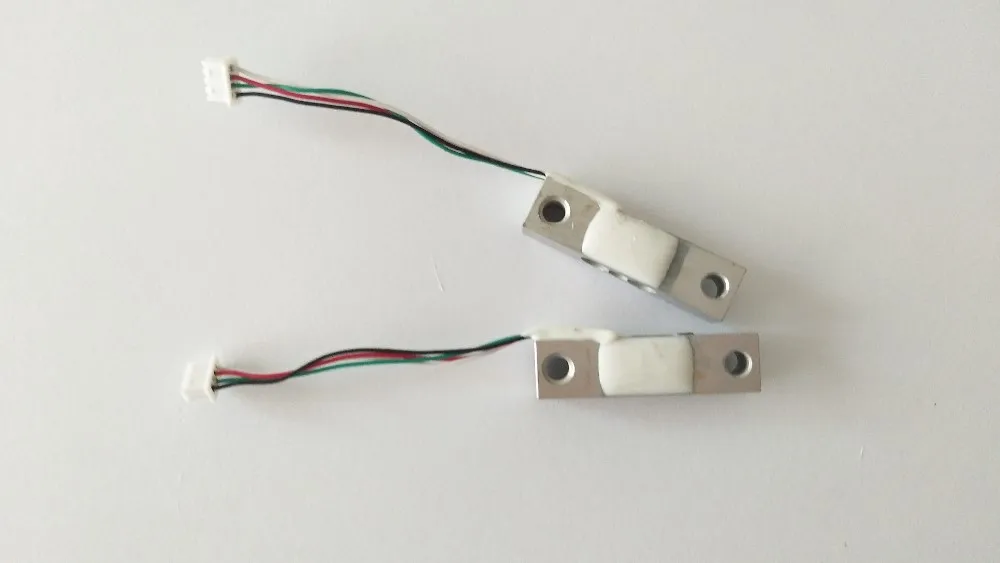

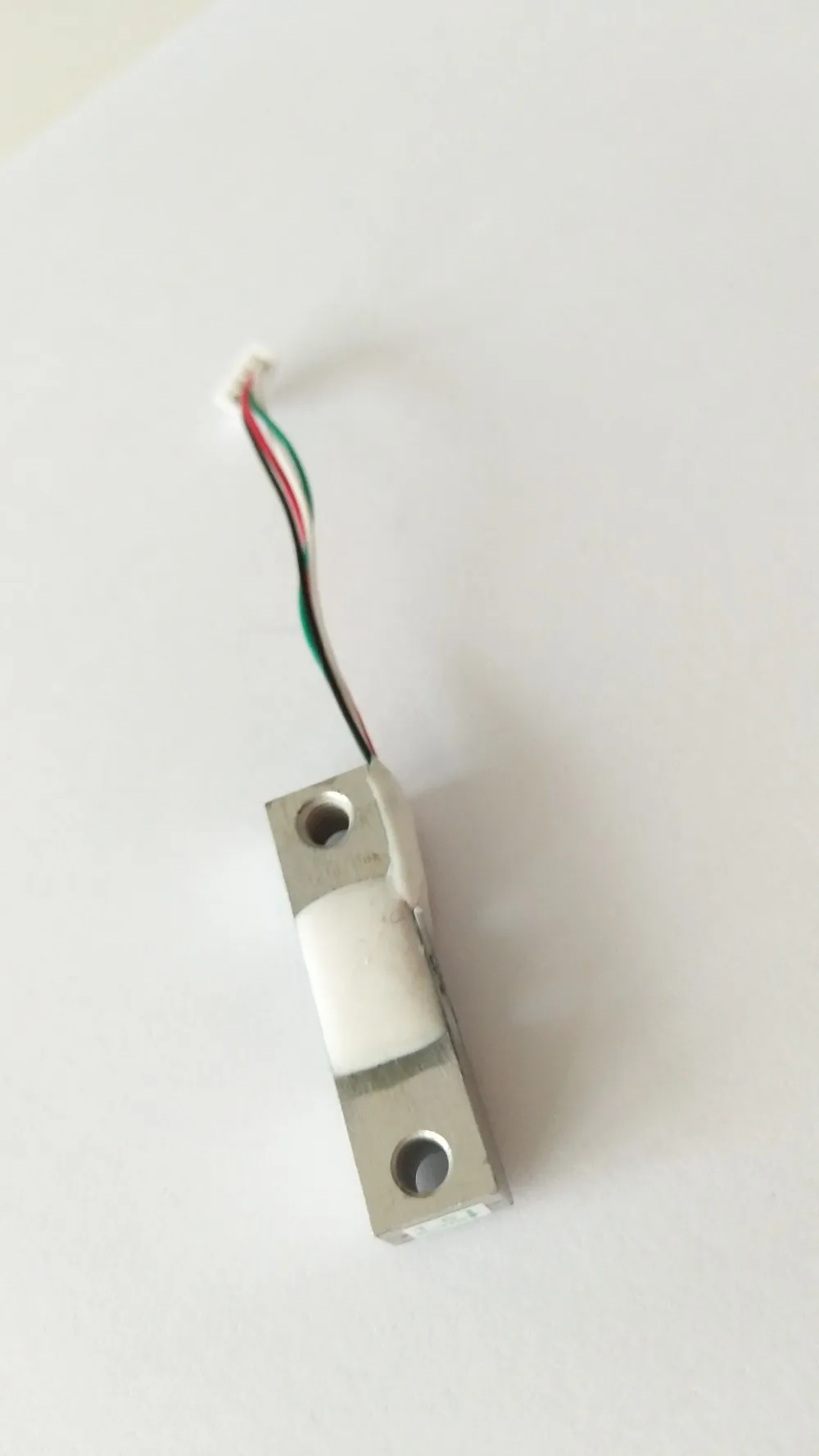

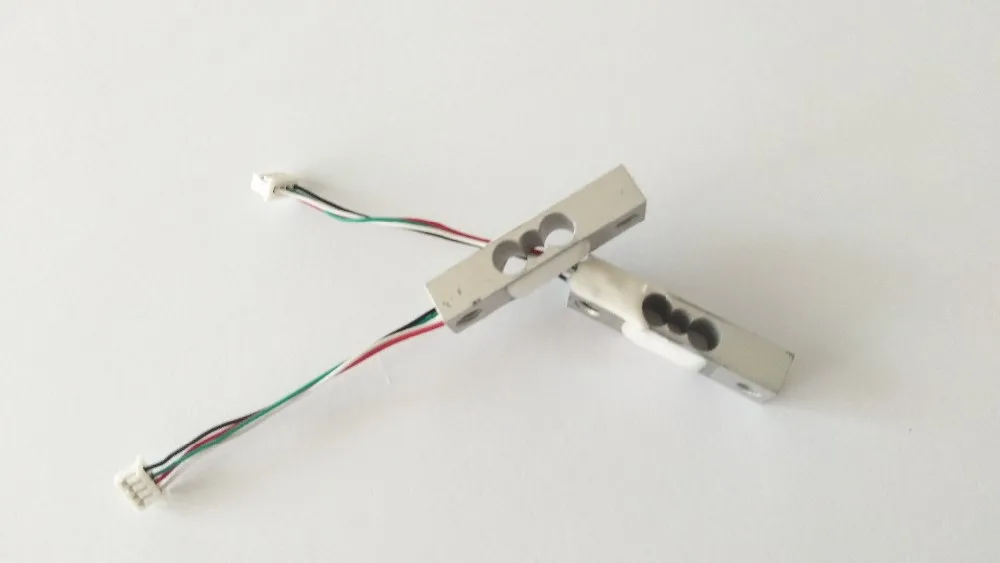

Detailed Image
Application

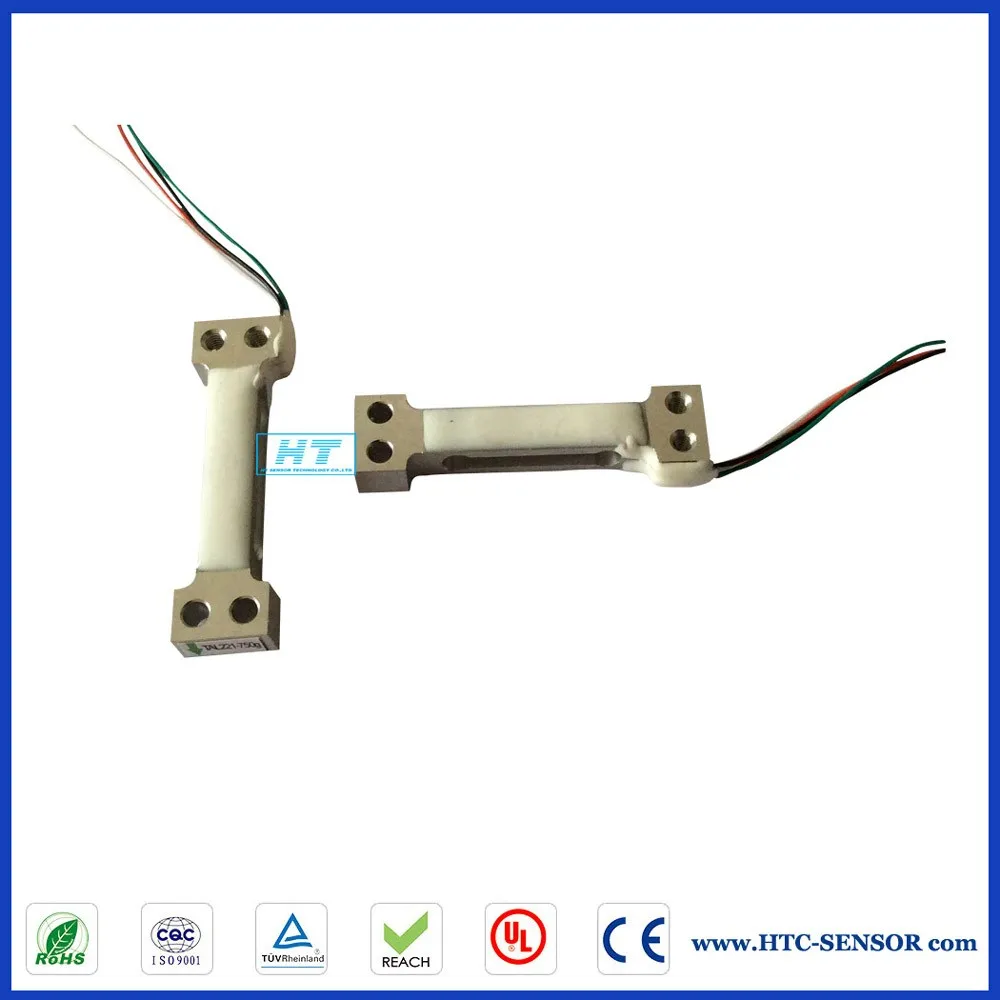

Related Products

      TAL221 Capacity:\t100~750g

       TAL230  Capacity:\t20~50kg

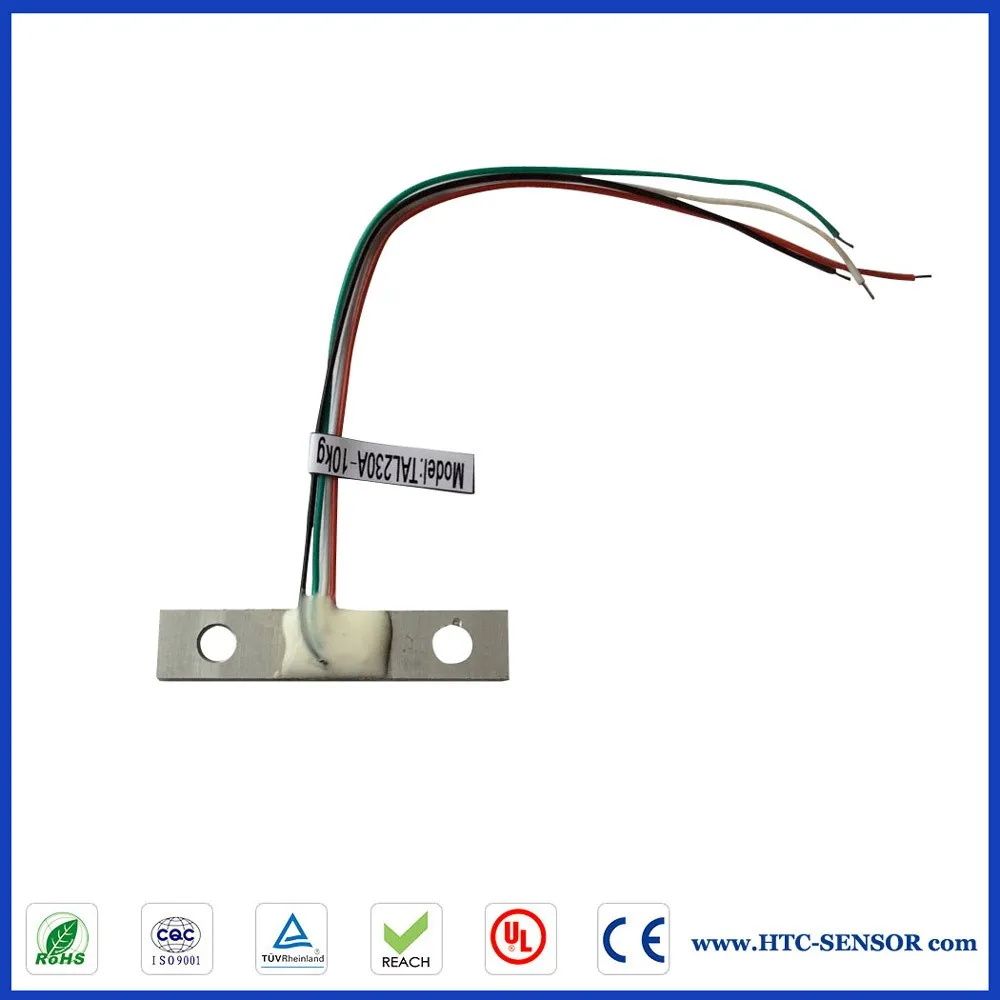

      TAL230A Capacity:\t10~40kg

Packing & Delivery

Packing

Inner packing: 1pcs /plastic bag/ box
Outer packing : standard exporting carton
As the customer's requirments

Delivery

Normal products:  7-10 days
OEM products: 30days
DHL/UPS/TNT/FedEx/SF/EMS by Air/Sea etc

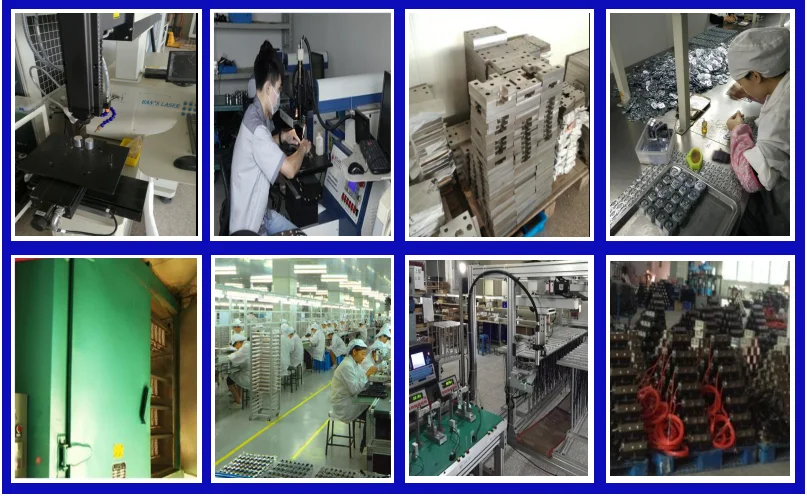

Production
