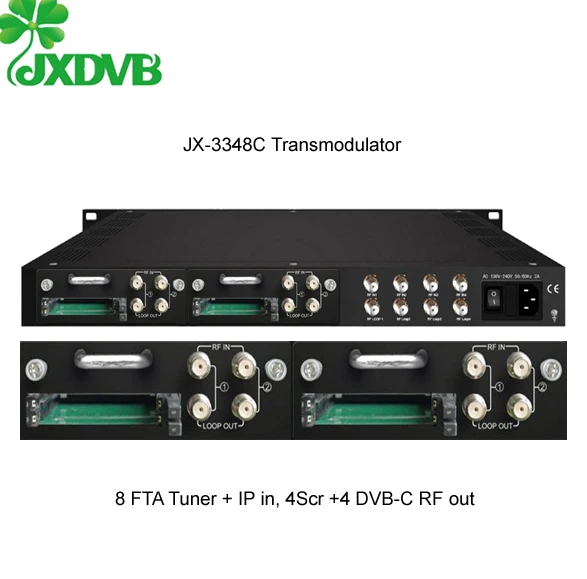

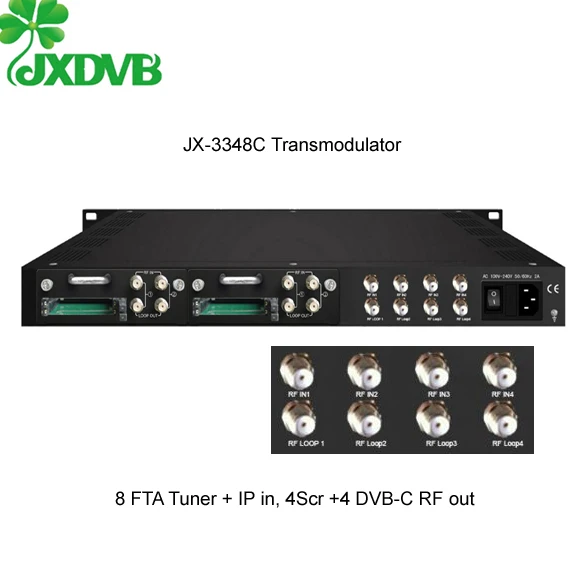

HD 1080P DVB S ASI To DVB C Transmodulator

8 Tuner (DVB-S) input

Input

128 IP(SPTS/MPTS) input over UDP and RTP, RJ45, 1000M/100M

Unicast/Multicast

Input Frequency

950-2150MHz

DVB-S

Symbol rate

2-45Msps

Signal Strength

-65~-25dBm

Tuner Section

FEC Demodulation

1/2, 2/3, 3/4, 5/6, 7/8 QPSK

Input Frequency

950-2150MHz

Symbol rate

QPSK 1~45Mbauds;

DVB-S

8PSK 2~30Mbauds

Code rate

1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10

Constellation

QPSK, 8PSK

Descrambling

CAM/CI

4

Quantity

Maximum PID

256 per input channel

Remapping

Multiplexing

PID Remapping

Function

Accurate PCR adjusting

Generate PSI/SI table automatically

Standard

J.83A (DVB-C), J.83B,

MER

≥43dB

RF frequency

30~960MHz, 1KHz step

RF

output

-25~ -1dbm (77~97 dbµV), 0.1db step

level

Symbol rate

5.000~7.000Msps adjustable

Modulation

DVB-C

RF Out

4*DVB-C

adjacent   carriers   combined

output

MER

≥42 dB

J.83A

J.83B

16/32/64/128/

Constellation

256 QAM

64/ 256 QAM

Bandwidth

8M

6M
