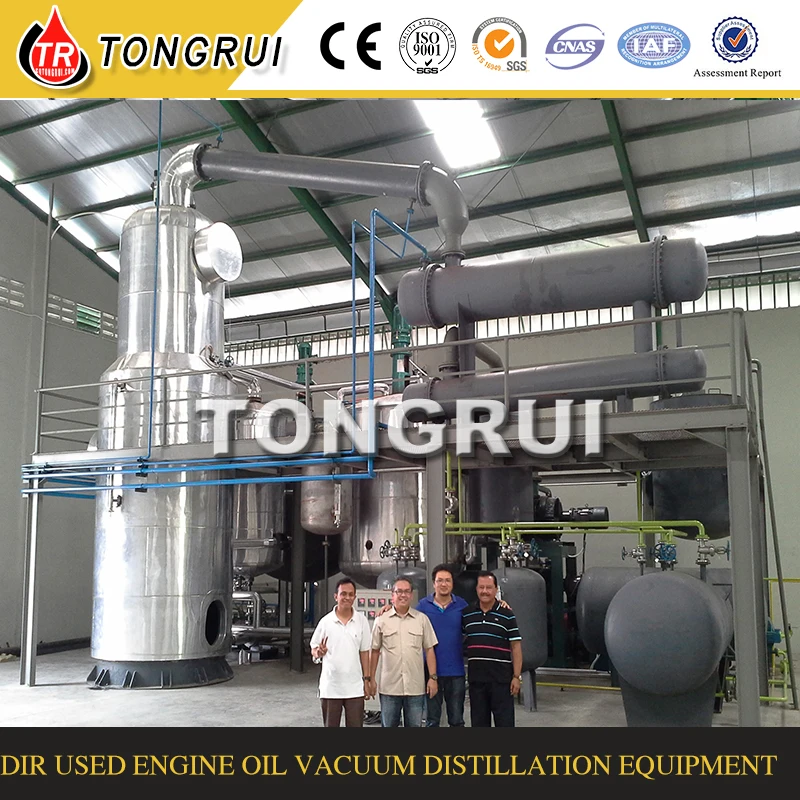

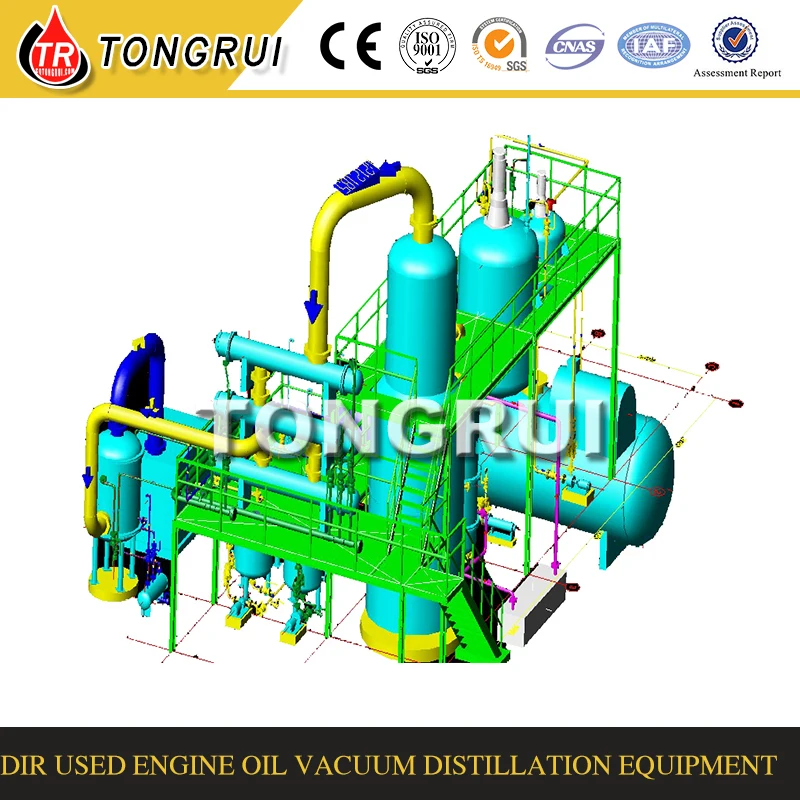

Waste Engine Oil Distillation Column Oil Refinery Equipment
- Category: >>>
- Supplier: Chongqing Tong Rui Filtration Equipment Manufacturing Co. Ltd.
Share on (60669608042):
Product Overview
Description
Waste Engine Oil Distillation Column Oil Refinery Equipment
Proction Description
Item | Used Oil Distillation to Base Oil Equipment |
Model | DIR model |
Principle | pysical-chemical reaction |
Capacity | 1,000Liters per day to 30,000Lites per day |
Material | Stainless steel and carbon steel |
Function | remove carbon contamination,dirty colloid,metal particles, gas, water, change black color to golden yellow |
Oil Material
|
Used diesel and gasoline enging oil, car oil, motor oil,transmission oil, hydraulic oil etc.
|

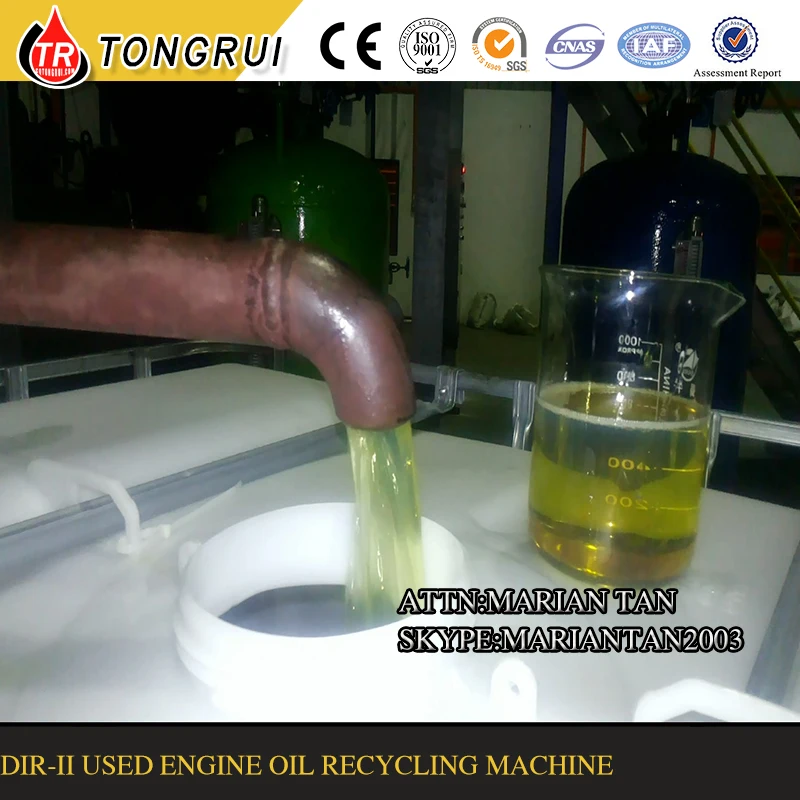

Recycled oil
|
Yellow base oil,SN150-SN300
|
Oil yield rate
|
80%-85%
|
Thickness of distillation kettle | 14mm |
Space required
|
300-400 sq.m., the bigger, the better
|
working pressure | 20-50pa |
Working temperature | 300degree |
Heating method | Thermal Fuel Boiler(customer self-provide) or electricity heating. |
Recycled oil | Yellow base oil,SN150-SN300 |
recycled oil color | No.1-1.5 |
Viscosity index | 96 |
Flash point(open) | 225-230degree |
Viscosity(40C)mm2/S | 50 |
What can we get from DIRseries waste engine oil distillation machine?
It is mainly used to change waste oil into clean base oil. The final base oil will be SN150, SN250, SN300. The base oil can be used as the raw materials of kinds of usable oil, such as new engine oil, new motor oil, new lubricant oil and so on.
You can build one production line for waste oil into new engine oil, or you can sell the base oil to other oil manufacturers directly.
Main Features of DIR Waste Oil Distillation Plant:
1. Easy to operate, low operation cost
2. Environmentally friendly, without secondary pollution.
3. The machine can recycle gasoline oil, diesel oil, engine oil, rubber oil and other lubricant oil to clean oil.
4. High quality refined oil, no any discoloration caused by oxidation, no any bad smelling.
5. Low cost contain:
1) only need the catalyst chemical, the cost is less thanUS$30 to refine one ton waste oil.
2) Heat consumption: 105kcal per ton waste oil
3) Power consumption: 40Kwh to recycle 1 ton waste oil
6. High degree of automation.
Flow Chat:
Why DIR used oil vacuum distillation plant is needed?
Used oil should not be thrown away, while it gets dirty. Used oil contains contaminants, but it can be recycled with some technology. In this way, we can not only protect our environment, but also we save some natural resource. So there are many people around the world recycling used oil, taking measures to do that is meaningful.
Waste oil contains too much contamination, including non-hydrocarbon, alkene, polycyclic aromatic hydrocarbon, metal hydronium, impurities, metal particles, asphaltene and colloid etc. The traditional technology only can refine the wasted oil to base oil, which can’t be used directly. Fortunately, our company made great efforts to find new technology in vacuum distillation plant, which can distill all kinds of waste oil into available oil with high recovery rate. This plant is easier to operate at lower cost.
The purpose of waste oil vacuum distillation plant is to re-refine industrial waste oil(including equipment lubricants, metal-working oil and process oil) and used automotive lubricants( such as engine oil, hydraulic oil and gear oil), then reuse it.
Distillation is the physical separation of components of lubricating oil by boiling range. Depending on the type of distillation, the boiling ranges can produce gases and gasolines at the lower boiling points with heavy lubricating oils being distilled at higher boiling points. Distillation is the core process for a facility capable of producing re-refined base-oils to virgin base-oil quality.
Certifications
CERTIFICATE:
- ISO CERTIFICATE
- SGS CERTIFICATE
- CE CERTIFICATE
Warranty
1. 1-2 years quality guarantee;
2. Technical consult and mutual discussion
3. Engineers available to go abroad for installing and commissioning machinery
4. Free training for machines installation and operation of the staffs
5. Full set of Manual booklet in English Version
6. If there is something wrong with the equipment, seller should give a response and provide the solution within 24 hours.
7. If there is technological innovation, seller should guide the customer to upgrade.
Packaging & Shipping
Wooden Cases:To be packed in strong wooden cases, suitable for long distance ocean freight transportation as well as changing climate and with good resistance to moisture and shocks.
Company Information
TONGRUI’S Advantage:
v TONGRUI’s oil purifier machine always clean used oil at all time, increase your oil life, reduce purchase new oil, achieve resource second use, reduce pollution and protect environment
v TONGRUI has own R&D team, provide different settle blueprint according to customers' special requirement to confirm safety production and decrease cost, high quality products,have good quality control such as CE, ISO9001,2008 and SGS certificates; more than 85% yield rate, low production cost.
v TONGRUI has own factory and skilled worker,rich-experienced design tram and responsible QC and good after-sales service.
v TONGRUI has strict quality control from raw material to finished products,and ensure high quality of your required products, also we manage to control the cost and save every penny for your party.
Contact Me
Any questions, don't hesitate to let us know it. Looking forward to build long friendly relationship with you!
