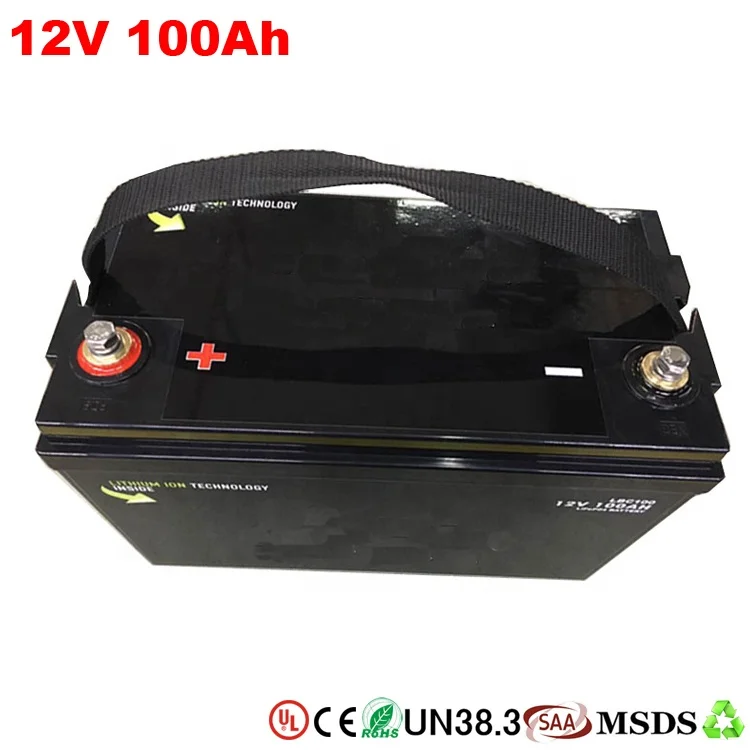

2018 New Lithium Battery 12v 100Ah
- Category: >>>
- Supplier: Kingsing Energy (shenzhen) Tech Co. Ltd.
Share on (60669750090):
Product Overview
Description
Lithium battery

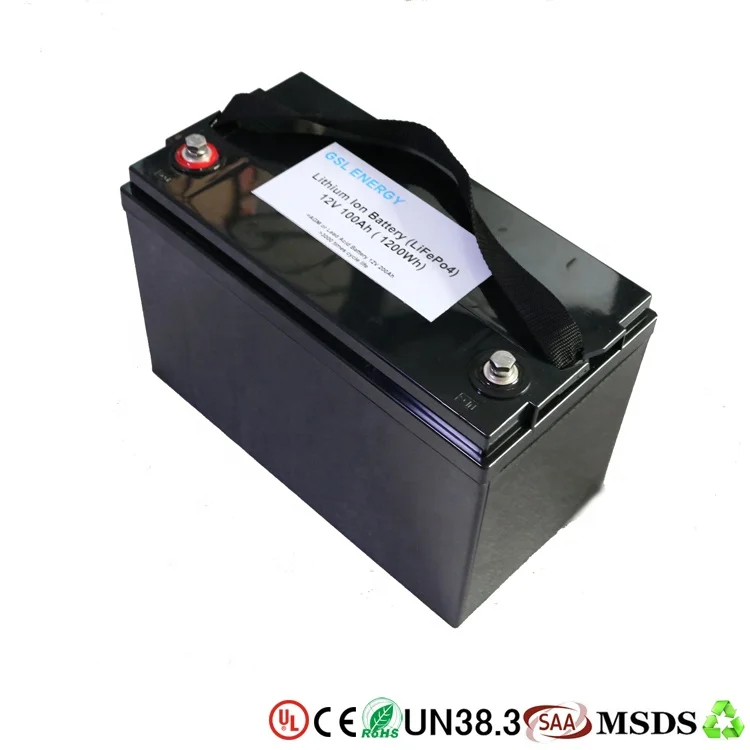

2018 New Lithium Battery 12v 100Ah

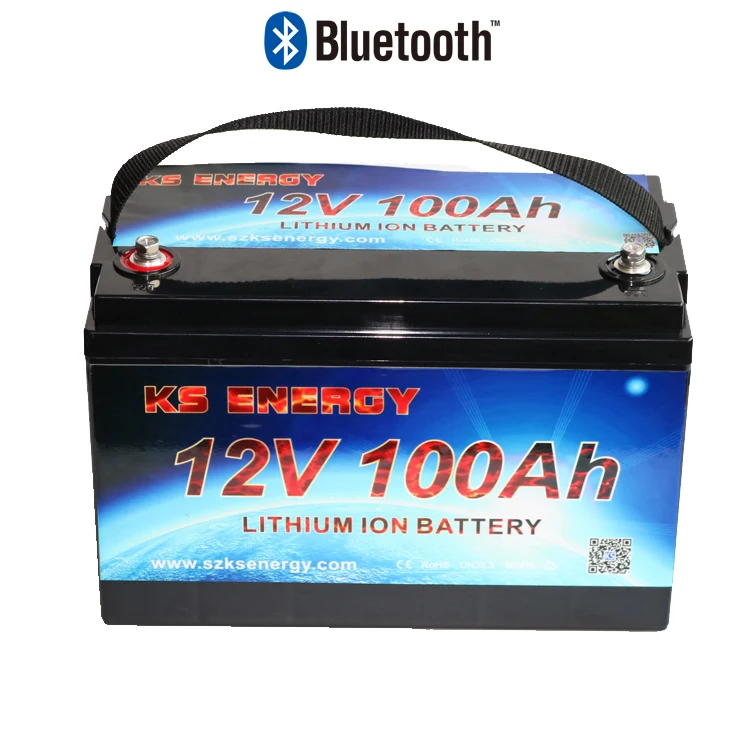

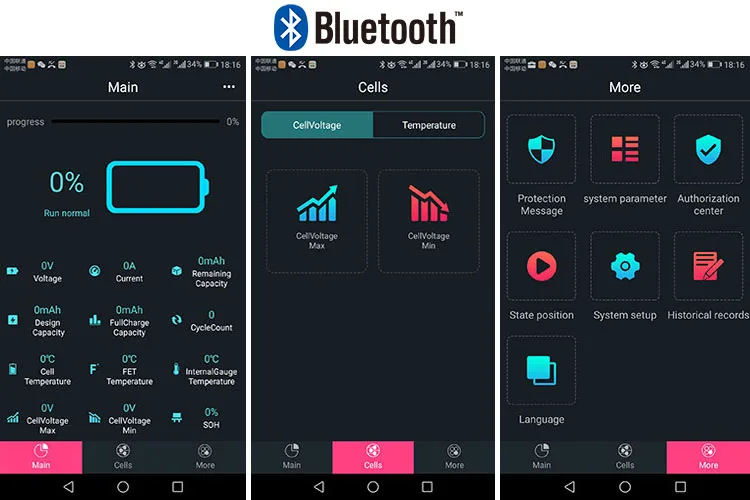

Bluetooth 12V 100ah lithium ion battery is new environmentally friendly backup power system focus on short-time and high-rate discharge scenarios.The environmentally friendly lithium ion battery configured with high-performance BMS, has a wide range of performance and application advantages compared with conventional battery.
Basic Specification
| ItemsItems | Parameter |
| Battery Type | LiFePO4 |
| Nominal Voltage | 12.8V |
| Nominal Capacity | 100Ah |
| Energy | 1.28KWh |
| Internal Resistance | ≤20mΩ |
| Series & Parallel Application | up to 4 series 4 parallel connected application |
| Limited Charge Voltage | 14.6±0.2V |
| Floating Charge Voltage | 13.8±0.2V |
| Charge Method | CC/CV |
| Discharge Cut-off Voltage | 10.0V |
| Standard Charge Current | 60A |
| Max. Charge Current | 80A |
| Standard Continuous Discharge Current | 80A |
| Max. Continuous Discharge Current (<30min) | 100A |
| Pulse Discharge Current (<3s) | 350A |
| Cycle Life | > 3000 cycles |
| Dimension (mm) | Length: 323±2 Width: 171±2 Height: 232±2 |
| Weight | 15.5±0.2Kg |
| Charge Temperature Range | 0~45℃ |
| Discharge Temperature Range | -20~60℃ |
| Recommended Operating Temperature | 15~35℃ |
| Self-Discharge Rate (Residual capacity) | ≤3%/month; ≤15%/years |
| Self-Discharge Rate (Reversible capacity) | ≤1.5%/month; ≤8%/years |
| Storage Temperature & Humidity Range (Less than 1 month) | -20~35℃, 45~75%RH |
| Storage Temperature & Humidity Range (Less than 3 months) | -10~35℃, 45~75%RH |
| Recommended Storage Temperature & Humidity Range | 15~35℃,45~75%RH |
ADVANTAGES
1.It is high integrated with less installation space
2.Long life cycle, >3000 times at 80% DOD
3.It without heavy metals and environment friendly
4.Maintenance free,there is no memory effect
5.Internal BMS with full protection,battery has high voltage protection with higher reliability
12V SPECIFICATION
SAFETY
Passed the below abuse and safety test-short-circuit, dropping, nail penetration, impact, crush, thermal shock, over-charge,over-discharge: no fire, no explosion with stable chemical structure.
APPLICATIONS
1.Energy Storage
--Solar-Wind Power System / City Grid (On/Off) / Community and Family
2.Back-up System and UPS
--Telcom Base / CATV system / Computer Server Center / Medical Instrumnt / Military Equipment
3.Other Applications
--Security and Electronics / Mobile POS, Mining Lihgt / Torch / LED Light / Emergency Light

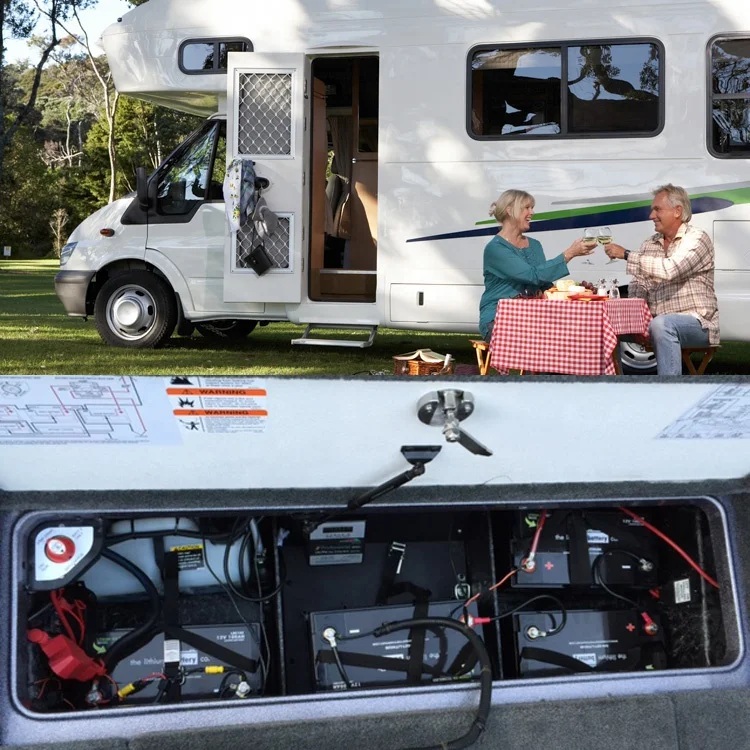

--RV Motorhome /Golf Carts Battery / Boat Marine Yachts / Electric Skateboard
--LED Backup / Engine Starting Battery,etc.
WHY CHOOSE US ?
1.Experience--More than 12 years Specialized in lithium battery, Gold Supplier on Alibaba.
2.Certification--CE,MSDS,Test Report from National Center For Quality Supervision and Inspection of Battery Products approved.
3. Quality Control-- 37 production process,7 steps quality check to promise stable quality and high reliability for you.
4. Best Material-- Insist on choosing top quality cell, material and accessories,lithium battery last longer time.
5. Fresh battery-- All battery is fresh Production.
COMOPANY INFORMATION

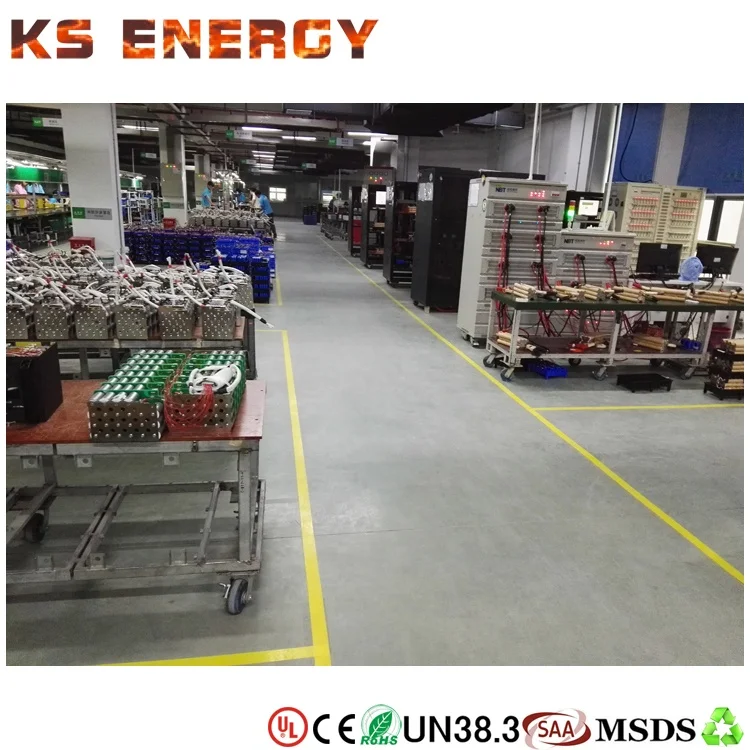

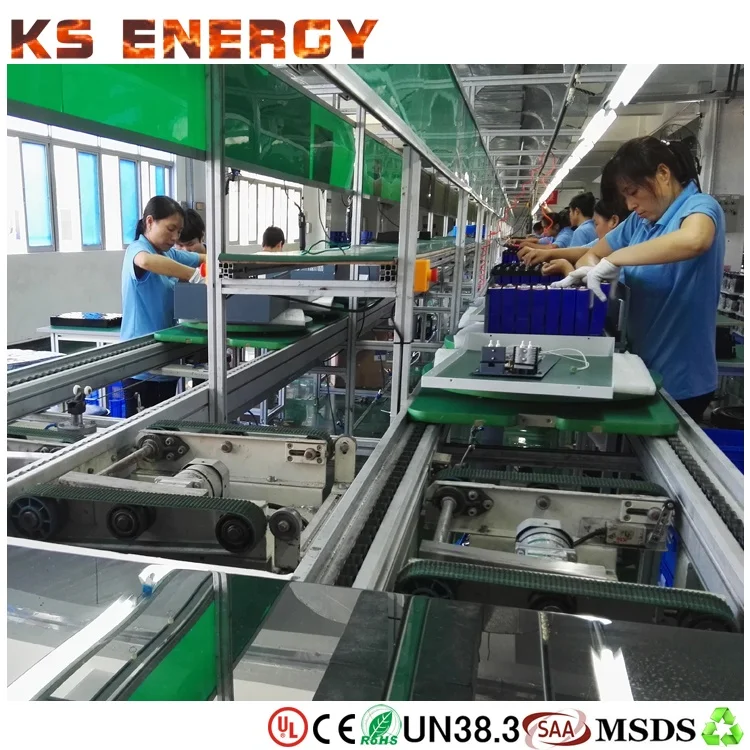

KS ENERGY is focused on manufacturing, R&D and sales for safe Lithium battery and solutions. With the registration and certification of CE, SGS, ROHS. Striving to grow into a global leading lithium battery supplier, KS ENERGY has been working hard on researching and developing new process technology to make our lithium battery more affordable and able to meet the rapidly growing market demands.
Through years development and experienced international sales team in Shenzhen, KS ENERGY green solar and lithium battery products have been sold to clients all over the world.
Since 2006, KS ENERGY has maintained a corporate philosophy that is characterized by entrepreneurship, innovation, competition and transcendence. Today KS has established a solid foundation in two major industries: photovoltaic and Lithium, with its four production bases in Shangdong, Zhejiang, Sichuan, Guangdong.

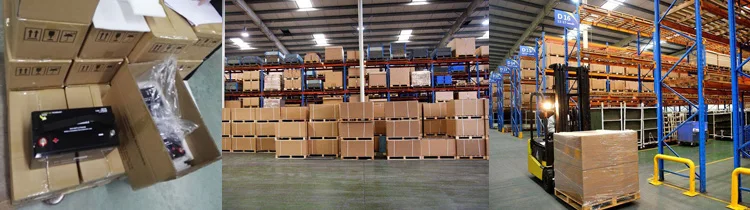

PACKGING
SHIPPING
2018 New Lithium Battery 12v 100Ah
For more details and price, please send us an enquiry below ↓↓↓
