Dental Imaging Equipment With World Top Level

Product Overview

Description

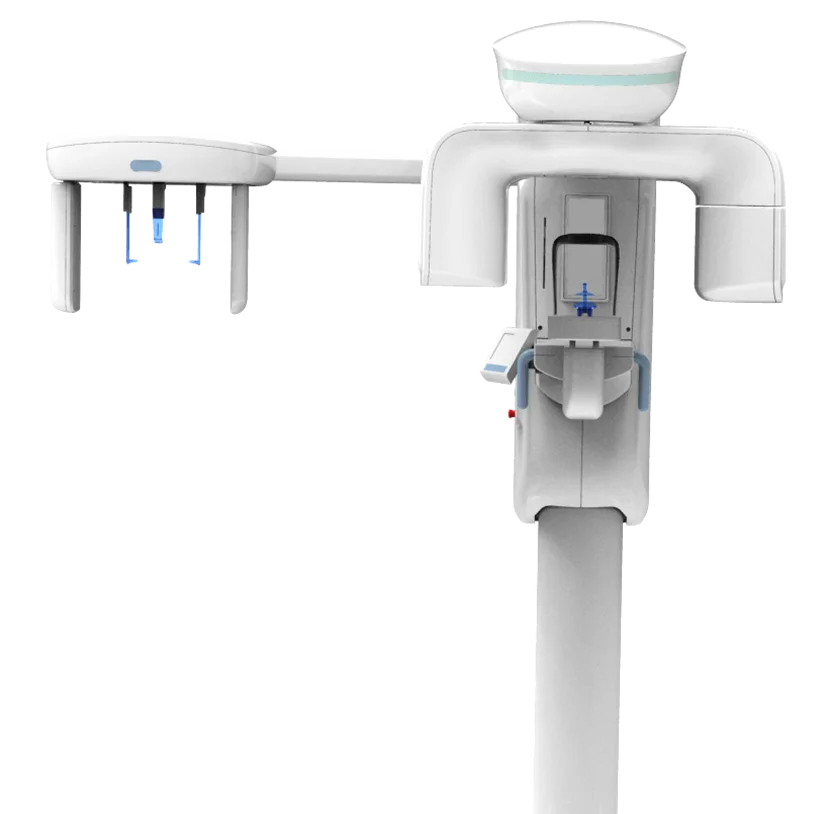

Smart 3D incorporates the most commonly-used imaging modes,compact body and long-life.

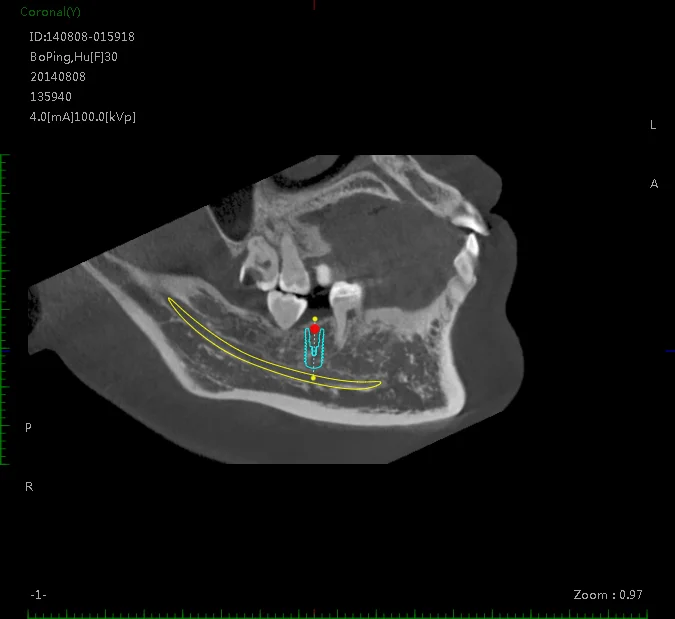

1.  Super high definition clinical image quality for accurate diagnosis

Adopting unique image construction technology, blur-free and sharp image can be obtained.





2.  Multi Focal Layer Technology enables optimal focusing

Panoramic image construction technology selects the most ideal focal layer position as exposure completes. Re-focusing on the spots is possible to reconstruct the clear image.





Reconstruction of the image corresponding to anatomical shape and size of patient is allowed.



3.  Dose Control

Optimal dose is to be obtained by tube voltage and current adjustment.



4.  Precise Patient Positioning

Six laser beam is for precise patient positioning. To minimize move artifacts and to capture a clear image, two-side check fixing device and chin-rest ared added to the head support so a patient’s head is held securely in place.

5.  Compact Design

Room requirements is limited to save space.



Technical Specifications
Smart3D
X-ray Tube Voltage	60-100kV
X-ray Tube Current	2-10mA
Max Exposure Power	600W
CT Sensor Type	CsI+CMOS Flat Panel Detector
CT Field of View            (D * H)	15cm x 8cm or 12cm x 8cm 8cm x 8cm 5cm x 5cm
CT Voxel Size	0.25mm 0.125mm 0.1mm 0.075mm
CT Spatial Resolution	2.0 lp/mm
CT Scan Time	15s
CT Exposure Time	13s
CT Reconstruction Time	15s~40s
Pan Sensor Type	CsI+CMOS Flat Panel Detector
Pan Sensor Pixel Size	0.1mm
Pan Exposure Time	6s~11s
Ceph Sensor Type	Csl+CCD TDI Detector
Ceph Sensor Pixel Size	27μm
Ceph Exposure Time	8s~13s
Focal Spot Size	0.5(IEC336)
Weight	With Ceph function: 335kg Without Ceph function: 285kg
Power Requirements	AC220V±10%, 50Hz, 2000VA
Outer Dimensions	With Ceph function: 1978mm × 1526mm × 1693~2393mm Without Ceph function: 1100mm × 1526mm × 1693~2393mm
Room Requirements	With Ceph function: 2.5m × 2.1m × 2.5m Without Ceph function: 1.6m × 2.1m × 2.5m
