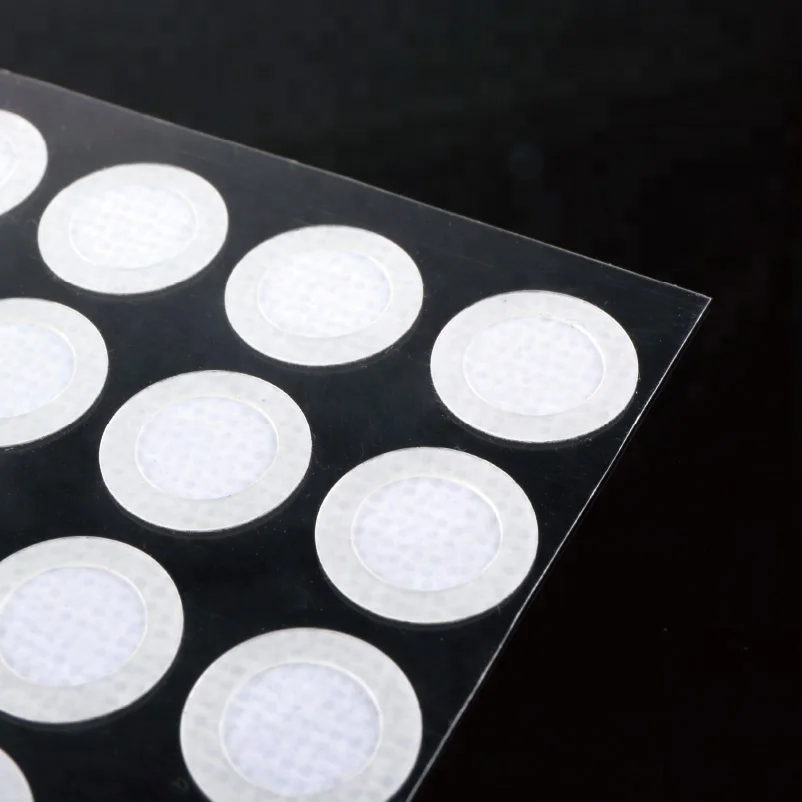

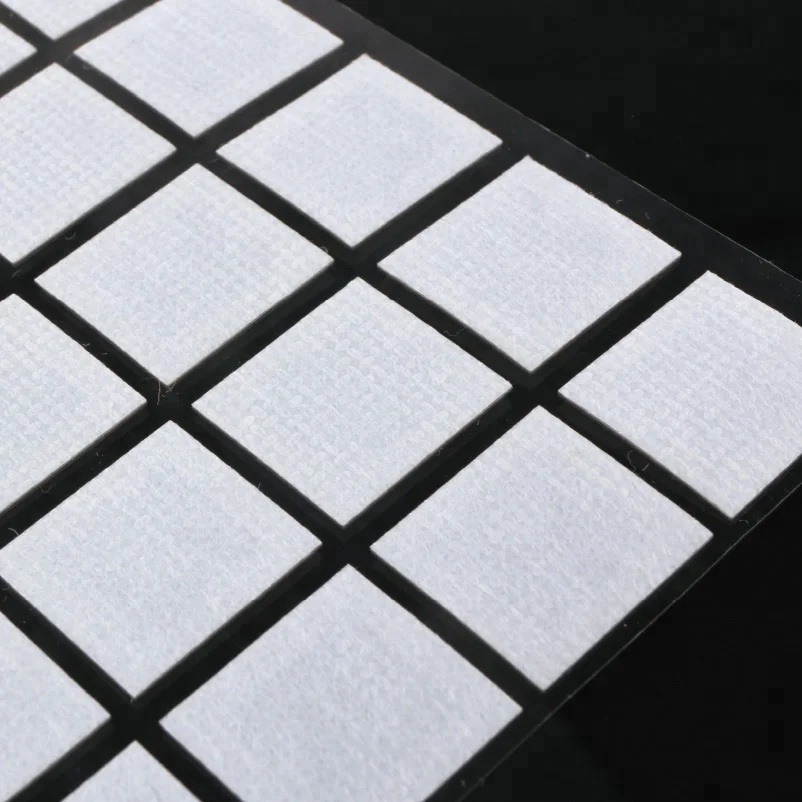

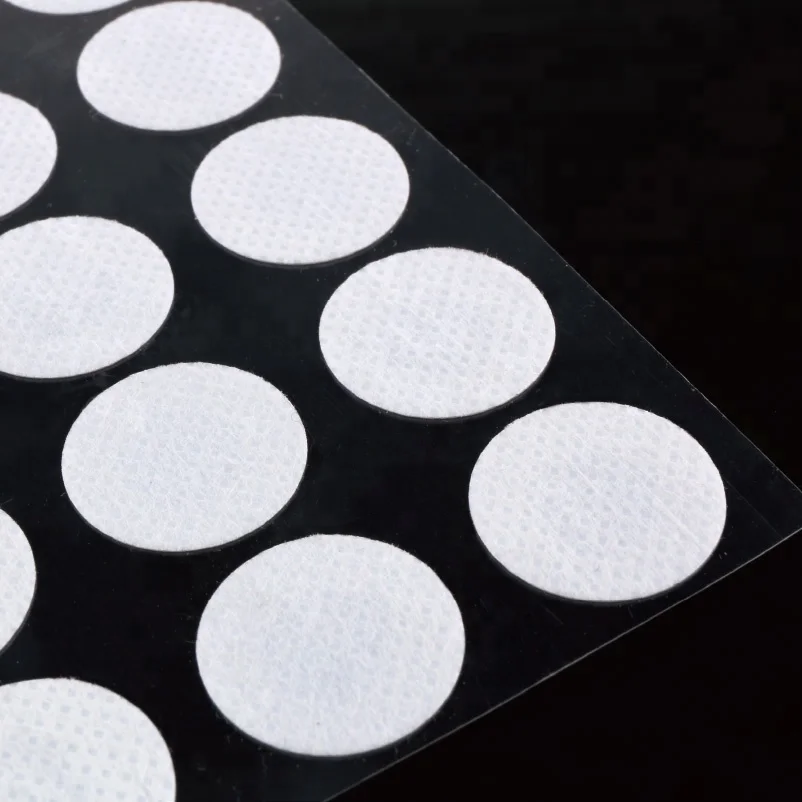

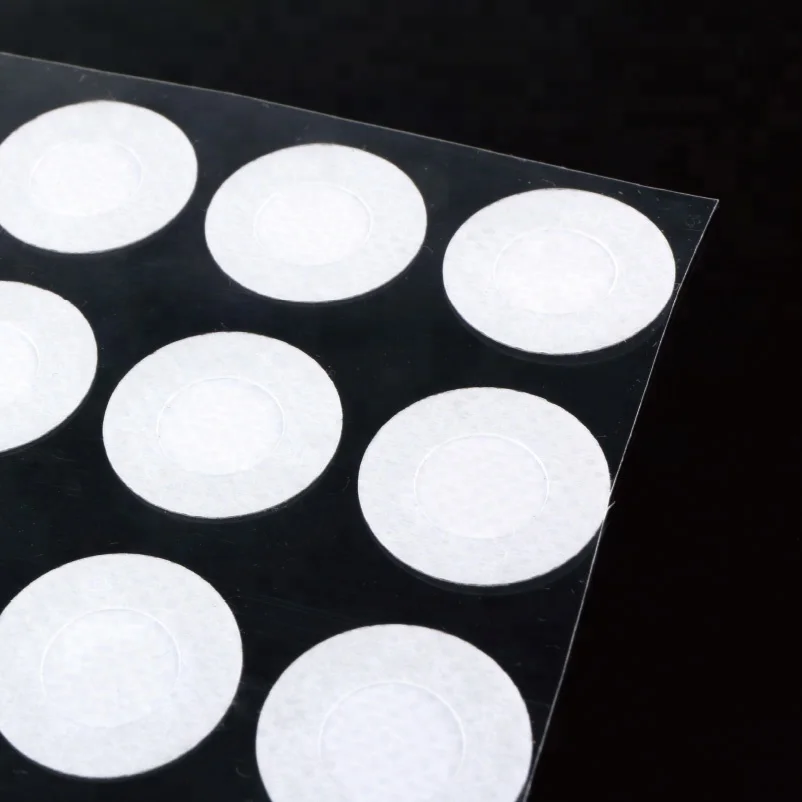

Hydrophobic IP 68 Breathable Self Adhesive Protective Vent Membranes

Share on (60669828784):


Price:$0.05 - $0.07

Quantity:


Product Overview

Description



Product Description


Data sheet of Self-Adhesive Protective Vent Membranes:

Outdoor Self-Adhesive  Protective Vent Membranes are continuously exposed to harsh environments such as rainstorms,dust,sand and high winds. During changing environmental conditions,pressure can build inside a sealed enclosure,putting stress on seals. Over time stress causes seals to fail,which allows water,corrosive liquids,salt and particulates to enter the enclosure and damage the internal electronics.

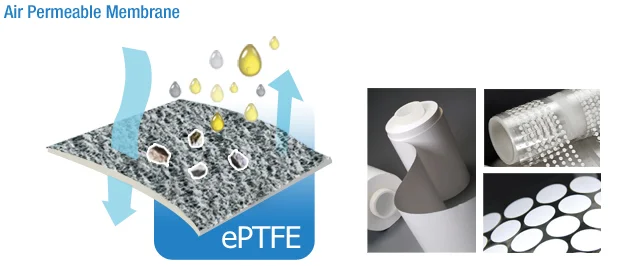

Self-Adhesive Protective Vent Membranes are the leading solution for protecting your sensitive electronics.Self-Adhesive Protective Vent Membranes equalize pressure and reduce condensation by allowing air to flow freely into and out of sealed enclosures. At the same time, they provided a durable barrier to protect the electronics from contaminants. The result-improved reliability, increase safety and longer product life for your sealed electronic devices.



Product Name
Electronics Application Hydrophobic IP 68 Breathable Self-Adhesive  Protective Vent Membranes
Material
ePTFE
Color
White
Model
Q508
Air Perm
1800ml/min/cm²(Pressure =70 mbar)
WEP
490 mbar
IP Rate
IP 68
Temperature Range
-40~125℃
Feature of vent Membrane
Watrproof,Breathable,Oleophobic,Dustproof
Backing Material
PET
Color of Backing Material
White
Thickness
0.36mm




Drawing






Installation Notes of Self-Adhesive  Protective Vent Membranes :

1.Clean your product,with your finger on the outline on the appropriate pressure;
2.Wearing gloves to protect anchoring strength;
3.Adhesive experiments in 48 hours.



Features of Self-Adhesive  Protective Vent Membranes:

• Venting of gases and pressure equalization
• Eliminates the need for costly hermetic sealing
• Repels water, oils, and other liquids
• Oil ratings from 1 to 8
• IP ratings from IP44 to IP67/IP68
• Easy application and device integration
• Non-adhesive protective vents also available for welding to your device
• Standard and custom sizes and shapes are available



Company Profile




Established in 2013,Creherit is a professional manufacturer and exporter that is concerned with the design, development and production of waterproof and air permeable. We are located in Changzhou, Jiangsu, China,with convenient transportation access. All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.

We have over 100 employees ,an annual sales figure that exceeds USD 30 million and are currently exporting 60 % of our production worldwide. Our well-equipped facilities and excellent quality control throughout all stages of production enables us to guarantee total customer satisfaction.

As a result of our high quality products and outstanding customer service ,we have gained a global sales network reaching USA,Australia,Italy, Korea,etc.

If you are interested in any of our products or would like to discuss a customer order,please feel free to contact us. We are looking forward to forming successful business relationship with new clients around the world in the near future.
