double shaft coal mixer
US $7999-$8699
JZR500 diesel engine cement mixer mobile concrete mixer machine price
- Category: Concrete Mixers >>>
- Supplier: AIMIX GROUP CO. LTD.
Share on (60669961680):
Product Overview
Description
JZR500 diesel engine cement mixer mobile concrete mixer machine price
Product Description
JZR500 diesel motor mobile mini concrete mixer checklist belongs to the bigger capacity, self-falling type. It is suitable for mixing plastic and low slump concrete. The aggregate size is required to be smaller than 60 mm.The drum revolves for mixing and reverses for discharging.Therated output capacity of this mixer is 0.5 cubic meter.The mixer is widely used in building site, road and bridge project, and many other construction sites.
Technology parameter
Model | JZR350 | JZR500 | JZR750 |
Input capacity | 560 L | 850 L | 750L |
Discharge capacity | 350 L | 500 L | 1000L |
Productivity | 12-14 m3/h | 14-20 m3/h | 25m3/h |
Diesel engine power | 15 HP CHANGFA | 18 HP CHANGFA | 22HP CHANGFA |
Water pump | Hydraulic motor | Hydraulic motor | Hydraulic motor |
Gear pump pressure | 20 Mpa | 20 Mpa | 20 Mpa |
diversion valve pressure | 31.5 | 31.5 | 31.5 |
Water supply error | ±2 | ±2 | ±2 |
Max. Trailer speed | 20 km/h | 20 km/h | Hydraulic motor |
Tyre type | 6.5-16 4-10 | 6.5-16 4-10 | 6.5-16 4-10 |
Mixing drum speed | 14 r/min | 14 r/min | 14 r/min |
Lifting method | Hydraulic feeding hopper | Hydraulic feeding hopper | Hydraulic feeding hopper |
Hydraulic oil cylinder | L530-80/50 | L530-80/50 | L530-80/50 |
Gear oil pump | CBN-E316 | CBN-E316 | CBN-E316 |
Diversion valve | ZL15.0 |
|

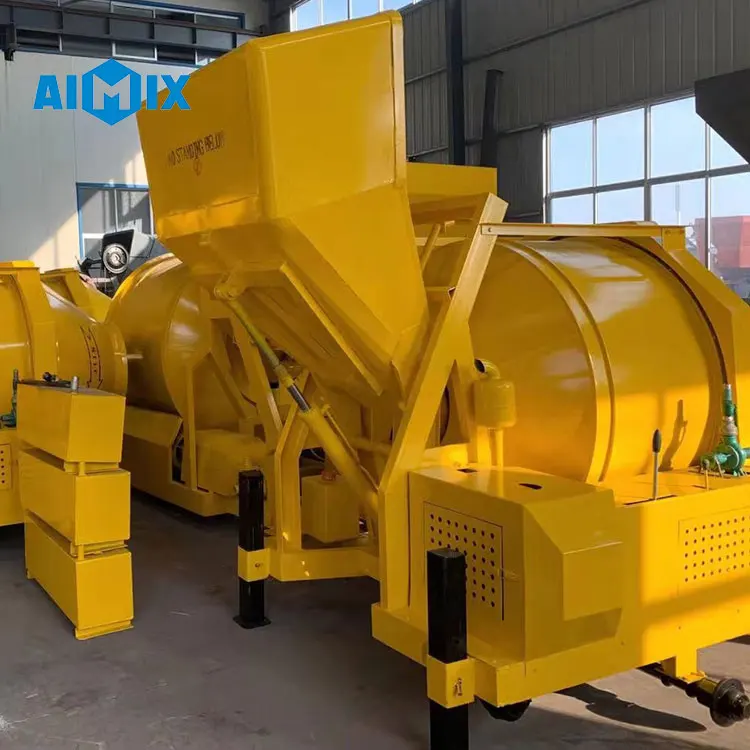

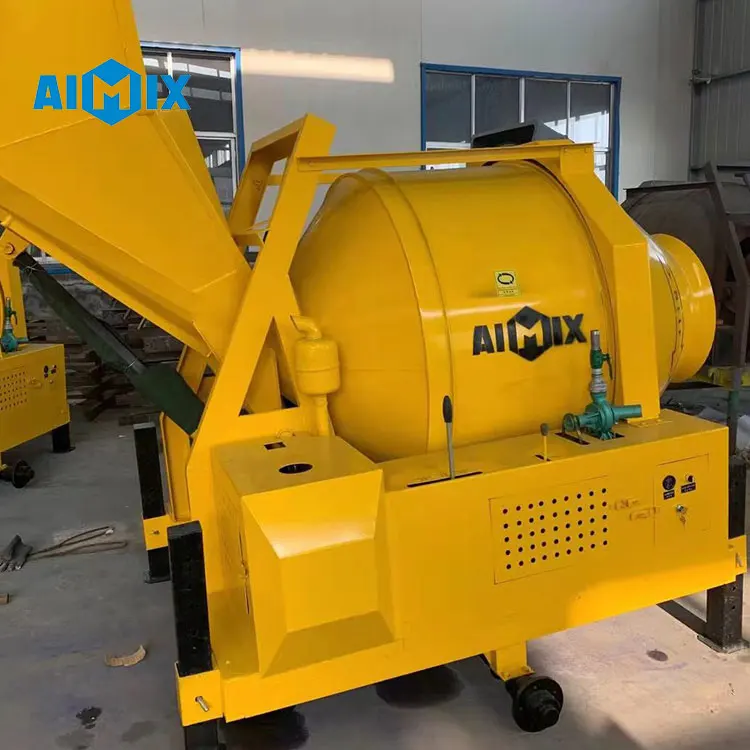

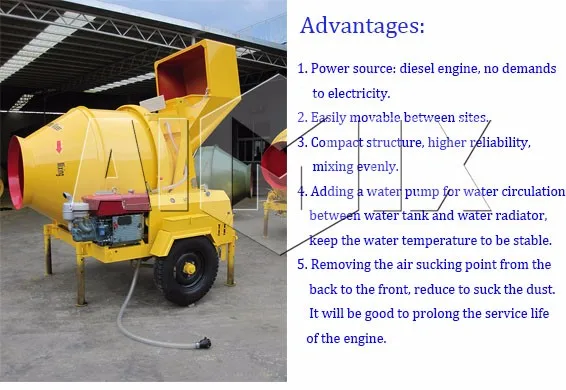

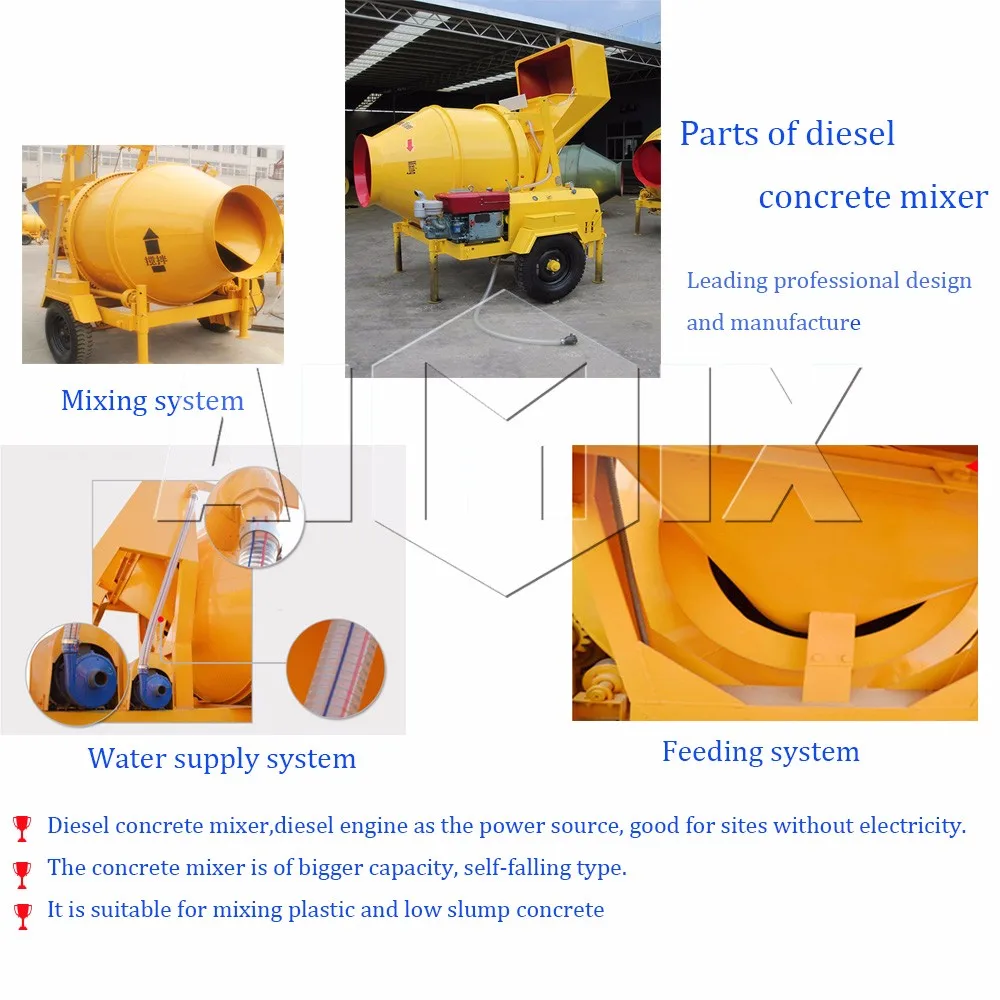

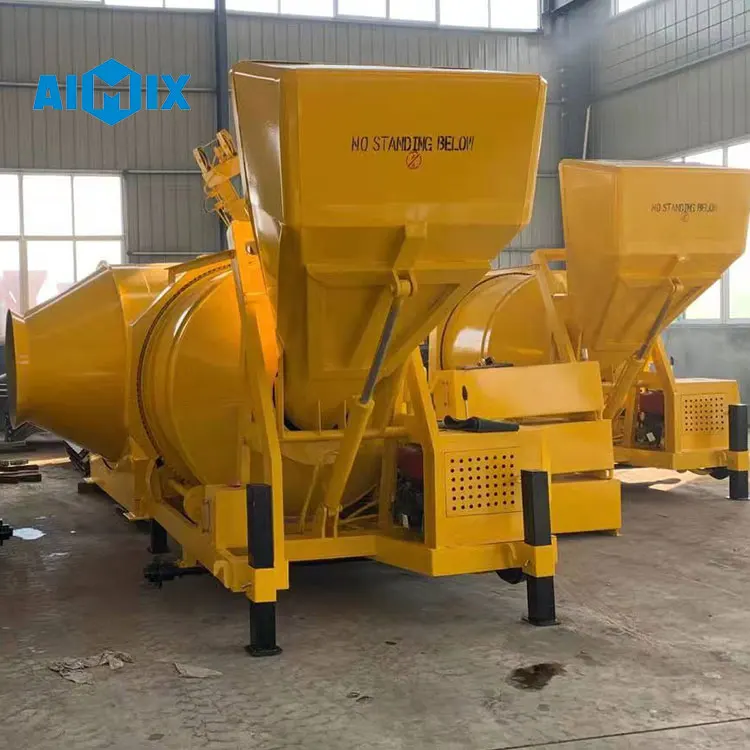

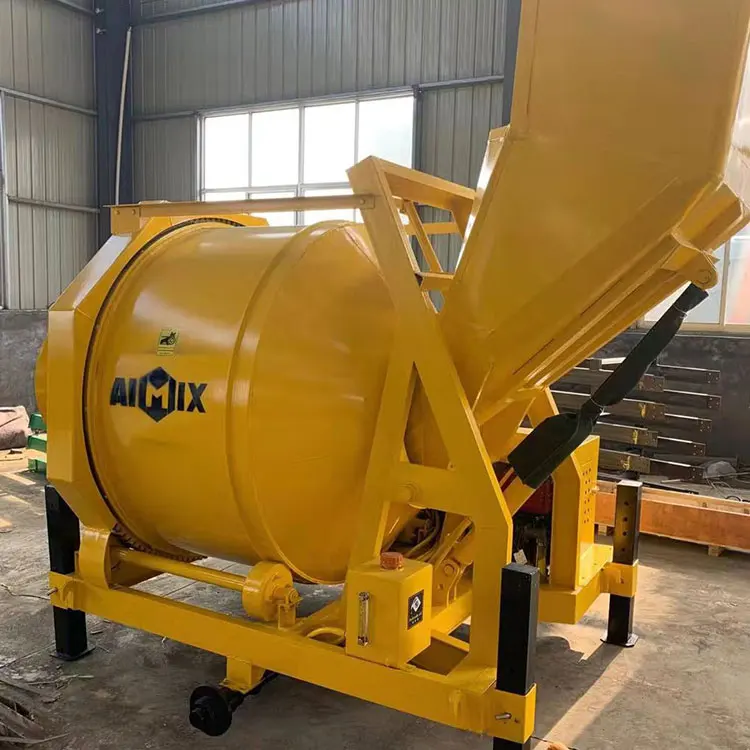

Product Display
Packaging & Shipping
Our Services

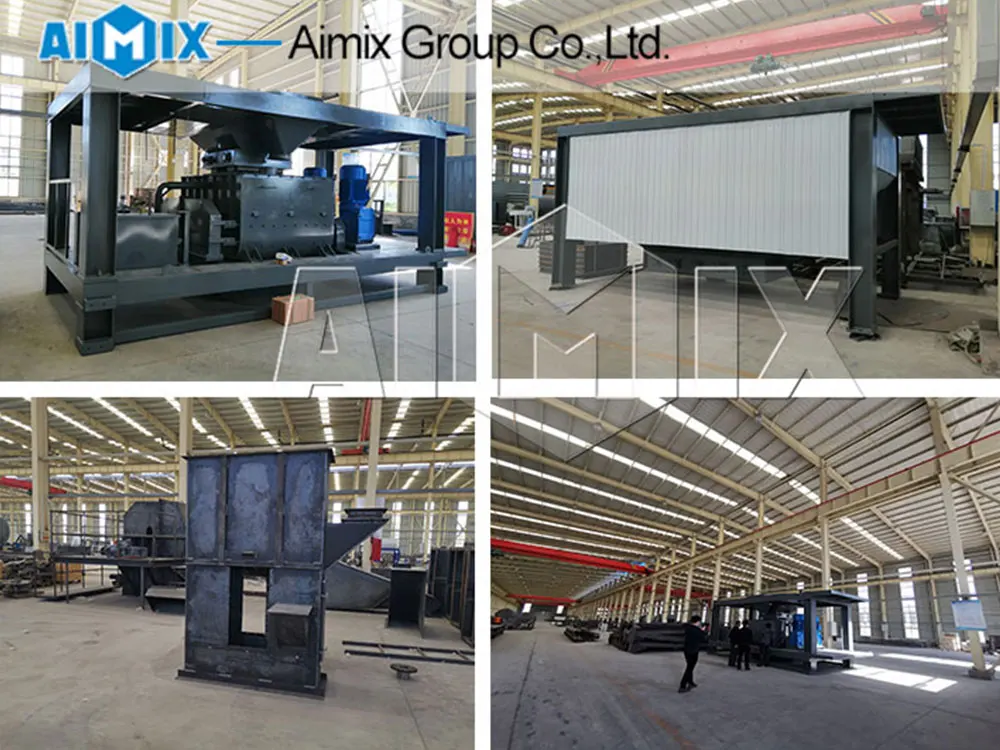

Company Information
History:
With more than 30 years development, our company has become one of the leading professional manufacturers and exporters of Construction Machinery in China. Till now, the factory area covering reaches 120,000m2 and have about 1000 person, including engineers, workers, sales, and service people.
Our main products :
Concrete Mixing/Batching plant, Stabilized Soil Mixing Station, Concrete Batching Machine, Concrete Mixer, Concrete Pump, Concrete Mixing Truck, Concrete Block Making Machine, Dry-mix Mortar Production Line, Asphalt Mixing Plant, Tower Crane, Wheel Loader, Cement Silo, Screw Conveyor, and other construction machinery.
Certificates:
We have got certificate ISO9001:2000 and passed SGS test. At present, our products are popular at home and abroad.
JZR500 diesel motor mobile mini concrete mixer checklist!!!
If you have any requirement,
pls contact us in time!
