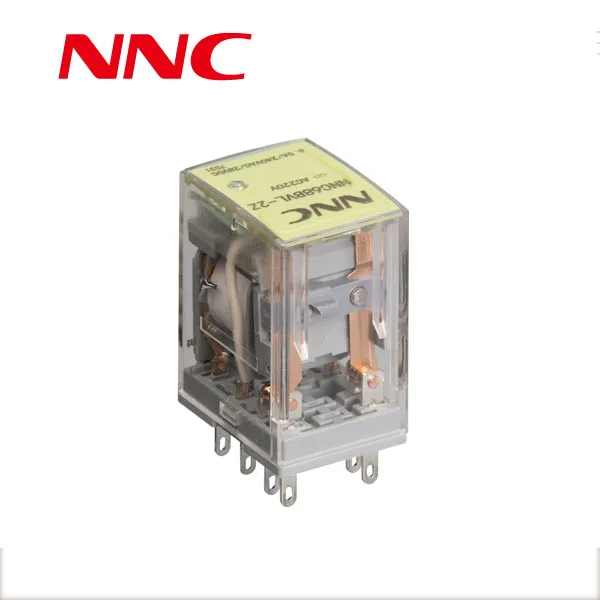

NNC general purpose electric relay NNC68BVL 2Z (HH52P) MY2 2C 8Pin 24v 6.5a relay
- Category: >>>
- Supplier: Clion Electric Co. Ltd.
Share on (60670074369):
Product Overview
Description
NNC general purpose electric relay NNC68BVL-2Z (HH52P) MY2 2C 8Pin 24v 5a relay
Banner
Product display
Product display
Model Description
Contact parameters
| Contact form | 2Z,2H,2D | |
| Contact load | 6.5A | 10A |
| Maximum switching voltage | 240VAC 6.5A 28VDC 6.5A | 240VAC 10A 28VDC 10A |
| Contact material | Silver alloy | |
Relay coil
| Rated voltage V | DC12V | DC24V | DC110V | DC220V |
| Rated current (±10%) mA | 75 | 37.5 | 8 | 4 |
| Coil resistance (±10%) Ω | 160 | 640 | 13750 | 55000 |
| Rated power consumption W | 0.9W | |||
| Pull-in voltage (Maximum)V | Below 75% | |||
| Drop-out voltage(Minimum)V | Above 10% | |||
| Allowable voltage(Maximum) V | Rated voltage×110% | |||
| Rated voltage V | AC12V | AC24V | AC110V | AC220V |
| Rated current (±10%) mA | 100 | 50 | 10.9 | 5.4 |
| Coil resistance (±10%) Ω | 42 | 168 | 3532 | 14259 |
| Rated power consumption W | 1.2VA | |||
| Pull-in voltage (Maximum)V | Below 80% | |||
| Drop-out voltage(Minimum)V | Above 30% | |||
| Allowable voltage(Maximum) V | Rated voltage×110% | |||
Specification of NNC68BVL-2Z electromagnetic relay (HH52P relay switch)
| Coil voltage | DC:3 - 220V AC:3-380V | |
| Pull-in time | ≤15ms | |
| Drop-out time | ≤10ms | |
| Withstand voltage | Between the homopolar contacts | 1000VAC/1min (Leakage current 1mA) |
| Between the heteropolar contacts | 1000VAC/1min(Leakage current 1mA) | |
| Between contacts and coil | 1500VAC/1min(Leakage current 1mA) | |
| Dimension | 27.3 ×21×36.2 mm | |
| Weight | About 35g | |
