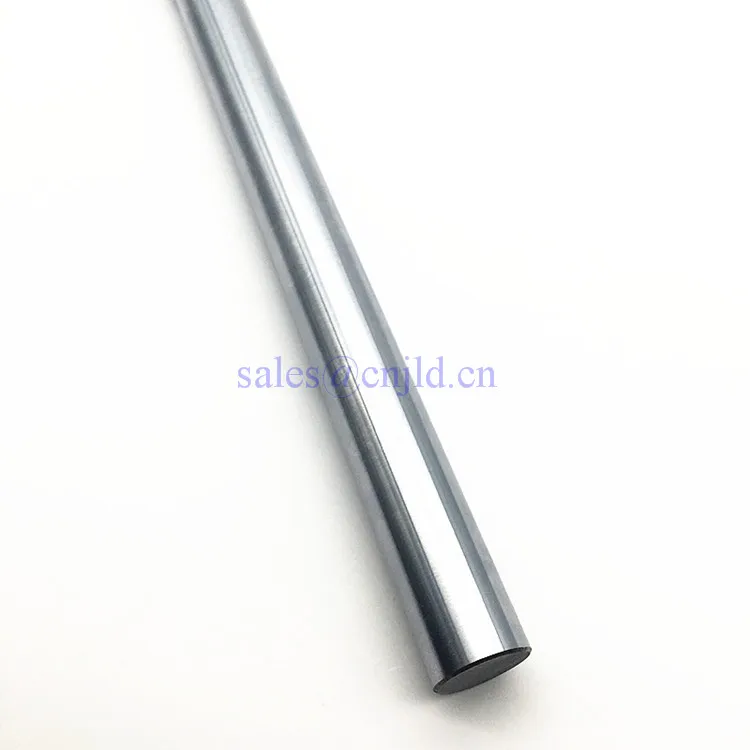

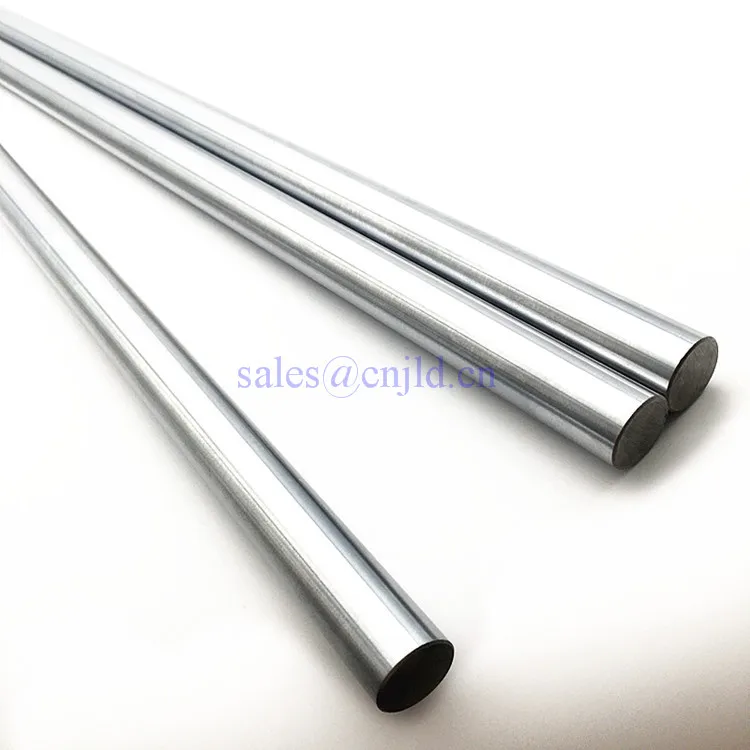

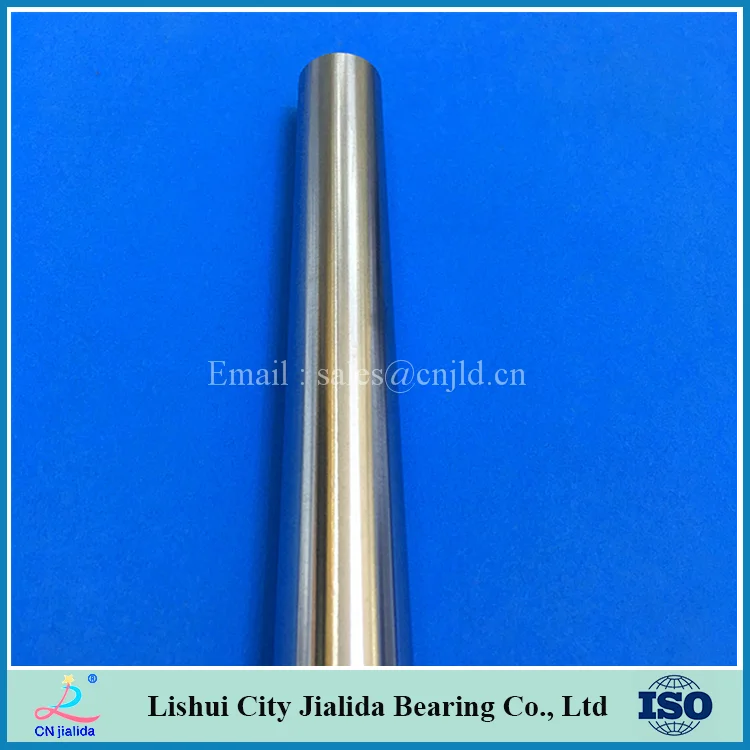

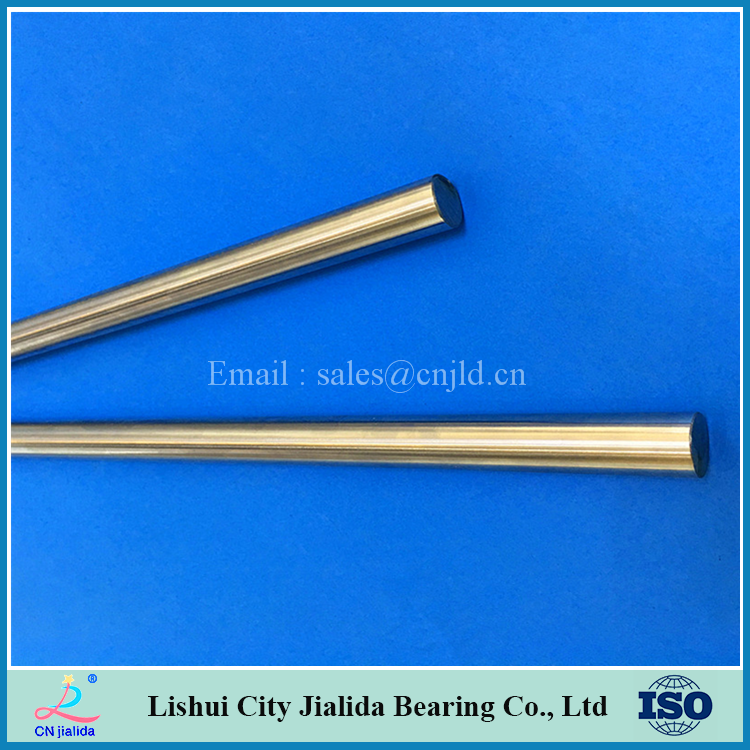

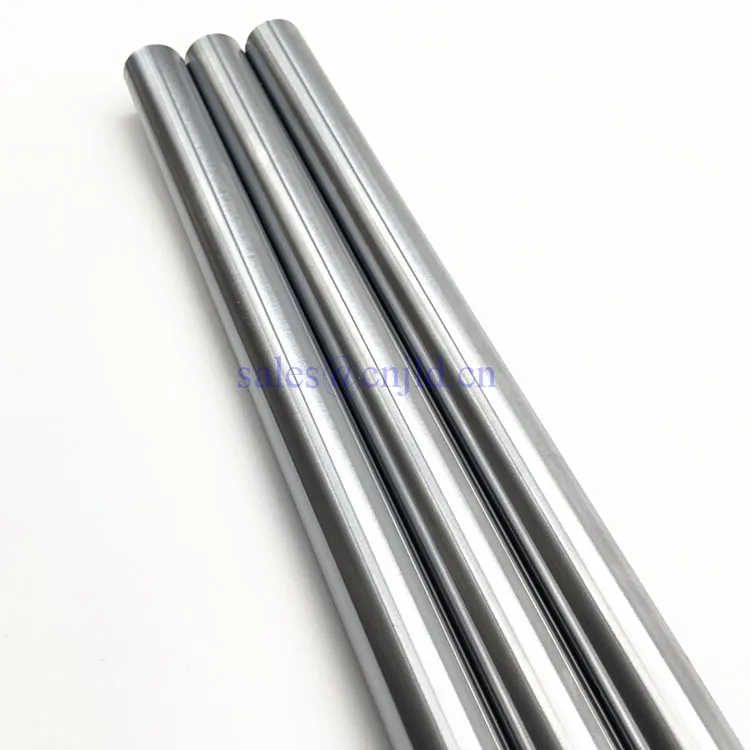

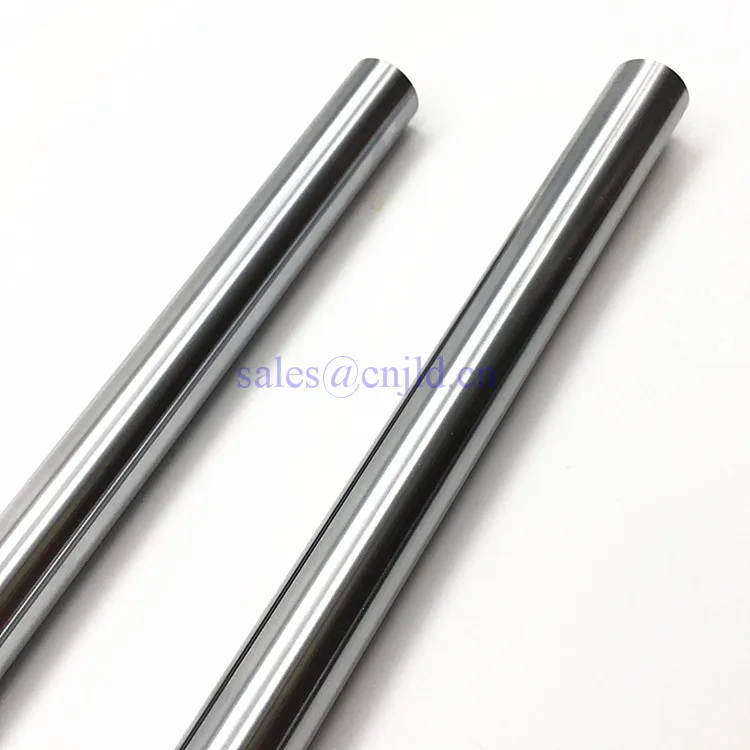

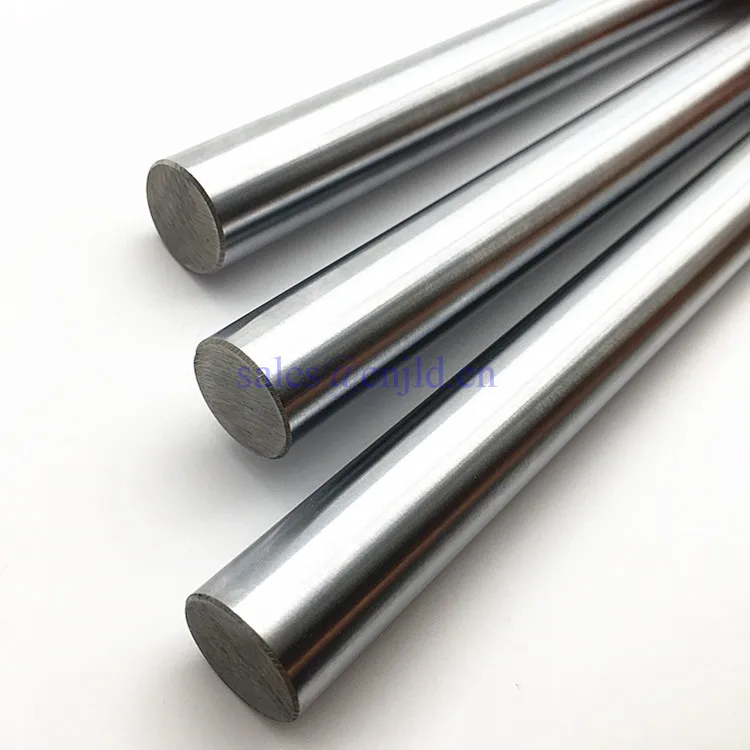

High Quality WCS SFC25 linear bearing shaft 25mm
- Category: >>>
- Supplier: Lishui City Jialida Bearing Co. Ltd. [Zhhejiang China]Lishui
Share on (60670139897):
Product Overview
Description
Customzied and OEM bearing shaft assembly WCS SFC25 linear shaft 25mm for 3d printer parts

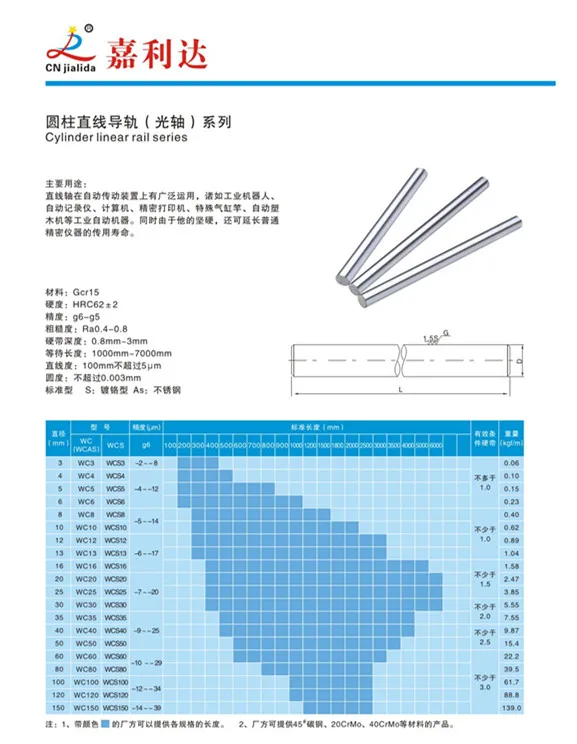

| Model Number | WCS SFC Series Solid shaft(Linear rod;Steel bar;Optical axis),hollow shaft as demand |
| Diameter | Metric Diameter : 3mm,4mm,5mm,6mm,8mm,10mm,12mm,16mm......100mm Inch Diameter : 6.35mm,9.525mm,12.7mm,15.875,19.05,25.4mm,31.75mm,38.1 |
Quality | ISO9001:2008 standard |
| Material | Steel 45#;GCR15;SUS440C |
| Hardness | HRC:58-62 |
| Hardened Layer Thickness | 0.8-3.00mm |
| Precision | G6 |
| Roughness | Within1.5μm |
Roughness(Rmax) | Within 3.0μm(Rmax) |
| Straightness | Not excess 1.5μm of 100mm (Rmax) |
| Thickness of Chrome Plated | 1-2μm,1.5μm on average |
| Performance | Long life and low noise |
| Appearance | Smooth,Anti-corrosion,Hardened,Chrome plate |
| Service | Specisl requirement onmachining,such as threading,coaxial holes drilled and tapped,radial holes drilled and tapped,reduced shaft diameter etc;We could supply OEM to our customers. |
| Application | Machine centers,Machine tools,Precision machining machines,Heavy cutting machines,Punching machines,Marble cutting machines,Automatic equipments,Grinding machines,High speed transfer equipments,Injection molding machines,Measuring equipments |
