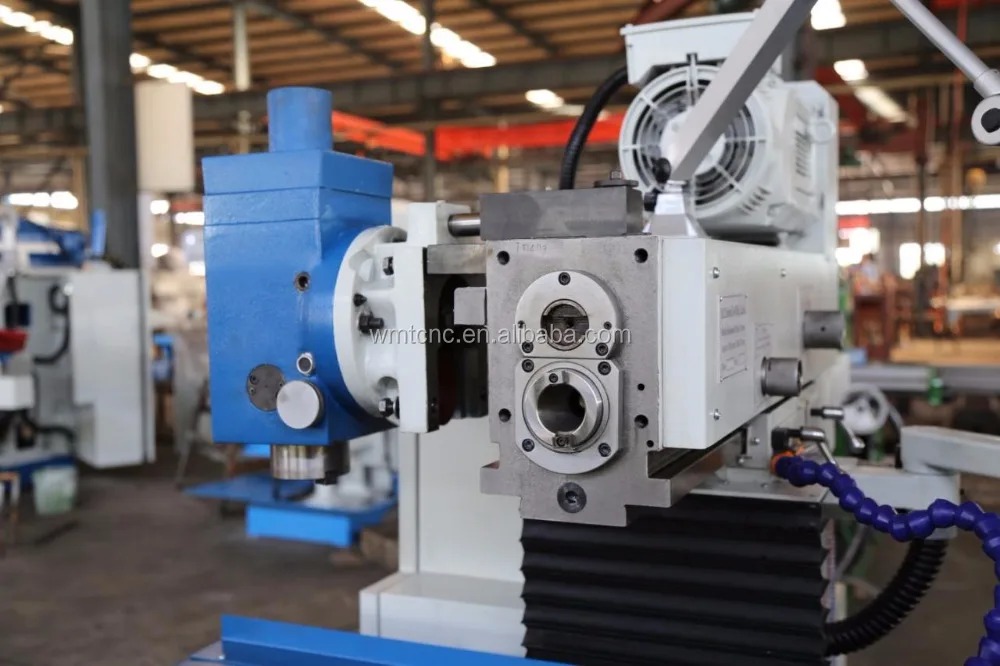

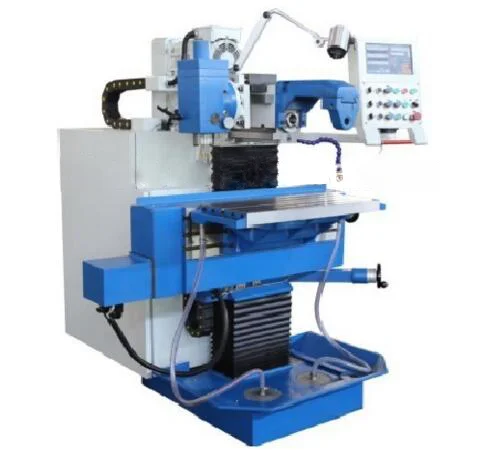

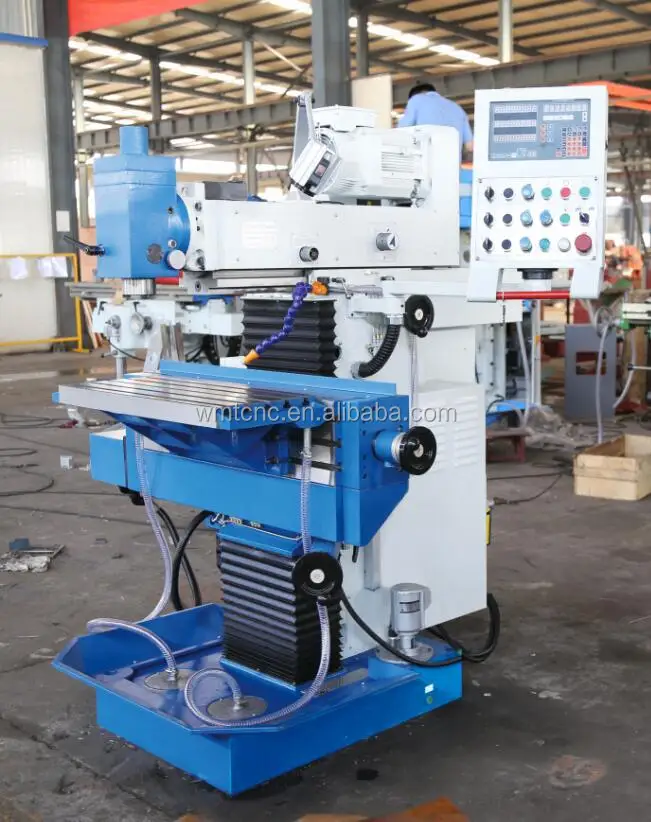

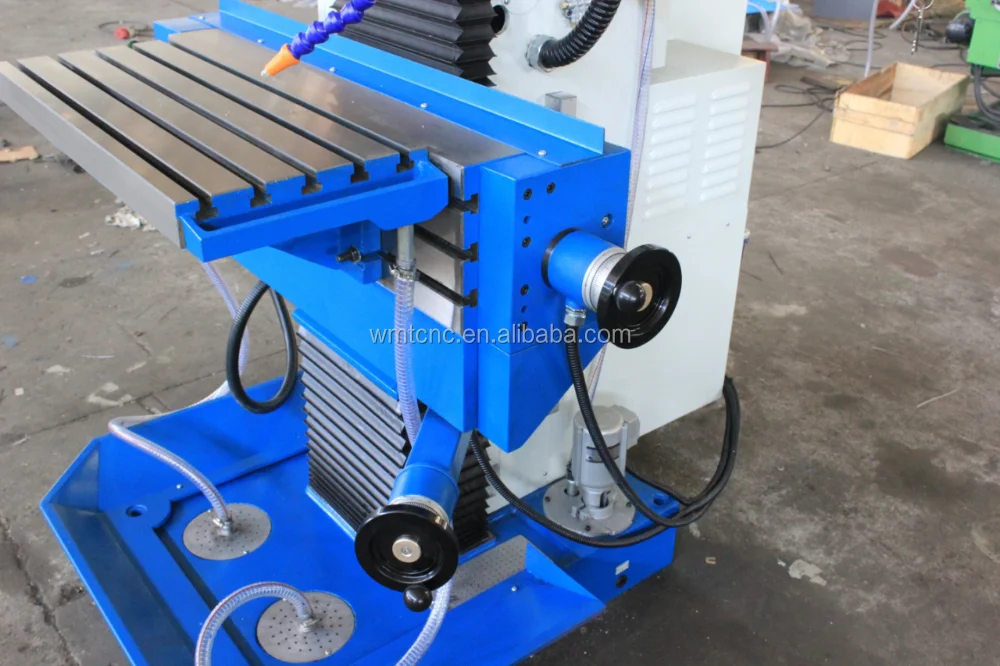

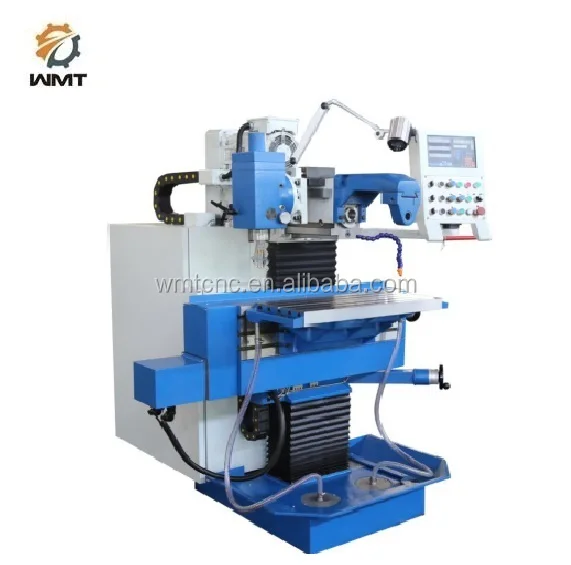

China high quality Universal tool cutting milling machine XL8132 with CE standard
- Category: >>>
- Supplier: WMT CNC Industrial Co. Ltd.
Share on (60670140726):
Product Overview
Description
XL8132 Machine Features:
A, X/Y/Z ballscrew
B. X/Y/Z servo feeding motor
C. Machine main motor is inverter motor, Variable speed
D,Electrical type handwheel
E,CE standarad Schneider electrical part
B. X/Y/Z servo feeding motor
C. Machine main motor is inverter motor, Variable speed
D,Electrical type handwheel
E,CE standarad Schneider electrical part
XL8132 Technology Data:
specification | Unit | XL8132 | ||
Work space dimensions | Mm | 750*320 | ||
Vertical table dimensions | Mm | 890*225 | ||
T-slots,work table | Mm | (5)14*63 | ||
T-slots,vertical table | Mm | (3)14*63 | ||
Table load capacity | Kg | 160 | ||
travels | Longitudinal(X) | Mm | 405 | |
Transverse(Y) | Mm | 305 | ||
Vertical(Z) | Mm | 400 | ||
Spindle axis-to-table surface distance | Horizontal spindle | Mm | 145-545 | |
Vertical spindle | Mm | 50-450 | ||
Speed range | Rpm | (2)40-2000 | ||
Spindle mount | ISO40 | |||
Feeds X Y Z axis | Mm/min | 10-1000 | ||
Rapid feed | Mm/min | 1200 | ||
Quill stroke | Mm | 60 | ||
Main motor rating | KW | 3.7 | ||
Feed motor rating | N.M | X:7.7 | ||
Y:7.7 | ||||
Z:10 | ||||
Dimensions (L*W*H) | Mm | 1500*1700*1800 | ||
weight | Kg | 1400 | ||
Standard accessories:
Standard Equipment | specification |
Milling Arbors | Φ-16,22,27,32mm |
Reducing sleeves | MT1,2,3 |
Collet chuck with collets | 2,3,4,5,6,8,10,12mm |
Draw bar | |
Coolant system | |
Chip collector tray | |
Oscillation elements | |
Outer arbor support for horizontal milling | |
Work lamp | |
Operating instructions |
Warranty: One Year After You Receive Our Machines!
Service Hotline 24 Hours On Line!
Service Hotline 24 Hours On Line!
