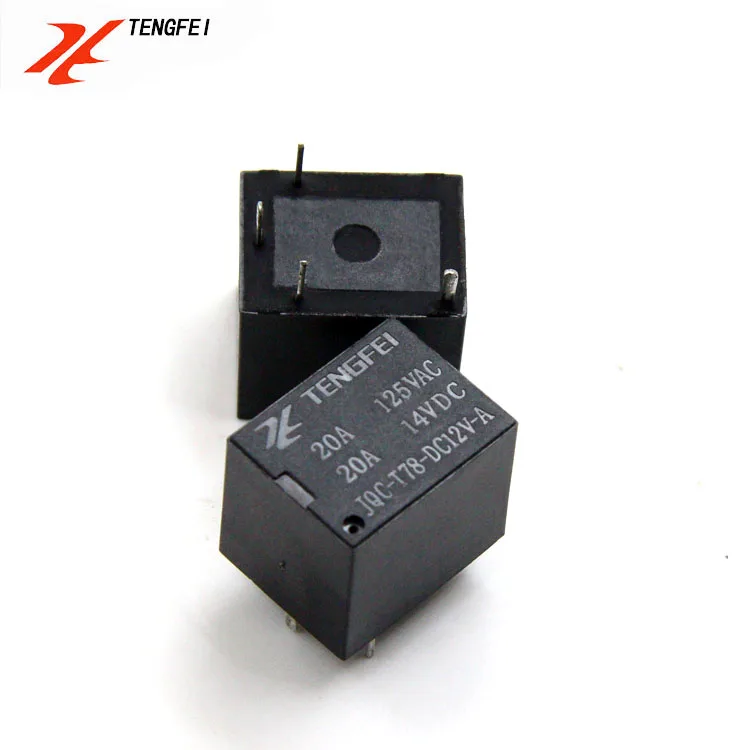

Tengfei Relay SRA 12VDC SL A Miniature JQC T78 12V 4 Pin Relays
- Category: Relays >>>
- Supplier: Donghai Tongling Electric Appliance Co. Ltd.
Share on (60670190929):
Product Overview
Description
Ordering Code
JQC-T78-DC12V-A
1 2 3 4
1.Relay module
2.S:sealed
3.Contact Form:1A Form H
The main specific sparameters | ||
Relay module | JQC-T78 relay (SRA relay) | |
Coil voltage | DC: 3V 5V 6V 9V 12V 18V 24V 48V | |
Contact form | SPST-NO (1 Form H)-4 pins | |
Contact Material | Silver Alloy | |
Pin | 4 Pin | |
Contact rating | 20A 125VAC/14VDC | |
Coil Power | 0.6W | |
Size | 15.7mm*12.3mm*14mm | |
Coil Data(at 20℃）
Nominal Voltage(VDC | 5 | 6 | 9 | 12 | 24 | ||||||
Coil Resistance(Ω±10%） | 70 | 100 | 225 | 400 | 1600 | 0.36W | |||||
Rated Current(mA) | 71.4 | 60 | 40 | 30 | 15 | ||||||
Max Operate Voltage(VDC) | 3.75 | 4.5 | 6.75 | 9 | 18 | ||||||
Min Release Voltage(VDC) | 0.4 | 0.48 | 0.72 | 0.96 | 1.92 | ||||||
Coil Resistance(Ω±10%） | 42 | 60 | 135 | 240 | 960 | 0.6W | |||||
Rated Current(mA) | 119 | 100 | 66.7 | 50 | 25 | ||||||
Max Operate Voltage(VDC) | 3.25 | 3.9 | 5.85 | 7.8 | 15.6 | ||||||
Min Release Voltage(VDC) | 0.4 | 0.48 | 0.72 | 0.96 | 1.92 | ||||||
Coil Resistance(Ω±10%） | 31 | 45 | 100 | 180 | 720 | 0.8W | |||||
Rated Current(mA) | 161.3 | 133.3 | 88.9 | 66.7 | 33.3 | 0.8W | |||||
Max Operate Voltage(VDC) | 3.25 | 3.9 | 5.85 | 7.8 | 15.6 | ||||||
Min Release Voltage(VDC) | 0.4 | 0.48 | 0.72 | 0.96 | 1.92 | ||||||
Max Applicable Voltage | 130% of rated voltage at 70 ℃, 170% of rated voltage at 23 ℃ | ||||||||||
Contact Data
Contact Ratings | 20A 125VAC 20A 14VDC |
Minimum Load | 100mA 5VDC |
Max Switching Voltage | 250VAC/14VDC |
Max Switching Current | 25A |
Max Switching Power | 2500VA/280W |
Contact Resistance | 100mΩMax at 6VDC 1A |
Life Expectancy | Electrical:100,000 Operations(at 30 Operations/minute) |
Mechanical:10,000,000 Operations(at 30 Operations/minute) |
Characterinstics data
Insulation Resistance | 100MΩMin at 500VDC |
Dielectric Strength Between Open Contacts | 500VAC(50/60Hz for one minute) |
Between Contacts And Coil | 500VAC(50/60Hz for one minute) |
Operate Time | 10ms |
Release Time | 5ms |
Temperature Range | -40℃ to +85℃ |
Shock Resistance | Operating Extremes:10G |
Damage Limits:100G | |
Vibration Resistance | 10-55Hz,1.5mm |
Max.switching frequency | Mechanical:18,000 operations/hr |
Electrical:1,800 operations/hr | |
Humidity | 35-85% |
Weight | Approx 6g |
Safety Standard | ROSH |
Engineering Data

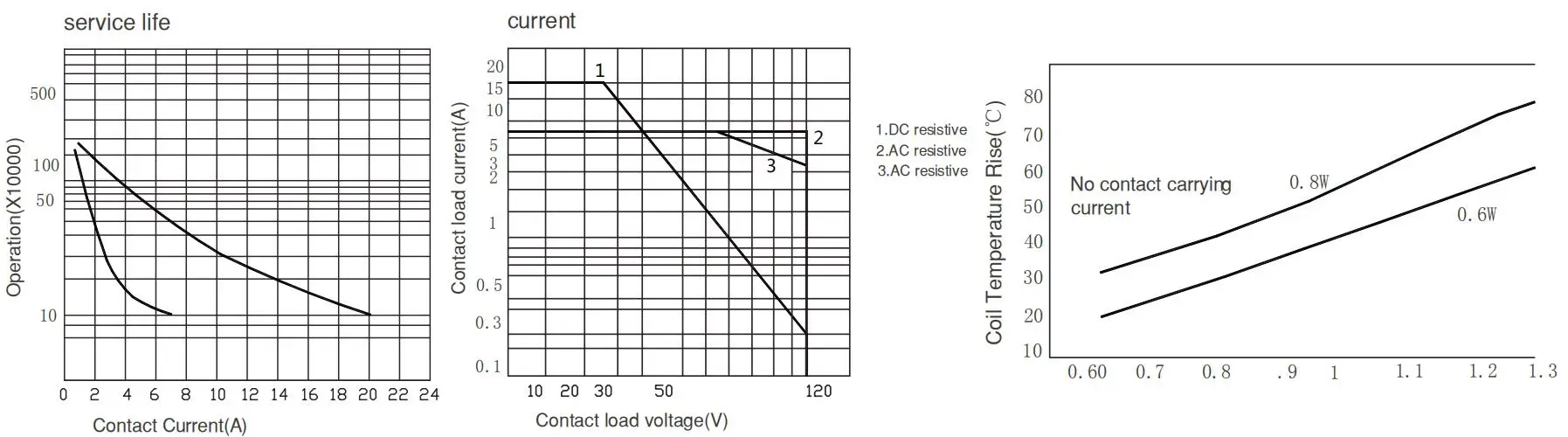

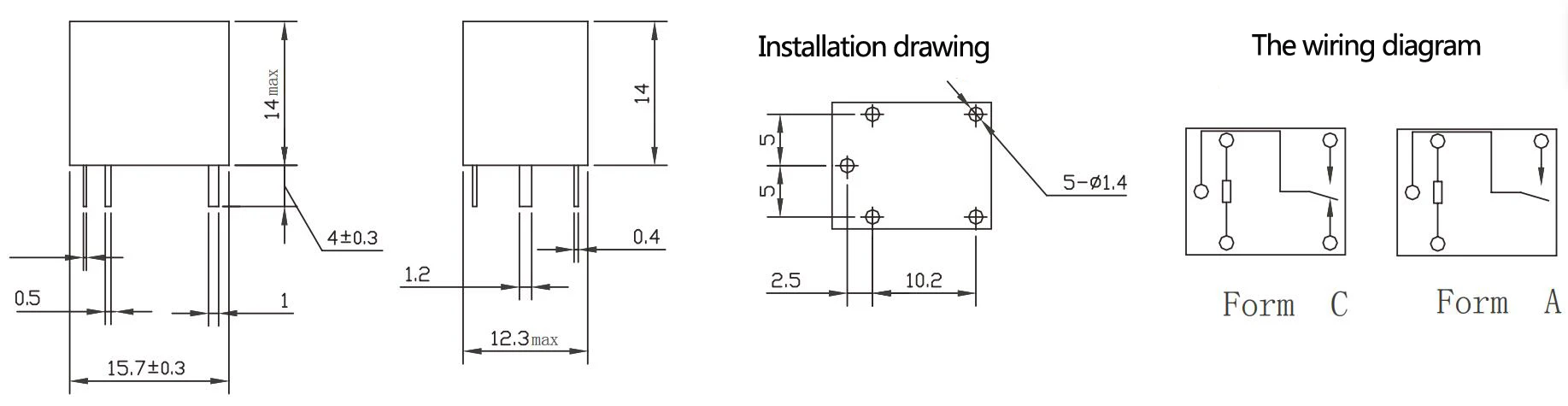

Overall And Mounting Dimensions

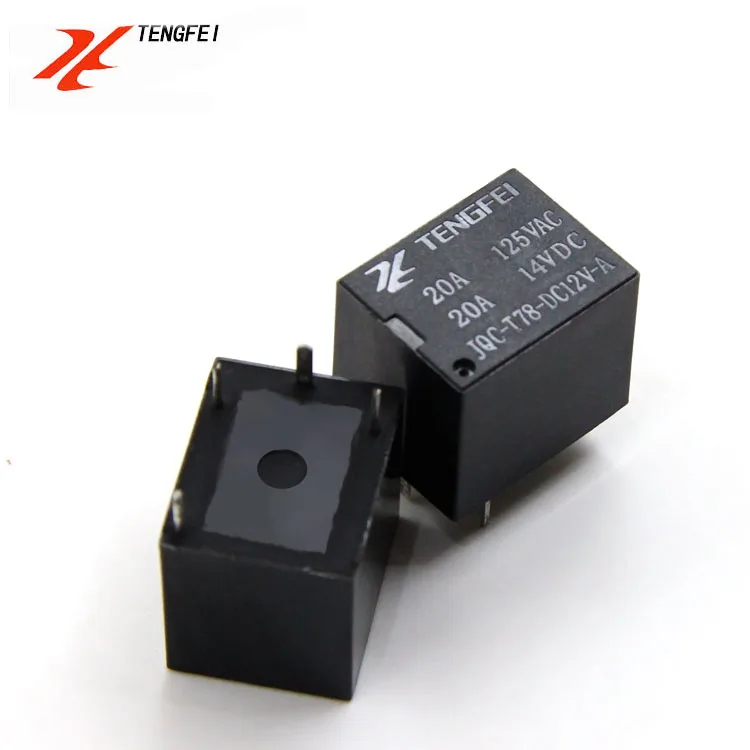

Size:15.7mm*12.3mm*14mm
Compact size, PCB in-line welding
Beautiful welding effect

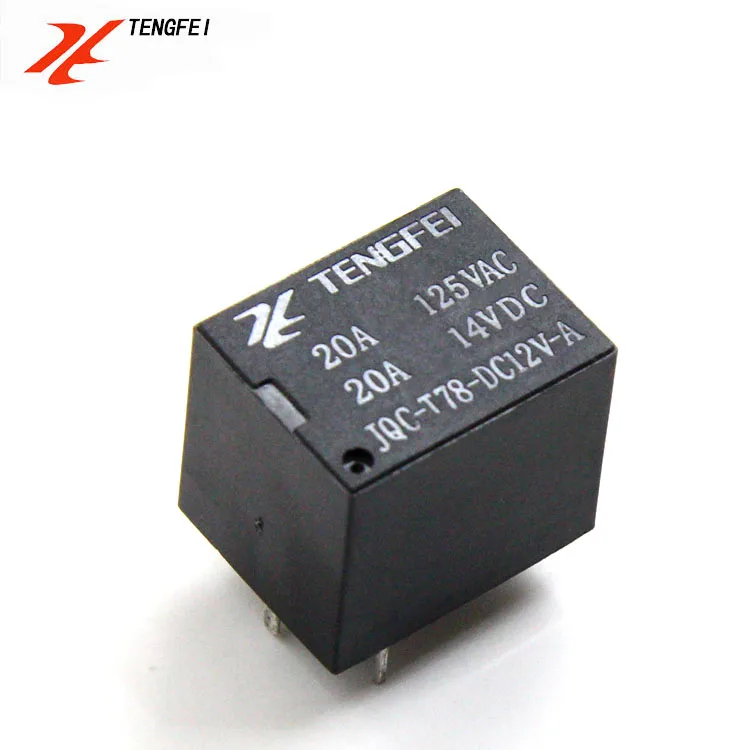

Universal relay
T78 relay is an automobile electromagnetic relay, which is widely used in automobile central lock, lifting glass, wiper and automobile skylight.In addition, it is also widely used in small household appliances.
