Cabinet metal edge banding

Category: Edge Banding >>>
Supplier: Foshan,Guanghong,Aluminum,Co.,Ltd.

Price:

Price in USD:Details

Quantity:

Product Overview

Description

Product Overviews

Features:

They are used to protect the edge of table, kitchen cabinet, closet,etc. while providing a clean, modern look.

High corrosion resistance, weather resistance, wear resistance

Plentiful aesthetic design upon your needs.

Surface treatment:

First treatment options: Polish, Dull Polish, Sand Blasting, Brushed, etc.
Second treatment options: Anodizing, electrophoresis, powder coating, PVDF coating, Grain transfer, etc.
Color options: Silver, Golden, Champagne, Black, Pearl White, Cyan, Magenta, etc. Any customized-color avaliable.

Description

Dimensions	Max section: 400*400mm; Max length: 13 Meters
Aluminum grade	5000 series, 6000 series, 7000 series optional.
Surface treatment	mill finish, anodized (chormed, polished, matt, etc.), powder coating, electroplated, marble /wooden grain transfer, etc.
MOQ	1 tons
Price:	Based on SMM Aluminium Ingot price(www.smm.cn) + processing cost
Drawings	Received, or provided by our engineers
Dies	In-house fabricated (require 7-12 days)
Lead time	Die making:7days Samples finished:12days Production time:7-15days
Mould fee	The mould cost usually between USD100 to USD500 per set, and we will return the mould cost to you fully when the orders quantity reach at 10 tons.
OEM/ODM	Accept
Trade term	FOB, CIF
Payment terms:	T/T,L/C, or others can be negotiated; 30% deposit, 70% before delivery.
Package:	inner pack: wrapped with Ep film or fill into plastic bag; external pack: rolled by kraft paper or packaged into paper box, carton, wooden box, pallet as per client's requests, we also can print your logo, address, products' specification on the paper box.
Shipping	We have good relationship with shipping company directly which can help you to save some shipping cost. Or customers can appoint their own shipping agents.

Material Composition

Aluminum Grade	Si	Fe	Cu	Mn	Mg	Cr	Zn	Ti	impurity	Al
6063	0.2-0.6	<0.35	<0.1	<0.1	0.45-0.9	<0.1	<0.1	<0.1	<0.15	Rest
6063A	0.3-0.6	0.15-0.35	<0.1	<0.1	0.6-0.9	<0.05	<0.15	<0.1	<0.15	Rest
6061	0.4-0.8	0.7	0.15-0.4	<0.15	0.8-1.2	0.04-0.35	<0.25	<0.15	<0.15	Rest
LTF21	<0.6	<0.7	<0.2	1.0-1.5	<0.05		<0.1	<0.15	<0.1	Rest
6005	0.6-0.9	<0.35	<0.1	<0.1	0.4-0.9	0.1	<0.1	<0.1	<0.15	Rest

Physical property

Aluminum Grade	Temper	Wall Thickness	Resist Pull Point(Mpa)	Stretch (Rpo.2 Mpa)	Stretch Rate	Webster Hardness
6063	T5	All	160	110	8	8
6063	T6	All	205	180	8
6063A	T5	=<10	200	160	5	10
6063A	T6	>10	230	190	5
6061	T4	All	180	110	16
6061	T6	All	265	245	8
LTF21	O,H112	All	=<185	260	16
6005	T5	=<3.2	260	240	8
6005		>3.2-25	260	240	10

Our Services

1.Flexible payment terms & Business Terms are negotiable.

We agree on the terms base on the mutual benefit and long term business relationship

2. Cost Competitive: We can control all the manufacture process from extruding to machining by ourselves, which is why we can reduce the product cost comparing to our competitors.

3. Reliable Quality: Price is important, but quality counts for much more, so we dedicated in superior quality. In this way, our products have been exported to Europe, North America, Japan, Australia and other developed countries and enjoy a good reputation from overseas customers.

4. Customized service

Engineering design and consulting according to your samples or drawings, we could customize what you need

5. Further processing capability

Our factory have all kinds of the equipments such as blast furnace, extrusion line,

Special temper system, Powder Coating line, Anodized Lines and deep processing equipments, such as drilling, milling, de-burr, chamfer, stretch bending, welding and fabricating, etc.

6. One-stop service

We integrate the technical and consulting service to help customer source the related accessories. Customer would get convenient one-stop service and the supply of the high quality products from local professional manufactories.

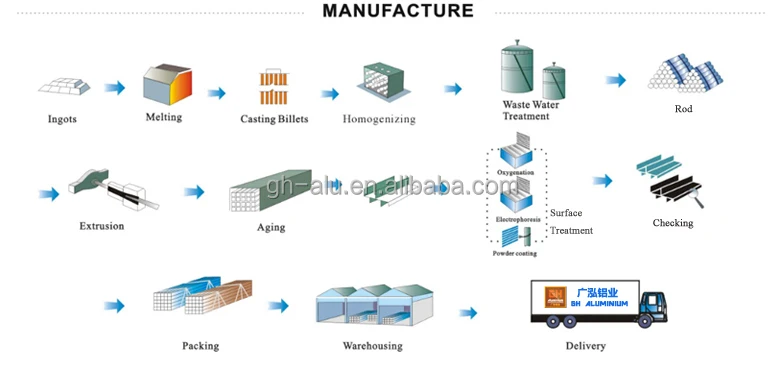

Production Flow
