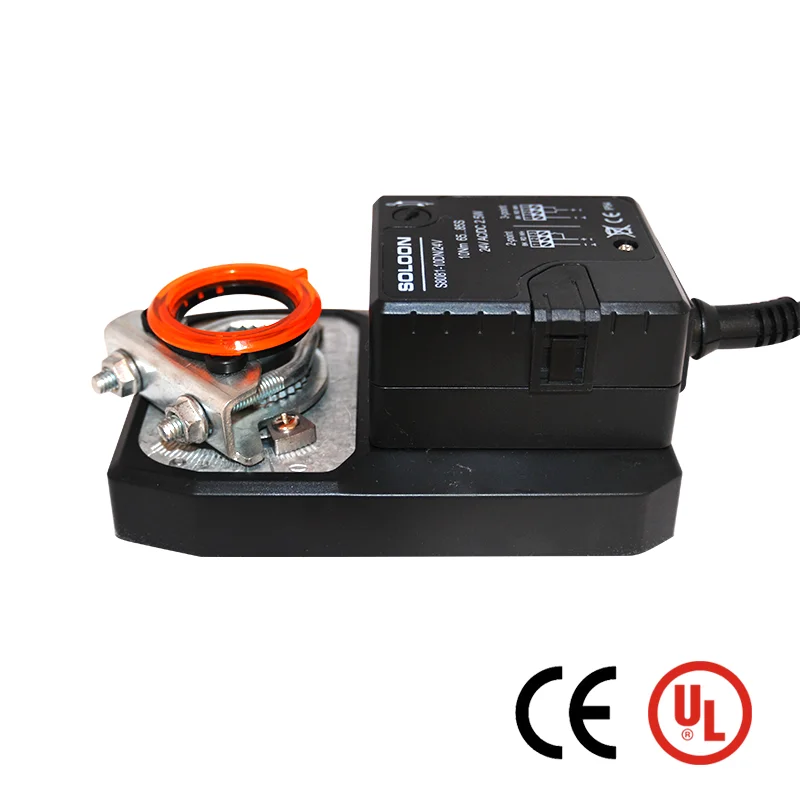

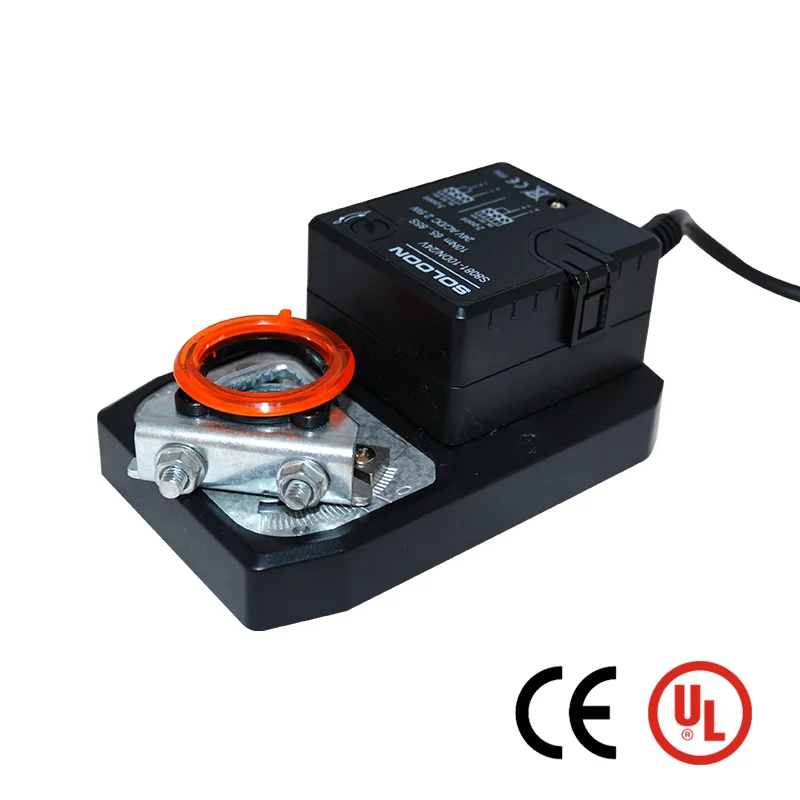

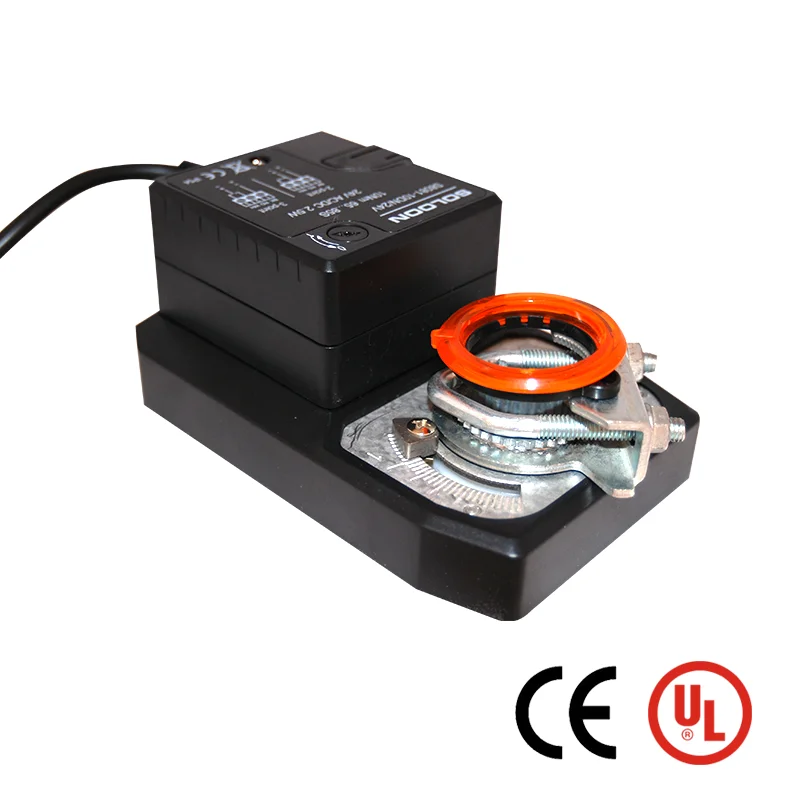

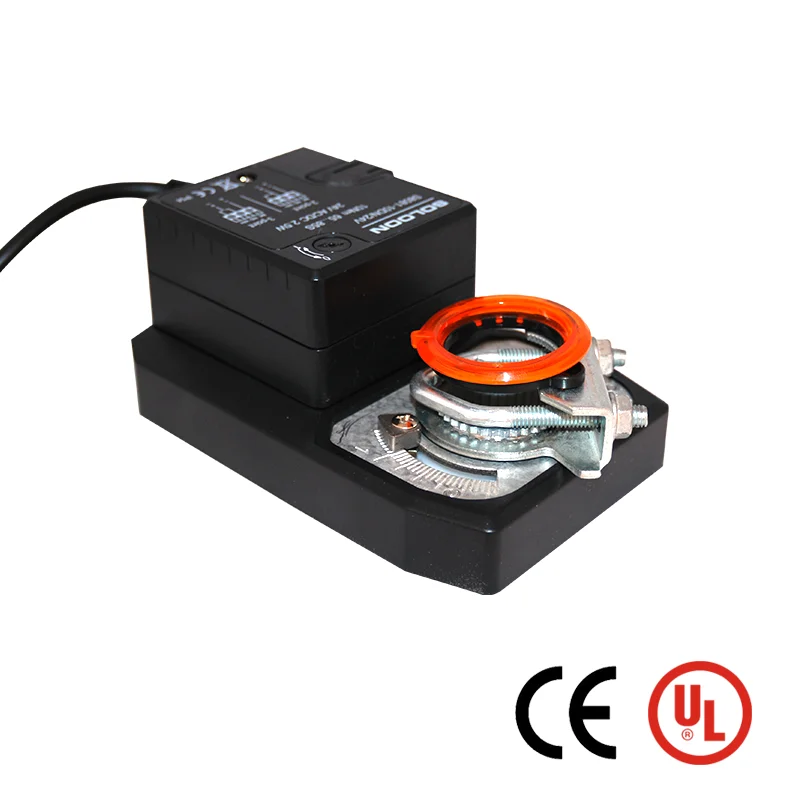

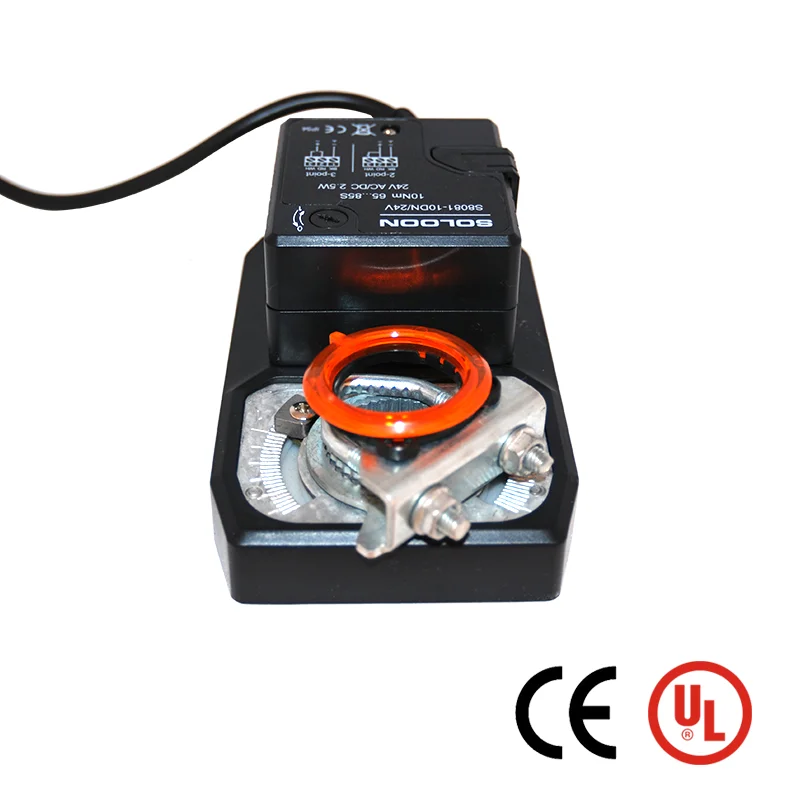

New Type General 40NM ON/OFF electric motor General Damper Actuator
- Category: >>>
- Supplier: Soloon Controls (Beijing) Co. Ltd.
Share on (60670239935):
Product Overview
Description
Product Description
Technical Specification
| Item | S8081-40DN(F)/24V | S8081-40DN(F)/230V |
| Torque | 40Nm | |
| Damper Area | 8m2 | |
| Running Time | 155~165 | |
| Power Supply | AC/DC24V 50/60Hz | AC230V 50/60Hz |
| Operating Power Consumption | 5W | 5W |
| Control Signal | 2/3 poin | |
| Weight | 1.4Kg | |
| Angle of Rotation | 0~90°(Max 93º) | |
Auxiliary Switch Rating | 3(1.5)Amp 250V | |
Life Cycle | >70000 cycles | |
Noise Level | Max 45dB | |
IP Protection | IP54 | |
Temperature | -20~+50℃ | |
Humidity | 5~95%RH | |
Storage Temperature | -40~+70℃ | |
| Certificate | CE & UL | |
Wiring Diagram: Auxiliary switch
Outline Size:
24V 230V
