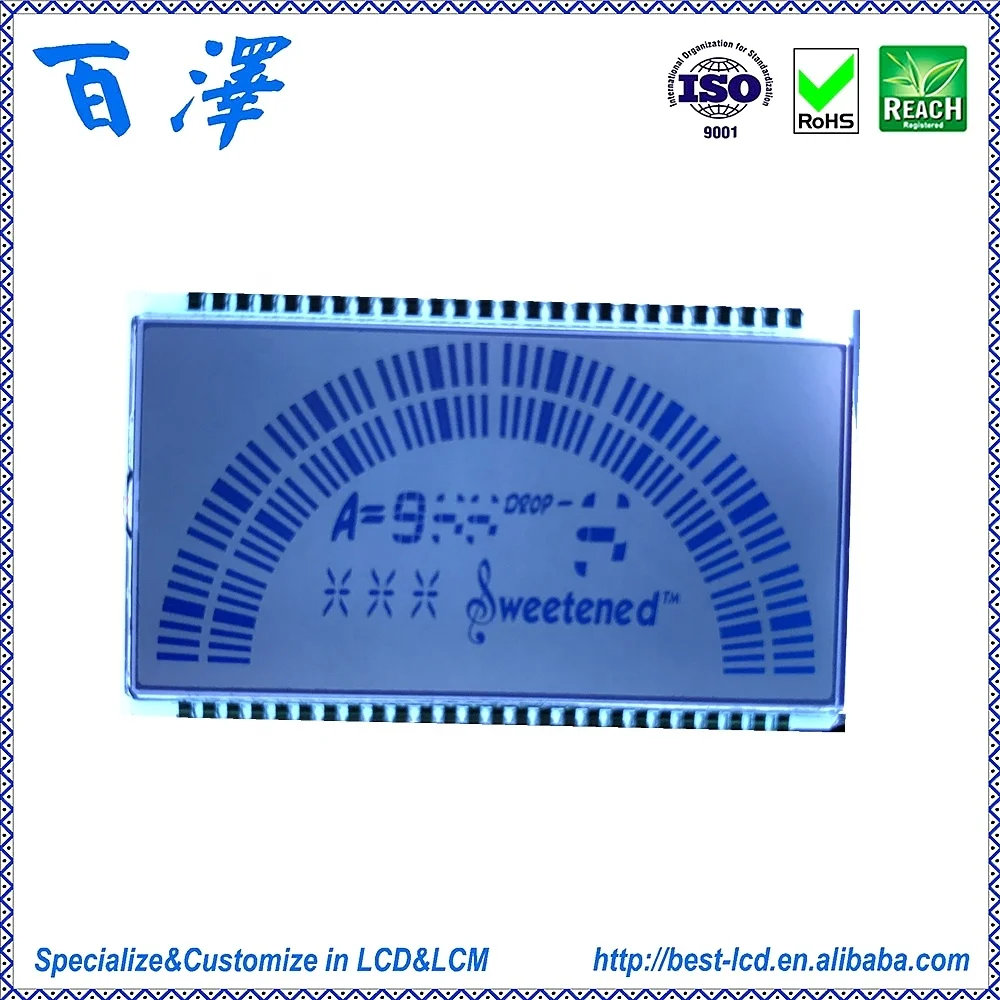

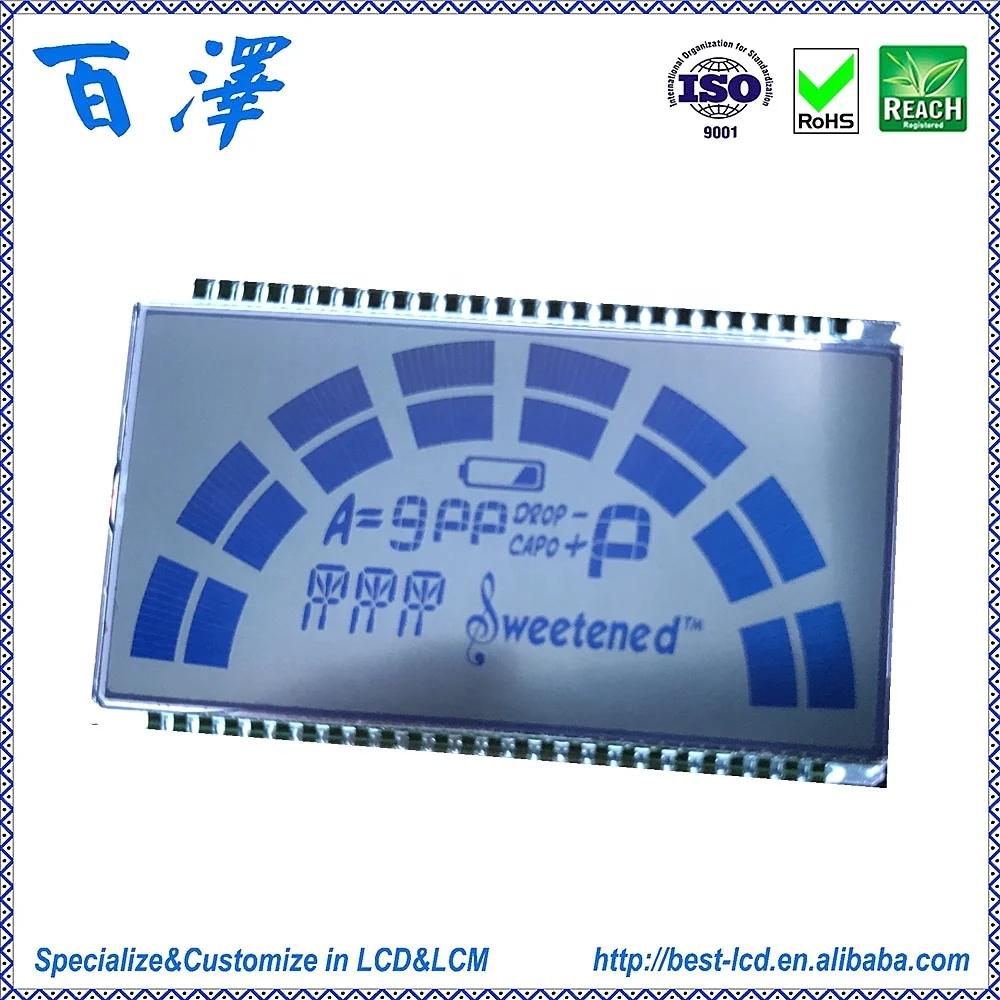

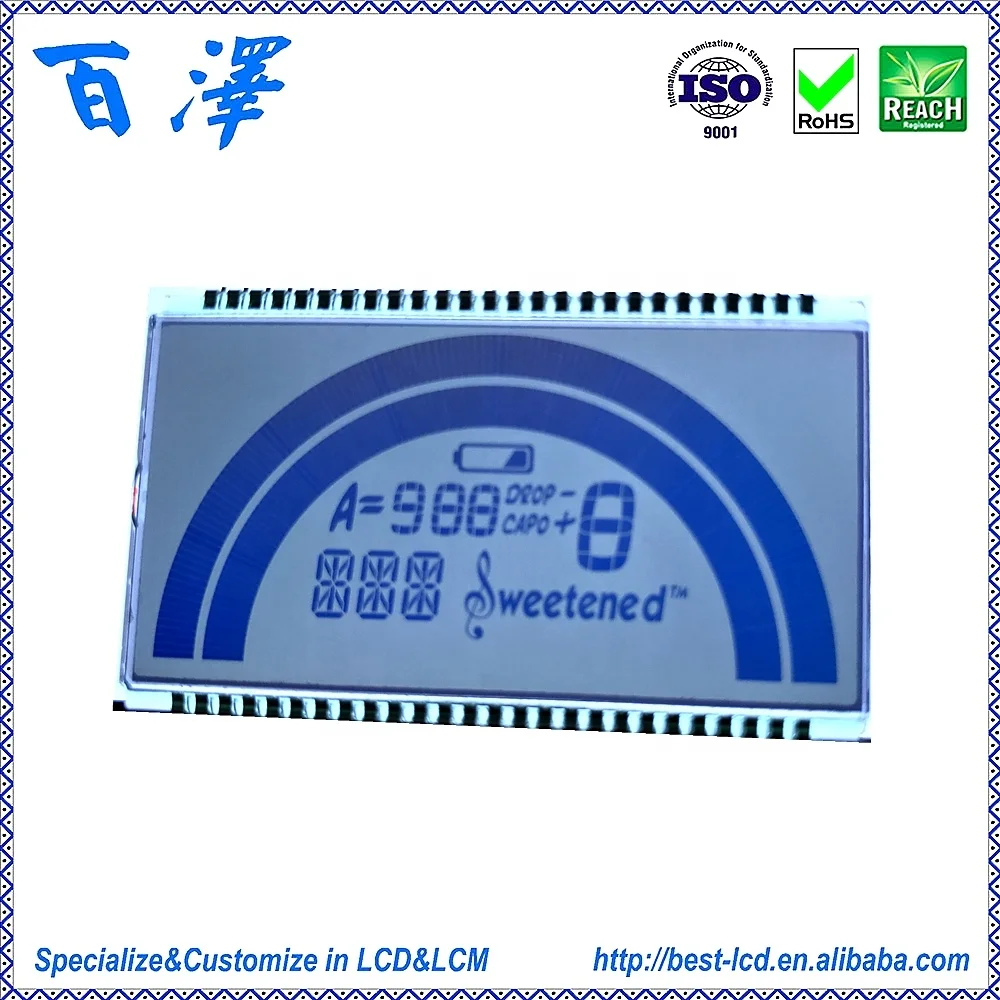

Customized 52 Pin 3.5V Transflective Graphic / Segment FSTN LCD Display For Music Tuner / Organ Stop

Product Overview

Description

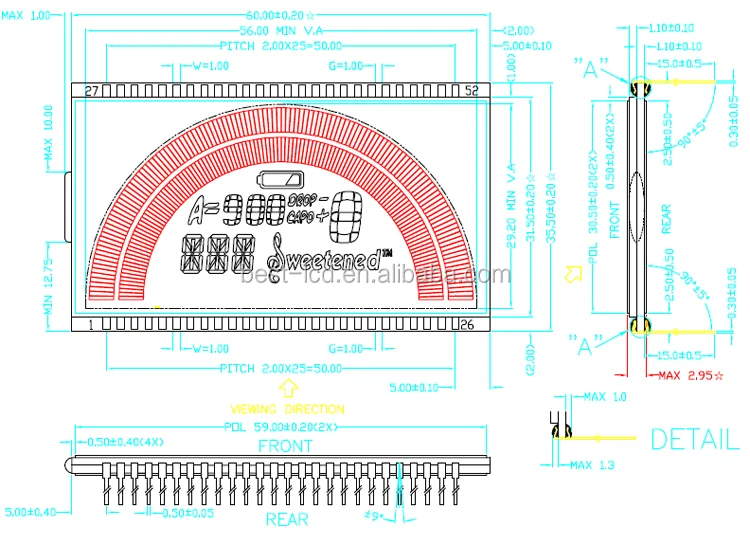

1. Professional Mechanical Drawing:









2. Precisely Technical&Mechanical Parameters FYI:



Application	Music Tuner / Organ Stop / Recorder/ Radio etc..
Display Type	FSTN/Positive
Polarizer Type	Transflective
Outline Dimension	60.00*31.50/35.50*1.10mm
Viewing Angle	6 O'clock
Connector Type	Metal Pin
Driver Method	1/8Duty, 1/4Bias
Pitch	2.0mm
Operate Temp.	0~50degree
Storage Temp.	-10~60degree
Operative Vol.	3.5V

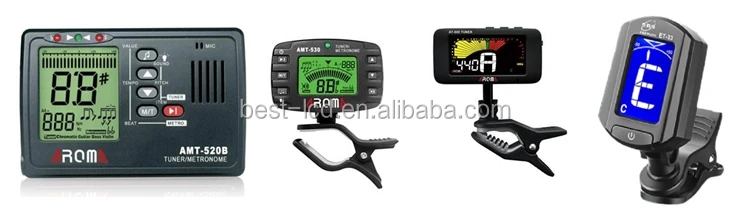

3. Appropriate Application: Customized 52 Pin 3.5V Transflective Graphic / Segment FSTN LCD Display For Music Tuner / Organ Stop etc.













4. Qualified Packaging:













5. Trusted Shipping:











6. Outstanding Capabilities&Services:

Customizing & designing segment, character, graphic LCD Display and LCD Module(Including LED Backlight, IC) with different sizes, shapes, display icons for clients.



Product Type:

1. LCD Type:  TN, HTN, STN, FSTN, VA, COB, COG etc.....

2.  Any digitals, Icons, graphic can be customized and designed according to customers' requirements.

3. Polarizer type: Transmissive, Transflective, Reflective

4. Connector Type: Metal Pins, Zebra, Heat-seal, FPC...

5. ITO Glass thickness: 1.1mm, 0.7mm, 0.55mm

6. The range of operating Temperature: -40~90°C





Our products are widely and well accepted in North America such as USA,Canada; European countries such as UK, Germany, France, Netherlands, Greece, Russia, Sweden, Ireland, Swiss, Austria, Luxembourg, Belgium, Italy, Spain, etc. ; Asia countries such India, Singapore, Malaysia etc..
