OPT Series CS 728A Auto Automatic Brass Water Drain Electronic with Mechanical Solenoid Valve Pneumatic Timer
- Category: Valves >>>
- Supplier: Yueqing Right Pneumatic Co. Ltd.
Share on (60670267602):
Product Overview
Description
OPT Series CS-728A Auto Automatic Brass Water Drain Electronic with Mechanical Solenoid Valve Pneumatic Timer
Product Description
Specifications:

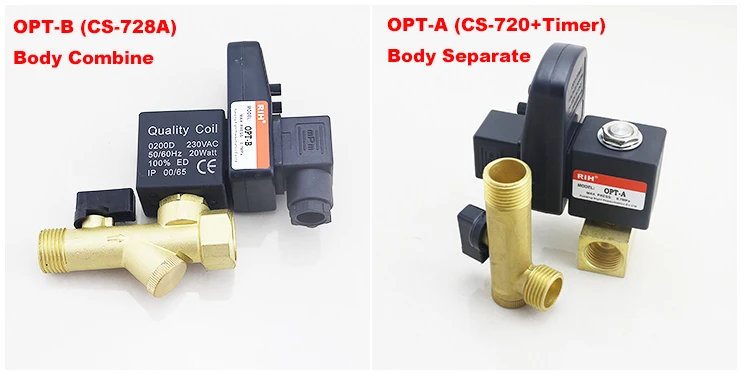

| Model | OPT-A | OPT-B | OPT-T | |
| Seperated | no | yes | coil | |
| Port Size | 1/2'' | |||
| Pressure range | 0.05-0.85 Mpa | |||
| Proof pressure | 1.6 Mpa | |||
| Power supply(voltage) | 24 to 240V AC/DC 50HZ/60HZ | |||
| Ambient temperature | -5~80℃ | |||
| Voltage range | ±10% | |||
| Protection class | IP65 | |||
| Connection type | DIN43650A | |||
| Voltage | AC220V 50/60HZ | |||
| The highest pressure | Normally open | 8 kgf/cm2 | ||
| Normally closed | 10kgf/cm2 | |||
Company Information
More Product
FAQ
Q1: Are factory or trading company?
A1:We are the leading manufacturer of pneumatic products who have 13 years experience. Welcome to visit our factory
at any time.
Q2:Can I get sample?
A2:Yes,We can offer free sample but express charge by your side. In a word, each of your needs are of most valuable
matter for us.
Q3:Do you accept OEM business?
A3:Yes.We do.
Q4:What’s the payment term?
A4: T/T,Western Union,Paypal are applicable for us.
Q5: How about the warranty?
A5: 12 months under normally used.
Q6. What’s the delivery time ?
A6.. Normal model 2-5days,because we have ability to do the stock.For big order,it takes about 10-15days.
Q7: How does your factory dothe quality control?
A7: Quality is important,we always attach importance to quality control from the beginning to the end of the prodution.
Each product will be fully assembled and carefully tested before packing and shipping.
