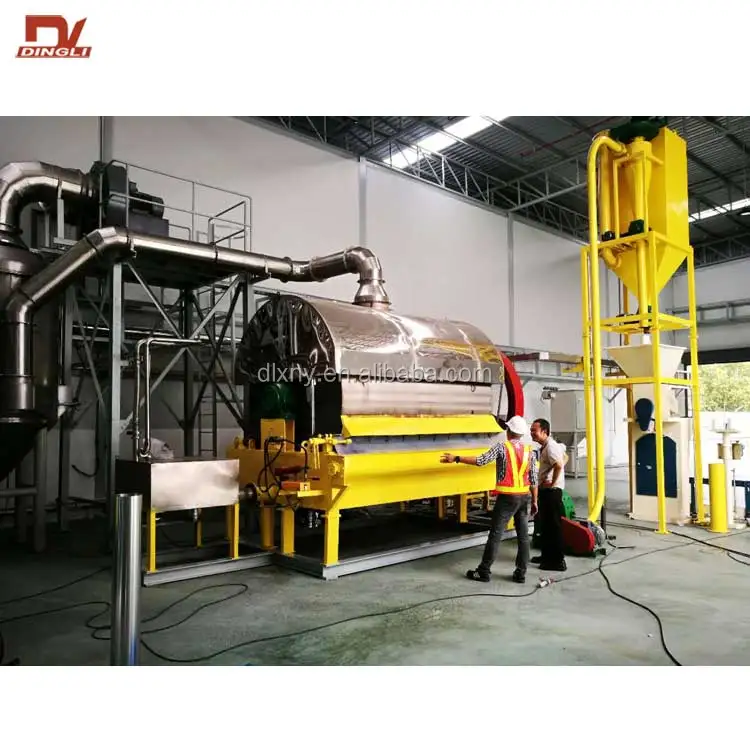

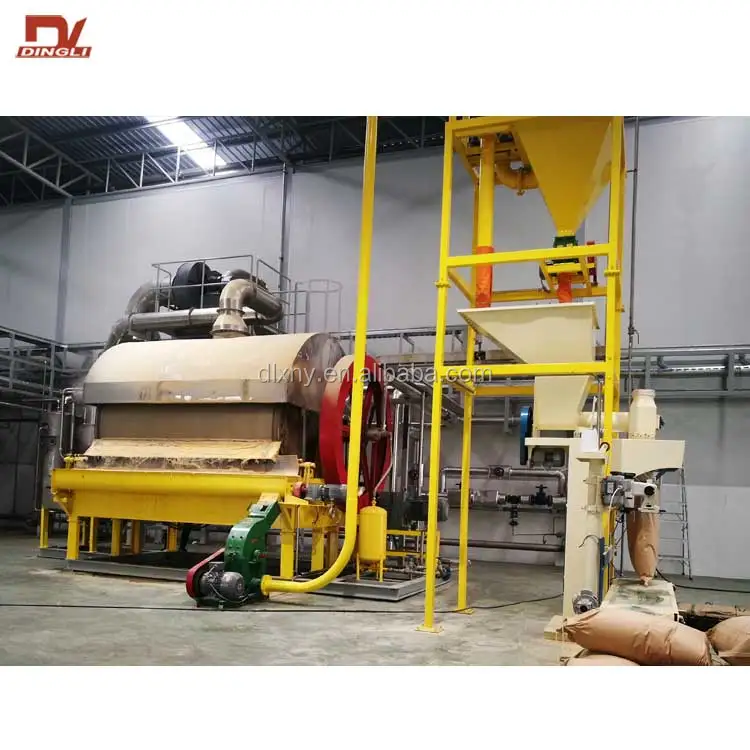

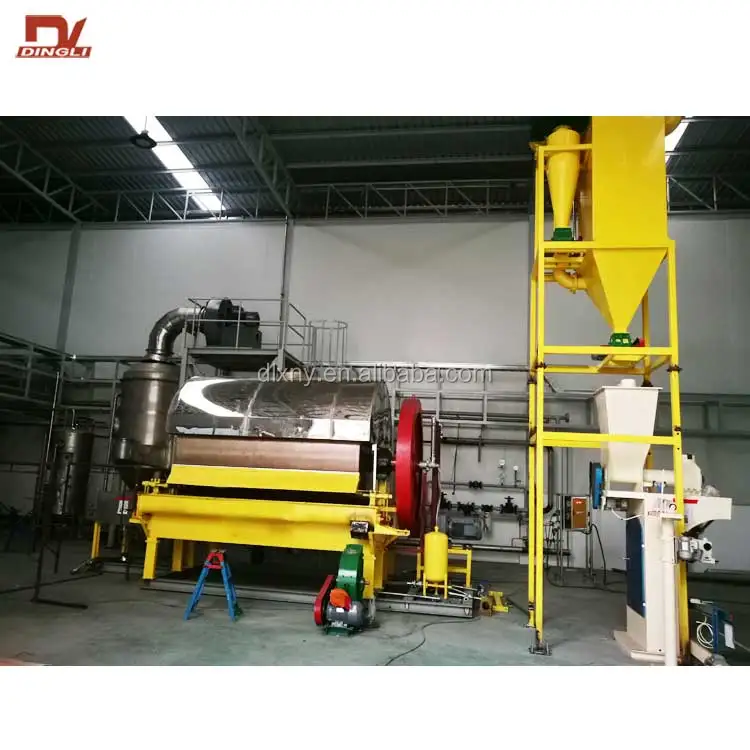

Widely Used Beer Yeast Rotary Drum Dryer for Animal Feeds
- Category: >>>
- Supplier: Zhengzhou Dingli New Energy Technology Co. Ltd.
Share on (60670276479):
Product Overview
Description
Technical Parameters
Model (JHD) | Capacity (kg/h) | Drum Size(m) | Drum Rotation Rate (r/min) | Steam Working Pressure (Mpa) | Maximum steam pressure (Mpa) | Steam consumption (kg/h) | Power (KW) | Weight (T) |
1000*1500 | 16-20 | Φ1*1.5 | 4-8 | 0.15-0.3 | 0.3 | 130-160 | 4 | 4.5 |
1500*2000 | 25-30 | Φ1.5*2 | 4-8 | 0.15-0.3 | 0.3 | 170-210 | 5.5 | 6.0 |
1500*2500 | 40-55 | Φ1.5*2.5 | 4-8 | 0.15-0.3 | 0.3 | 280-370 | 7.5 | 8.5 |
2000*2000 | 50-65 | Φ2*2 | 4-8 | 0.15-0.3 | 0.3 | 320-390 | 11 | 10.7 |
2000*2500 | 60-80 | Φ2*2.5 | 4-8 | 0.15-0.3 | 0.3 | 360-480 | 15 | 12.2 |
2000*3000 | 70-100 | Φ2*3 | 4-8 | 0.3-0.5 | 0.5 | 370-500 | 18.5 | 13.5 |
2000*3500 | 90-120 | Φ2*3.5 | 4-8 | 0.3-0.5 | 0.5 | 380-520 | 22 | 15.0 |
2500*2000 | 70-90 | Φ2.5*2 | 4-8 | 0.3-0.5 | 0.5 | 350-460 | 15 | 12.5 |
2500*2500 | 90-125 | Φ2.5*2.5 | 4-8 | 0.3-0.5 | 0.5 | 370-500 | 22 | 14.5 |
2500*3500 | 100-150 | Φ2.5*3.5 | 4-8 | 0.3-0.5 | 0.5 | 380-550 | 30 | 17.0 |
2500*4000 | 120-180 | Φ2.5*4 | 4-8 | 0.3-0.8 | 0.8 | 400-600 | 37 | 21.0 |
3000*4000 | 150-250 | Φ3*4 | 4-8 | 0.3-0.8 | 0.8 | 450-800 | 45 | 25.0 |
Product Description
Product Application
JHD series yeast rotary dryer is one kind of Single Layer Dryer which can be used in the drying process of a variety of slurries, especially suitable for the recycling of brewery yeast. We have yeast dryer products of different configurations to meet the demand of the annual output from fifty thousand ton to three hundred thousand ton. This machine is suitable for the drying process of food, chemical, pharmaceutical and other industries.

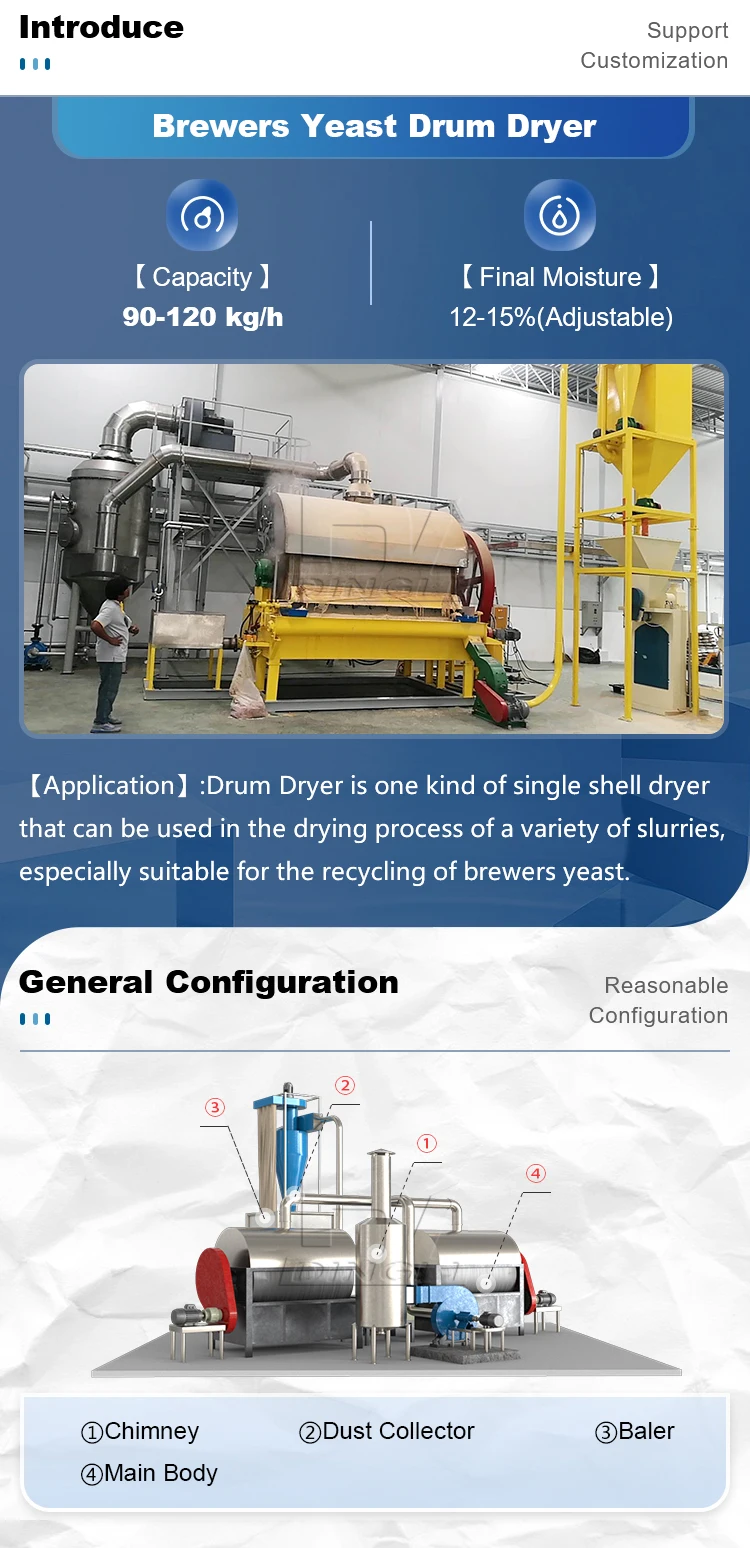

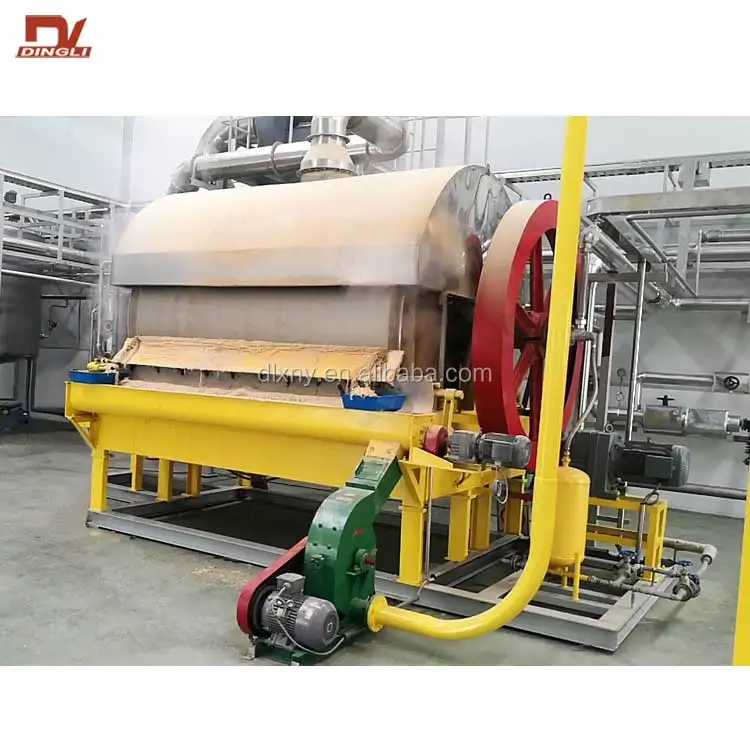

Yeast dryers are composed of drum, frame, transmission system, scraper device, material limit device, scraping device, feeder, steam system structure, electric control cabinet and exhaust hood.
Main Features
1)Drum is made of high-quality cast iron, which is deeply processed and polished and have the advantage of corrosion prevention and non-pollution.
2)The design of heat conduction could largely reduce the heat loss from heat media, raising the heat efficiency to 70% and lowering the energy cost.
3)Compact distribution, space saving, convenience operation and maintenance.
4) Yeast dryer is designed based on the German machinery technique and local conditions, which has outstanding features.

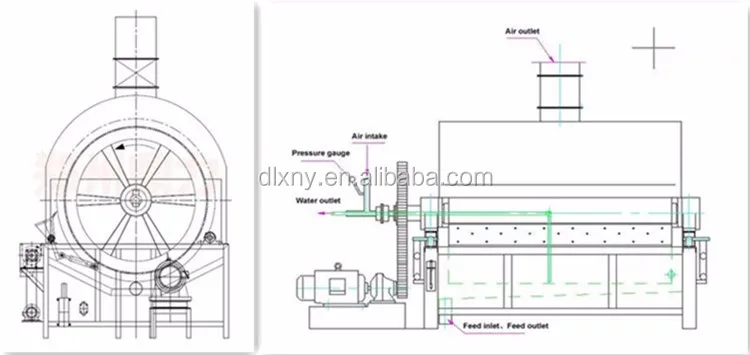

Working Principle
Our brewers' yeast dryer product take advantage of heat conduction between hot steam and wet materials, realizing the indirect drying process. The drum is a hollow metal cylinder whose surface is deeply processed to be clean and polished. The drum rotates to the axial under drive devices (gear drive) in an adjustable rate. Slurry is preheated to 0℃ in preheating tank and then delivered to feeding chute through pump. Drum is immersed about 60-80mm. The external surface of rotating drum is coated with a layer of uniform slurry and pumped in the hot steam under 0.15-0.3Mpa. The slurry is heated on the external surface, where moisture is taken away by draught fan. With a single circle, the wet materials can be dried completely. Knot material in the external surface is swept off by scraper and fall on outlet for collection.
Packing & Delivery
Below is Dingli Group Packaging & Shipping:
Your device will be packed well in container and suit for long ocean shipping.
Below is Dingli Group Service Items:
Pre-sale
1. According to your needs, select right model for you.
2. According to your special requirements, design customized solution and manufacture customized products for you.
3. Welcome your visit.
Sale
1. Sign contract, pay deposit, we arrange production.
2. Product acceptance.
3. Help you formulate construction scheme.
After-sale
1. Assign engineer service for you on-site freely.
2. Install and adjust device, train how to operate.
3. After installation, leaving 1-2 technical staff to help you on-site production, until achieve customer satisfaction.
Below are Dingli Group Factory & Sales Team:

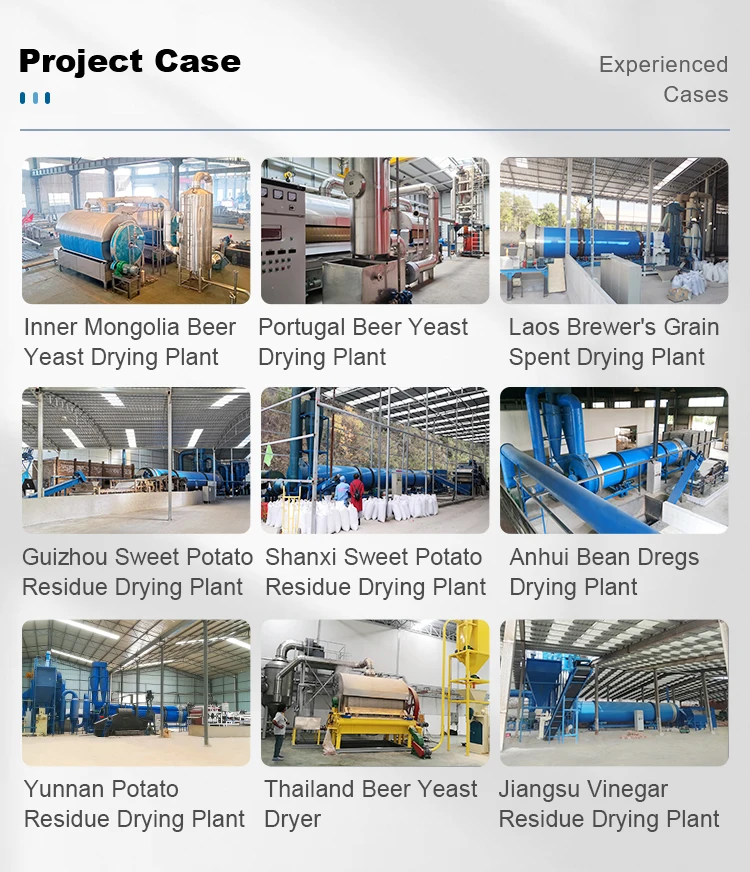

Buyer & Project Case
Below are Dingli Customers Visiting:
Dingli Dryer Production Line has exported to over 30 countries with 300 foreign partners, such as Germany, Britain, United States, Italy, Israel, Chile, Thailand, Russia, Vietnam, India, Cambodia, Indonesia, Malaysia, Thailand etc.

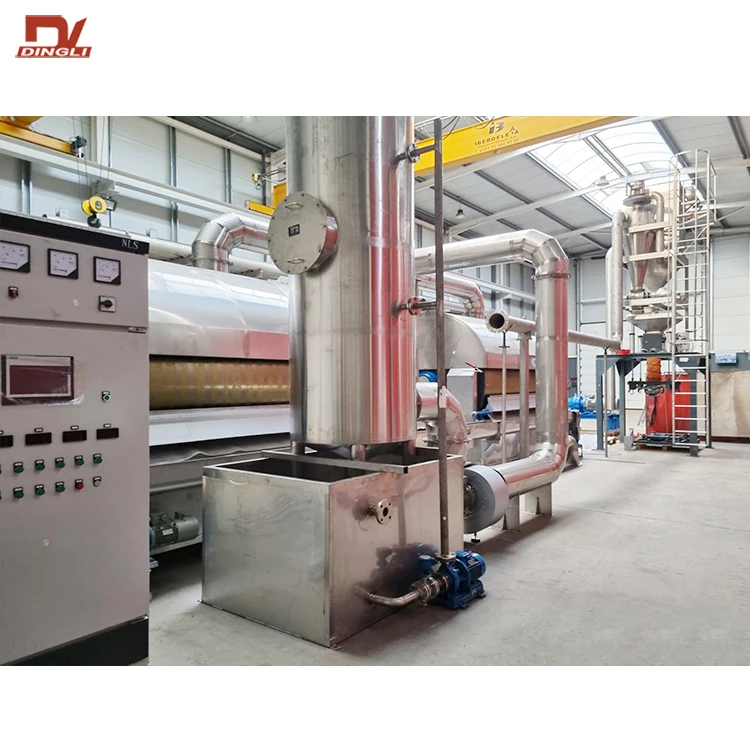

Below are Installation Sites of Our Customers:
After reach deals, Dingli Engineer will fly to your address, install and adjust machine for you freely.
Also train you operation skills, until you are satisfied.
