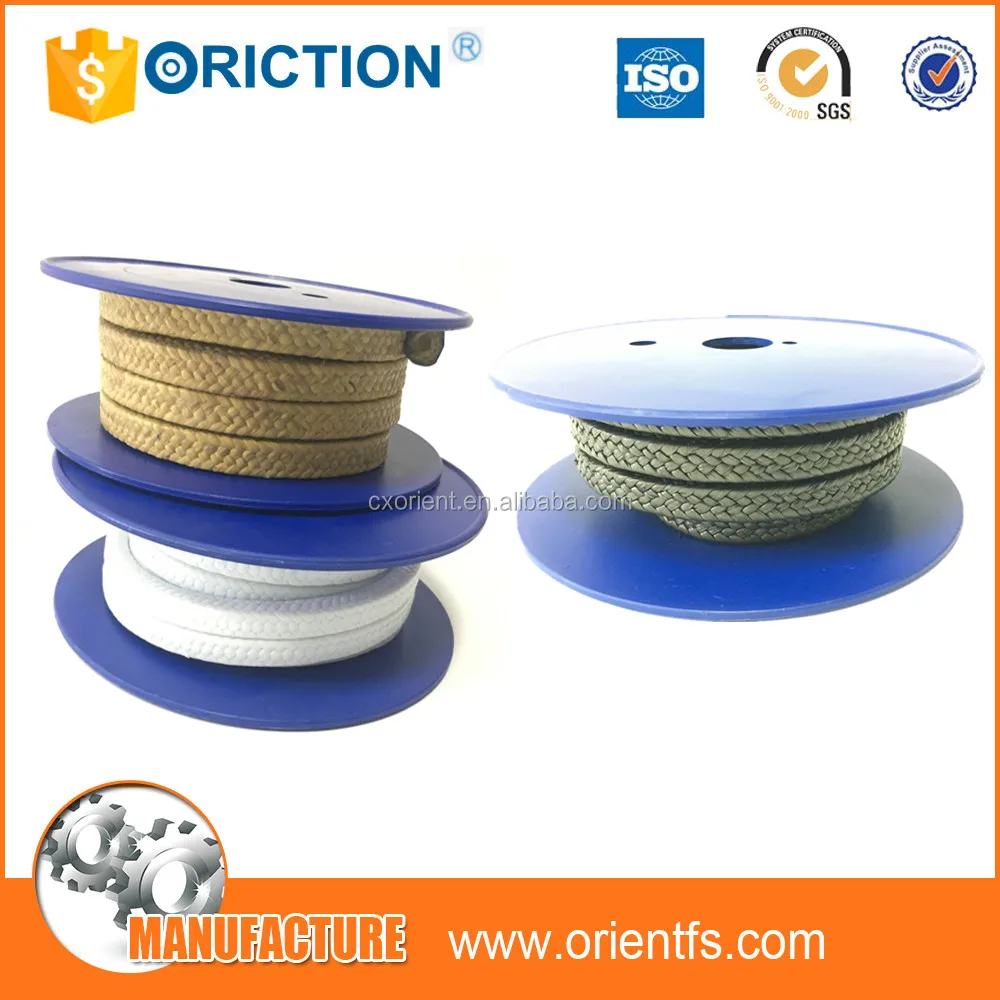

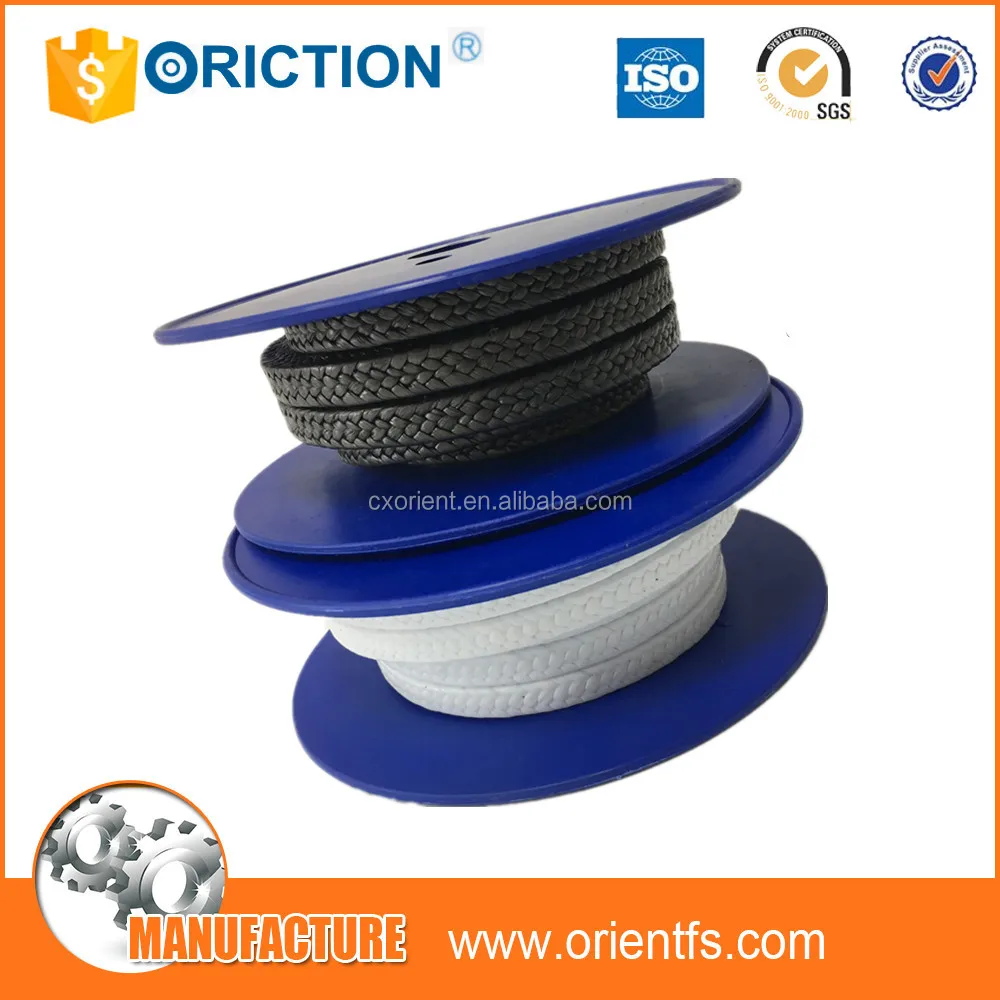

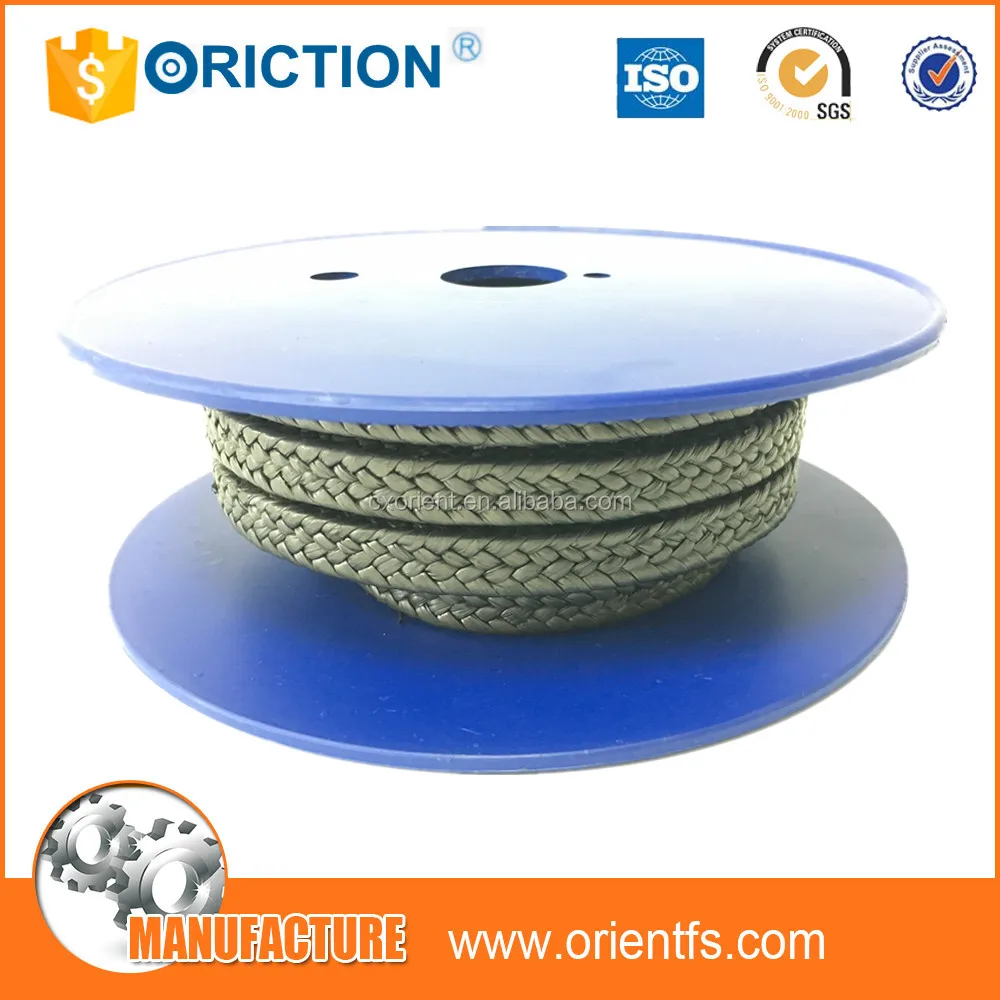

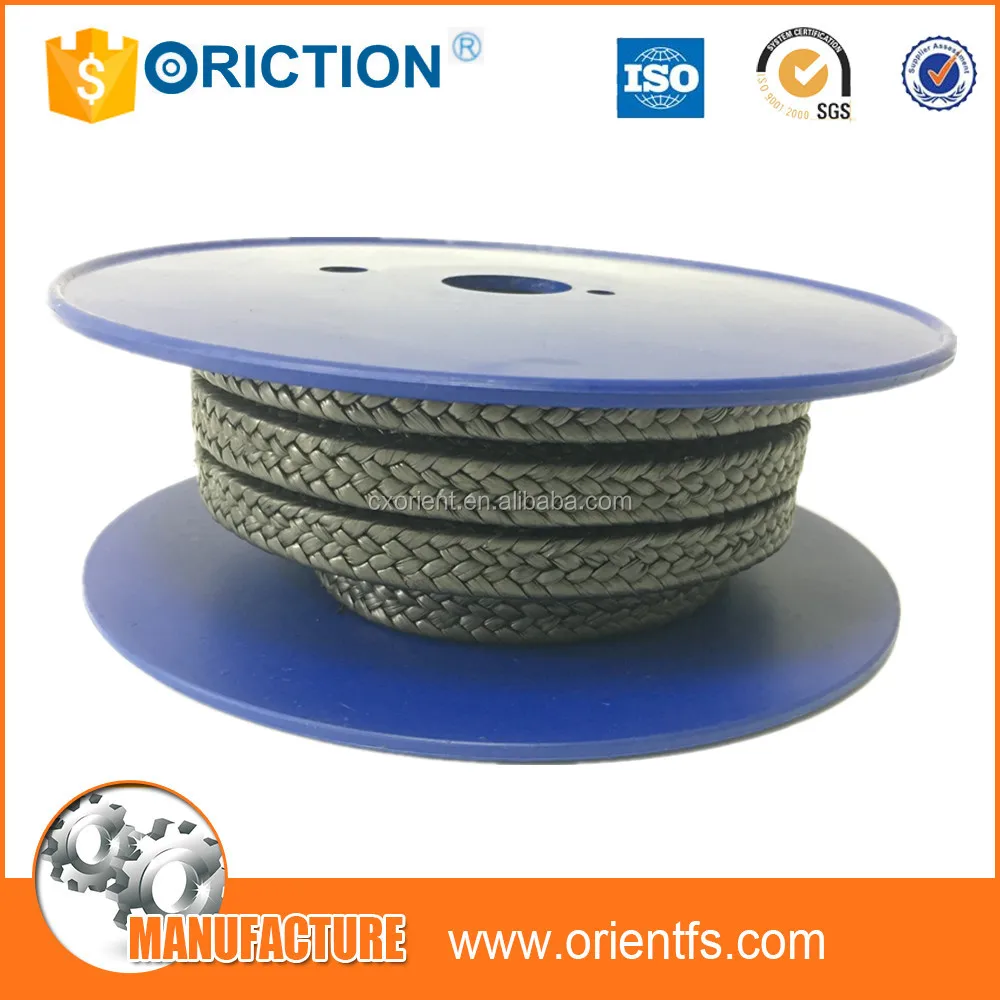

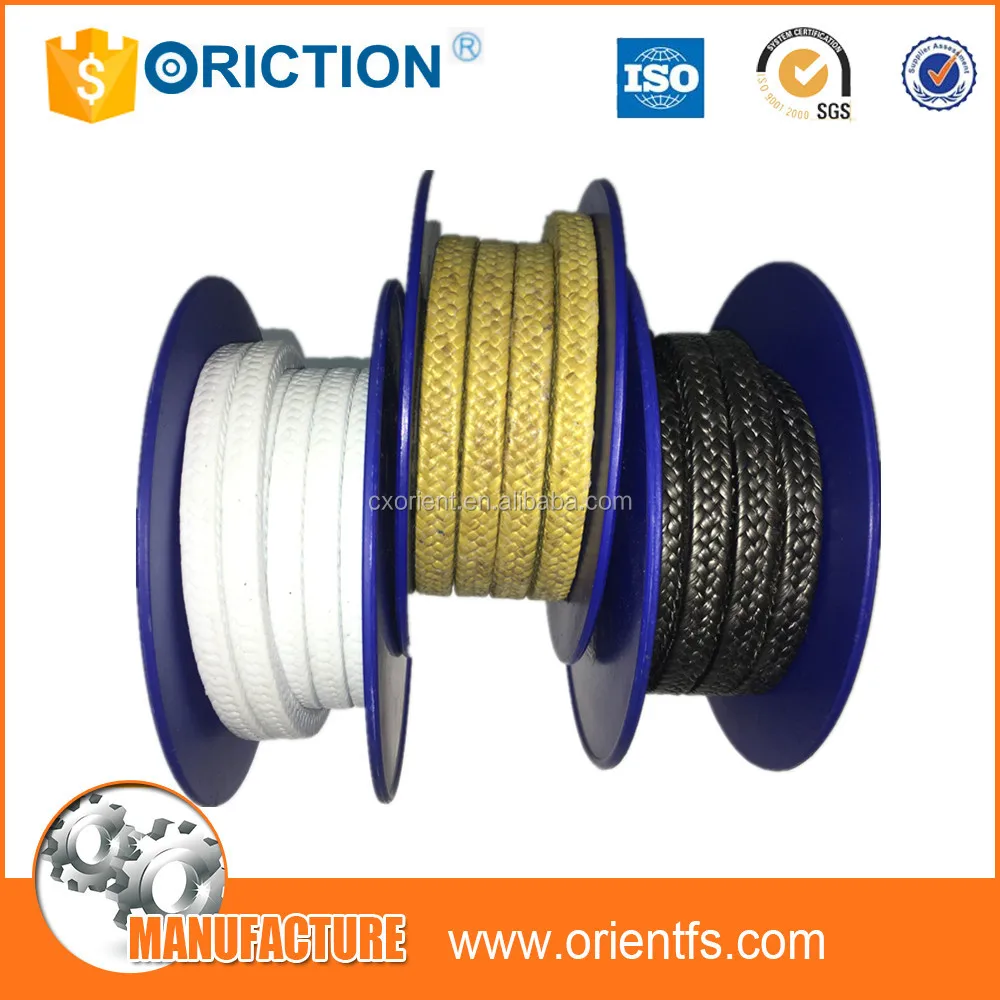

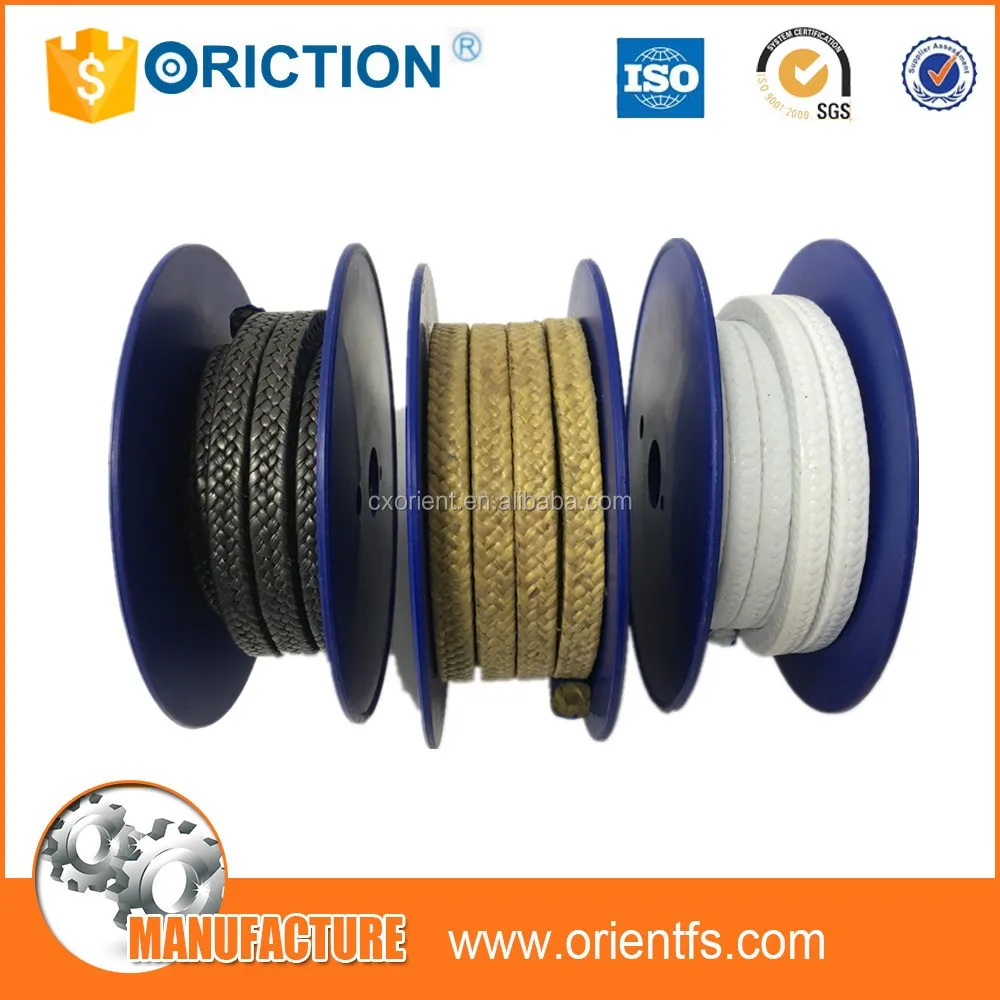

PTFE Impregnated Graphite Carbon Fiber Gland Packing

Product Overview

Description



PTFE Packing Description:

Pure PTFE Packing	Temperature: -450°F~500°F(-268°C~260°C)
	PH Range: 0~14
	Speed: 2,000 fpm(10 m/s)
	Pressure:
	Pump: 300 psi(20 bar)
	Valve: 4,000 psi(275 bar)
	Material: PTFE filament, PTFE disoersion, lubricating oil
	Construction: lattice braid
	Application Media: chemicals, solvents, corrosives, gases, water, steam, ammonia, air, oils, paperstock, liquor
	Equipment: rotating & reciprocating equipment, valves, expansion joints
	Industry Served: Chemical & Pharmaceutical, Pulp & Paper,  General Industry





Pure PTFE Packing without Oil	Temperature: -450°F~500°F(-268°C~260°C)
	PH Range: 0~14
	Speed: 2,000 fpm(10 m/s)
	Pressure:
	Pump: 300 psi(20 bar)
	Valve: 4,000 psi(275 bar)
	Material: PTFE filament, PTFE disoersion, lubricating oil
	Construction: lattice braid
	Application Media: chemicals, solvents, corrosives, gases, water, steam, ammonia, air, oils, paperstock, liquor
	Equipment: rotating & reciprocating equipment, valves, expansion joints
	Industry Served: Chemical & Pharmaceutical, Pulp & Paper,  General Industry





PTFE Packing Food Grade	Temperature:-450°F~-500°F(-268°C~260°C)
	PH Range: 0~14
	Speed: 2,000 fpm(10 m/s)
	Pressure:
	Pump: 300 psi(20 bar)
	Valve: 2,500 psi(170 bar)
	Material: FDA compliant PTFE filament, lubricating oil
	Construction: lattice braid
	Application Media: food, chemicals, solvents, corrosives, gases, water, steam, oils
	Equipment: rotating & reciprocating equipment, valves
	Industry Served: Chemical & Pharmaceutical, Food & Beverage





Aramid Packing	Temperature:-400°F~-500°F(-240°C~260°C)
	PH Range: 2~12
	Speed: 2,000 fpm(10 m/s)  excursions to 2,500 fpm (13 m/s)
	Pressure:
	Pump: 500 psi(34 bar)
	Material: Aramid, PTFE, Lubricating oil
	Construction: lattice braid
	Application Media: abrasives, water, medium acids & medium caustices, oils, steam, solvents, wastewater, slurries, paper stock, liquors, asphalt, fly ash, condensate
	Equipment: rotating & reciprocating equipment
	Industry Served: Chemical & Pharmaceutical, Power Generation, Oil & Gas, Pulp & Paper, Municipal(Wastewater),  Mining & Minerals, Steel & Metals





PTFE Graphite Packing Aramide Corners Packing	Temperature:-350°F~550°F(-212°C~288°C)
	PH Range: 2~12
	Speed: 2,500 fpm(12.5 m/s)
	Pressure:
	Pump: 500 psi(34 bar)
	Material: Expanded PTFE, graphite, aramid, lubricating oil
	Construction: lattice braid
	Application Media: abrasives, water, medium acids & medium caustices, oils, steam, solvents, wastewater, slurries, paper stock, liquors, asphalt, fly ash, condensate
	Equipment: rotating & reciprocating equipment
	Industry Served: Chemical & Pharmaceutical, Pulp & Paper, Municipal(Wastewater), Oil & Gas, Mining & Minerals, Steel & Metals, Power Generation
